F032134799 - Armature

Trade number 134799

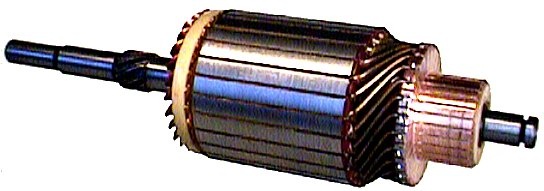

Product image - main
Trade number 134799

Details & description

kW 1.5, Voltage 12, Commutator Diameter 35.50, Commutator Distance 20.80, OD/spline/teeth 18.10, No./bars 27, Commutator Height 30.30, Bar length 10.00, Commutator Inner Diameter 15.20, Bar Distance 2.60, Core Diameter 65.00, Shaft length 257.00, Bar Cross Distance 36.20, Commutator End Shaft Diameter 12.50, Bar Lane Height 21.00, Spline Teeth Length 17.50, No./splines 10, Drive End Inside Shaft Diameter Outside 11.90, Commutator Outer Diameter 56.50, Drive End Inside Shaft Diameter 14.15, Rotation CCW, Shaft Diameter 18.70

Product information

Electrical information

  • kW1.5
  • Voltage12

Physical information

  • Commutator Diameter35.50
  • Commutator Distance20.80
  • OD/spline/teeth18.10
  • No./bars27
  • Commutator Height30.30
  • Commutator Inner Diameter15.20
  • Bar Distance2.60
  • Core Diameter65.00
  • Shaft length257.00
  • Suggested Products

    Replacing and BOMs

    Competitor References

    • SA0121SAUTOSTARTER POLAND
    • 1004003919BOSCH
    • 2004003031BOSCH
    • 134799HC-CARGO
