F032134890 - Solenoid Switch

Trade number 134890

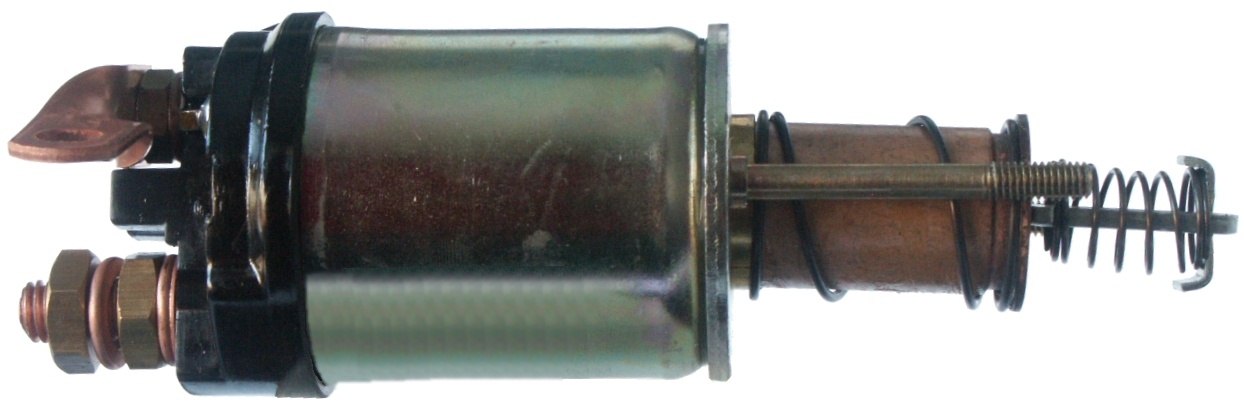

Product image - main
Trade number 134890

Details & description

Voltage 12, No./mount. holes 2, No./terminals 3, Terminal 50/mm 6.30, Coil Bolt Length 20.50, Plunger Inner Diameter 8.20, Plunger Outer Diameter 25.25, Servicing M127/2.8 kW, B+ M10, Terminal 50 Spade, B+ Height 24.00, Coil Bolt Diameter M8, Source Lucas, Outer Diameter 53.60, Remarks Cap: HC-CARGO 132270., Length 92.30, Amount of Mounting Holes 2, Total Length 108.00

Product information

Electrical information

  • Voltage12

Catalogue information

  • ServicingM127/2.8 kW
  • RemarksCap: HC-CARGO 132270.

Physical information

  • No./mount. holes2
  • No./terminals3
  • Coil Bolt Length20.50
  • B+M10
  • Terminal 50Spade
  • Coil Bolt DiameterM8
  • SourceLucas
  • Outer Diameter53.60
  • Length92.30

    • Suggested Products

    Replacing and BOMs

    Competitor References

    • SS4009AUTOSTARTER POLAND
    • F042010328BOSCH
    • F042S10328BOSCH
    • 335154HC-CARGO
    • 134890HC-CARGO
    • 000077269010LUCAS
    • 77130LUCAS
    • 77269LUCAS
    • SSL0007LUCAS
