F032136106 - Armature

Trade number 136106

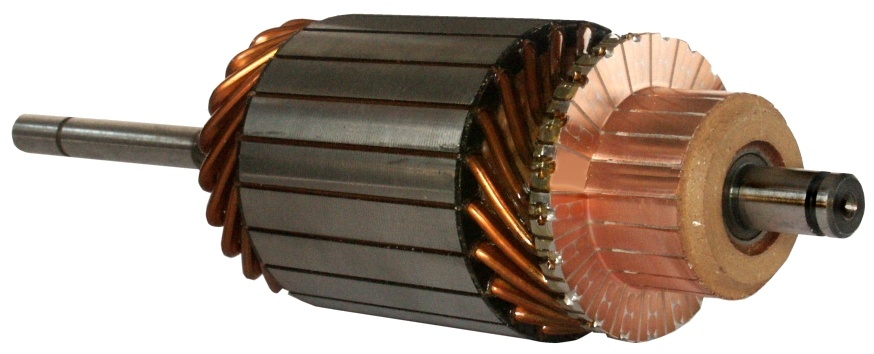

Product image - main
Trade number 136106

Details & description

kW 2.3, Voltage 9, Commutator Diameter 45.00, Commutator Distance 23.50, OD/spline/teeth 18.00, No./bars 21, Commutator Inner Diameter 24.00, Core Diameter 75.00, Shaft length 285.00, Commutator End Shaft Diameter 14.00, Bar Lane Height 21.30, Spline Teeth Length 23.80, No./splines 10, Drive End Inside Shaft Diameter Outside 12.00, Commutator Outer Diameter 68.60, Drive End Inside Shaft Diameter 12.00, Rotation CW, Remarks 12 V: HC-CARGO 136105., Shaft Diameter 18.90

Product information

Electrical information

  • kW2.3
  • Voltage9

Catalogue information

  • Remarks12 V: HC-CARGO 136105.

Physical information

  • Commutator Diameter45.00
  • Commutator Distance23.50
  • OD/spline/teeth18.00
  • No./bars21
  • Commutator Inner Diameter24.00
  • Core Diameter75.00
  • Shaft length285.00
  • Commutator End Shaft Diameter14.00
  • Bar Lane Height21.30

    • Suggested Products

    Replacing and BOMs

    Competitor References

    • 136106BOSCH
    • 136106HC-CARGO
