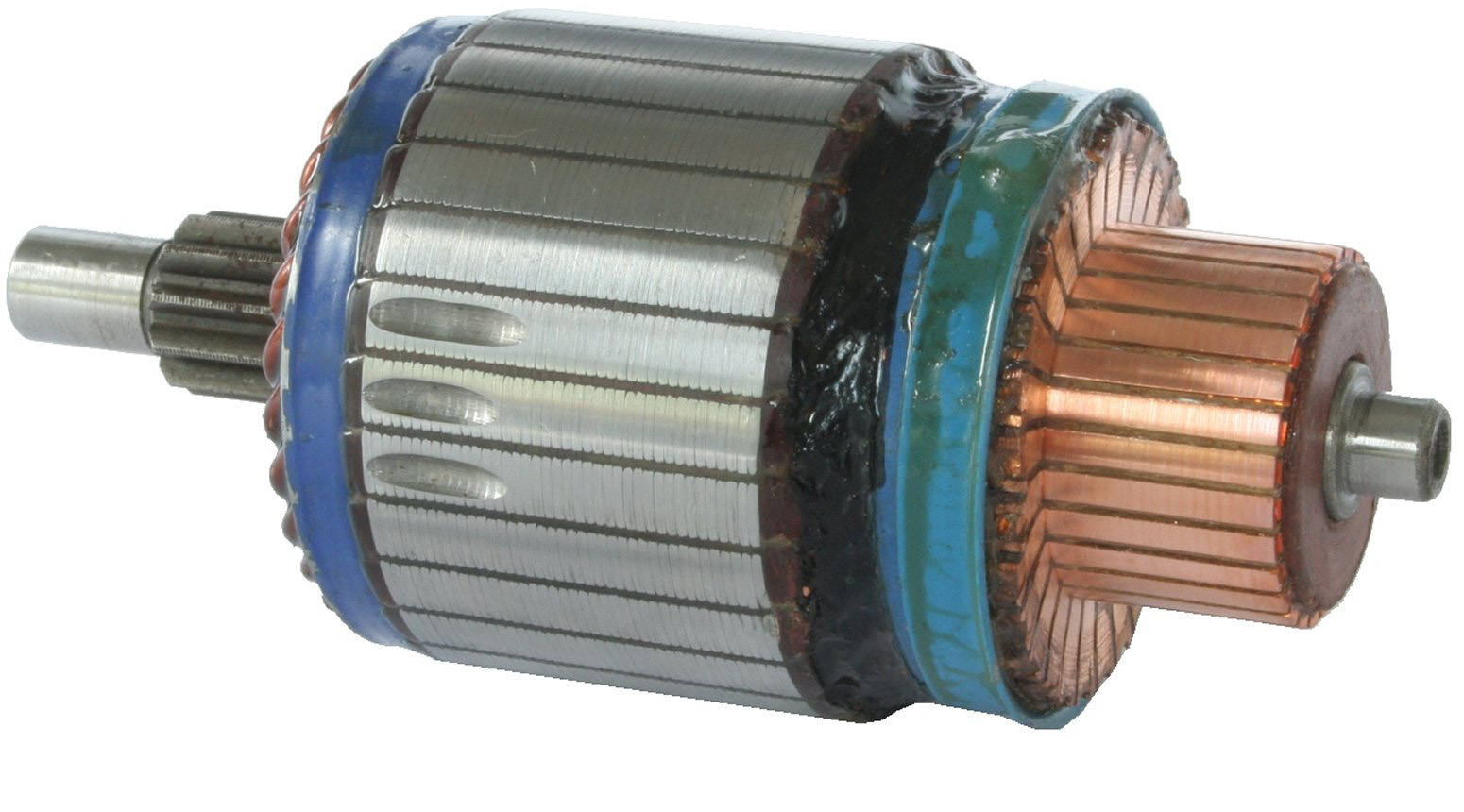

F032136334 - Armature

Trade number 136334
Product image - main
Trade number 136334

Details & description

kW 1.2/1.4, Voltage 12, Commutator Diameter 31.20, Commutator Distance 7.30, OD/spline/teeth 15.60, No./bars 29, Commutator Height 25.00, Bar length 4.50, Commutator Inner Diameter 12.00, Bar Distance 2.00, No./teeth 11, Core Diameter 54.00, Shaft length 121.50, Bar Cross Distance 37.30, Commutator End Shaft Diameter 8.00, Bar Lane Height 16.80, Spline Teeth Length 22.30, Drive End Inside Shaft Diameter Outside 10.00, Commutator Outer Diameter 29.50

Product information

Electrical information

  • kW1.2/1.4
  • Voltage12

Physical information

  • Commutator Diameter31.20
  • Commutator Distance7.30
  • OD/spline/teeth15.60
  • No./bars29
  • Commutator Height25.00
  • Commutator Inner Diameter12.00
  • Bar Distance2.00
  • No./teeth11
  • Core Diameter54.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 3615032500HYUNDAI
    • 3615032510HYUNDAI
    • N32618X60MAZDA
    • M106X50471MITSUBISHI
    • M806X06971MITSUBISHI
    • M106X06971MITSUBISHI
    • M106X50171MITSUBISHI
    • MD611204MITSUBISHI
    • MD618451MITSUBISHI

    • Competitor References

    • SA5011AUTOSTARTER POLAND
    • 136334HC-CARGO
    • AM3001UNIPOINT
    • 618316WAI
    • WSA19910WOOD AUTO SUPPL
