F032136717 - Solenoid Switch

Trade number 136717

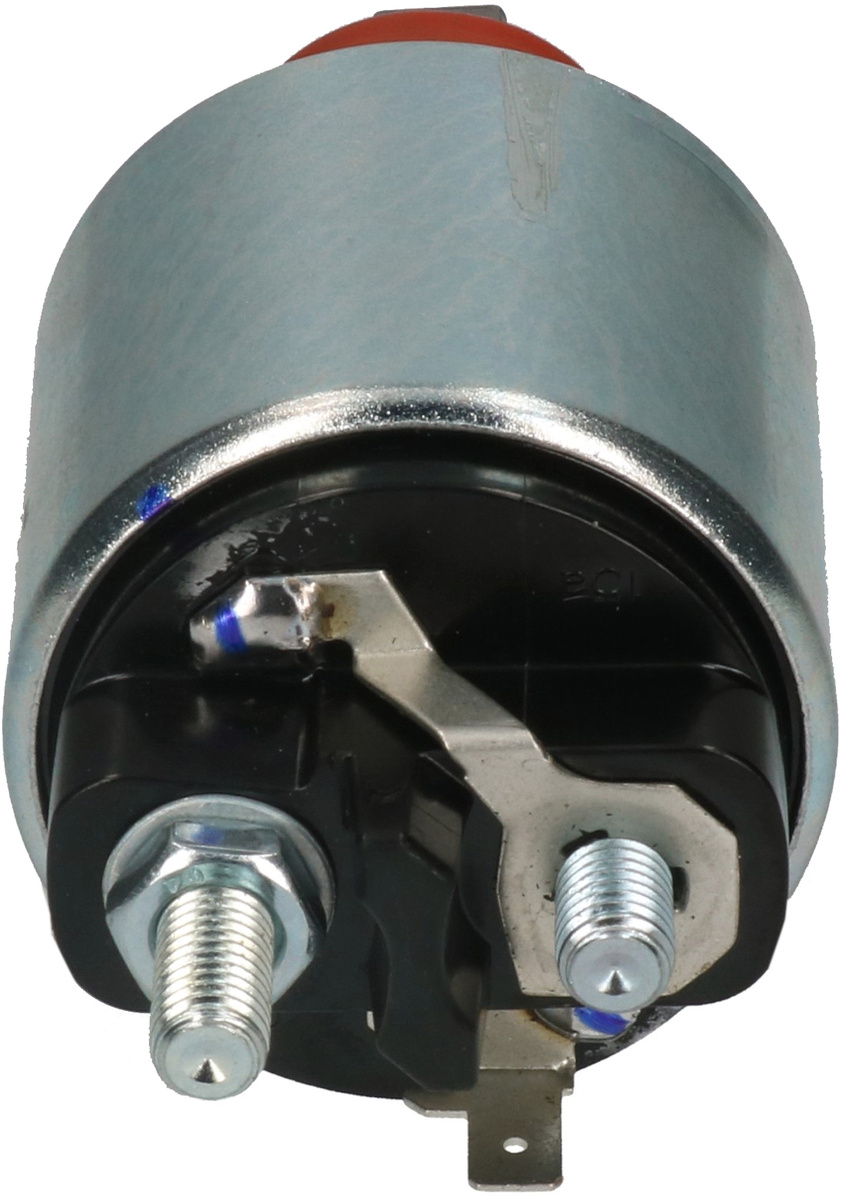

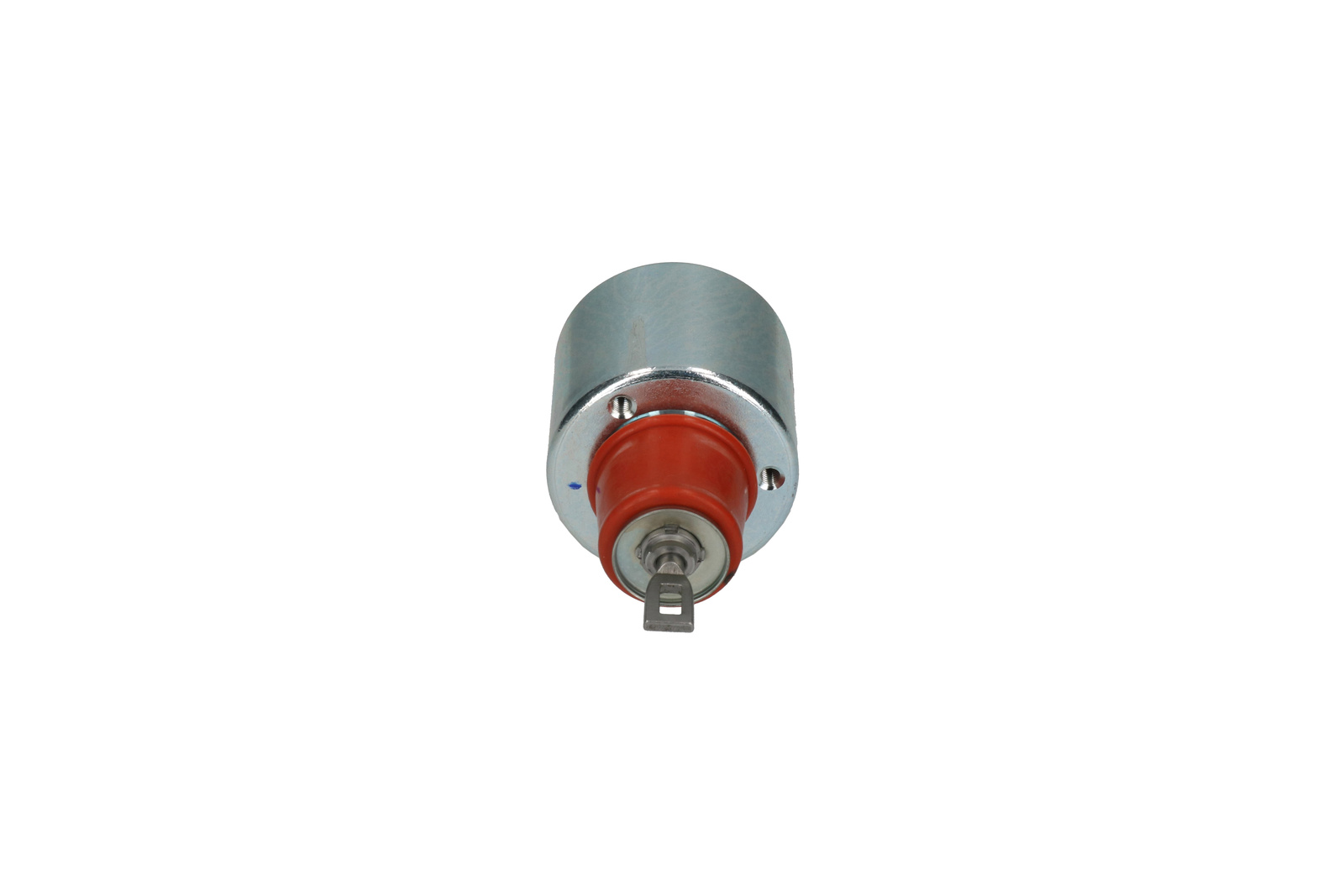

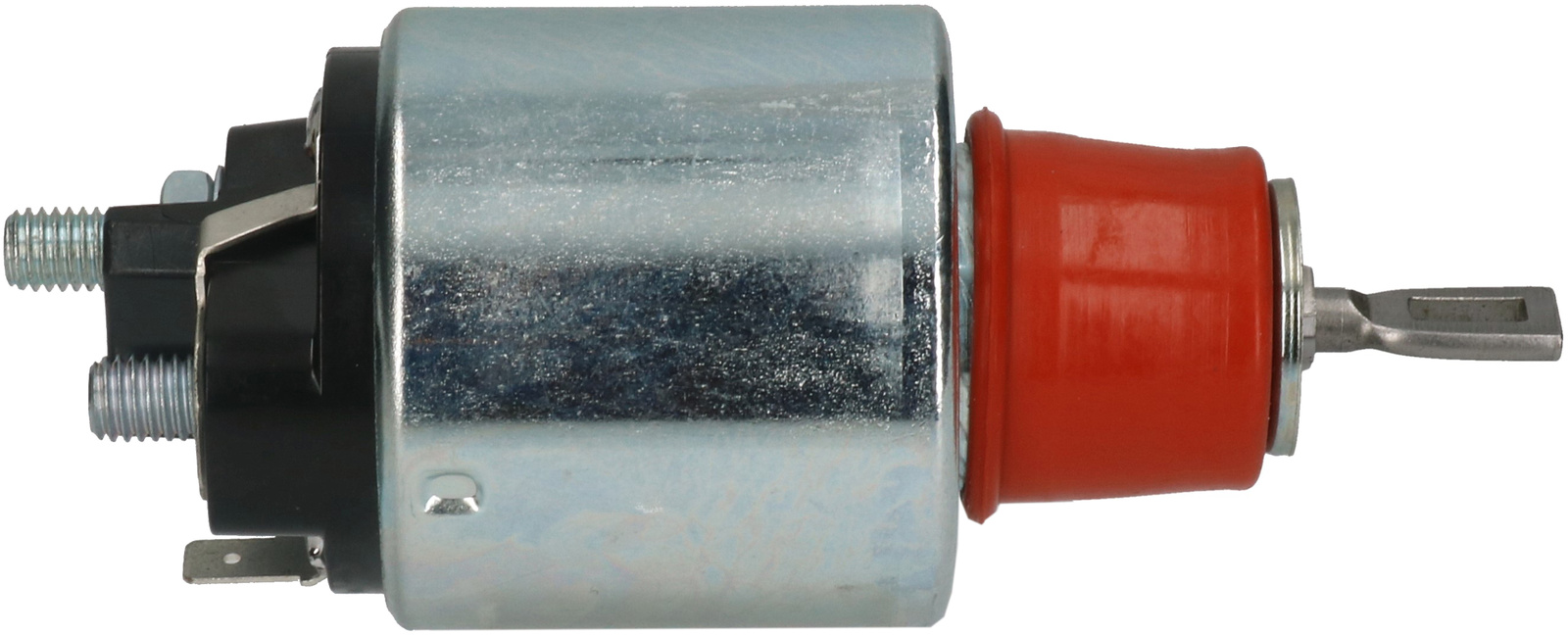

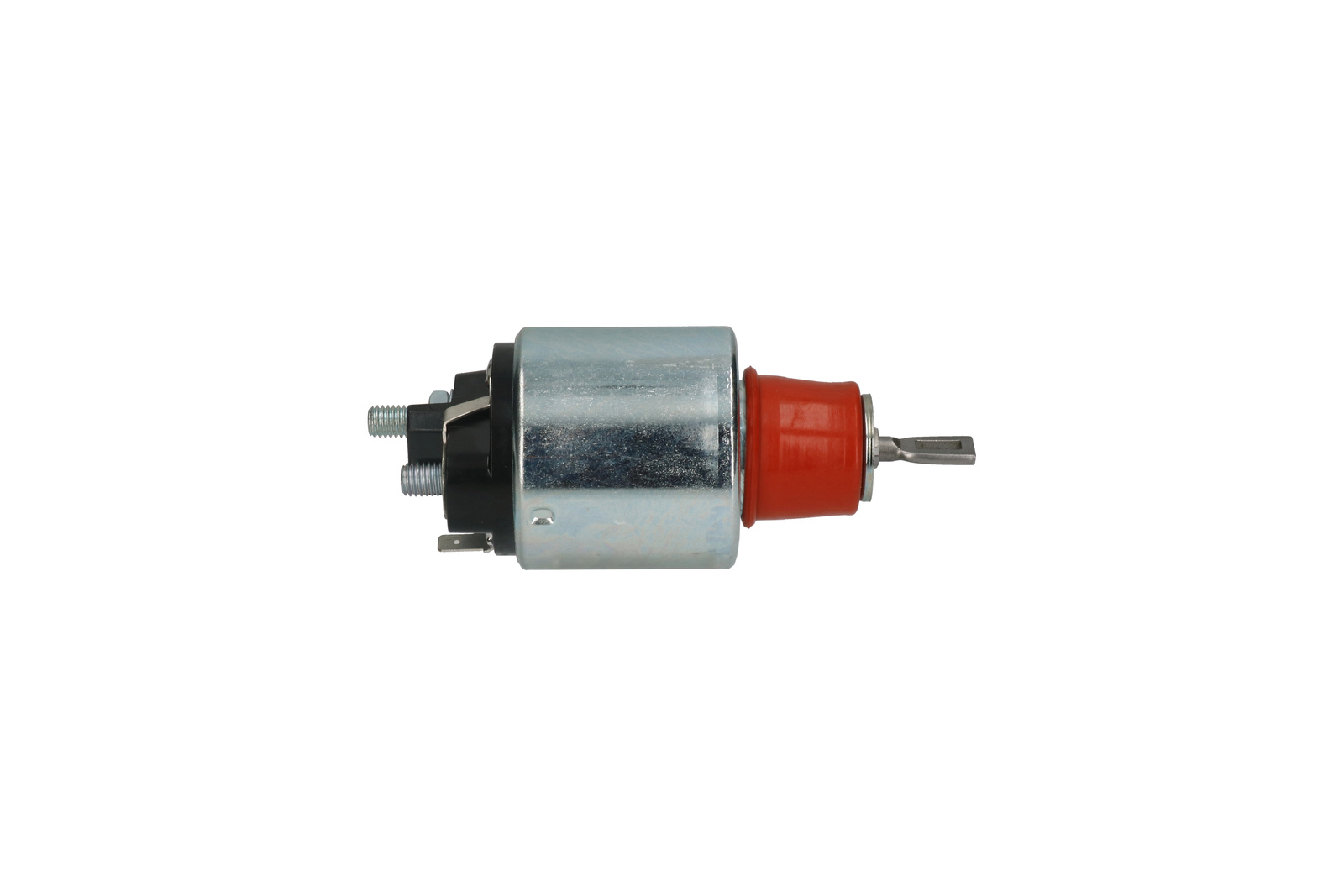

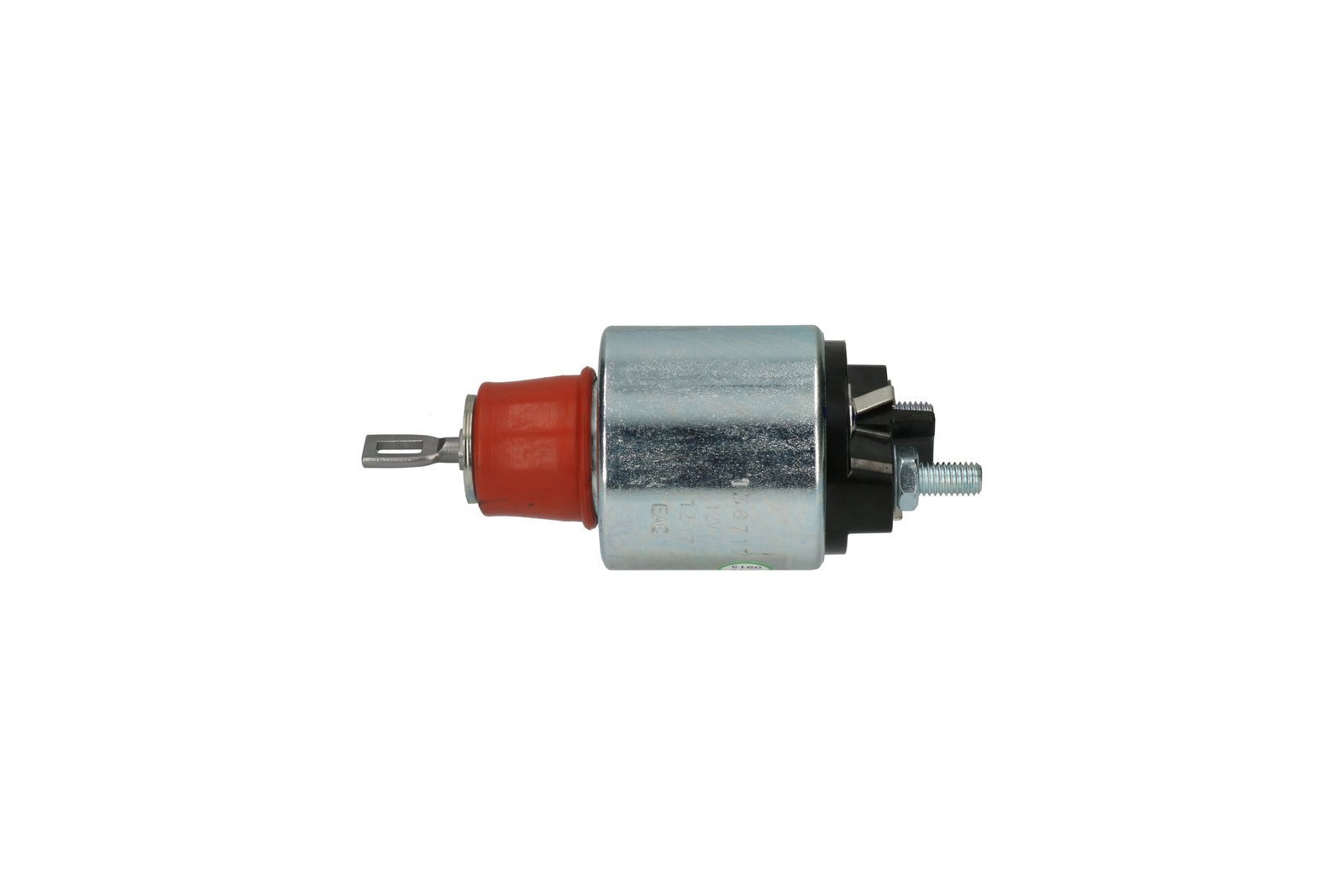

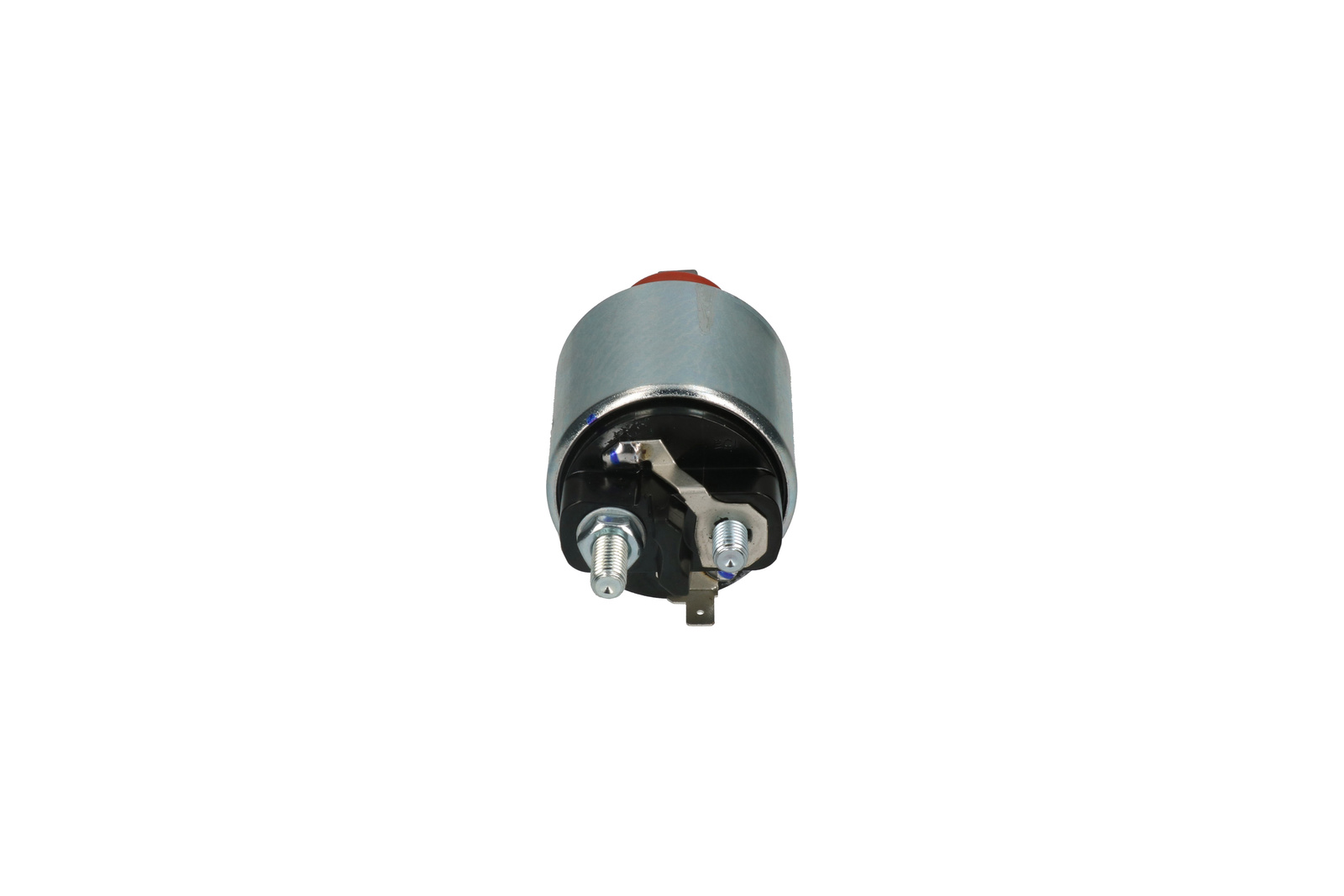

Product image - main
Trade number 136717

Details & description

Voltage 12, No./mount. holes 3, No./terminals 3, Terminal 50/mm 6.30, Coil Bolt Length 8.50, Plunger Inner Diameter 10.20, Eye Outer Diameter 10.30, Plunger Outer Diameter 26.80, Eye Inner Diameter 4.70, B+ M8, Terminal 50 Spade, B+ Height 20.50, Coil Bolt Diameter M8, Outer Diameter 56.30, Remarks Cap: HC-CARGO 132779., Length 65.10, Amount of Mounting Holes 3, Total Length 81.00

Product information

Electrical information

  • Voltage12

Catalogue information

  • RemarksCap: HC-CARGO 132779.

Physical information

  • No./mount. holes3
  • No./terminals3
  • Coil Bolt Length8.50
  • Eye Outer Diameter10.30
  • Eye Inner Diameter4.70
  • B+M8
  • Terminal 50Spade
  • Coil Bolt DiameterM8
  • Outer Diameter56.30

    • Suggested Products

    Replacing and BOMs

    Competitor References

    • SS0099AUTOSTARTER POLAND
    • SS0099BOSCHAUTOSTARTER POLAND
    • SS0099ZMAUTOSTARTER POLAND
    • SS0099PAUTOSTARTER POLAND
    • 2339303858BOSCH
    • 9330331006BOSCH
    • 1986SE1672BOSCH
    • 20097EUROTEC
    • 136717HC-CARGO
