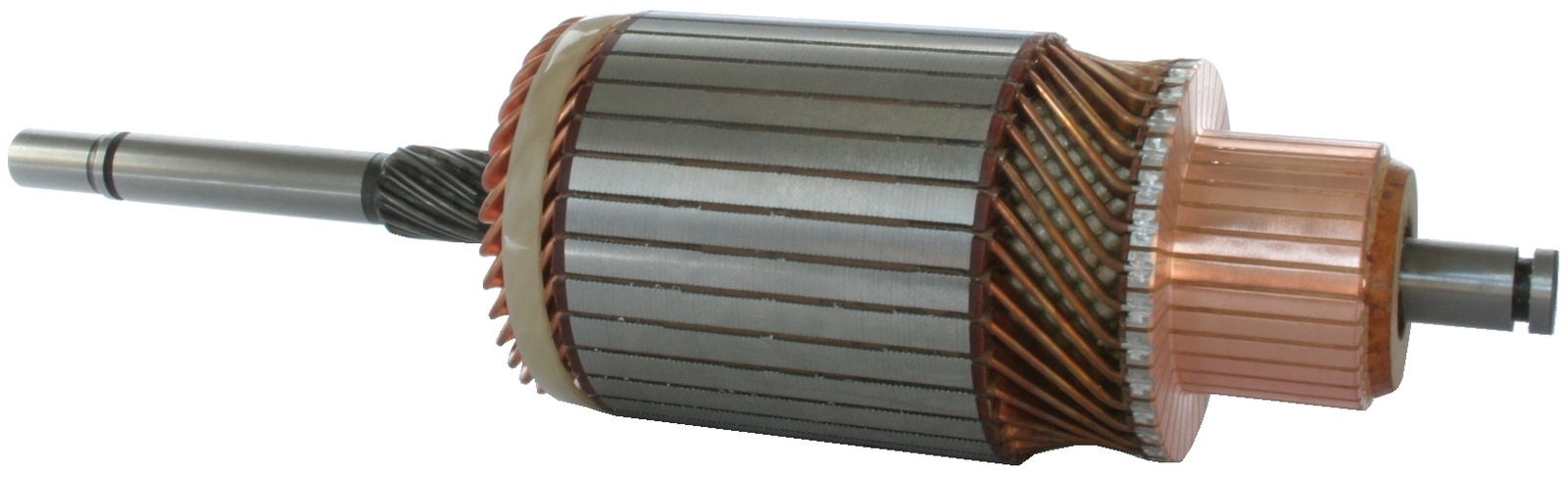

F032137233 - Armature

Trade number 137233
Product image - main
Trade number 137233

Details & description

kW 3.1, Voltage 12, Commutator Diameter 38.90, Commutator Distance 24.00, OD/spline/teeth 18.10, No./bars 33, Commutator Height 31.50, Commutator Inner Diameter 15.70, Core Diameter 75.00, Shaft length 301.00, Commutator End Shaft Diameter 14.00, Spline Teeth Length 25.00, No./splines 10, Drive End Inside Shaft Diameter Outside 12.50, Commutator Outer Diameter 70.80, Drive End Inside Shaft Diameter 14.10, Rotation CW, Shaft Diameter 18.90

Product information

Electrical information

  • kW3.1
  • Voltage12

Physical information

  • Commutator Diameter38.90
  • Commutator Distance24.00
  • OD/spline/teeth18.10
  • No./bars33
  • Commutator Height31.50
  • Commutator Inner Diameter15.70
  • Core Diameter75.00
  • Shaft length301.00
  • Commutator End Shaft Diameter14.00

    • Suggested Products

    Replacing and BOMs

    Competitor References

    • SA0081AUTOSTARTER POLAND
    • 2004014967BOSCH
    • 2004004055BOSCH
    • 137233HC-CARGO
    • 619135WAI
    • WSA5943WOOD AUTO SUPPL
