F032137284 - Armature

Trade number 137284

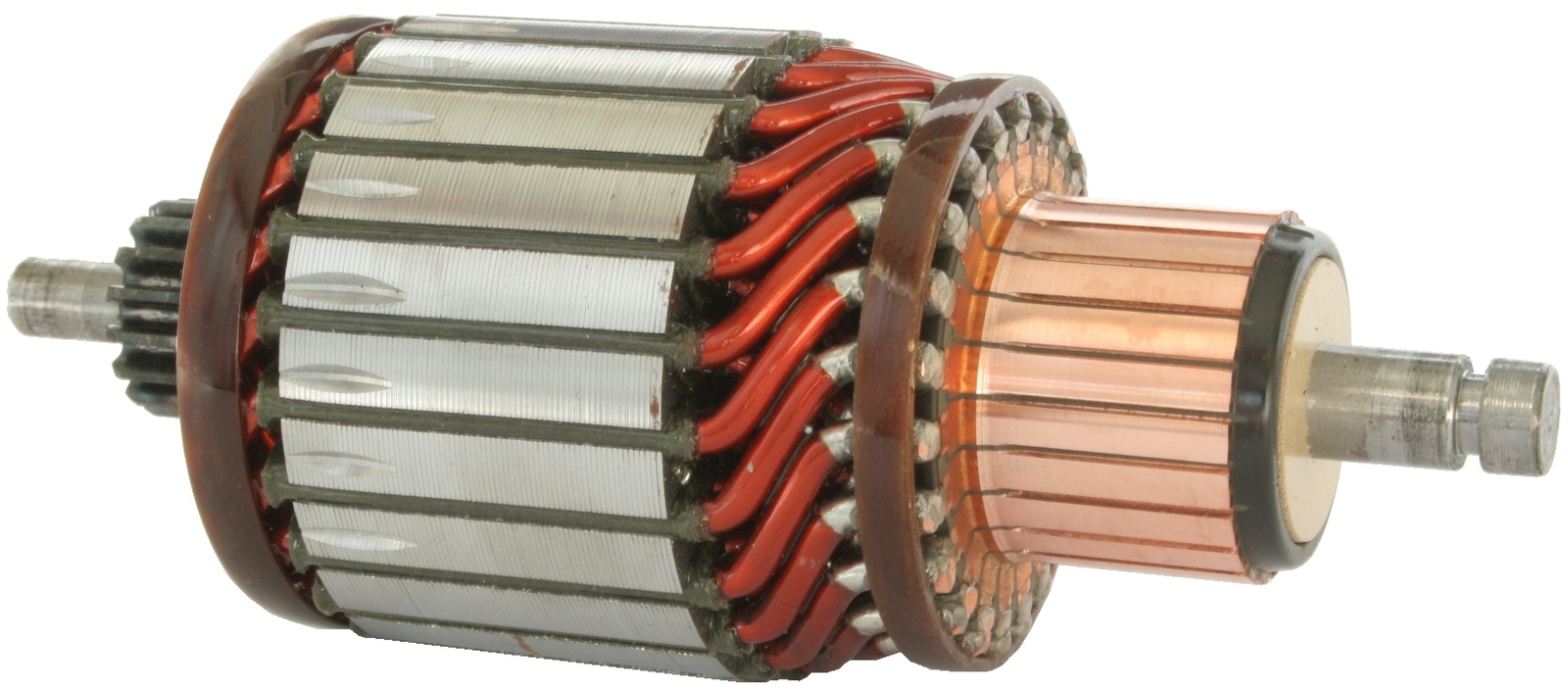

Product image - main
Trade number 137284

Details & description

kW 2.0, Voltage 12, Commutator Diameter 33.00, Commutator Distance 20.00, OD/spline/teeth 21.30, No./bars 23, Commutator Height 35.20, Bar length 5.50, Commutator Inner Diameter 12.90, Bar Distance 3.45, No./teeth 16, Core Diameter 59.00, Shaft length 149.00, Bar Cross Distance 41.20, Commutator End Shaft Diameter 10.00, Bar Lane Height 22.00, Spline Teeth Length 22.20, Drive End Inside Shaft Diameter Outside 8.00, Commutator Outer Diameter 52.40

Product information

Electrical information

  • kW2.0
  • Voltage12

Physical information

  • Commutator Diameter33.00
  • Commutator Distance20.00
  • OD/spline/teeth21.30
  • No./bars23
  • Commutator Height35.20
  • Commutator Inner Diameter12.90
  • Bar Distance3.45
  • No./teeth16
  • Core Diameter59.00

    • Suggested Products

    Replacing and BOMs

    Competitor References

    • SA0034AUTOSTARTER POLAND
    • SA0034PAUTOSTARTER POLAND
    • 1004011087BOSCH
    • 1986SE1856BOSCH
    • 1004011074BOSCH
    • 137284HC-CARGO
    • WSA5938WOOD AUTO SUPPL
