F032137300 - Solenoid Switch

Trade number 137300

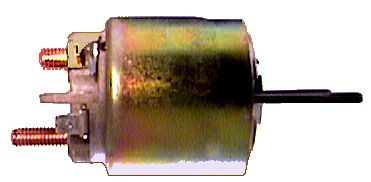

Product image - main
Trade number 137300

Details & description

Voltage 12, No./mount. holes 2, No./terminals 4, Terminal 50/mm M5, Coil Bolt Length 10.50, B+ M8, Terminal 50 Bolt, B+ Height 15.00, Coil Bolt Diameter M8, Outer Diameter 53.80, Remarks Insulated return. Cap: HC-CARGO 232010., Amount of Mounting Holes 2, Total Length 77.00

Product information

Voltage:12
No./mount. holes:2
No./terminals:4
Terminal 50/mm:M5
Coil Bolt Length:10.50
B+:M8
Terminal 50:Bolt
B+ Height:15.00
Coil Bolt Diameter:M8
Outer Diameter:53.80
Remarks:Insulated return. Cap: HC-CARGO 232010.
Amount of Mounting Holes:2
Total Length:77.00

Replacing and BOMs

Competitor References

137300HC-CARGO
594054VALEO
669421WAI
SND1290WOOD AUTO SUPPL
598ZM
ZM598ZM
