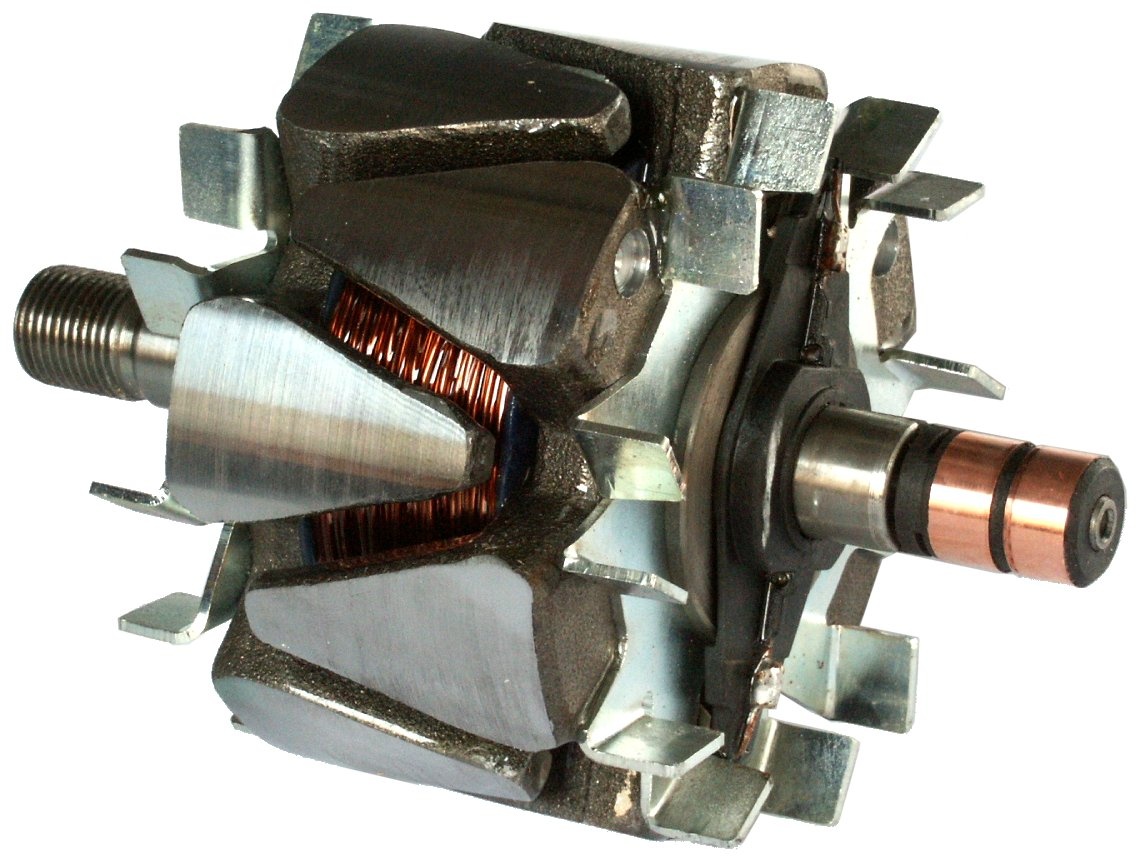

F032137335 - Rotor
Trade number 137335
Replacing and BOMs
Competitor References
- AR4006AUTOSTARTER POLAND
- AR4006MMAUTOSTARTER POLAND
- 138458HC-CARGO
- 138464HC-CARGO
- 137335HC-CARGO
- 085561401010LUCAS
- 085561931010LUCAS
- 085561941010LUCAS
- 54209322LUCAS
Trade number 137335
Details & description
Voltage 14, Amp 100, Bearing Diameter 17.00, Cooling fan w/, Thread size M17-1.50, Outer Diameter 99.50, Wing height 82.30, Current coil 4.00, Core type Loose, Ring Height 1 8.00, Servicing A127I, Ring Height 2 8.00, Slip Ring End Length 50.20, Drive End Length 59.00, Windings 441, Rotation CW, Core height 32.20, Slip Ring Front 104.00, Slip Ring Outer Diameter 16.30, Wire Diameter 0.85, Slip Ring Rear 113.80, Thread Length 25.50, Core Diameter 52.20, Bobine measurement 80.00, Ring Distance 2.00, Total Length 160.00, Height 55.80, Shaft Diameter 17.00
Product information
Electrical information
- Voltage14
- Amp100
Catalogue information
- ServicingA127I
Physical information
- Thread sizeM17-1.50
- Outer Diameter99.50
- Ring Height 18.00
- Ring Height 28.00
- RotationCW
- Thread Length25.50
- Core Diameter52.20
- Ring Distance2.00
- Total Length160.00
Replacing and BOMs
Competitor References
- AR4006AUTOSTARTER POLAND
- AR4006MMAUTOSTARTER POLAND
- 138458HC-CARGO
- 138464HC-CARGO
- 137335HC-CARGO
- 085561401010LUCAS
- 085561931010LUCAS
- 085561941010LUCAS
- 54209322LUCAS
