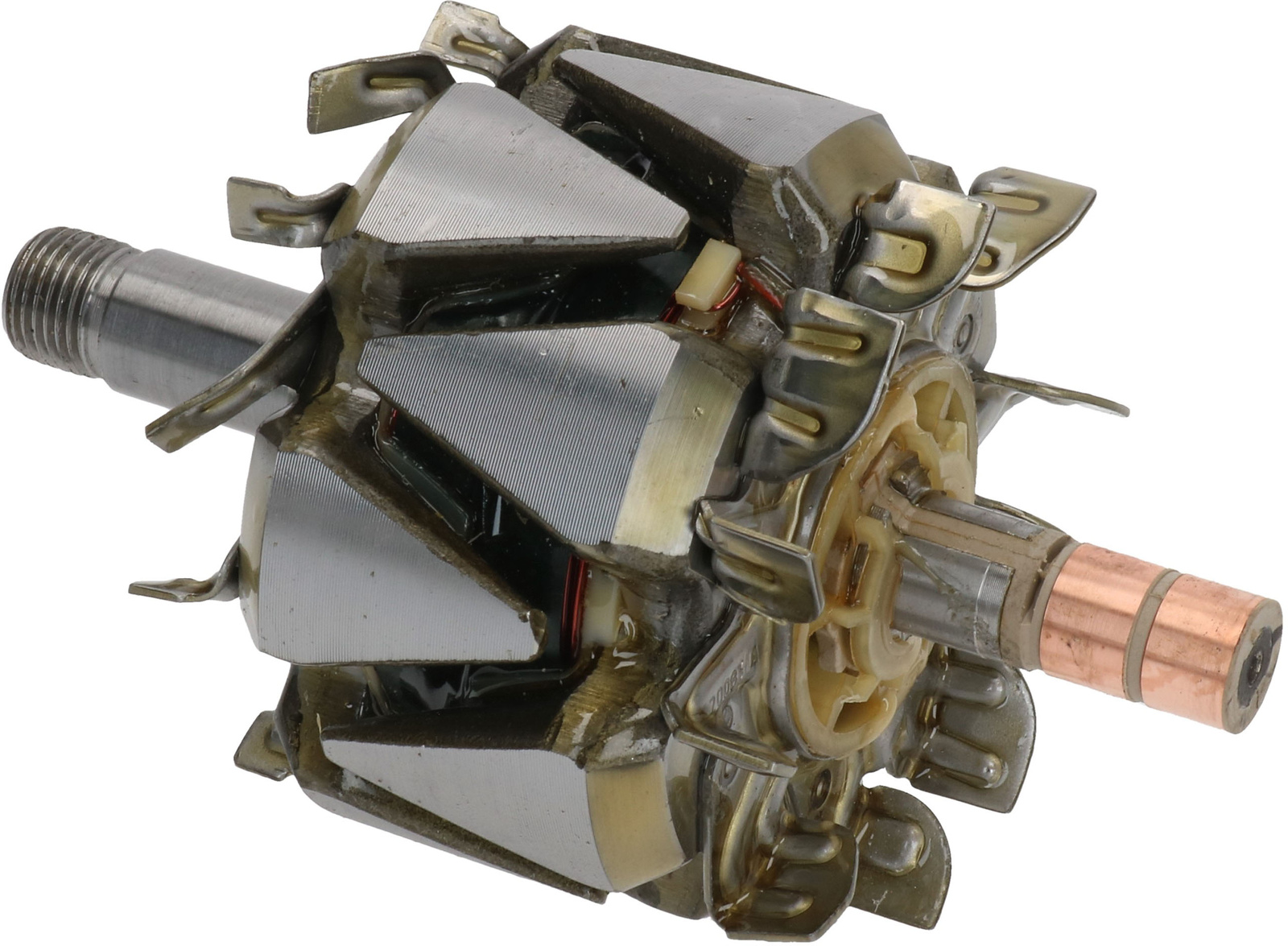

F032137523 - Rotor

Trade number 137523
Product image - main
Trade number 137523

Details & description

Voltage 14, Amp 70, Ring Height 1 9.50, Current coil 3.77, Core type Loose, Ring Height 2 9.80, Slip Ring End Length 48.50, Bearing Diameter 15.00, Wing height 77.00, Cooling fan w/, Thread size M16-1.50, Outer Diameter 89.50, Wire Diameter 0.70, Thread Length 12.00, Slip Ring Rear 107.70, Slip Ring Outer Diameter 14.30, Core Diameter 49.30, Ring Distance 1.60, Bobine measurement 63.70, Drive End Length 49.00, Windings 392, Core height 28.20, Slip Ring Front 96.60, Rotation CW, Height 51.80, Total Length 26.60;148.00, Shaft Diameter 17.00

Product information

Electrical information

  • Voltage14
  • Amp70

Physical information

  • Ring Height 19.50
  • Ring Height 29.80
  • Thread sizeM16-1.50
  • Outer Diameter89.50
  • Thread Length12.00
  • Core Diameter49.30
  • Ring Distance1.60
  • RotationCW
  • Height51.80

    • Suggested Products

    Replacing and BOMs

    Competitor References

    • AR3009AUTOSTARTER POLAND
    • 135785HC-CARGO
    • 138117HC-CARGO
    • 139437HC-CARGO
    • 230425HC-CARGO
    • 610345HC-CARGO
    • 137523HC-CARGO
    • 592821VALEO
    • 592912VALEO
