Details & description

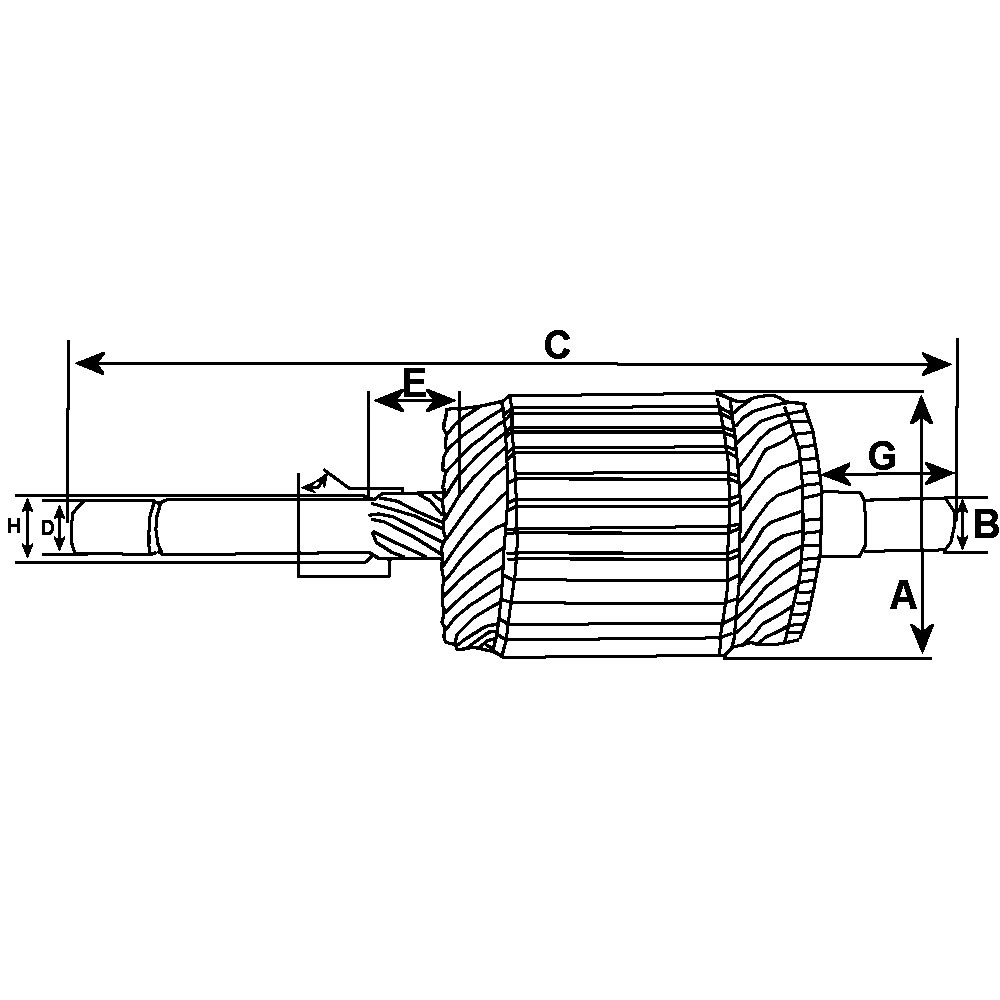

kW 1.1, Voltage 12, Commutator Distance 18.20, OD/spline/teeth 11.70, No./bars 23, Commutator Height 13.50, Bar length 3.20, Commutator Inner Diameter 8.30, Bar Distance 3.30, No./teeth 8, Core Diameter 44.30, Shaft length 112.00, Bar Cross Distance 38.60, Commutator End Shaft Diameter 6.00, Spline Teeth Length 17.00, Drive End Inside Shaft Diameter Outside 6.00, Commutator Outer Diameter 44.50, Rotation CW
