F032139657 - Armature

Trade number 139657

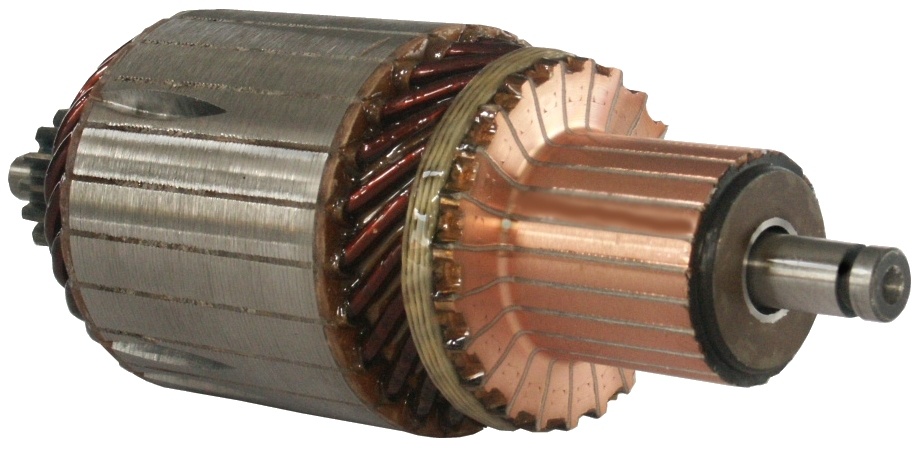

Product image - main
Trade number 139657

Details & description

kW 4.0, Voltage 24, Commutator Diameter 32.30, Commutator Distance 16.50, OD/spline/teeth 26.50, No./bars 23, Commutator Height 43.00, Bar length 4.60, Commutator Inner Diameter 10.00, No./teeth 16, Core Diameter 60.00, Shaft length 169.00, Bar Cross Distance 39.60, Commutator End Shaft Diameter 10.00, Bar Lane Height 31.50, Spline Teeth Length 21.80, Drive End Inside Shaft Diameter Outside 8.00, Commutator Outer Diameter 48.90, Rotation CW, Shaft Diameter 18.40

Product information

Electrical information

  • kW4.0
  • Voltage24

Physical information

  • Commutator Diameter32.30
  • Commutator Distance16.50
  • OD/spline/teeth26.50
  • No./bars23
  • Commutator Height43.00
  • Commutator Inner Diameter10.00
  • No./teeth16
  • Core Diameter60.00
  • Shaft length169.00

    • Suggested Products

    Replacing and BOMs

    Competitor References

    • SA0041AUTOSTARTER POLAND
    • 6033AD0285BOSCH
    • 6033AD4013BOSCH
    • 6033AD4080BOSCH
    • 9003334039BOSCH
    • F042040033BOSCH
    • F042S40033BOSCH
    • 1986SE3905BOSCH
    • 333496HC-CARGO
