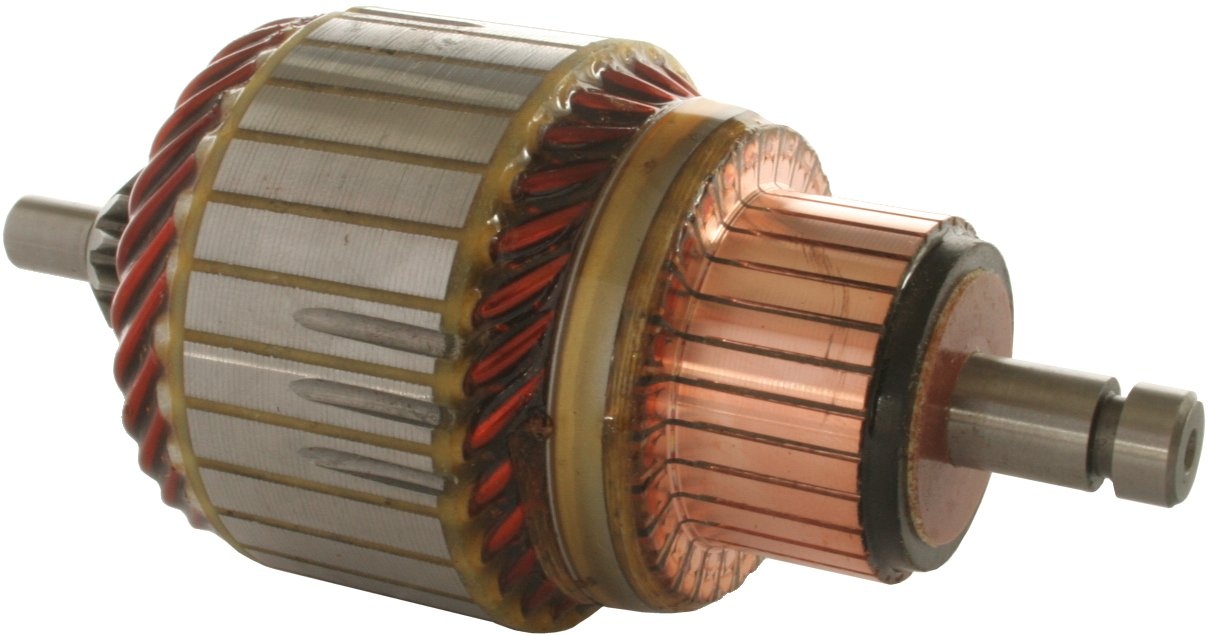

F032139658 - Armature

Trade number 139658
Product image - main
Trade number 139658

Details & description

kW 1.1, Voltage 12, Commutator Diameter 33.00, Commutator Distance 19.50, OD/spline/teeth 20.60, No./bars 28, Commutator Height 25.80, Bar length 4.20, Commutator Inner Diameter 12.80, Bar Distance 2.00, No./teeth 14, Core Diameter 55.00, Shaft length 123.00, Bar Cross Distance 35.30, Commutator End Shaft Diameter 10.00, Bar Lane Height 17.00, Spline Teeth Length 16.00, Drive End Inside Shaft Diameter Outside 8.00, Commutator Outer Diameter 43.00, Rotation CW/CCW

Product information

Electrical information

  • kW1.1
  • Voltage12

Physical information

  • Commutator Diameter33.00
  • Commutator Distance19.50
  • OD/spline/teeth20.60
  • No./bars28
  • Commutator Height25.80
  • Commutator Inner Diameter12.80
  • Bar Distance2.00
  • No./teeth14
  • Core Diameter55.00
  • Suggested Products

    Replacing and BOMs

    Competitor References

    • SA0047AUTOSTARTER POLAND
    • 1004011096BOSCH
    • 1004011083BOSCH
    • F042S40024BOSCH
    • F042040024BOSCH
    • 139658HC-CARGO
    • AM2028UNIPOINT
    • 619151WAI
    • WSA5950WOOD AUTO SUPPL
