Details & description

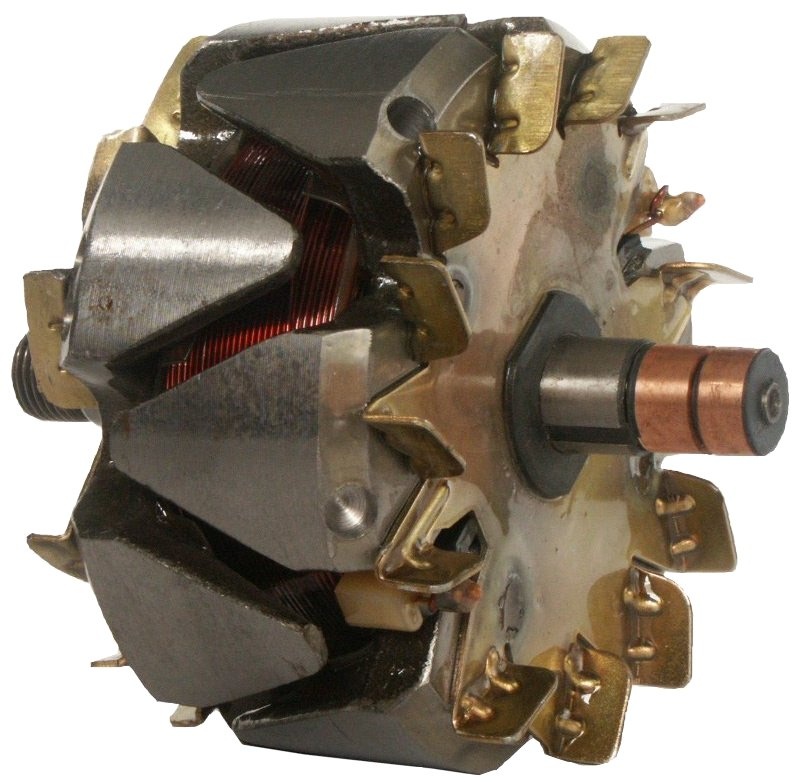

Voltage 14, Amp 130, Ring Height 1 7.50, Thread Length 11.50, Slip Ring Rear 87.40, Slip Ring Outer Diameter 15.70, Ring Height 2 7.50, Slip Ring End Length 36.50, Ring Distance 1.60, Servicing 4G series, Drive End Length 42.20, Bearing Diameter 17.00, Slip Ring Front 78.00, Wing height 70.00, Cooling fan w/, Rotation CW, Thread size M16-1.50, Outer Diameter 111.50, Remarks Repair slip ring: HC-CARGO 233192. Nut: HC-CARGO 191657., Height 50.40, Shaft Diameter 17.00, Total Length 32.00;128.50
