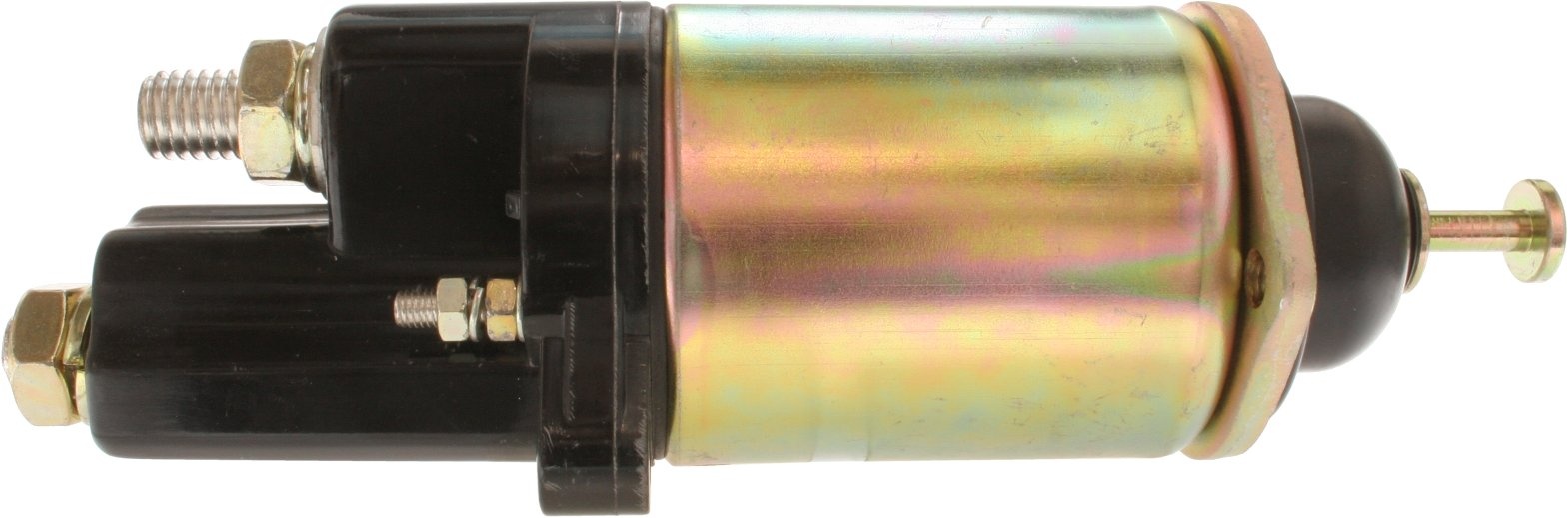

F032233952 - Solenoid Switch
Trade number 233952
Replacing and BOMs
Competitor References
71167ACCURATE
0534009890DENSO
0534009891DENSO
233952HC-CARGO
668218WAI
F032233952 - Solenoid Switch
Details & description
Voltage 12, No./mount. holes 2, No./terminals 4, Terminal 50/mm 10-32 UNF, Coil Bolt Length 14.50, Earth straps Short, Plunger Outer Diameter 27.20, B+ 1/2" UNC, Terminal 50 Bolt, B+ Height 23.00, Coil Bolt Diameter 1/2" UNC, Outer Diameter 62.80, Mounting Hole 1 15, Amount of Mounting Holes 2, Total Length 216.50
Product information
Voltage:12
No./mount. holes:2
No./terminals:4
Terminal 50/mm:10-32 UNF
Coil Bolt Length:14.50
Earth straps:Short
Plunger Outer Diameter:27.20
B+:1/2" UNC
Terminal 50:Bolt
B+ Height:23.00
Coil Bolt Diameter:1/2" UNC
Outer Diameter:62.80
Mounting Hole 1:15
Amount of Mounting Holes:2
Total Length:216.50
Replacing and BOMs
Competitor References
71167ACCURATE
0534009890DENSO
0534009891DENSO
233952HC-CARGO
668218WAI
