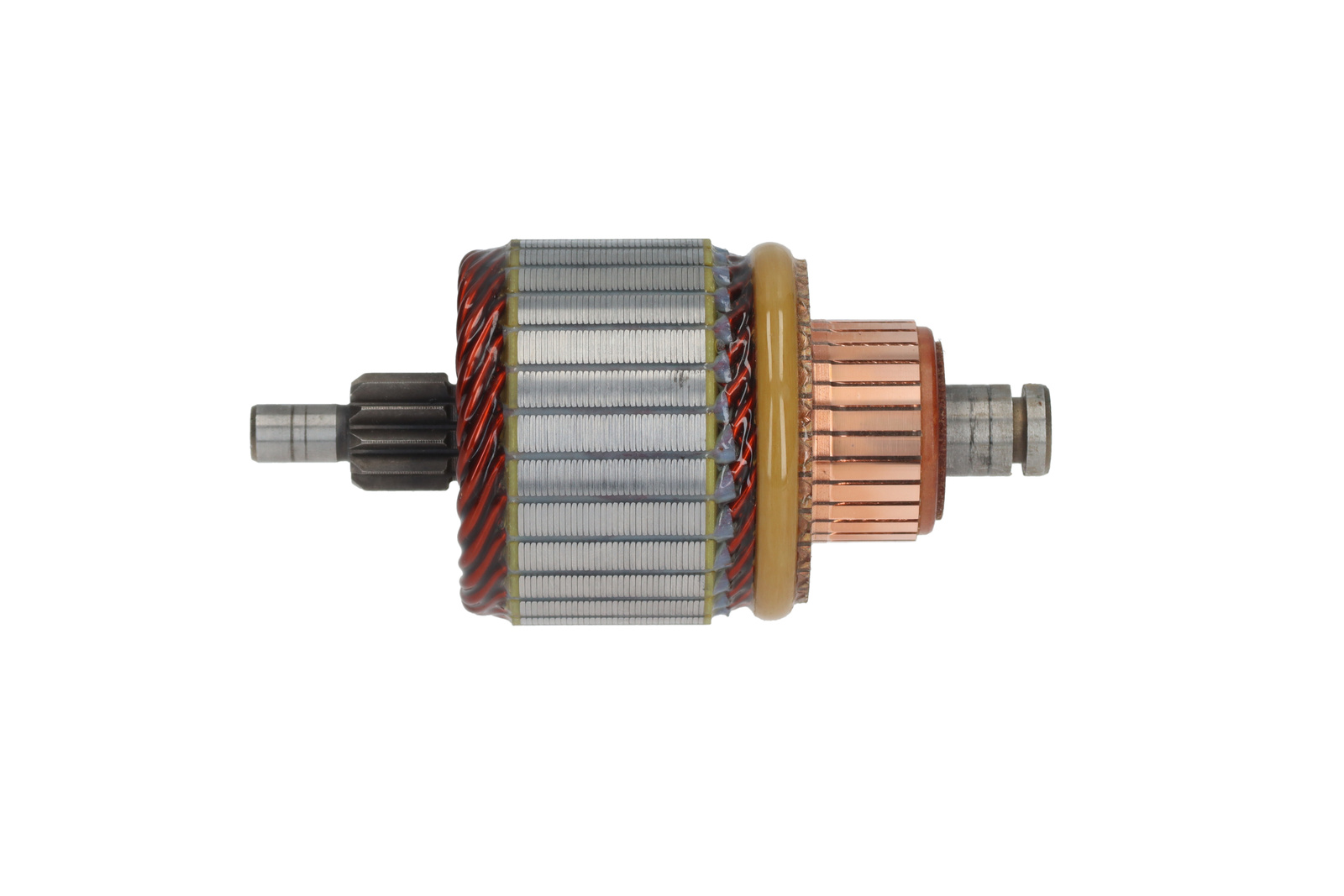

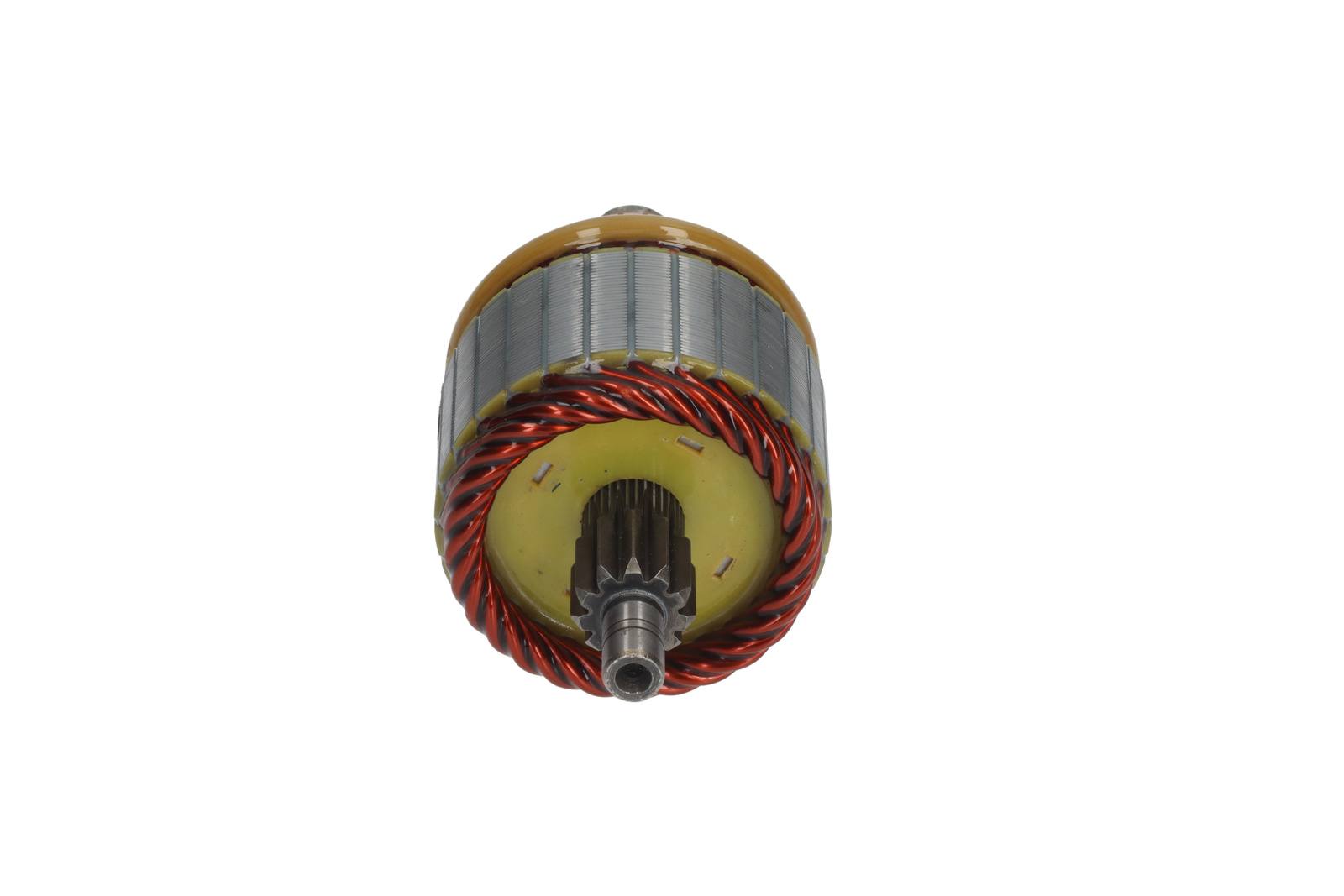

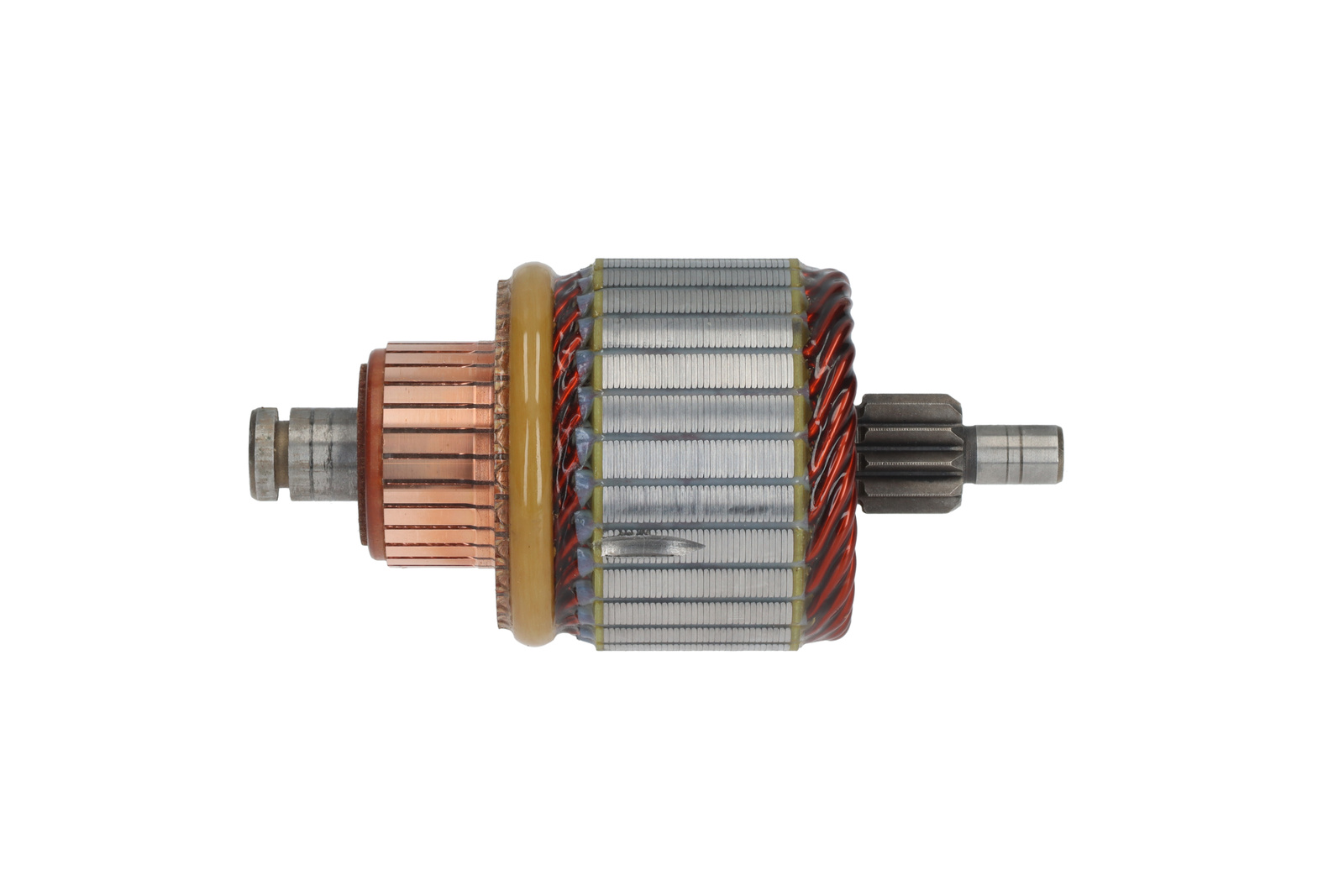

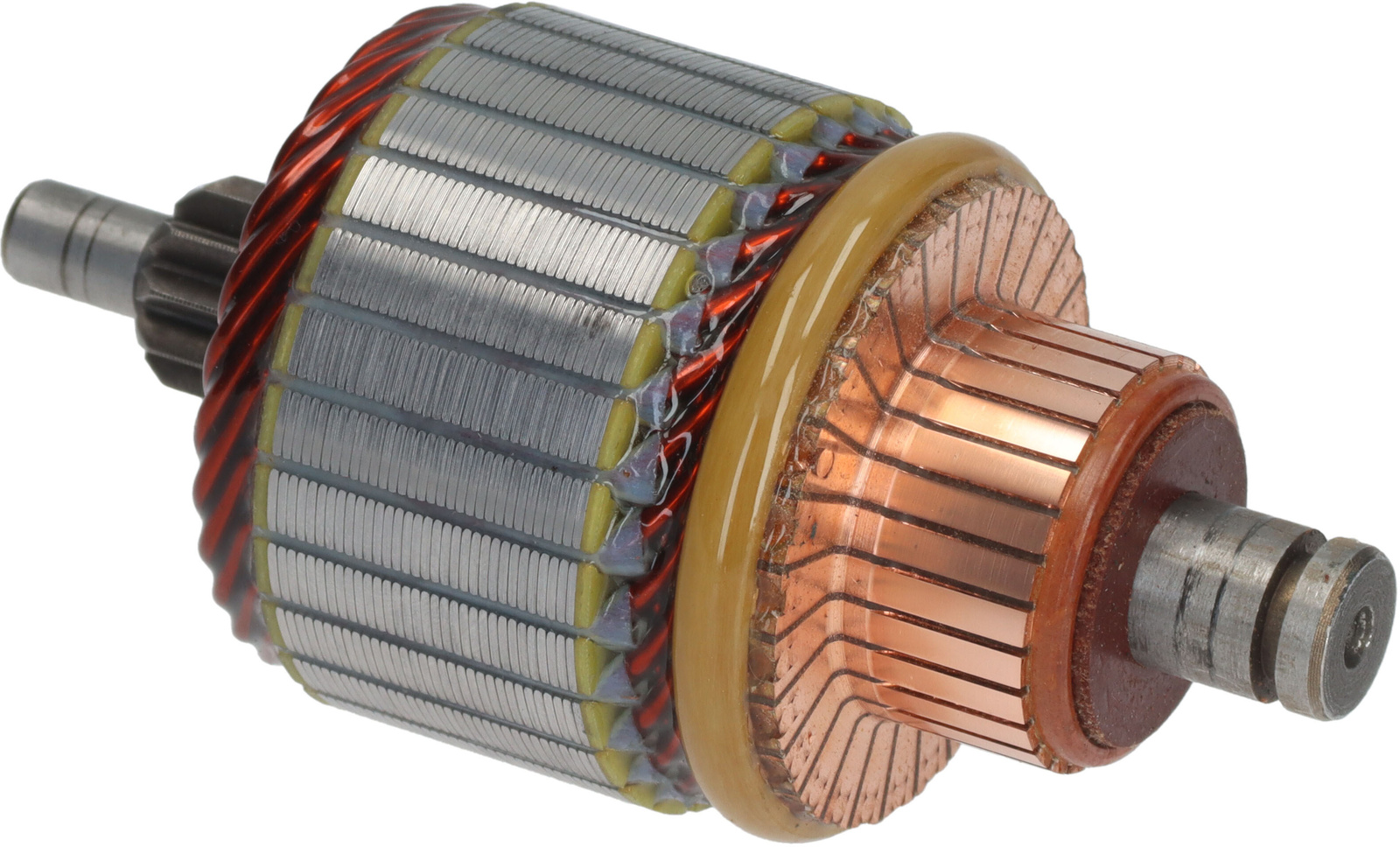

F032335814 - Armature
Trade number 335814
Replacing and BOMs
Competitor References
- SA0110BOSCHAUTOSTARTER POLAND
- 1004011214BOSCH
- 1986SE1581BOSCH
- 335814HC-CARGO
Trade number 335814
Details & description
kW 1.5, Voltage 12, Commutator Diameter 30.00, Commutator Distance 11.00, OD/spline/teeth 16.40, Bar length 17.00, Core Diameter 52.00, Shaft length 107.50, Commutator End Shaft Diameter 12.50, Spline Teeth Length 17.40, Drive End Inside Shaft Diameter Outside 8.00, Rotation CCW, No./teeth 11
Product information
Electrical information
- kW1.5
- Voltage12
Physical information
- Commutator Diameter30.00
- Commutator Distance11.00
- OD/spline/teeth16.40
- Core Diameter52.00
- Shaft length107.50
- Commutator End Shaft Diameter12.50
- Spline Teeth Length17.40
- Drive End Inside Shaft Diameter Outside8.00
- RotationCCW
Replacing and BOMs
Competitor References
- SA0110BOSCHAUTOSTARTER POLAND
- 1004011214BOSCH
- 1986SE1581BOSCH
- 335814HC-CARGO
