Showing results for: BOSCH 0001108088

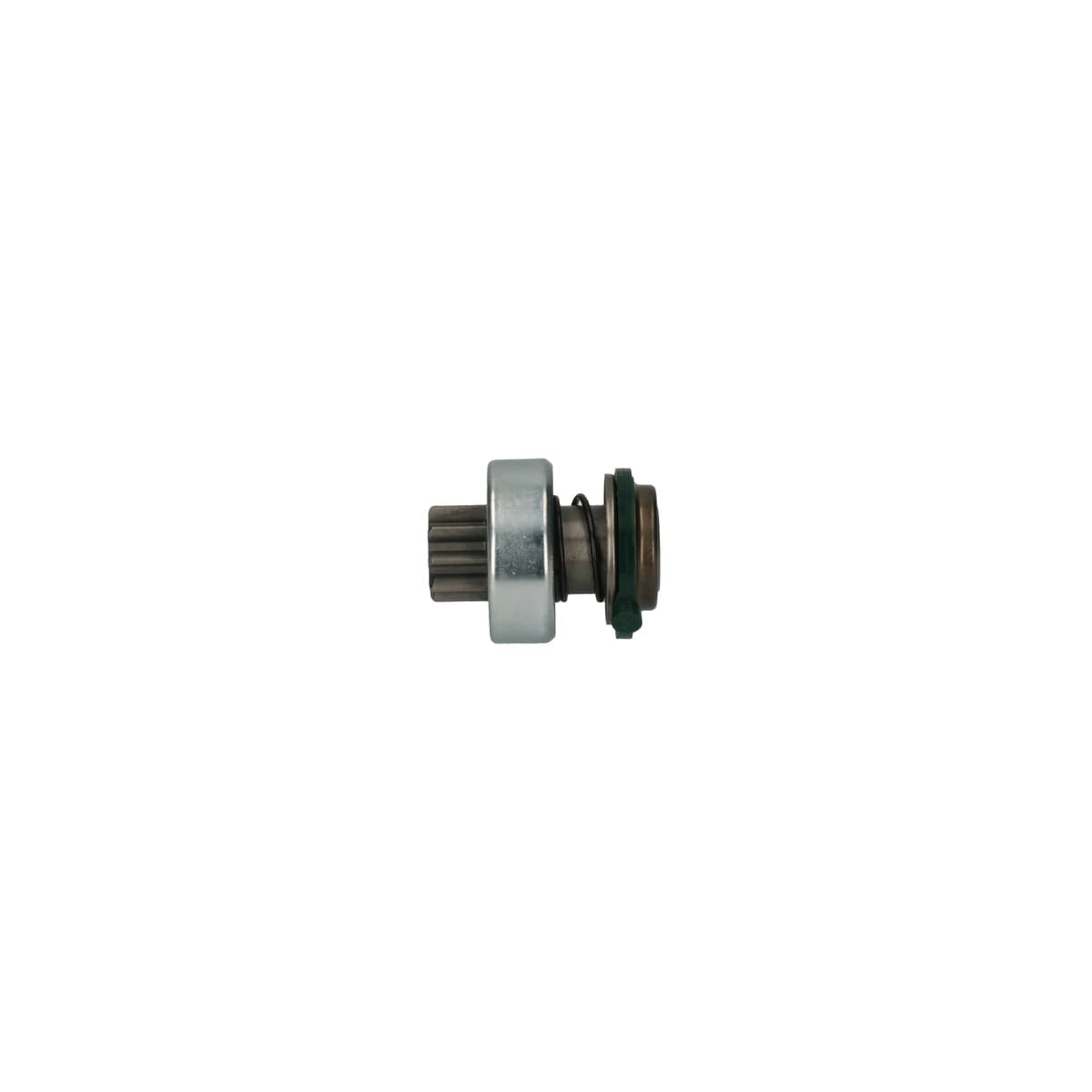

F032131104 - Overrunning-Clutch DriveTrade number 131104
Replacement for:
BOSCH 1006209526BOSCH 1006209693BOSCH 1986SE1617
Splines internal 10, Lock w/, Rotation CW, Inner Diameter 12.00, Outer Diameter 25.80, Total Length 59.00, No./teeth 9, Housing Outer Diameter 47.50

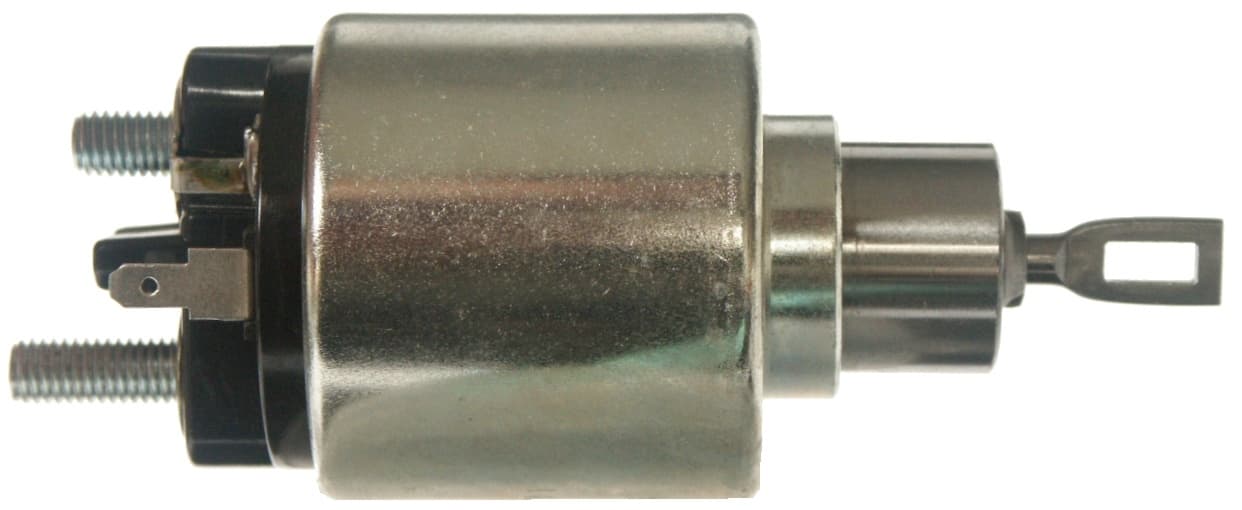

F032131791 - Solenoid SwitchTrade number 131791
Replacement for:
BOSCH 2339303240BOSCH 0331303078
Voltage 12, No./mount. holes 3, No./terminals 4, Terminal 50/mm 6.30, Coil Bolt Length 12.50, Terminal 15A/mm 4.80, Plunger Inner Diameter 10.30, Eye Outer Diameter 10.40, Plunger Outer Diameter 26.80, Eye Inner Diameter 4.80, B+ M8, Terminal 15a Spade, Terminal 50 Spade, B+ Height 20.00, Coil Bolt Diameter M8, Outer Diameter 56.30, Remarks Cap: HC-CARGO 132279., Length 63.00, Amount of Mounting Holes 3, Total Length 86.50
F032132808 - Fork LeverTrade number 132808
Replacement for:
BOSCH 1001933111
Distance 41.40, Plunger w/o, Length 86.50
F032133466 - Parts SetTrade number 133466
Replacement for:
BOSCH 1005821308
Inner Diameter 18.00, Outer Diameter 69.50, Height 28.00
F032133470 - Piston RingTrade number 133470
Replacement for:
BOSCH 1000290037
Gasket w/o, O-ring w/o, Inner Diameter 50.52, Type Piston ring, Collar w/o, Material Shockproof plastic, Outer Diameter 70.00, Height 17.25

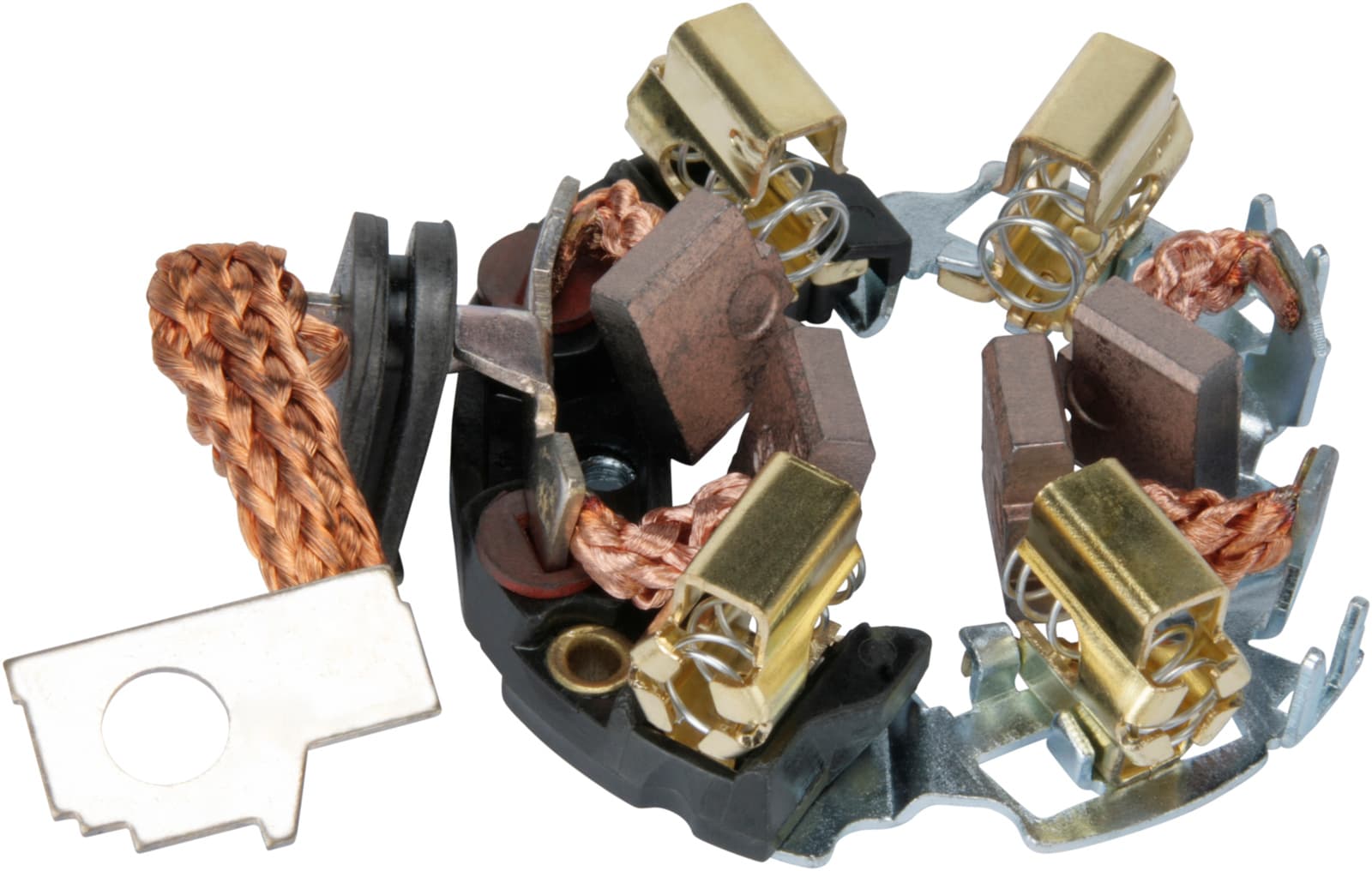

F032134658 - Brush HolderTrade number 134658
Replacement for:
BOSCH 1004336954
Lead Length 25.50, Inner Diameter 34.00, No./brushes 4, Brush w/, Brush lead length 24.00, Brush Length 13.00, Spring w/, Brush Gear Width 7.20, Outer Diameter 67.50, Height 22.30, Brush Thickness 4.80, Brush Height 15.80
F032134764 - Brake RingTrade number 134764
Replacement for:
BOSCH 1000207006
Inner Diameter 18.50, Bushing w/o, Material Fiber, Outer Diameter 23.50, Thickness 1.60
F032137169 - Pole housingTrade number 137169
Replacement for:
BOSCH 1005001915
kW 1.4, Voltage 12, Inner Diameter 69.50, South Side Depth 32.30, Brush gear w/o, Outer Diameter Middle 74.00, Outer Diameter Rear 74.00, North Side Depth 37.50, Coil w/o, Magnets w/, Outer Diameter Front 74.00, Length 112.50
F032139011 - Commutator BearingTrade number 139011
Replacement for:
BOSCH 1000520034BOSCH 1000520045BOSCH 1000520075
Height 19.50

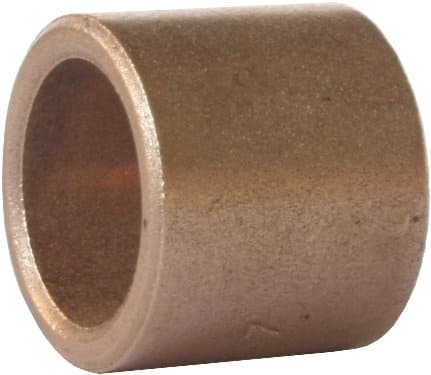

F032140017 - BushingTrade number 140017
Replacement for:
BOSCH 1000301012
Pin w/o, Inner Diameter 12.09, Type Standard, Lubricating groove w/o, Material Copper, Milling w/o, Outer Diameter 16.11, Length 14.00

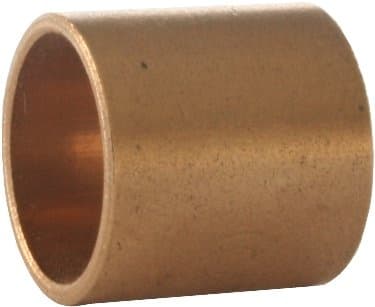

F032140018 - BushingTrade number 140018
Replacement for:
BOSCH 2000301036
Pin w/o, Inner Diameter 12.08, Lubricating groove w/o, Material Copper, Milling w/o, Outer Diameter 14.09, Length 13.90

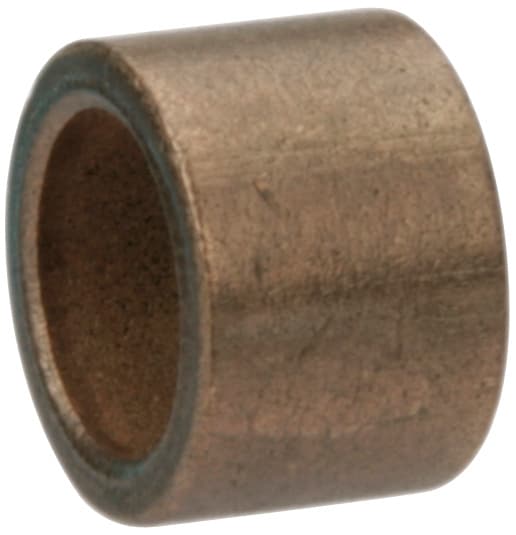

F032140208 - BushingTrade number 140208
Replacement for:
BOSCH 1000301056
Inner Diameter 10.11, Type Standard, Material Copper, Outer Diameter 14.04, Length 9.90

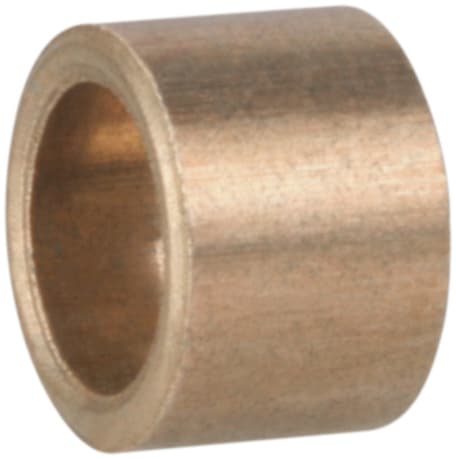

F032140249 - BushingTrade number 140249
Replacement for:
BOSCH 1000301076
Pin w/o, Inner Diameter 8.10, Lubricating groove w/o, Material Copper, Milling w/o, Outer Diameter 11.12, Length 8.00

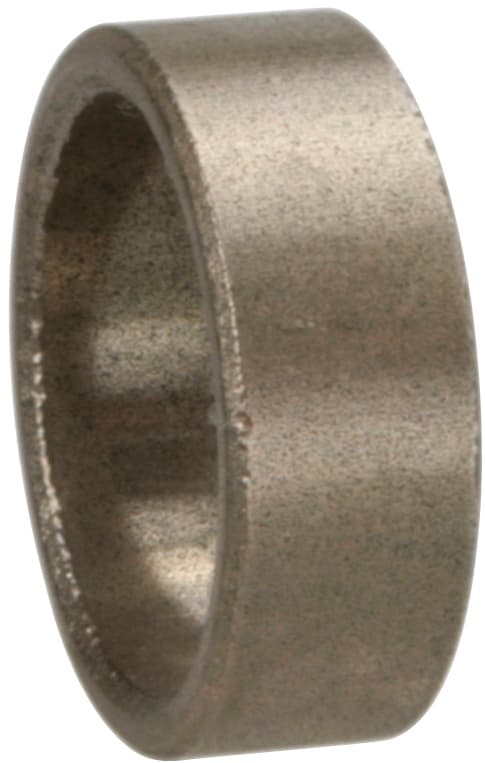

F032140251 - BushingTrade number 140251
Replacement for:
BOSCH 1000301055
Pin w/o, Inner Diameter 18.00, Type Standard, Lubricating groove w/o, Material Copper, Milling w/o, Outer Diameter 22.10, Length 8.00

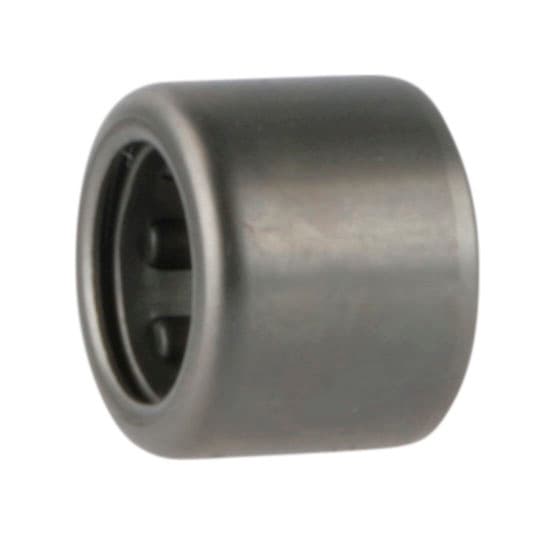

F032140620 - Needle bearingTrade number 140620
Replacement for:
BOSCH 1000917001
Bearing type Needle bearing, Ball holder Steel, Inner Diameter 6.00, Outer Diameter 10.00, Height 8.00
F032190582 - Spring Lock WasherTrade number 190582
Replacement for:
BOSCH 2916691007BOSCH 2918740007
DIN norm 128A, Inner Diameter 8.10, Material Steel spring, Outer Diameter 14.80, Thickness 1.60
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH 1003300005BOSCH 2915051107BOSCH 2915059107BOSCH 2915059180
DIN norm 439B, Iso norm 4035, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
F032191326 - ScrewTrade number 191326
Replacement for:
BOSCH 1003429002BOSCH 1003429009
DIN norm 6921, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 10.00, Spanner Size 7
F032191337 - WasherTrade number 191337
Replacement for:
BOSCH 2916060008
Inner Diameter 10.00, Coating Electro Galvanized, Material Steel, Outer Diameter 16.00, Thickness 0.50
F032191585 - ScrewTrade number 191585
Replacement for:
BOSCH 1003450013BOSCH 1003450048
Thread Length 61.00, Collar Length Rear 135.00, Thread size M5, Total Length 138.50

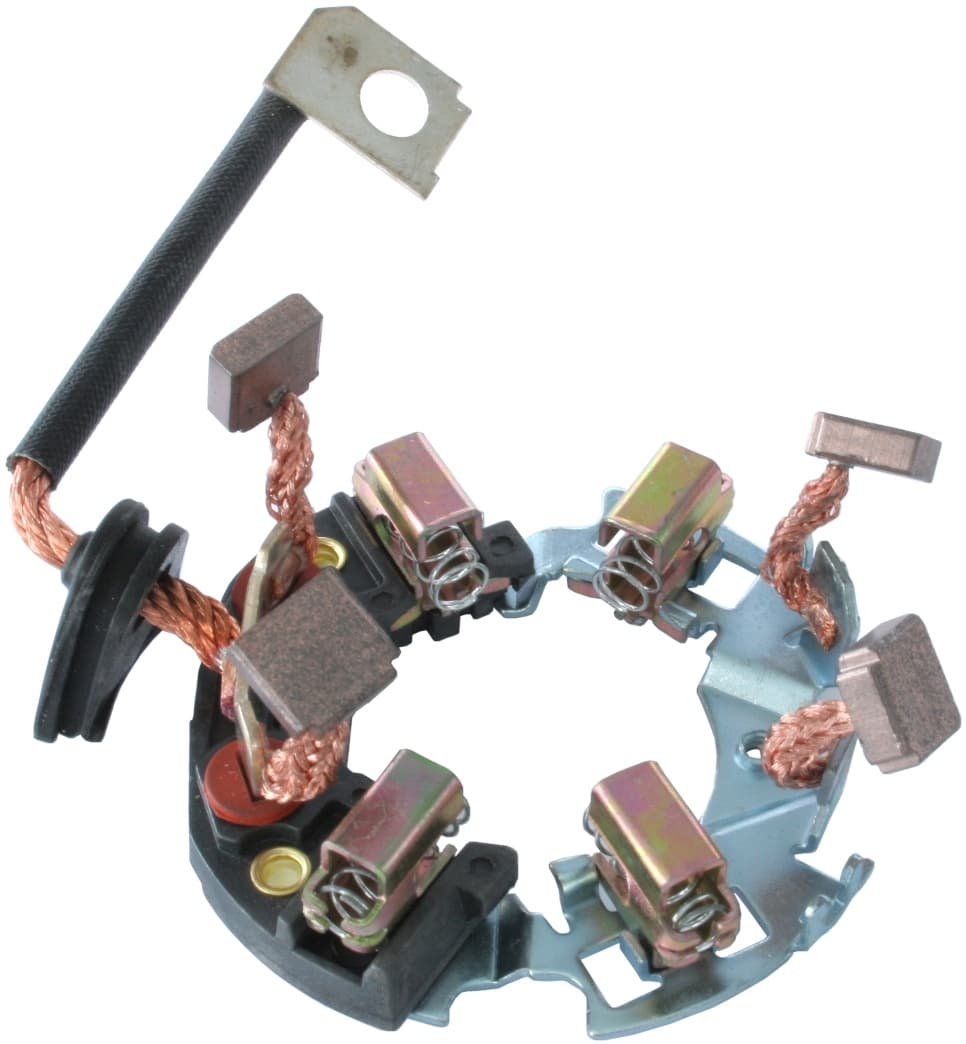

F032234475 - Brush HolderTrade number 234475
Replacement for:
BOSCH 2004336217
Brush w/, Brush Length 11.50, Spring w/, Lead Length 34.50, Inner Diameter 28.00, Brush Gear Width 7.20, No./brushes 4, Outer Diameter 68.50, Height 19.70, Brush Thickness 4.50, Brush Height 12.00

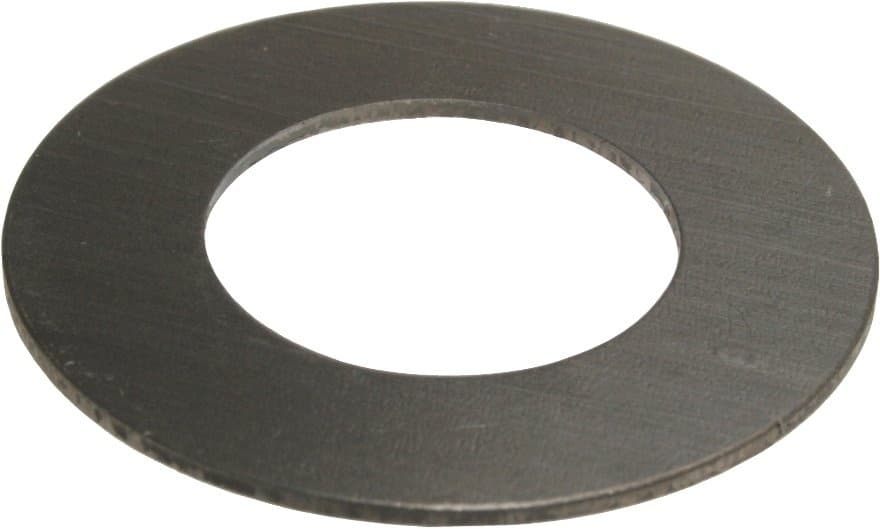

F032235299 - WasherTrade number 235299
Replacement for:
BOSCH 1000101032
Inner Diameter 18.10, Material Metal, Outer Diameter 33.80, Thickness 0.80
F032333537 - Fork LeverTrade number 333537
Replacement for:
BOSCH 1001933111
Distance 43.80, Plunger w/o, Length 89.80

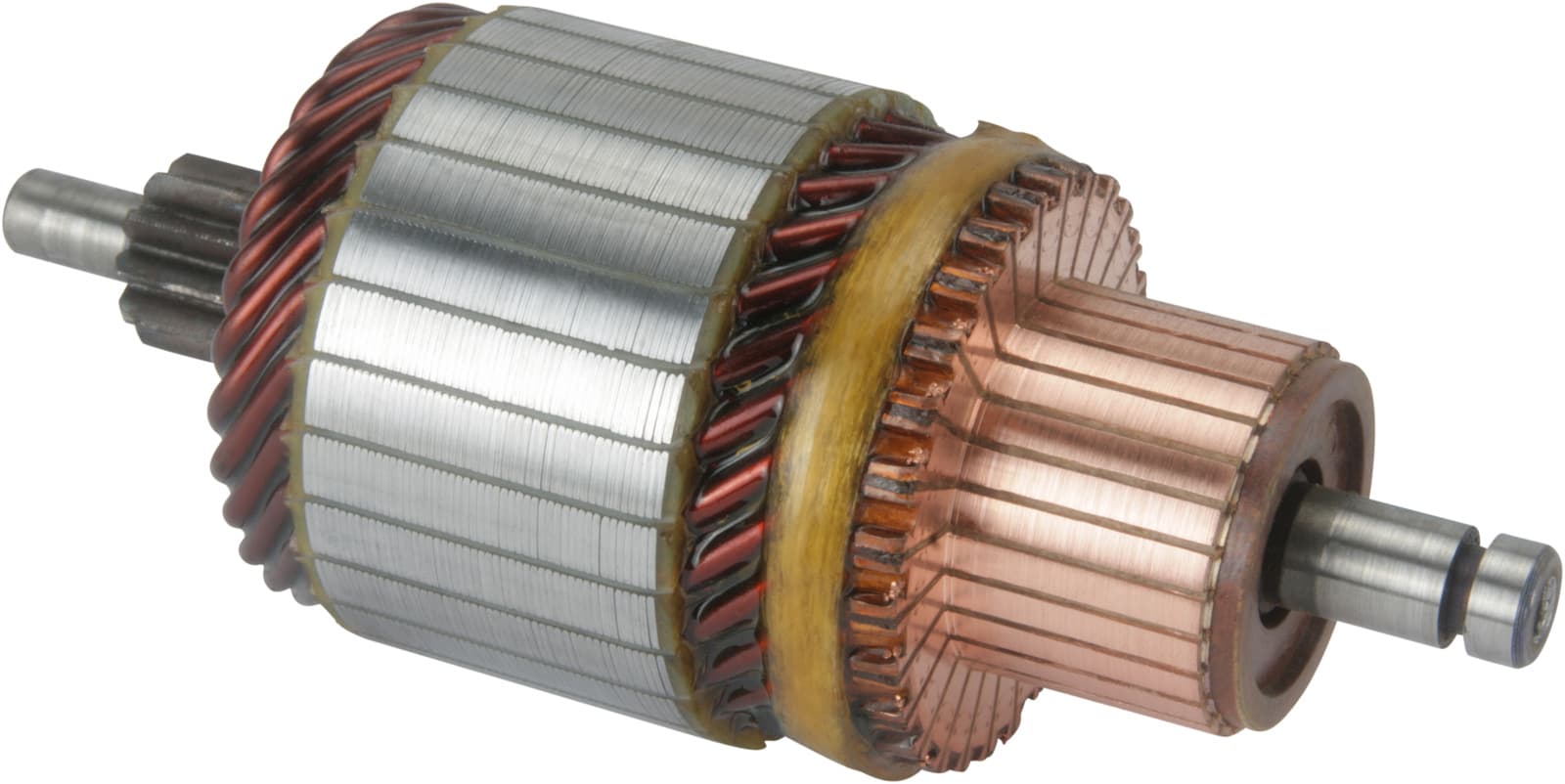

F032335177 - ArmatureTrade number 335177
Replacement for:
BOSCH 1004011020BOSCH 1004011070BOSCH 1004011085BOSCH 1004011203BOSCH 1986SE1578
kW 1.1/1.8, Voltage 12, Commutator Diameter 33.00, Commutator Distance 19.60, OD/spline/teeth 17.00, No./bars 28, Commutator Height 32.40, Bar length 5.50, Commutator Inner Diameter 13.00, Bar Distance 2.75, Core Diameter 55.00, Shaft length 136.00, Bar Cross Distance 41.80, Commutator End Shaft Diameter 10.00, Bar Lane Height 19.20, Spline Teeth Length 19.00, Drive End Inside Shaft Diameter Outside 8.00, Commutator Outer Diameter 53.00, Rotation CW/CCW, No./teeth 11

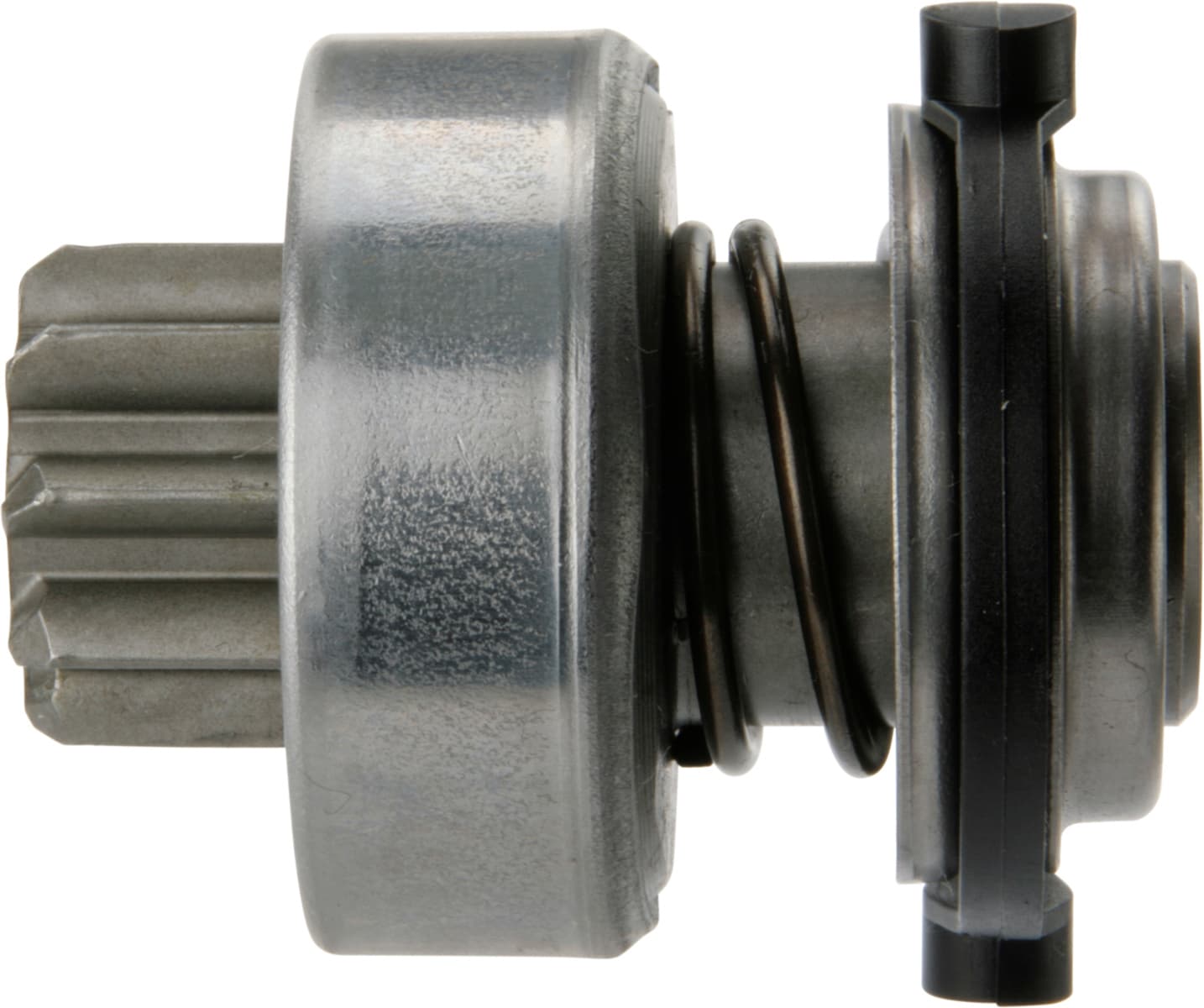

F032901514 - Overrunning-Clutch DriveTrade number 131104ZZ
Replacement for:
BOSCH 1006209526BOSCH 1006209693BOSCH 1986SE1617
Drive type Steel, Splines internal 10, Inner Diameter 12.00, Spline Diameter 14.50, Rotation CW, Outer Diameter 25.30, Shaft Distance 6.50, No./teeth 9, Total Length 58.40, Housing Outer Diameter 46.20
F032B40017 - BushingTrade number B140017
Replacement for:
BOSCH 1000301012
Pin w/o, Inner Diameter 12.05, Lubricating groove w/o, Material Copper, Milling w/o, Outer Diameter 16.10, Length 14.00

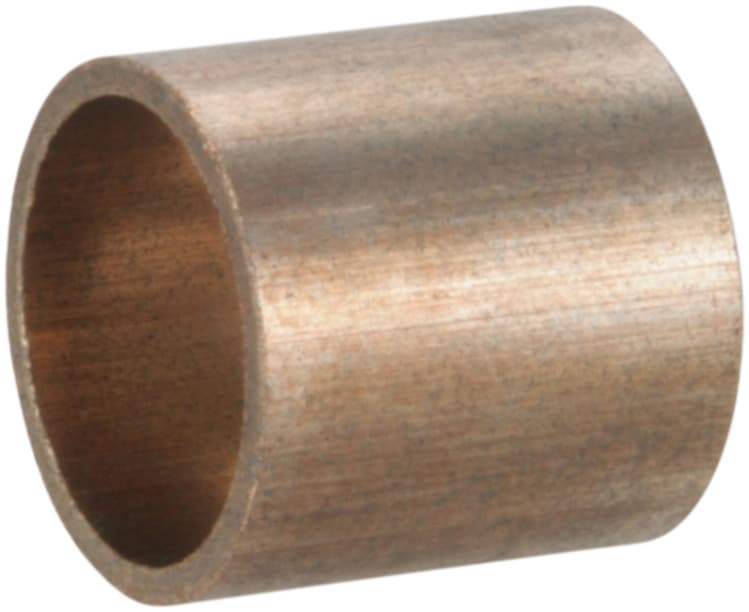

F032B40018 - BushingTrade number B140018
Replacement for:
BOSCH 2000301036
Pin w/o, Inner Diameter 12.08, Material Copper, Milling w/o, Outer Diameter 14.09, Length 13.90
F032B40208 - BushingTrade number B140208
Replacement for:
BOSCH 1000301056
Inner Diameter 10.11, Material Copper, Outer Diameter 14.04, Length 9.90
F032B40249 - BushingTrade number B140249
Replacement for:
BOSCH 1000301076
Pin w/o, Inner Diameter 8.10, Lubricating groove w/o, Material Copper, Milling w/o, Outer Diameter 11.12, Length 8.00
F032B40251 - BushingTrade number B140251
Replacement for:
BOSCH 1000301055
Pin w/o, Inner Diameter 18.00, Lubricating groove w/o, Material Copper, Milling w/o, Outer Diameter 22.10, Length 8.00
F032B40854 - BushingTrade number B140854
Replacement for:
BOSCH 1000301031BOSCH 1000301106
Pin w/o, Inner Diameter 12.10, Lubricating groove w/o, Material Steel, Milling w/o, Outer Diameter 13.57, Length 11.50
