F032114106 - StarterTrade number 114106

kW 1.6, Voltage 12, Mounting Flange 82.50, Terminal 50 6.30, B+ M8, Rotation CW, Distance 102.00, No./mount. holes 2 (0), Mounting Hole 2 12.00, Rear Distance 170.00, Drive Distance 40.00, Front Distance 86.00, Amount of Mounting Holes 2, Total Length 263.00, Position 15, Mounting Hole 1 12.00, Mounting Holes with Thread 0, No./teeth 9

F032132123 - Parts SetTrade number 132123

Replacement for:

BOSCH 1005821303

Teeth Depth 2.42, Bushing w/, Collar Height 3.30, Outer Diameter 74.00, No./teeth 42, Height 39.70

F032132808 - Fork LeverTrade number 132808

Replacement for:

BOSCH 1001933106BOSCH 1001933111

Plunger w/o, Distance 41.40, Length 86.50

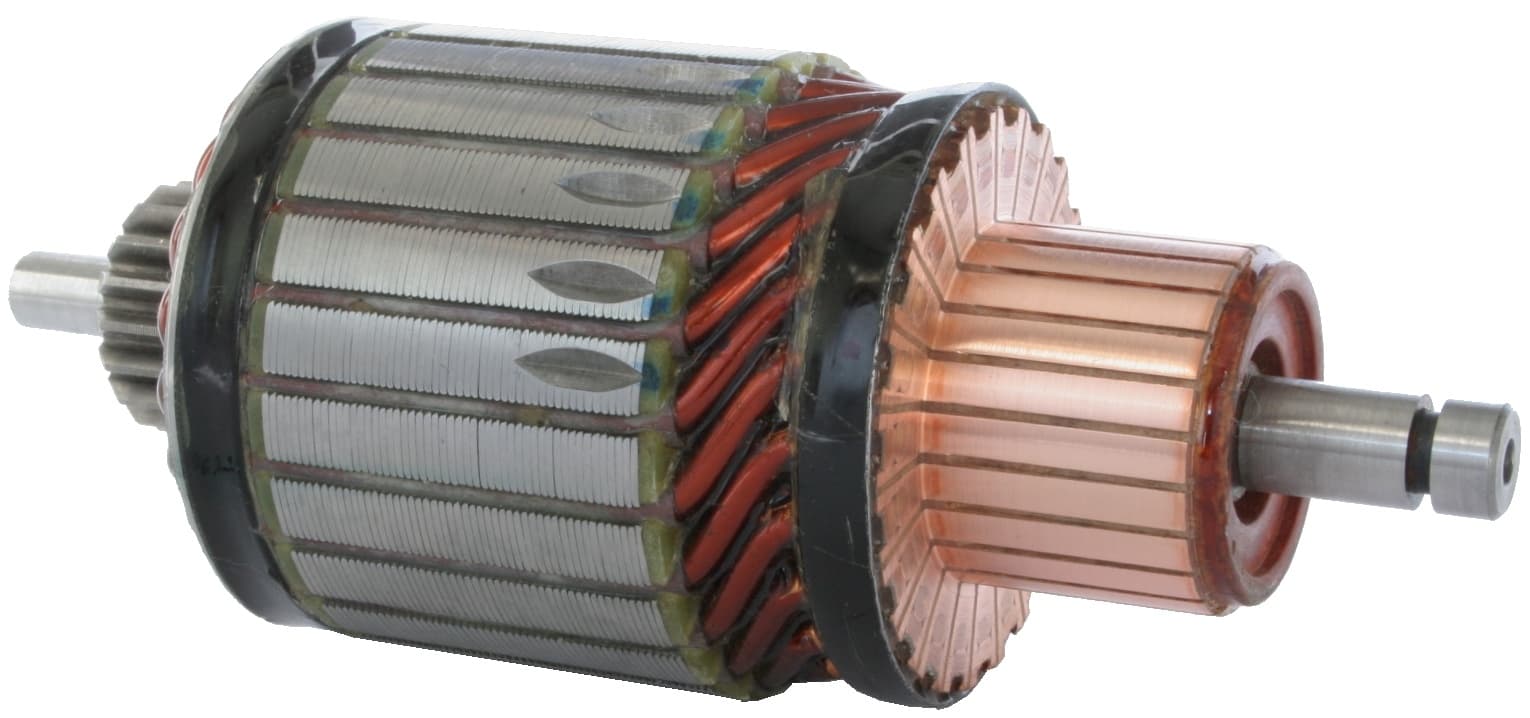

F032136231 - ArmatureTrade number 136231

Replacement for:

BOSCH 1004011055BOSCH 1004011099

kW 1.6, Voltage 12, Drive End Inside Shaft Diameter Outside 8.00, Bar Lane Height 22.00, Bar Cross Distance 41.20, Commutator End Shaft Diameter 10.00, Spline Teeth Length 21.00, Commutator Outer Diameter 52.40, Bar length 5.50, Commutator Inner Diameter 12.90, No./bars 23, Commutator Height 35.20, Commutator Diameter 33.00, Commutator Distance 20.40, OD/spline/teeth 24.80, Core Diameter 59.00, Shaft length 148.00, Bar Distance 3.45, No./teeth 18

F032139011 - Commutator BearingTrade number 139011

Replacement for:

BOSCH 1000520034BOSCH 1000520045BOSCH 1000520075

Height 19.50

F032139014 - Solenoid SwitchTrade number 139014

Replacement for:

BOSCH 0331303168

Voltage 12, Terminal 50 Spade, B+ Height 13.50, Coil Bolt Diameter M8, Eye Inner Diameter 4.70, B+ M8, Outer Diameter 56.30, No./mount. holes 3, No./terminals 3, Terminal 50/mm 6.30, Coil Bolt Length 8.00, Plunger Inner Diameter 10.40, Eye Outer Diameter 10.60, Plunger Outer Diameter 26.90, Amount of Mounting Holes 3, Total Length 85.00, Length 64.40, Remarks Cap: HC-CARGO 131315.

F032139638 - Brush HolderTrade number 139638

Replacement for:

BOSCH 1004336400BOSCH 1004336730BOSCH 1004336956

Spring w/, Brush w/, Brush Length 14.50, Inner Diameter 35.00, No./brushes 4, Outer Diameter 65.00, Brush Gear Width 8.40, Lead Length 58.00, Brush Height 18.00, Brush Thickness 6.00, Height 24.20

F032140018 - BushingTrade number 140018

Replacement for:

BOSCH 2000301036

Pin w/o, Inner Diameter 12.08, Material Copper, Milling w/o, Outer Diameter 14.09, Lubricating groove w/o, Length 13.90

F032140030 - BushingTrade number 140030

Replacement for:

BOSCH 1000301066BOSCH 1000301082

Pin w/o, Inner Diameter 12.10, Material Copper, Milling w/o, Outer Diameter 13.60, Lubricating groove w/o, Length 11.50

F032140208 - BushingTrade number 140208

Replacement for:

BOSCH 1000301056

Type Standard, Inner Diameter 10.11, Material Copper, Outer Diameter 14.04, Length 9.90

F032190582 - Spring Lock WasherTrade number 190582

Replacement for:

BOSCH 2918740007

DIN norm 128A, Inner Diameter 8.10, Material Steel spring, Outer Diameter 14.80, Thickness 1.60

F032191304 - ScrewTrade number 191304

Replacement for:

BOSCH 1000300004BOSCH 1003300005BOSCH 2915059107BOSCH 2915059180

Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13

F032191326 - ScrewTrade number 191326

Replacement for:

BOSCH 1003429002

DIN norm 6921, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 10.00, Spanner Size 7

F032231897 - Overrunning-Clutch DriveTrade number 231897

Replacement for:

BOSCH 1006209601BOSCH 1006209924

Splines internal 10, Rotation CW, Inner Diameter 12.00, Outer Diameter 29.50, Shaft Distance 2.50, Housing Outer Diameter 53.60, No./teeth 9, Total Length 70.00
