Showing results for: BOSCH 0001109019

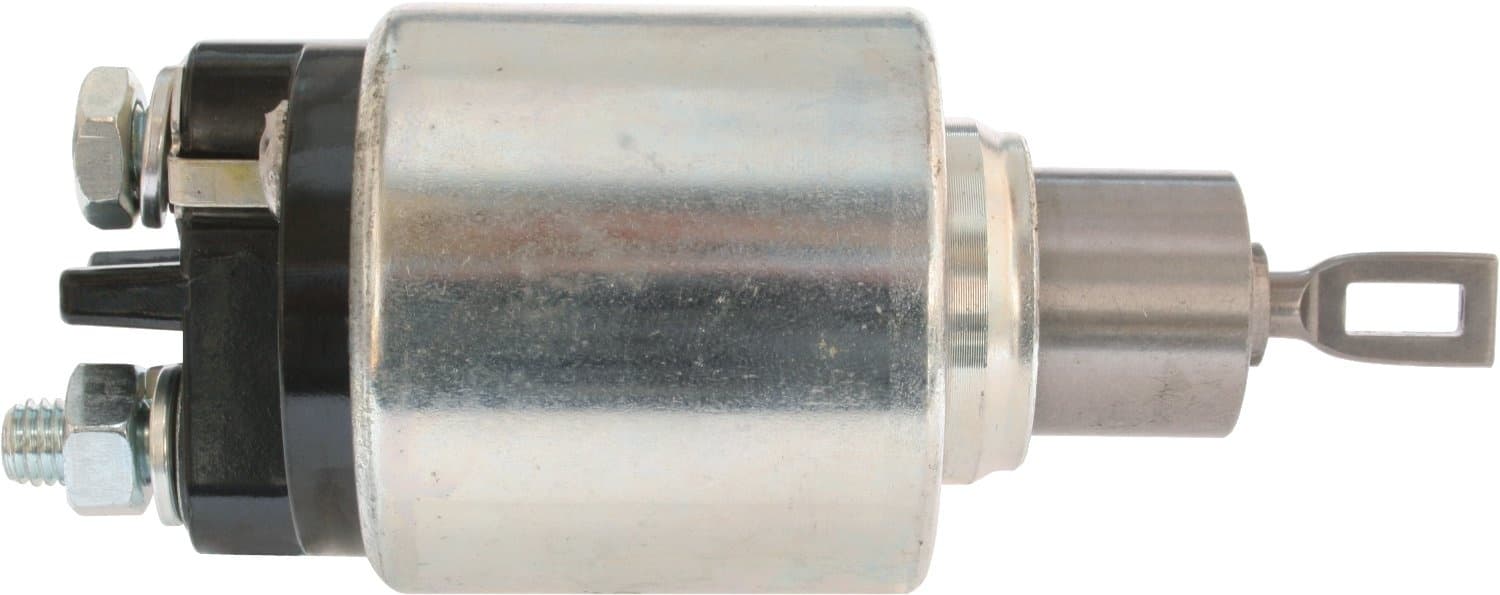

F032139075 - Solenoid SwitchTrade number 139075
Replacement for:
BOSCH 2339304069
Voltage 12, No./mount. holes 3, No./terminals 3, Terminal 50/mm 6.30, Coil Bolt Length 9.50, Plunger Inner Diameter 10.30, Eye Outer Diameter 10.70, Plunger Outer Diameter 24.00, Eye Inner Diameter 5.00, B+ M8, Terminal 50 Spade, B+ Height 14.00, Coil Bolt Diameter M8, Outer Diameter 52.20, Remarks Cap: HC-CARGO 231802., Length 54.75, Amount of Mounting Holes 3, Total Length 82.00

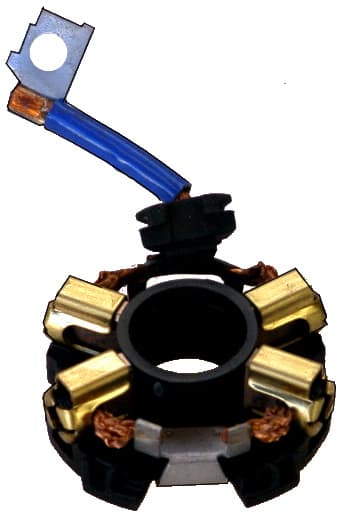

F032139638 - Brush HolderTrade number 139638
Replacement for:
BOSCH 2004336237
Brush w/, Brush Length 14.50, Spring w/, Lead Length 58.00, Inner Diameter 35.00, Brush Gear Width 8.40, No./brushes 4, Outer Diameter 65.00, Height 24.20, Brush Thickness 6.00, Brush Height 18.00
F032140208 - BushingTrade number 140208
Replacement for:
BOSCH 1000301056
Inner Diameter 10.11, Type Standard, Material Copper, Outer Diameter 14.04, Length 9.90
F032140242 - Needle bearingTrade number 140242
Replacement for:
BOSCH 9001140384
Bearing type Needle bearing, Inner Diameter 12.00, Outer Diameter 16.00, Servicing PMGR series, M78, M79, Height 10.00
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH 2915059180
DIN norm 439B, Iso norm 4035, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13

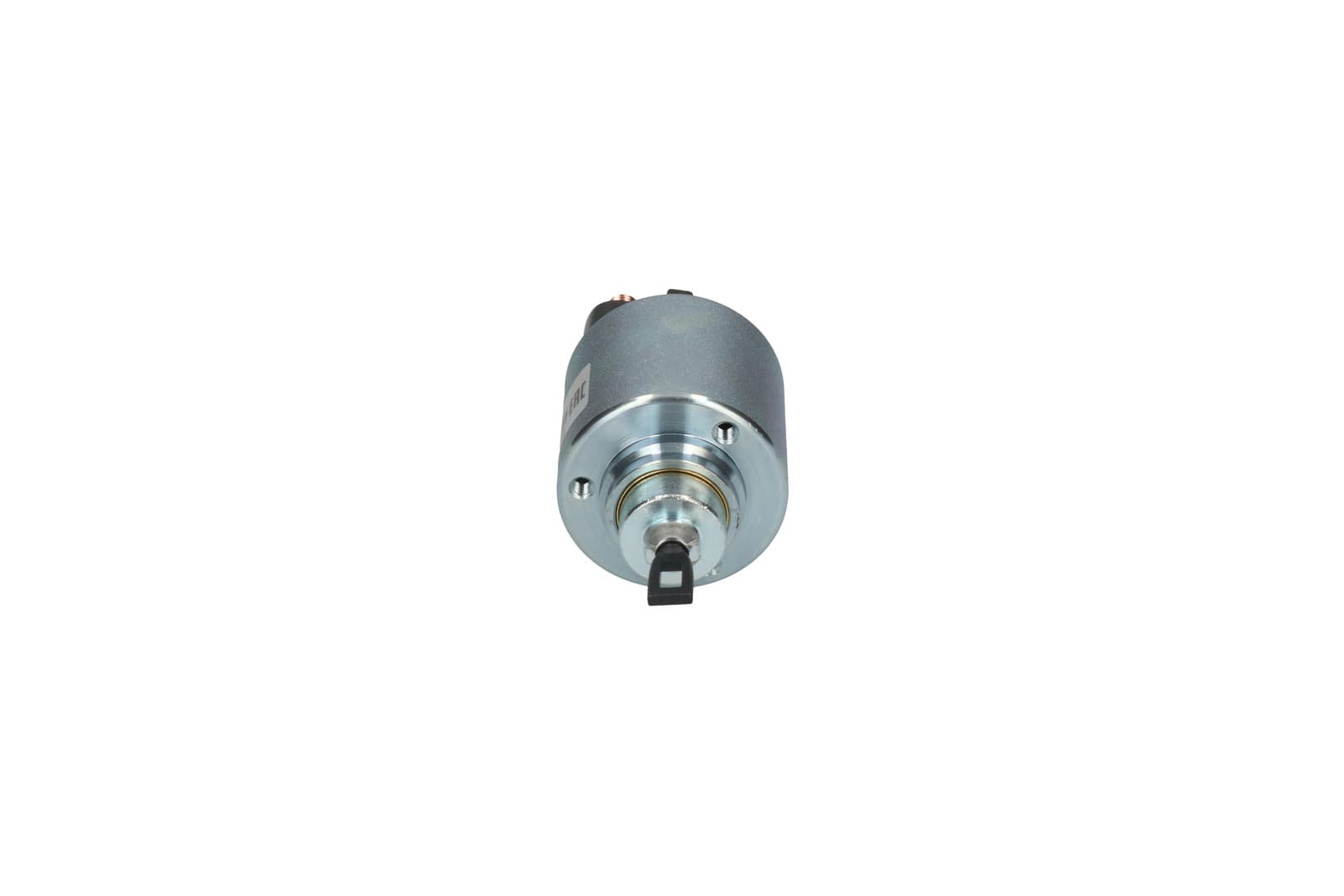

F032230356 - Solenoid SwitchTrade number 230356
Replacement for:
BOSCH 2339304069
Voltage 12, No./mount. holes 3, No./terminals 3, Terminal 50/mm M6, Coil Bolt Length 7.50, Plunger Inner Diameter 10.40, Eye Outer Diameter 10.60, Plunger Outer Diameter 23.90, Eye Inner Diameter 4.70, B+ M8, Terminal 50 Bolt, B+ Height 13.00, Coil Bolt Diameter M8, Terminal 50 Width 13.00, Outer Diameter 52.50, Remarks Cap: HC-CARGO 233075., Length 55.00, Amount of Mounting Holes 3, Total Length 86.00

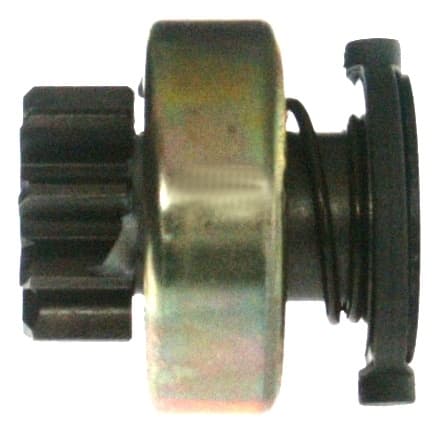

F032233828 - Overrunning-Clutch DriveTrade number 233828
Replacement for:
BOSCH 1006209656BOSCH 1986SE1627
Splines internal 10, Rotation CW, Inner Diameter 12.00, Outer Diameter 34.40, Total Length 50.60, No./teeth 9, Housing Outer Diameter 50.00
F032B40208 - BushingTrade number B140208
Replacement for:
BOSCH 1000301056
Inner Diameter 10.11, Material Copper, Outer Diameter 14.04, Length 9.90
F032B40854 - BushingTrade number B140854
Replacement for:
BOSCH 1000301106
Pin w/o, Inner Diameter 12.10, Lubricating groove w/o, Material Steel, Milling w/o, Outer Diameter 13.57, Length 11.50
