Showing results for: BOSCH 0001109342
F032132808 - Fork LeverTrade number 132808
Replacement for:
BOSCH 1001933111
Distance 41.40, Plunger w/o, Length 86.50
F032140030 - BushingTrade number 140030
Replacement for:
BOSCH 1000301082
Pin w/o, Inner Diameter 12.10, Lubricating groove w/o, Material Copper, Milling w/o, Outer Diameter 13.60, Length 11.50
F032140208 - BushingTrade number 140208
Replacement for:
BOSCH 1000301056
Inner Diameter 10.11, Type Standard, Material Copper, Outer Diameter 14.04, Length 9.90
F032140242 - Needle bearingTrade number 140242
Replacement for:
BOSCH 9001140384
Bearing type Needle bearing, Inner Diameter 12.00, Outer Diameter 16.00, Servicing PMGR series, M78, M79, Height 10.00
F032190582 - Spring Lock WasherTrade number 190582
Replacement for:
BOSCH 2918740007
DIN norm 128A, Inner Diameter 8.10, Material Steel spring, Outer Diameter 14.80, Thickness 1.60
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH 2915059107BOSCH 2915059180
DIN norm 439B, Iso norm 4035, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
F032191326 - ScrewTrade number 191326
Replacement for:
BOSCH 1003429009
DIN norm 6921, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 10.00, Spanner Size 7

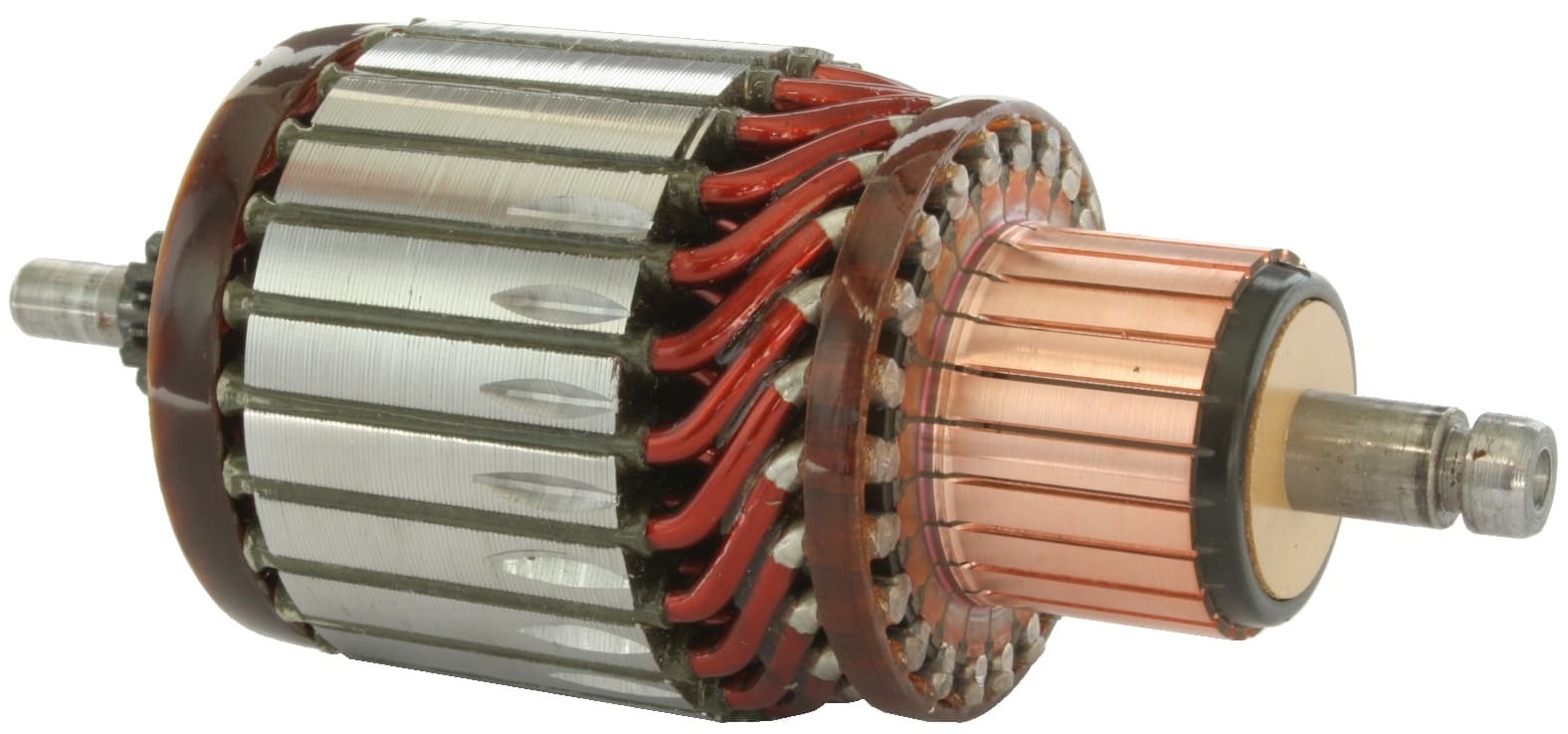

F032230371 - ArmatureTrade number 230371
Replacement for:
BOSCH 1004011315
kW 2.1, Voltage 12, Commutator Diameter 32.00, Commutator Distance 15.00, OD/spline/teeth 17.00, No./bars 23, Commutator Height 35.20, Bar length 5.50, Commutator Inner Diameter 12.90, Bar Distance 3.45, Core Diameter 59.00, Shaft length 149.00, Bar Cross Distance 41.20, Commutator End Shaft Diameter 10.00, Bar Lane Height 24.00, Spline Teeth Length 24.50, Drive End Inside Shaft Diameter Outside 8.00, Commutator Outer Diameter 52.40, Rotation CW, Remarks 13 teeth: HC-CARGO 137893., No./teeth 11, Shaft Diameter 16.90
F032235572 - Pole housingTrade number 235572
Replacement for:
BOSCH 1005001808
kW 2.2, Voltage 12, Outer Diameter Rear 78.40, Magnets w/, Inner Diameter 74.00, Outer Diameter Front 78.40, Outer Diameter Middle 78.40, Length 124.50

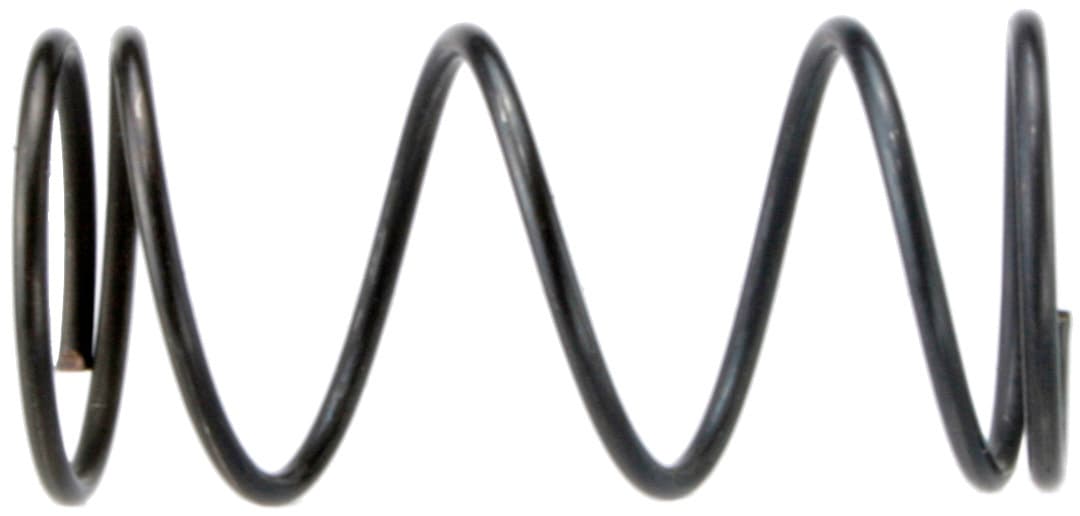

F032235818 - SpringTrade number 235818
Replacement for:
BOSCH 1004611030
Wire thickness 0.75, Outer Diameter 10.10, Length 21.50

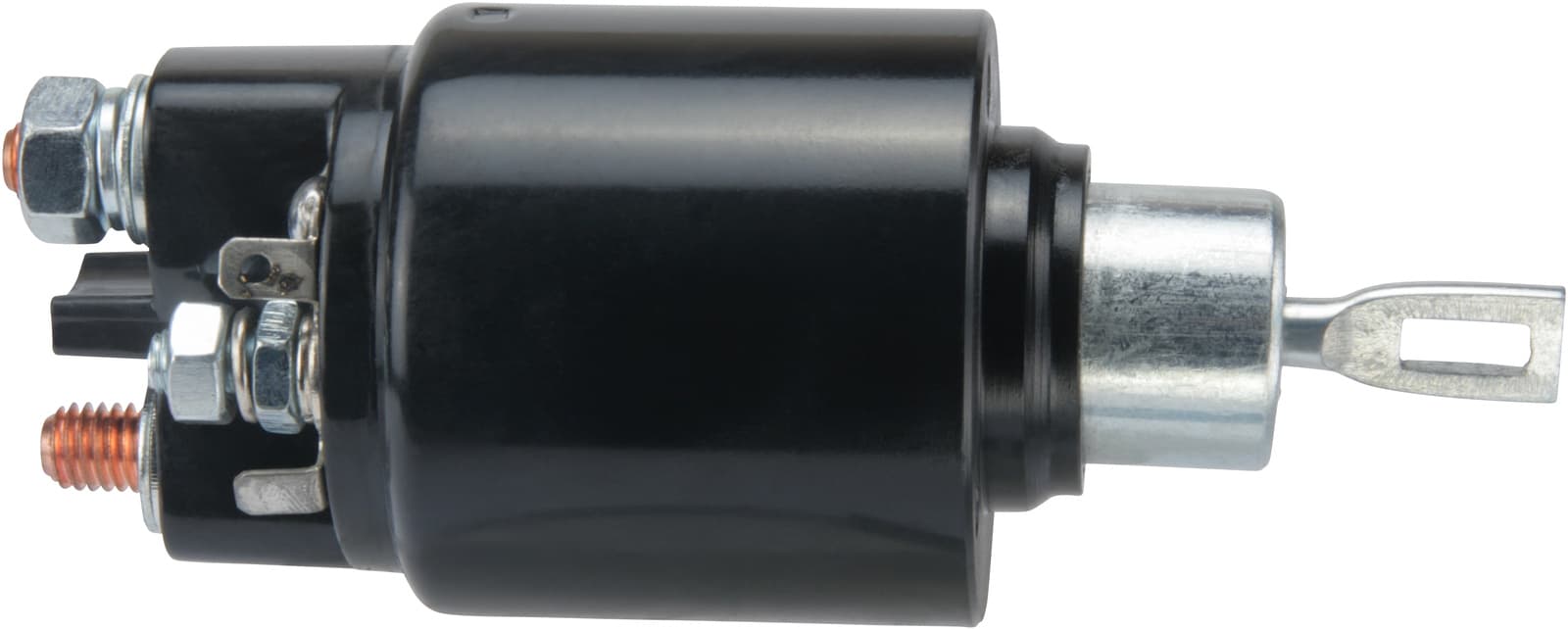

F032332153 - Solenoid SwitchTrade number 332153
Replacement for:
BOSCH 2339305092
Voltage 12, No./mount. holes 3, No./terminals 3, Terminal 50/mm M6, Coil Bolt Length 8.50, Plunger Inner Diameter 10.30, Bracket type Crimp, Plunger Outer Diameter 25.85, B+ M8, Terminal 50 Bolt, B+ Height 24.50, Coil Bolt Diameter M8, Terminal 50 Width 9.50, Outer Diameter 52.00, Length 60.30, Amount of Mounting Holes 3, Total Length 88.00

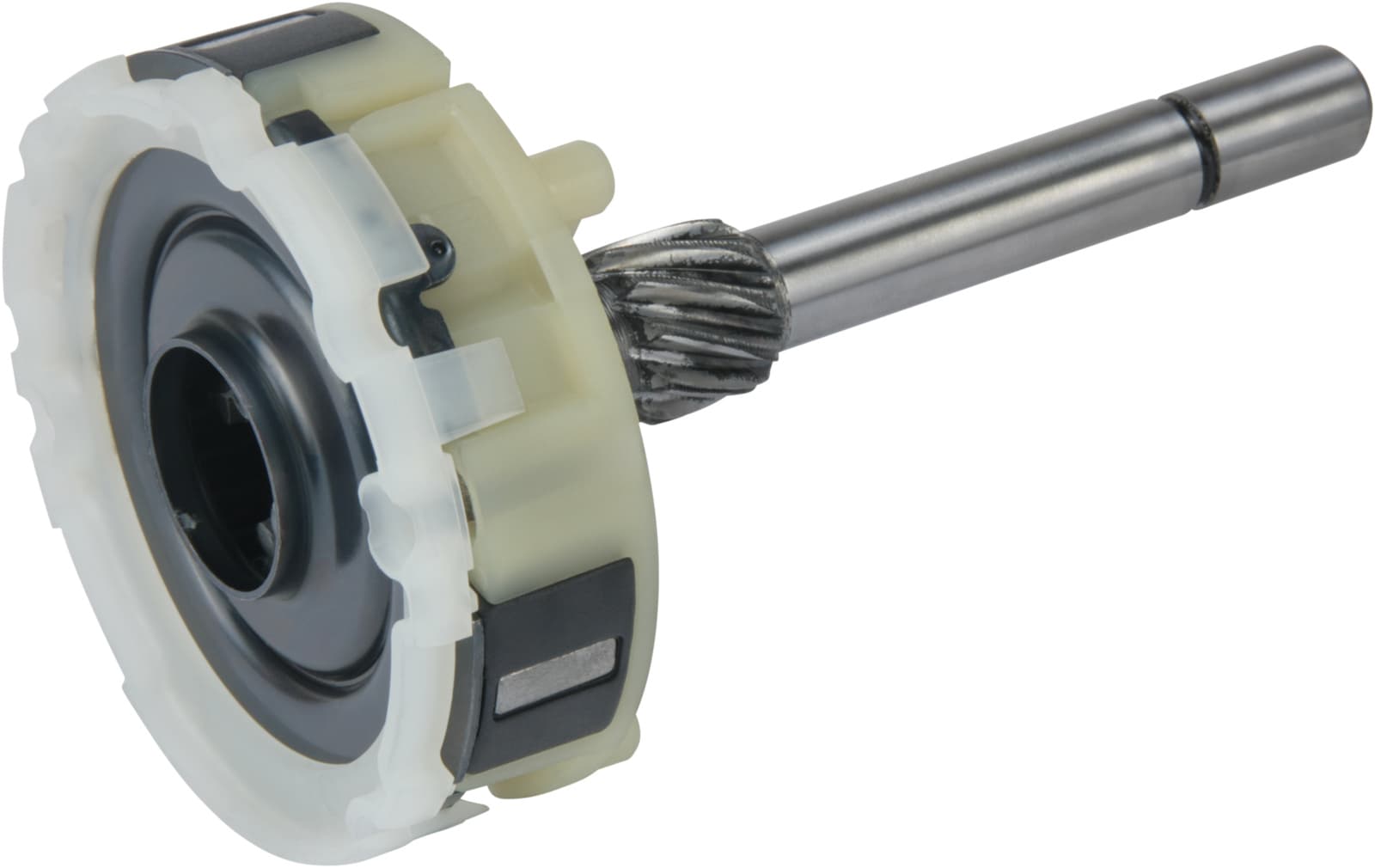

F032333464 - Planetary Gear TrainTrade number 333464
Replacement for:
BOSCH 1006200342
No./pinions 3, Shaft Lock Length 96.30, Spline Length 14.00, No./splines 10, Shaft Diameter Middle 12.00, Shaft Diameter Front 12.00, Type/pinion Loose, Rotation CW, Spline Diameter 17.30, Total Length 132.00, Housing Outer Diameter 74.00
F032333537 - Fork LeverTrade number 333537
Replacement for:
BOSCH 1001933111
Distance 43.80, Plunger w/o, Length 89.80

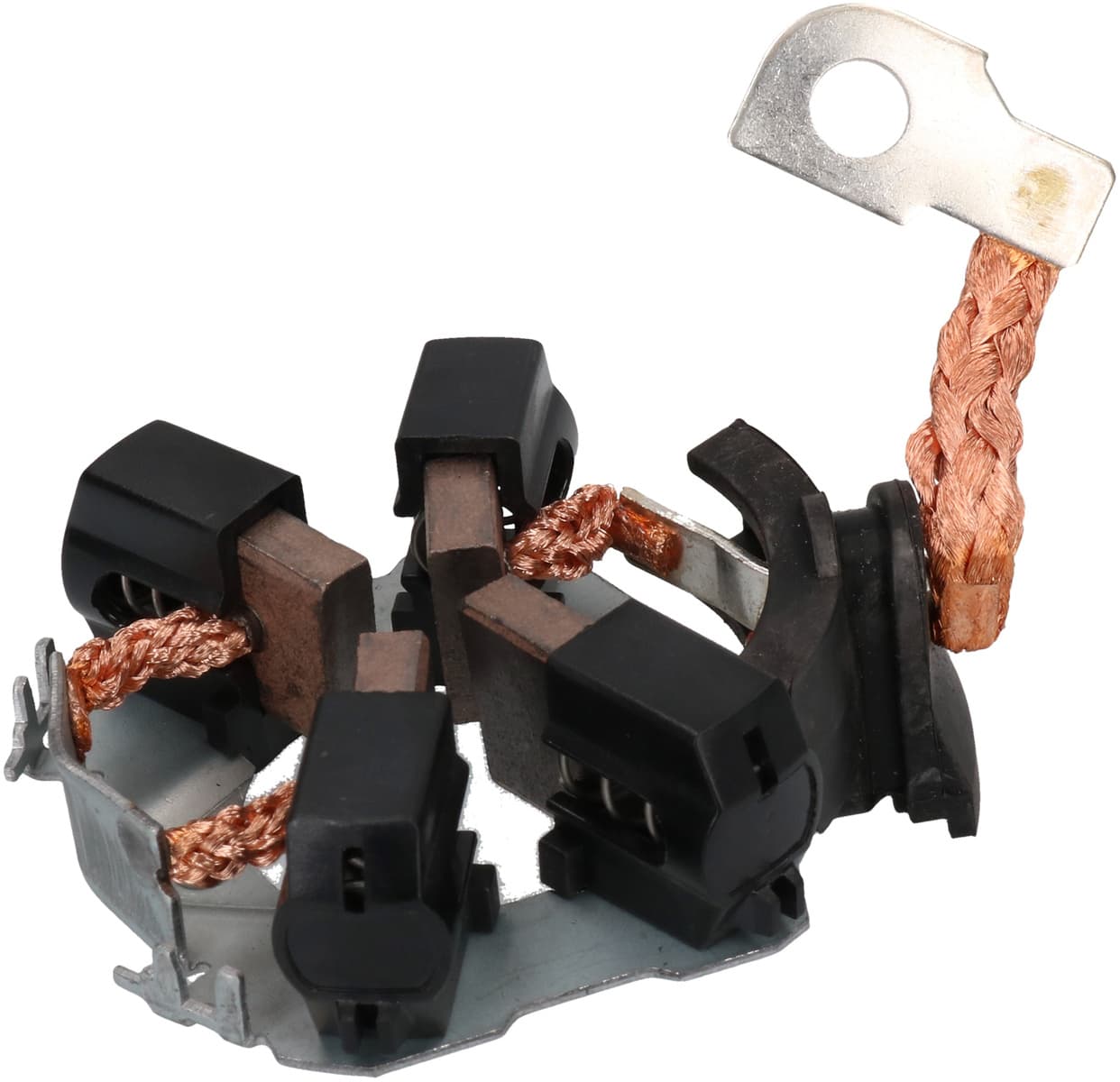

F032335221 - Brush HolderTrade number 335221
Replacement for:
BOSCH 1004336581
Lead Length 42.00, Inner Diameter 34.00, No./brushes 4, Brush w/, Brush lead length 17.00, Brush Length 12.00, Spring w/, Brush Gear Width 10.50, Outer Diameter 64.50, Height 25.40, Brush Thickness 6.00, Brush Height 17.00
F032B40030 - BushingTrade number B140030
Replacement for:
BOSCH 1000301082
Pin w/o, Inner Diameter 12.13, Lubricating groove w/o, Material Copper, Milling w/o, Outer Diameter 13.62, Length 11.50
F032B40208 - BushingTrade number B140208
Replacement for:
BOSCH 1000301056
Inner Diameter 10.11, Material Copper, Outer Diameter 14.04, Length 9.90
