Showing results for: BOSCH 0001109419

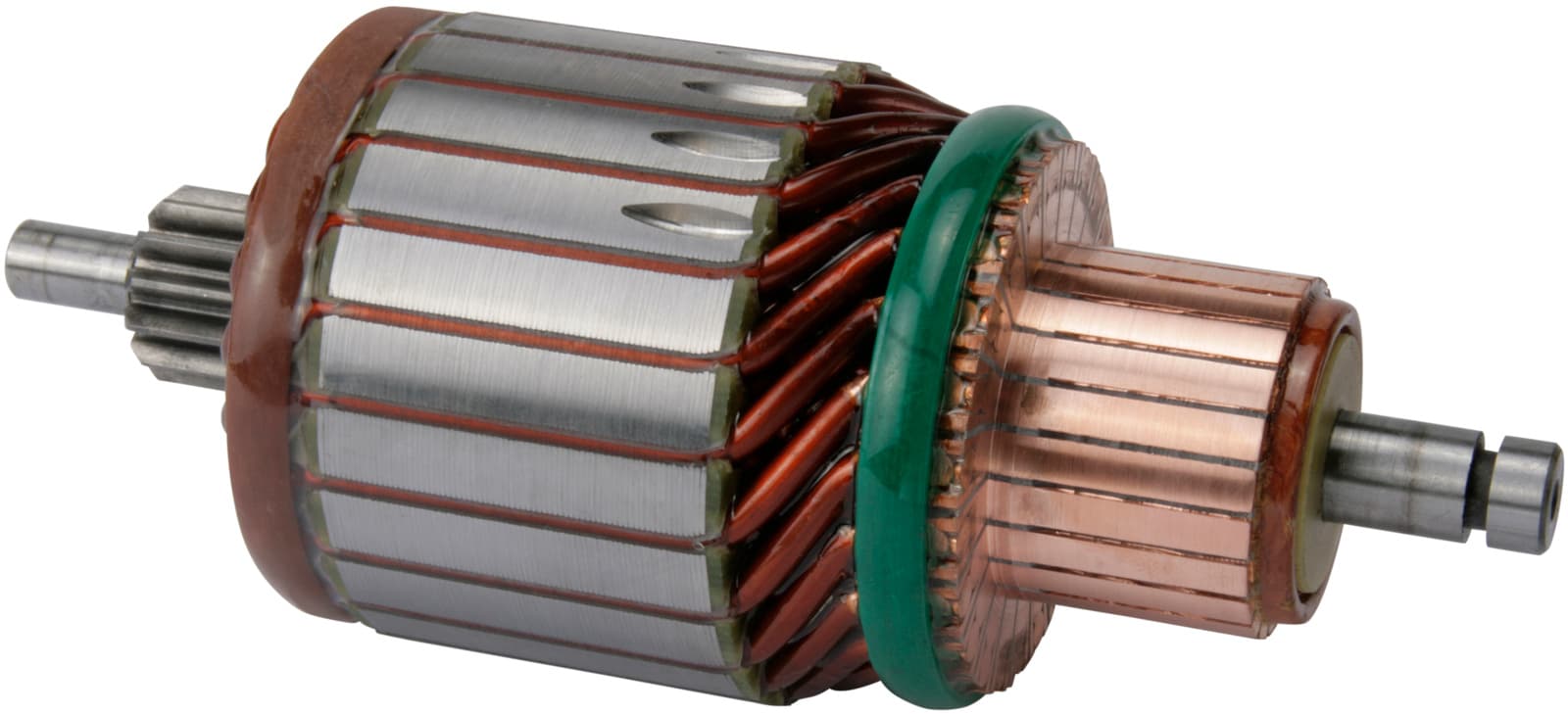

F032137893 - ArmatureTrade number 137893
Replacement for:
BOSCH 1004011220
kW 1.8/2.0, Voltage 12, Commutator Diameter 33.00, Commutator Distance 15.00, OD/spline/teeth 19.00, No./bars 23, Commutator Height 35.20, Bar length 5.50, Commutator Inner Diameter 12.90, Bar Distance 3.45, Core Diameter 59.00, Shaft length 149.00, Bar Cross Distance 41.20, Commutator End Shaft Diameter 10.00, Bar Lane Height 22.00, Spline Teeth Length 21.40, Drive End Inside Shaft Diameter Outside 8.00, Commutator Outer Diameter 52.40, Remarks 11 teeth: HC-CARGO 230371., No./teeth 13

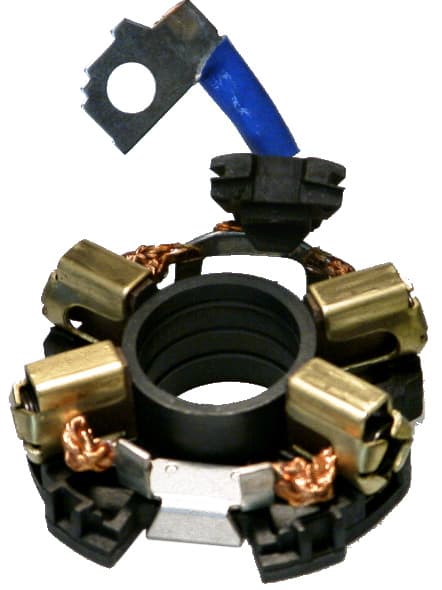

F032138900 - Brush HolderTrade number 138900
Replacement for:
BOSCH 1004336431
Voltage 12, Lead Length 36.50, Inner Diameter 35.00, No./brushes 4, Brush w/, Brush lead length 22.50, Brush Length 13.00, Spring w/, Brush Gear Width 8.20, Outer Diameter 67.00, Remarks Brush pos.: HC-CARGO BS157. Brush neg.: HC-CARGO BS158., Height 24.50, Brush Thickness 6.00, Brush Height 17.80
F032139075 - Solenoid SwitchTrade number 139075
Replacement for:
BOSCH 2339304069
Voltage 12, No./mount. holes 3, No./terminals 3, Terminal 50/mm 6.30, Coil Bolt Length 9.50, Plunger Inner Diameter 10.30, Eye Outer Diameter 10.70, Plunger Outer Diameter 24.00, Eye Inner Diameter 5.00, B+ M8, Terminal 50 Spade, B+ Height 14.00, Coil Bolt Diameter M8, Outer Diameter 52.20, Remarks Cap: HC-CARGO 231802., Length 54.75, Amount of Mounting Holes 3, Total Length 82.00
F032139638 - Brush HolderTrade number 139638
Replacement for:
BOSCH 2004336237
Brush w/, Brush Length 14.50, Spring w/, Lead Length 58.00, Inner Diameter 35.00, Brush Gear Width 8.40, No./brushes 4, Outer Diameter 65.00, Height 24.20, Brush Thickness 6.00, Brush Height 18.00
F032140208 - BushingTrade number 140208
Replacement for:
BOSCH 1000301056
Inner Diameter 10.11, Type Standard, Material Copper, Outer Diameter 14.04, Length 9.90
F032140242 - Needle bearingTrade number 140242
Replacement for:
BOSCH 9001140384
Bearing type Needle bearing, Inner Diameter 12.00, Outer Diameter 16.00, Servicing PMGR series, M78, M79, Height 10.00
F032190582 - Spring Lock WasherTrade number 190582
Replacement for:
BOSCH 2918740007
DIN norm 128A, Inner Diameter 8.10, Material Steel spring, Outer Diameter 14.80, Thickness 1.60
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH 2915059107BOSCH 2915059180
DIN norm 439B, Iso norm 4035, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
F032230356 - Solenoid SwitchTrade number 230356
Replacement for:
BOSCH 2339304069
Voltage 12, No./mount. holes 3, No./terminals 3, Terminal 50/mm M6, Coil Bolt Length 7.50, Plunger Inner Diameter 10.40, Eye Outer Diameter 10.60, Plunger Outer Diameter 23.90, Eye Inner Diameter 4.70, B+ M8, Terminal 50 Bolt, B+ Height 13.00, Coil Bolt Diameter M8, Terminal 50 Width 13.00, Outer Diameter 52.50, Remarks Cap: HC-CARGO 233075., Length 55.00, Amount of Mounting Holes 3, Total Length 86.00
F032233828 - Overrunning-Clutch DriveTrade number 233828
Replacement for:
BOSCH 1006209656BOSCH 1986SE1627
Splines internal 10, Rotation CW, Inner Diameter 12.00, Outer Diameter 34.40, Total Length 50.60, No./teeth 9, Housing Outer Diameter 50.00
F032B40208 - BushingTrade number B140208
Replacement for:
BOSCH 1000301056
Inner Diameter 10.11, Material Copper, Outer Diameter 14.04, Length 9.90
F032B40854 - BushingTrade number B140854
Replacement for:
BOSCH 1000301106
Pin w/o, Inner Diameter 12.10, Lubricating groove w/o, Material Steel, Milling w/o, Outer Diameter 13.57, Length 11.50
