Showing results for: BOSCH 0001115117
F032140208 - BushingTrade number 140208
Replacement for:
BOSCH 1000301056
Inner Diameter 10.11, Type Standard, Material Copper, Outer Diameter 14.04, Length 9.90
F032140482 - Needle bearingTrade number 140482
Replacement for:
BOSCH 1000917003
Bearing type Needle bearing, Inner Diameter 10.00, Outer Diameter 14.00, Height 10.00
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH 2915059180
DIN norm 439B, Iso norm 4035, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13

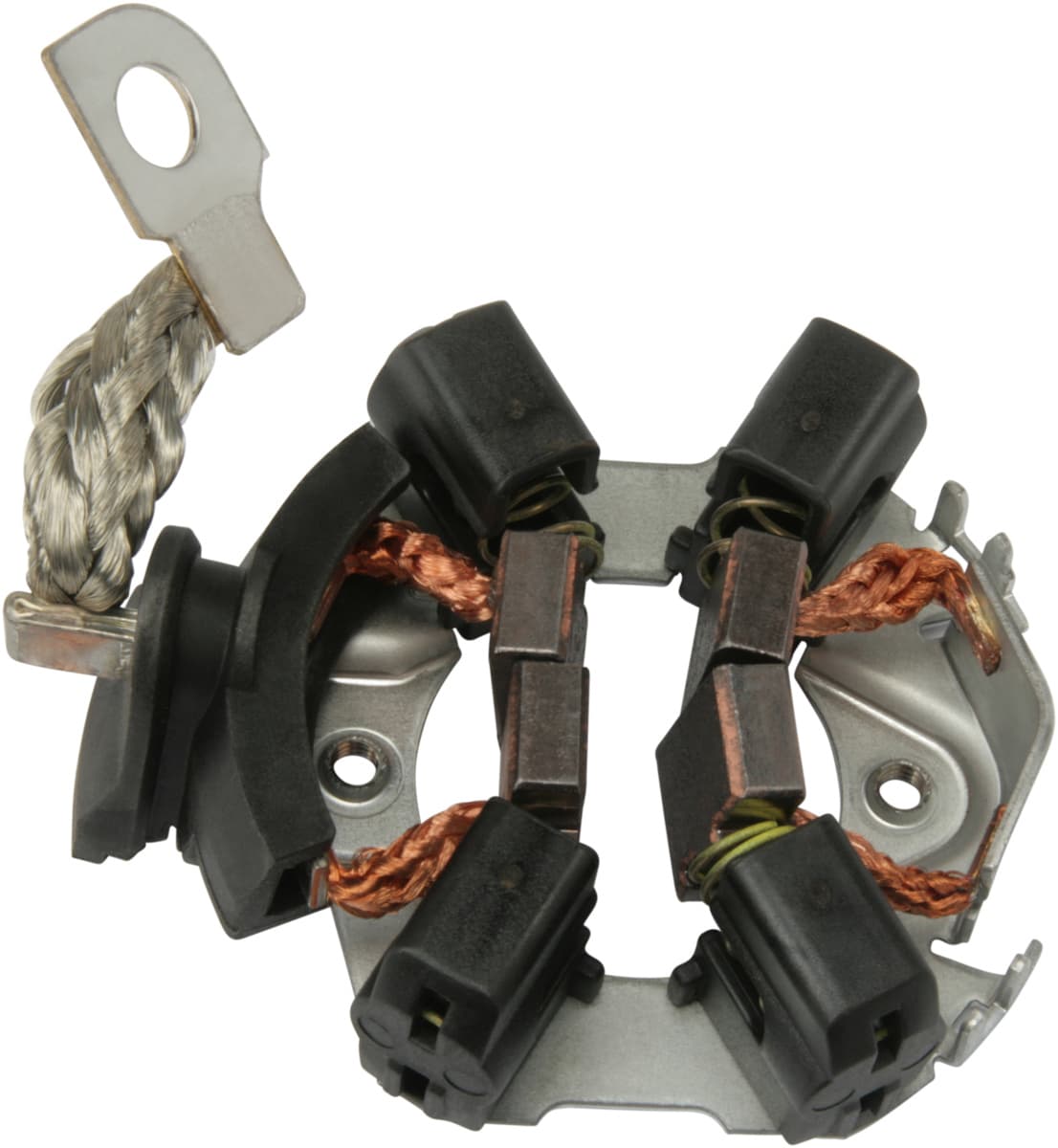

F032235401 - Brush HolderTrade number 235401
Replacement for:
BOSCH 1004336677
Voltage 12, Brush w/, Spring w/, Lead Length 45.00, Inner Diameter 33.50, No./brushes 4, Outer Diameter 69.00, Height 25.30

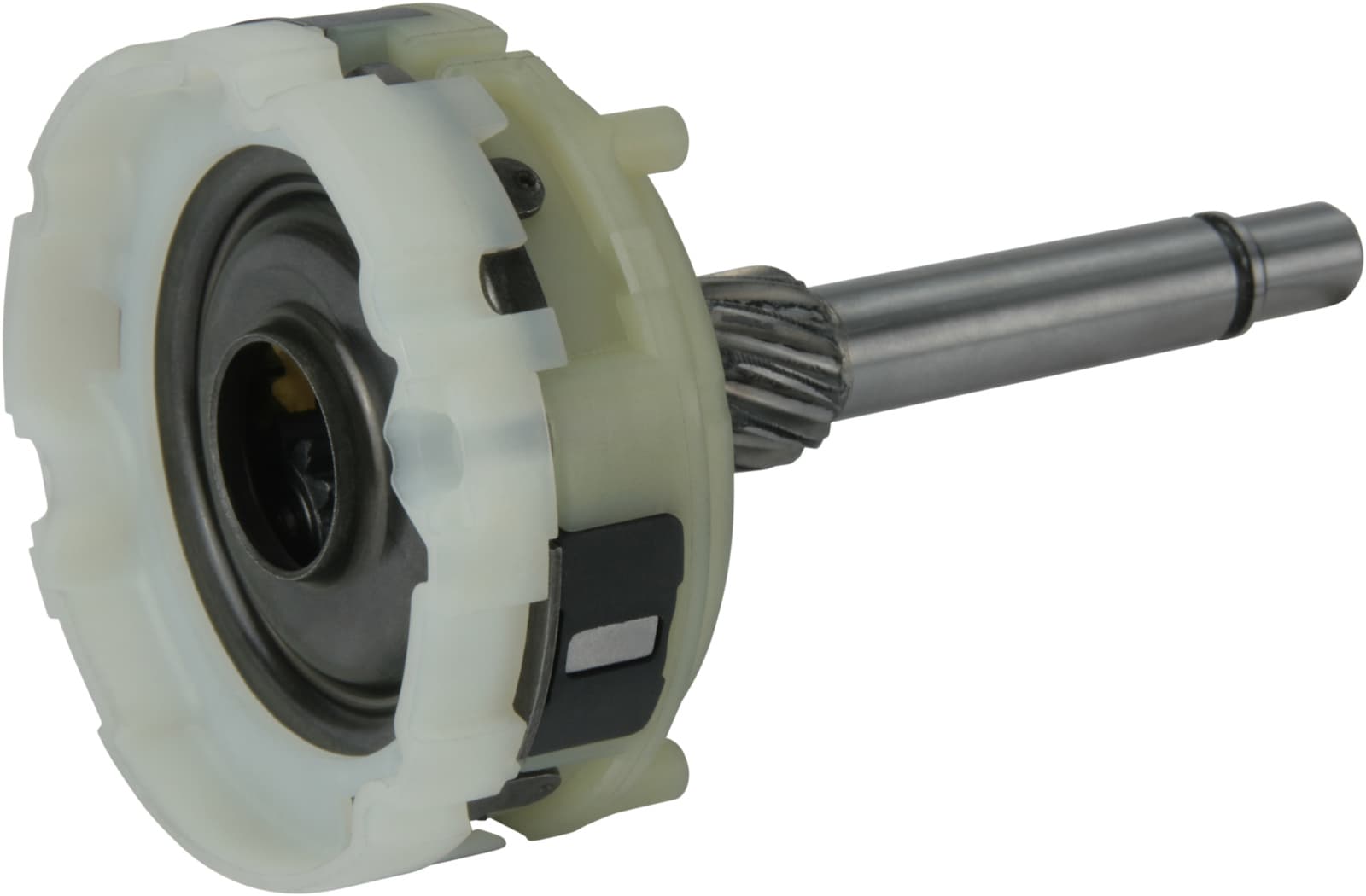

F032333423 - Planetary Gear TrainTrade number 333423
Replacement for:
BOSCH 1006200929
No./pinions 3, Shaft Lock Length 89.00, Spline Length 13.50, No./splines 10, Shaft Diameter Middle 12.00, Shaft Diameter Front 10.00, Type/pinion Loose, Rotation CW, Spline Diameter 17.30, Total Length 121.00, Housing Outer Diameter 69.50

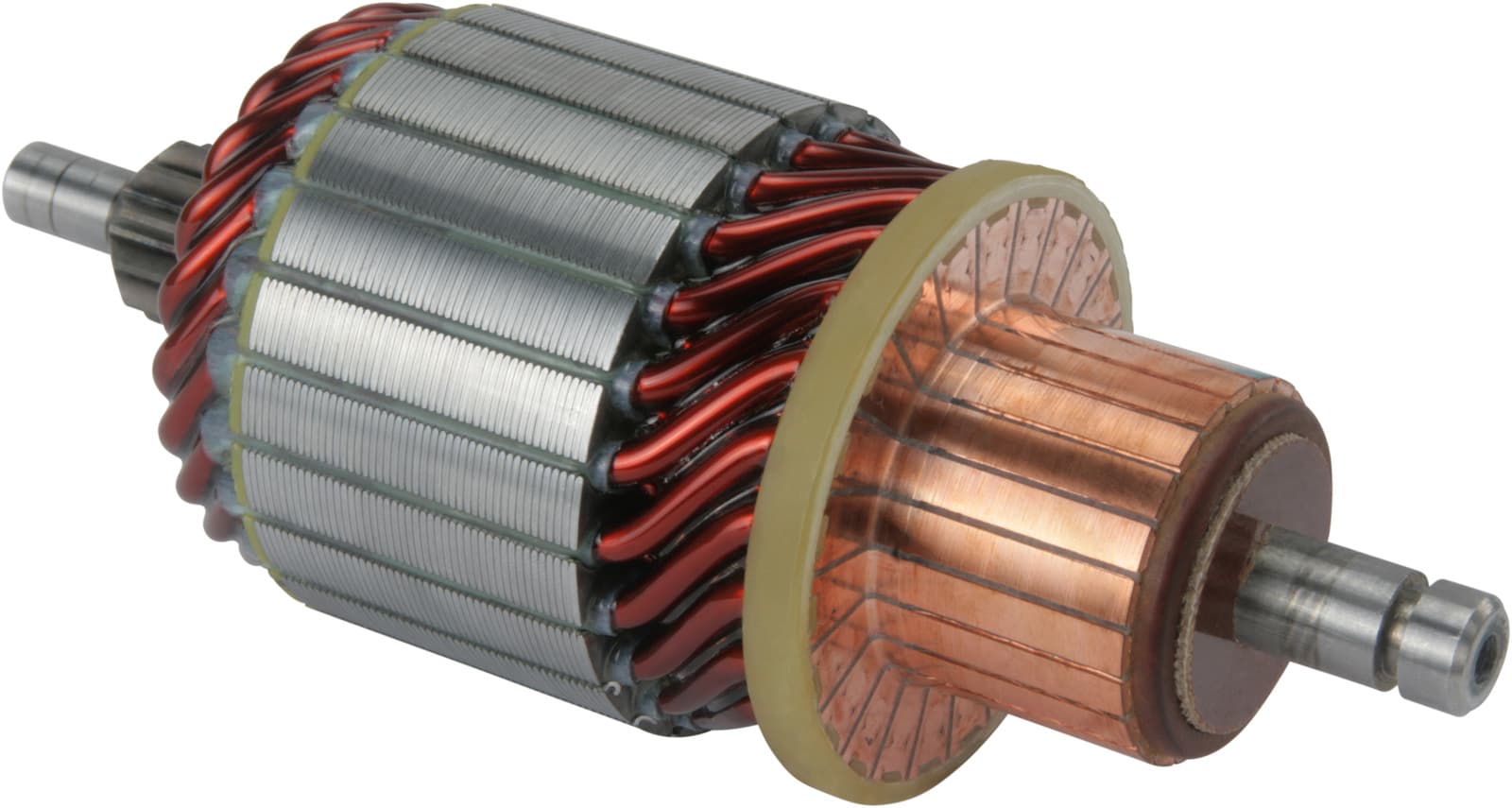

F032333424 - ArmatureTrade number 333424
Replacement for:
BOSCH 1004011263
Voltage 12, Commutator Diameter 32.20, Commutator Distance 21.10, OD/spline/teeth 16.90, No./bars 23, Core Diameter 55.10, Shaft length 146.00, Commutator End Shaft Diameter 10.00, Bar Lane Height 23.00, Spline Teeth Length 22.50, Drive End Inside Shaft Diameter Outside 8.00, Commutator Outer Diameter 50.00, No./teeth 11

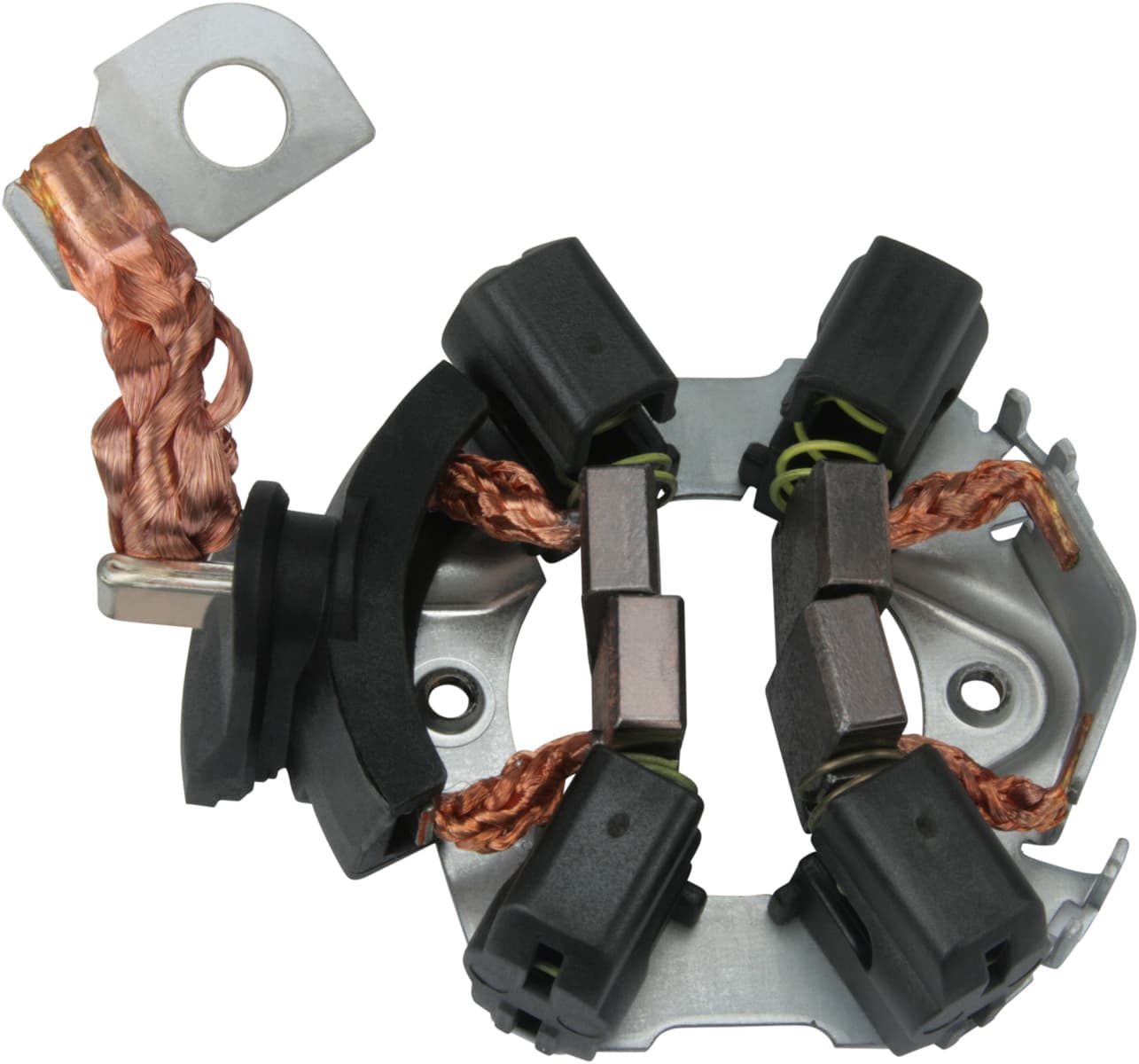

F032333425 - Brush HolderTrade number 333425
Replacement for:
BOSCH 1004336677
Lead Length 42.00, Inner Diameter 33.50, No./brushes 4, Brush w/, Brush lead length 20.50, Brush Length 11.00, Spring w/, Brush Gear Width 9.60, Outer Diameter 67.00, Height 25.50, Brush Thickness 6.00, Brush Height 18.00
F032B40208 - BushingTrade number B140208
Replacement for:
BOSCH 1000301056
Inner Diameter 10.11, Material Copper, Outer Diameter 14.04, Length 9.90
