Showing results for: BOSCH 0001223014

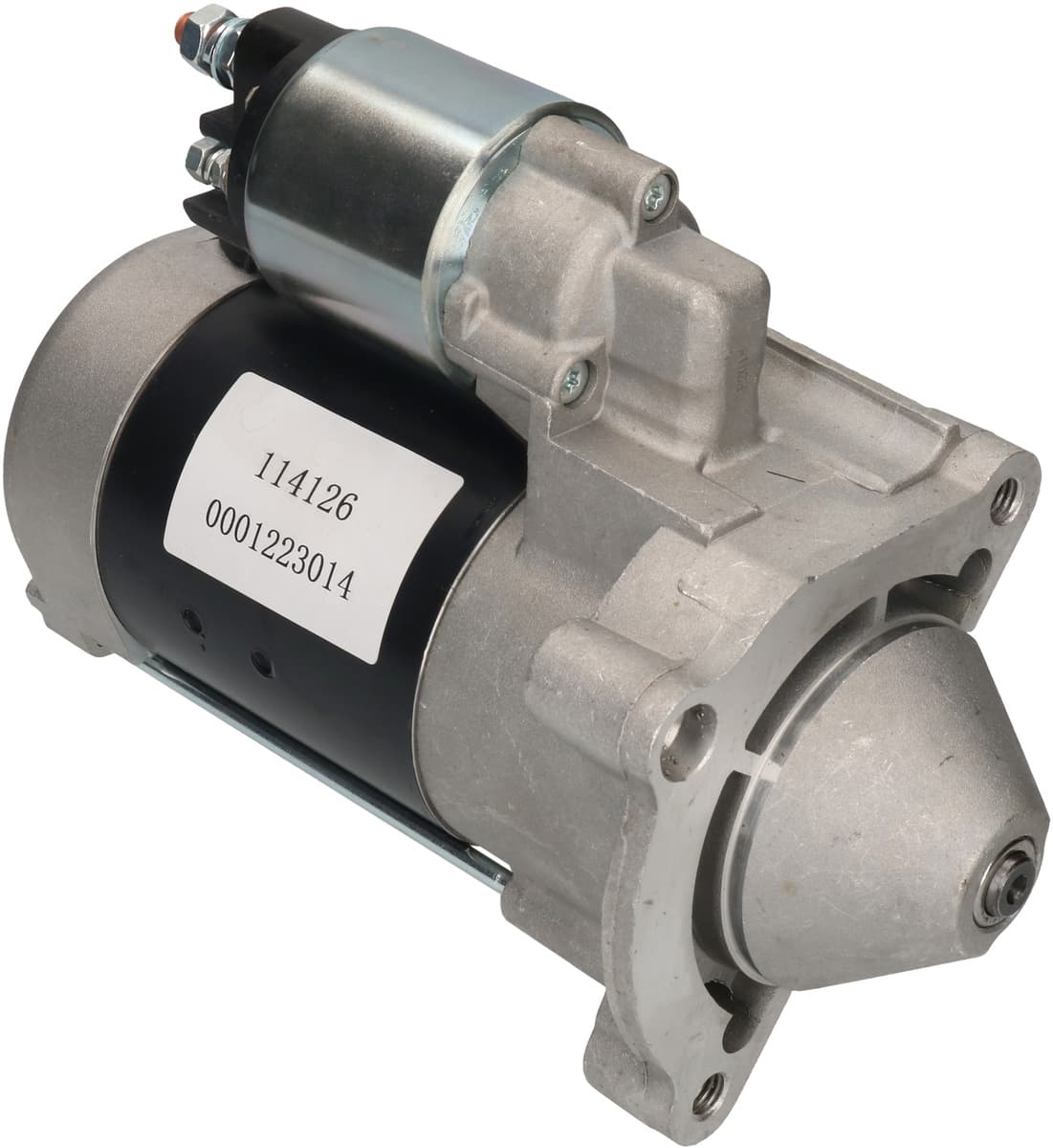

F032114126 - StarterTrade number 114126
kW 2.3, Voltage 12, Mounting Flange 72.00, Distance 120.00, Oil sealed No, Prod. info BN, Drive type Steel, Rear Distance 197.00, Distance 2 85.50, Distance 3 85.50, Drive Distance -6.00, Waterproof No, Terminal 50 M5, B+ M8, Rotation CW, No./mount. holes 3 (3), Mounting hole 3 with thread M10, Front Distance 34.00, Total Length 248.00, Position 15, Mounting Holes with Thread 3, Amount of Mounting Holes 3, Gear type GR, No./teeth 10
F032132281 - Contact PlateTrade number 132281
Width 1 15.00, Shaft measurement 31.50, Outer Diameter 2 6.40, Material Copper, Shaft w/, Thickness 3.00, Length 36.00
F032134141 - Contact plugTrade number 134141
Thread size M8, Thread Length 41.00, Collar Length Rear 45.50, Total Length 50.50
F032135004 - Brush-Spring SetTrade number 135004
Replacement for:
BOSCH 1004615001
Wire thickness 0.90, Inner Diameter 9.70, Material Steel, Outer Diameter 11.50, Length 32.00
F032135777 - Fork LeverTrade number 135777
Replacement for:
BOSCH 1001933101
Plunger w/o, Distance 40.35, Length 92.70
F032135847 - Stop RingTrade number 135847
Material Steel, Thickness 2.00, Remarks Stop collar: HC-CARGO 137742.
F032137745 - Stop RingTrade number 137745
Inner Diameter 12.00, Outer Diameter 17.20, Collar w/o, Remarks Retaining ring: HC-CARGO 135847., Height 5.50
F032138328 - ScrewTrade number 138328
Replacement for:
BOSCH 2003429051
Thread/mm/" M5, Collar Length 31.00, Thread Length 10.50, Total Length 35.00
F032140018 - BushingTrade number 140018
Replacement for:
BOSCH 2000301036
Pin w/o, Inner Diameter 12.08, Material Copper, Milling w/o, Outer Diameter 14.09, Lubricating groove w/o, Length 13.90

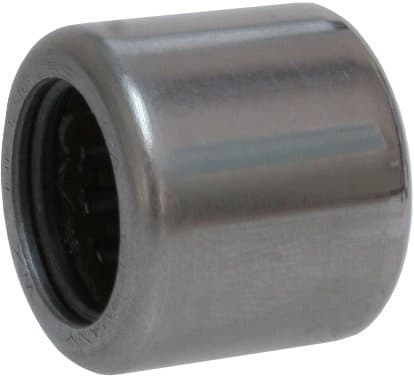

F032140904 - Needle bearingTrade number 140904
Replacement for:
BOSCH 9003330903
Inner Diameter 12.00, Outer Diameter 18.00, Bearing type Needle bearing, Height 16.00
F032140988 - BushingTrade number 140988
Replacement for:
BOSCH 9003330317
Pin w/o, Inner Diameter 10.03, Material Copper, Milling w/o, Outer Diameter 16.02, Lubricating groove w/o, Length 10.00

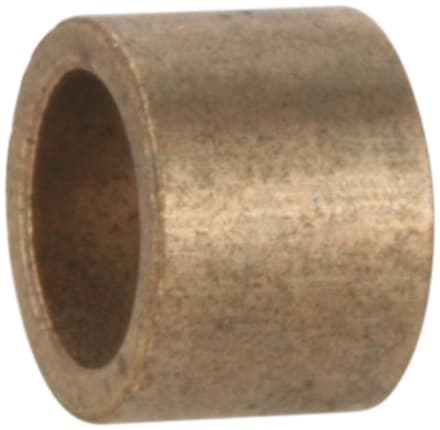

F032141134 - BushingTrade number 141134
Pin w/o, Inner Diameter 8.15, Material Copper, Milling w/o, Outer Diameter 11.00, Lubricating groove w/o, Length 8.25
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH 2915051107
Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032191337 - WasherTrade number 191337
Replacement for:
BOSCH 2916069084BOSCH 2916069161
Inner Diameter 10.00, Material Steel, Outer Diameter 16.00, Coating Electro Galvanized, Thickness 0.50
F032230453 - ScrewTrade number 230453
Replacement for:
BOSCH 1003450028BOSCH 1003450053
Thread size M5, Thread Length 20.50, Collar Length Rear 161.50, Total Length 165.00

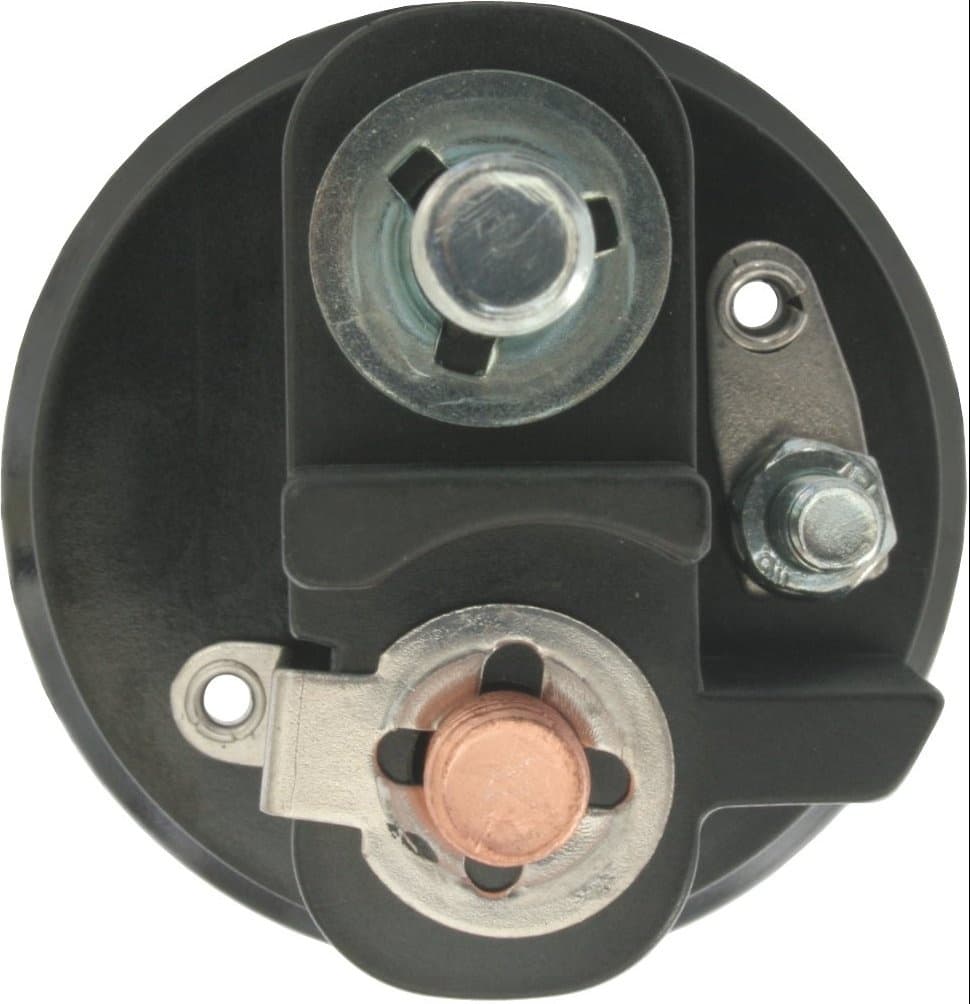

F032231565 - Solenoid ProtectionTrade number 231565
Coil Bolt Diameter M8, B+ Width 23.00, Terminal 50 Width/Height 15.00, Outer Diameter 55.00, Terminal 50 size M5, B+ type Bolt, No./terminals 3, Coil Bolt Length 8.00, B+ size M8, Bracket type Crimp, Terminal 50 type Bolt, Inner Diameter 43.00, Remarks HC-CARGO 137491.

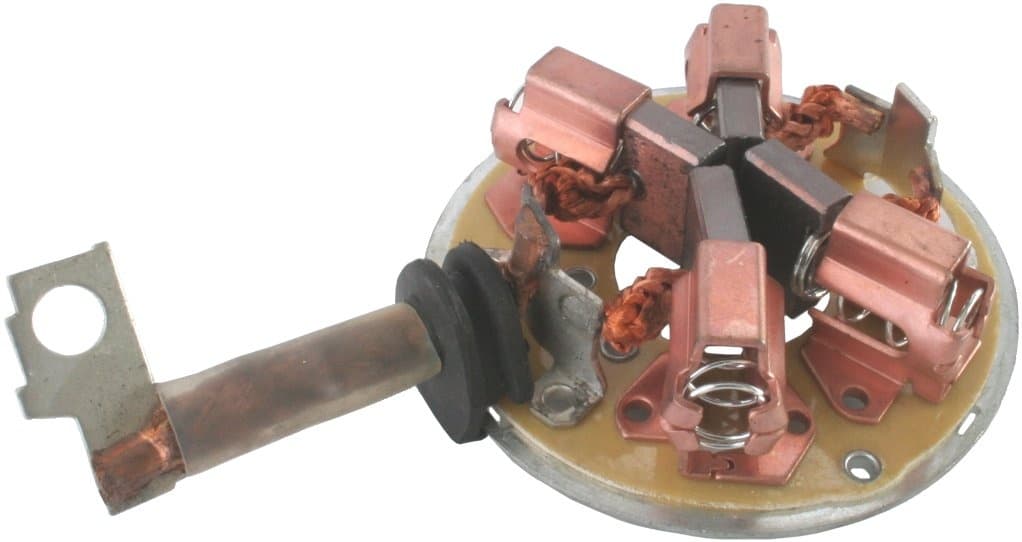

F032231648 - Brush HolderTrade number 231648
Replacement for:
BOSCH 6033AD0014BOSCH 6033AD1246
Voltage 12, Spring w/, Brush lead length 24.00, Brush w/, Brush Length 22.00, Outer Diameter 86.00, Brush Gear Width 9.00, Inner Diameter 31.50, No./brushes 4, Lead Length 54.00, Remarks Spring: HC-CARGO 135004., Brush Height 15.00, Brush Thickness 6.00, Height 29.70

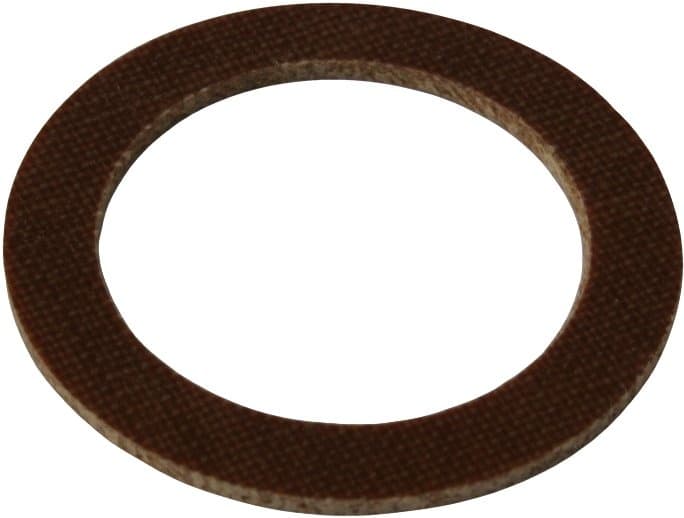

F032235073 - Brake RingTrade number 235073
Inner Diameter 19.00, Material Fiber, Outer Diameter 27.00, Thickness 1.00

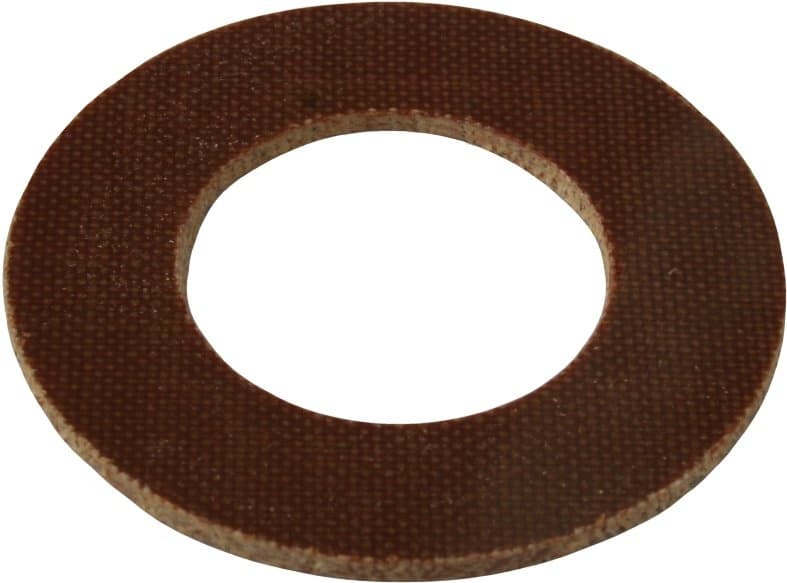

F032235074 - Brake RingTrade number 235074
Inner Diameter 18.00, Material Fiber, Outer Diameter 33.00, Thickness 1.00

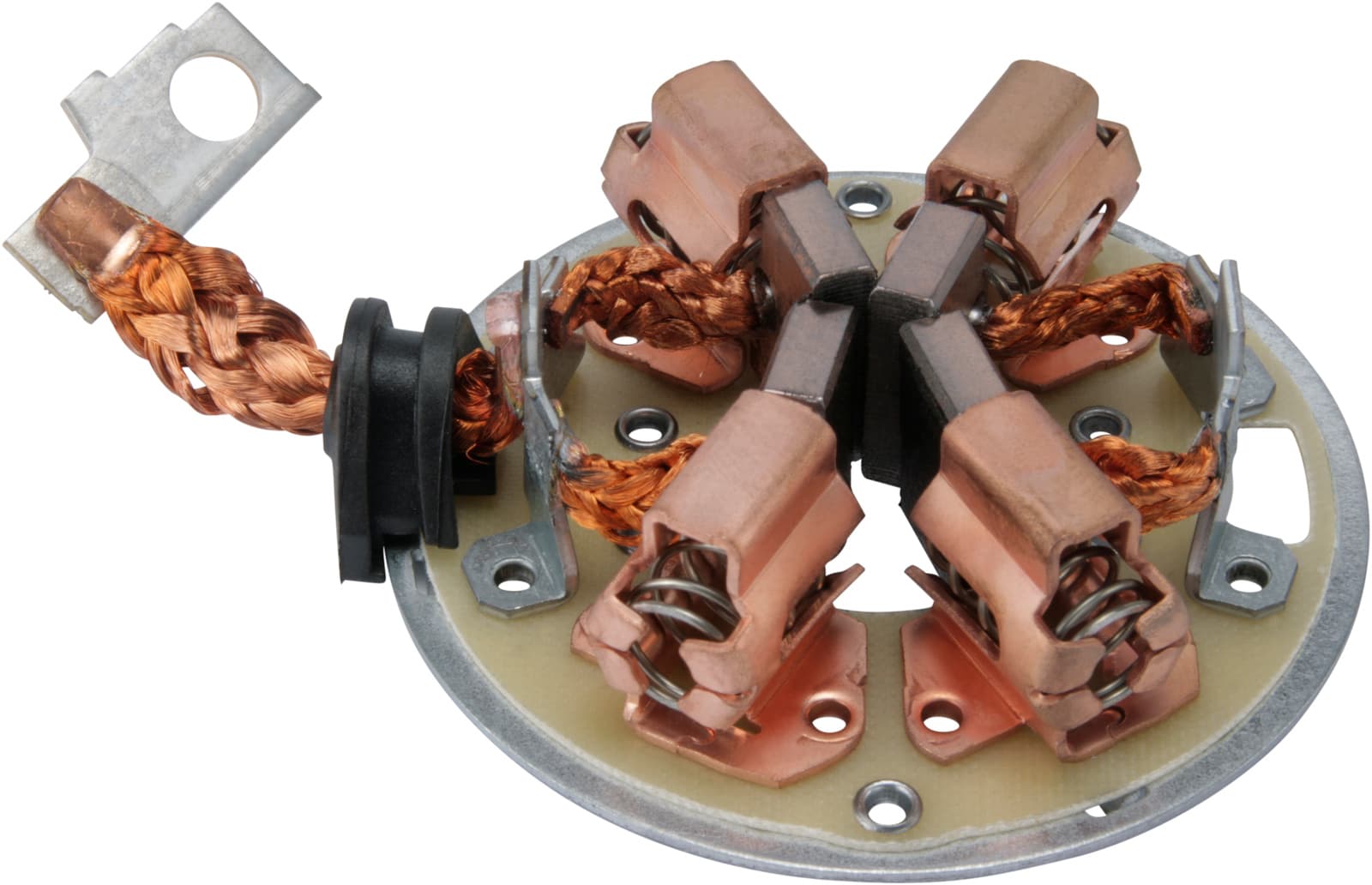

F032235883 - Brush HolderTrade number 235883
Replacement for:
BOSCH 6033AD1252
Voltage 12, Spring w/, Brush lead length 18.50, Brush w/, Brush Length 13.00, Inner Diameter 31.00, No./brushes 4, Outer Diameter 86.00, Brush Height 22.00, Brush Thickness 6.00, Height 26.30

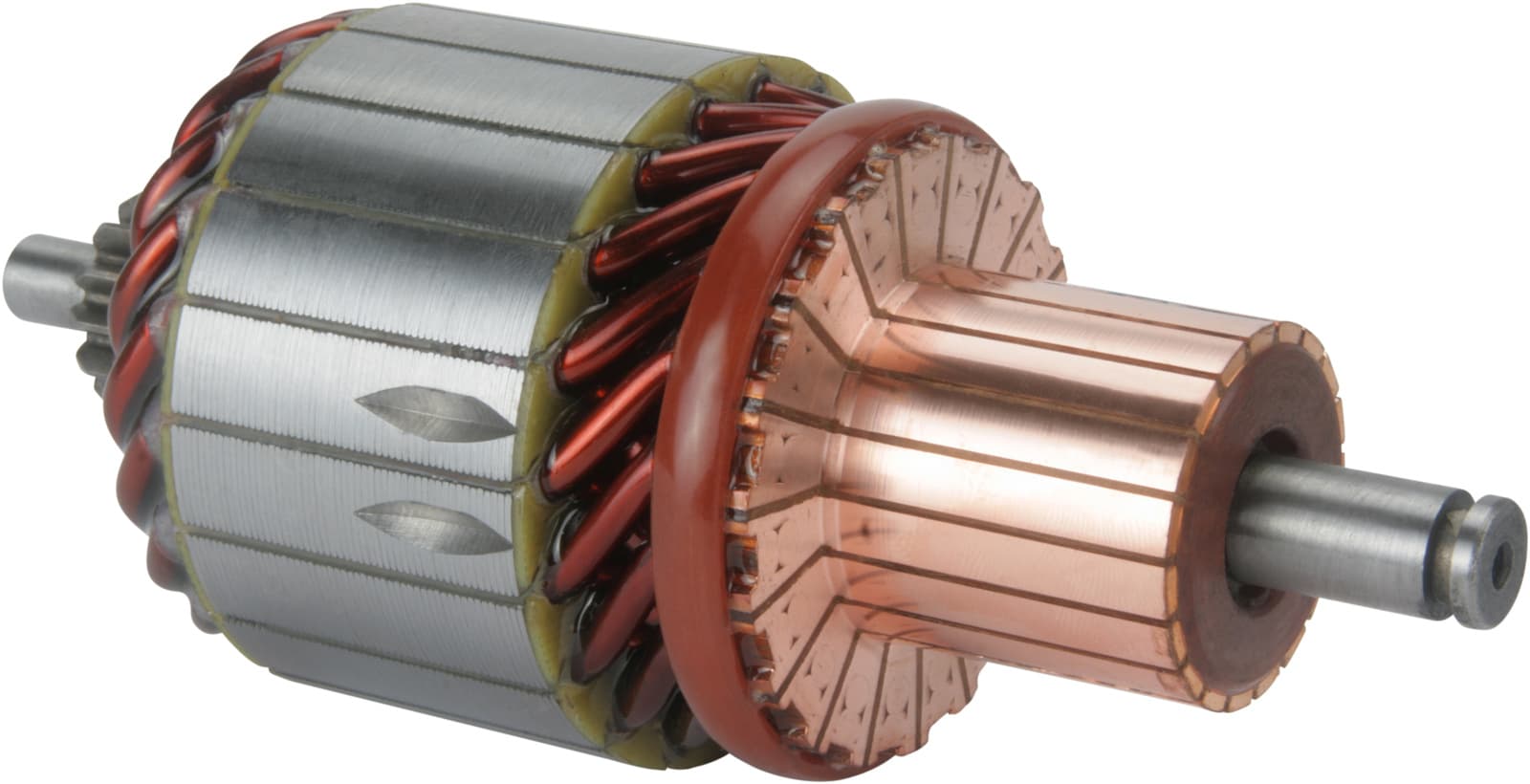

F032335081 - ArmatureTrade number 335081
Replacement for:
BOSCH 6033AD0446BOSCH 6033AD1061BOSCH 6033AD1104
kW 2.3, Voltage 12, Drive End Inside Shaft Diameter Outside 8.00, Commutator End Shaft Diameter 10.00, OD/spline/teeth 20.80, Spline Teeth Length 23.00, Core Diameter 58.00, Shaft length 140.30, No./teeth 14

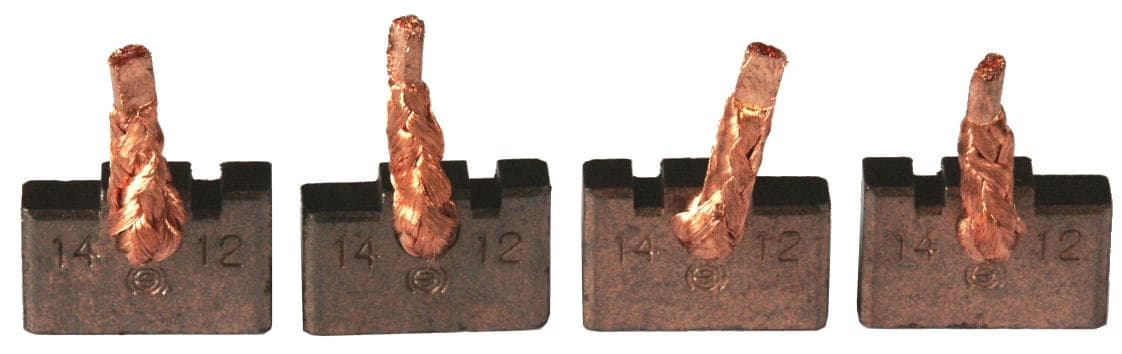

F032900081 - Carbon-Brush SetTrade number BSX192-1934
Replacement for:
BOSCH 6033AD0011BOSCH 6033AD0012
Voltage 12, Conductor w/, Spring w/o, Cable lugs w/o, No./brushes 4, Lead Length 25.00, Thickness 6.00, Length 13.00/15.00, Height 22.00
F032B33575 - Contact plugTrade number B133575
Thread Length 27.00, Thread size M8, Collar Length Rear 30.00, Remarks Silverplated. Fixed bolt., Total Length 35.50
F032B40018 - BushingTrade number B140018
Replacement for:
BOSCH 2000301036
Pin w/o, Inner Diameter 12.08, Material Copper, Milling w/o, Outer Diameter 14.09, Length 13.90
