Showing results for: BOSCH 0001231006

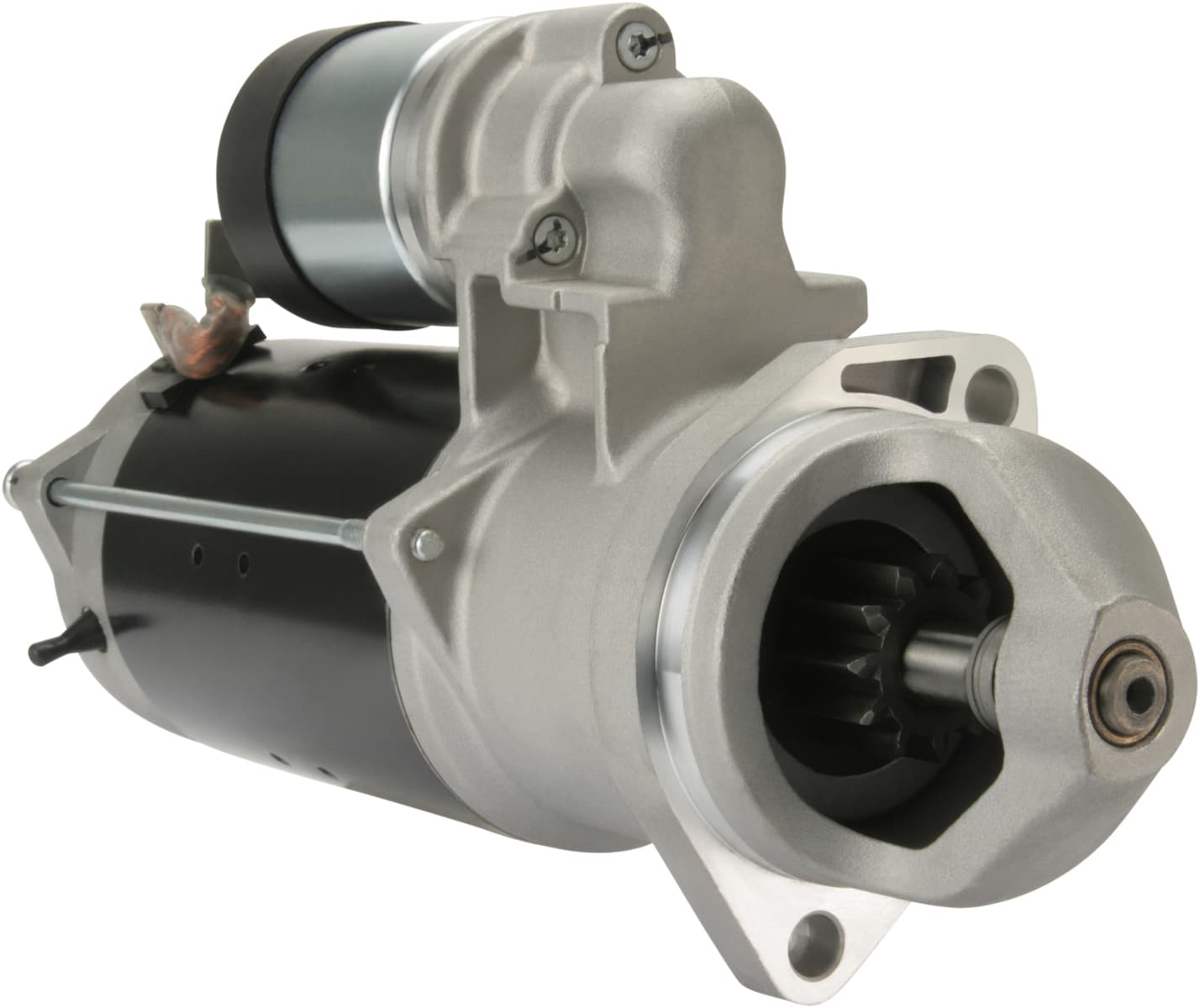

F032113980 - StarterTrade number 113980
kW 4.0, Voltage 24, Mounting Flange 82.50, Terminal 50 M4, B+ M10, Rotation CW, Distance 101.50, Prod. info BN, Drive type Steel, No./mount. holes 2 (0), Mounting Hole 2 11.00, Rear Distance 232.00, Drive Distance 23.00, Front Distance 71.00, Amount of Mounting Holes 2, Total Length 319.00, Position 45, Mounting Hole 1 11.00, Gear type GR, Mounting Holes with Thread 0, No./teeth 11

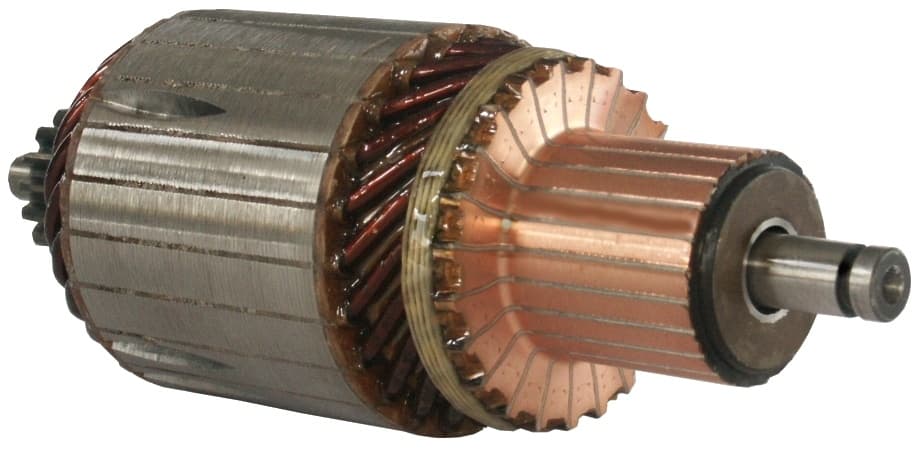

F032139657 - ArmatureTrade number 139657
Replacement for:
BOSCH 6033AD4080BOSCH 9003334039
kW 4.0, Voltage 24, Drive End Inside Shaft Diameter Outside 8.00, Bar Lane Height 31.50, Bar Cross Distance 39.60, Commutator End Shaft Diameter 10.00, Spline Teeth Length 21.80, Rotation CW, Commutator Outer Diameter 48.90, Bar length 4.60, Commutator Inner Diameter 10.00, No./bars 23, Commutator Height 43.00, Commutator Diameter 32.30, Commutator Distance 16.50, OD/spline/teeth 26.50, Core Diameter 60.00, Shaft length 169.00, Shaft Diameter 18.40, No./teeth 16
F032139697 - Parts SetTrade number 139697
Replacement for:
BOSCH 6033AD0128BOSCH 6033AD4108
kW 4.0, Voltage 24, Coil w/, Brush Length 18.00, Inner Diameter 61.10, Brush gear w/, No./brushes 4, Outer Diameter Middle 95.00, Lead Length 48.00, O-ring w/o, Length 120.50, Brush Height 27.80, Brush Thickness 5.40

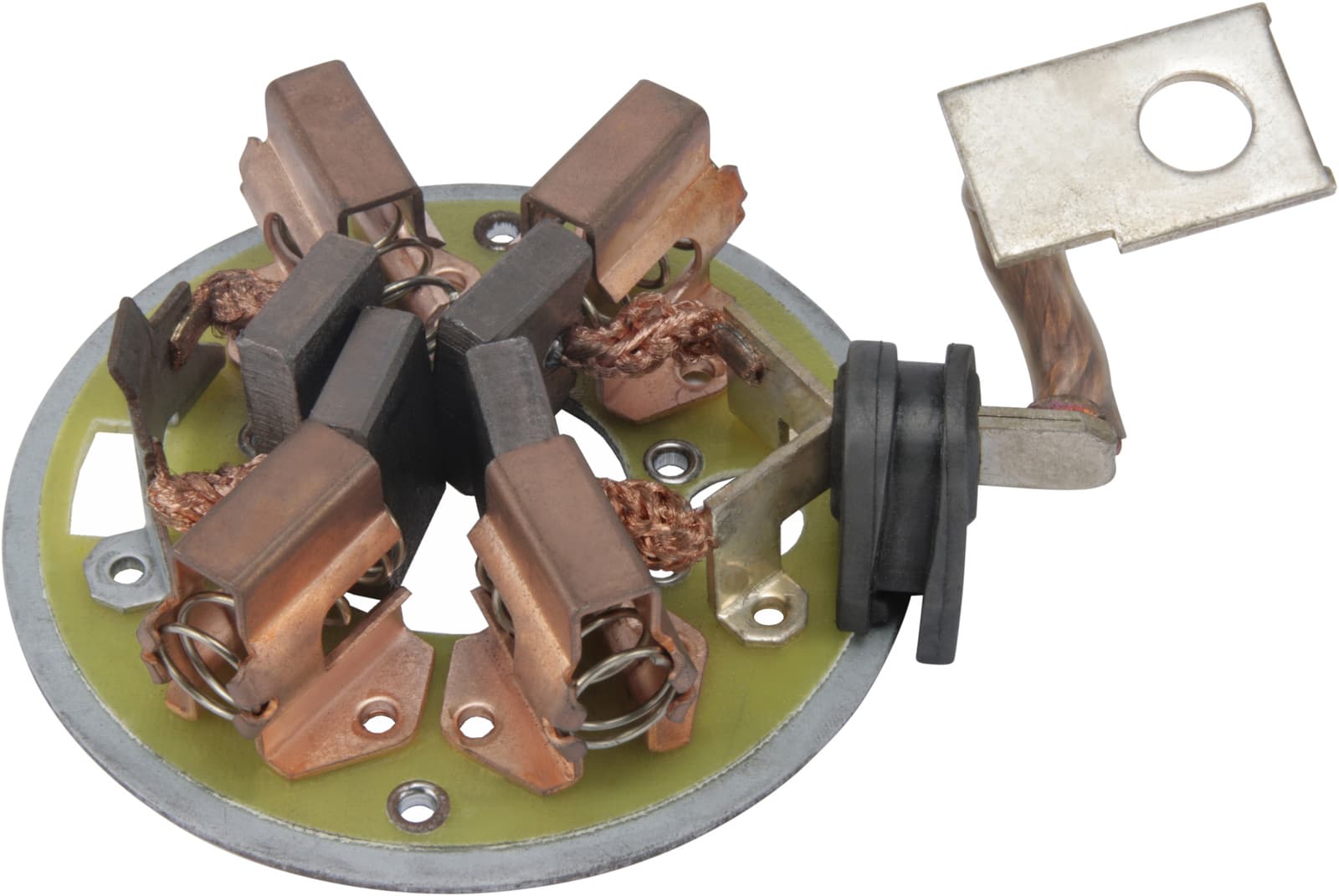

F032139698 - Brush HolderTrade number 139698
Replacement for:
BOSCH 6033AD0156
Voltage 24, Spring w/, Brush w/, Inner Diameter 33.00, No./brushes 4, Outer Diameter 91.00, Brush Gear Width 9.50, Lead Length 50.00, Height 28.00
F032139700 - Fork LeverTrade number 139700
Replacement for:
BOSCH 9003331931
Plunger w/o, Distance 48.65, Length 99.50
F032140010 - BushingTrade number 140010
Replacement for:
BOSCH 2000301000
Inner Diameter 12.59, Material Copper, Outer Diameter 16.55, Length 18.00
F032140988 - BushingTrade number 140988
Replacement for:
BOSCH 9003330317
Pin w/o, Inner Diameter 10.03, Material Copper, Milling w/o, Outer Diameter 16.02, Lubricating groove w/o, Length 10.00
F032190583 - Spring Lock WasherTrade number 190583
Replacement for:
BOSCH 2918740008
Type Spring lock washer, DIN norm 128A, Inner Diameter 10.20, Material Steel spring, Outer Diameter 18.10, Thickness 1.80
F032190783 - ScrewTrade number 190783
Replacement for:
BOSCH 2915051108
DIN norm 934, Material Steel, Thread/mm/" M10, Coating Electro Galvanized, Spanner Size 17
F032191305 - NutTrade number 191305
Replacement for:
BOSCH 2915059108
Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M10, Coating Electro Galvanized, Spanner Size 17
F032191586 - ScrewTrade number 191586
Replacement for:
BOSCH 2910001116
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 6.00
F032230726 - ScrewTrade number 230726
Replacement for:
BOSCH 2003415003BOSCH 9001333446
Thread size M6, Thread Length 25.50, Collar Length Rear 170.00, Total Length 175.00

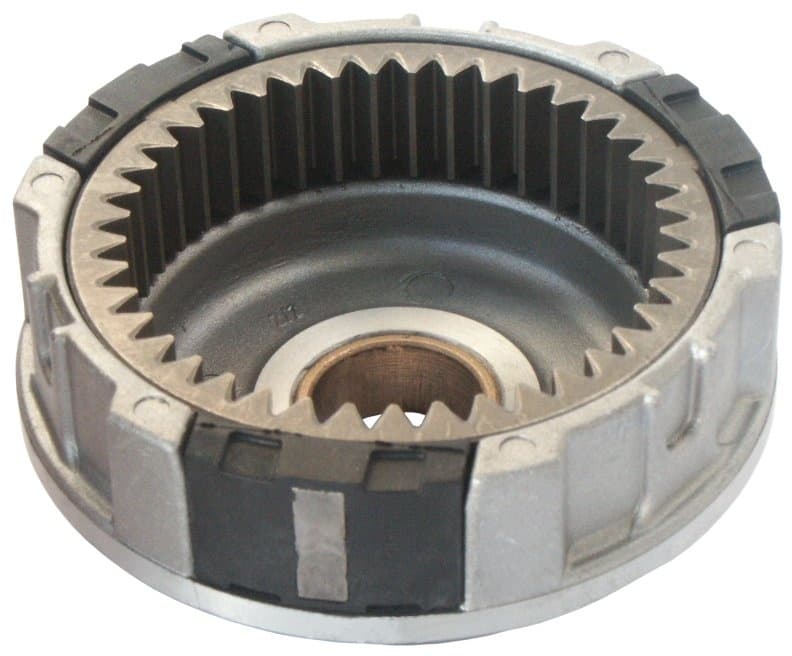

F032231751 - Parts SetTrade number 231751
Replacement for:
BOSCH 9003337009
Teeth Depth 3.20, Bushing w/, Collar Height 2.70, Teeth Height 16.40, Outer Diameter 90.00, No./teeth 42, Height 40.00
F032237603 - O-RingTrade number 237603
Replacement for:
BOSCH 9003330205
Inner Diameter 89.00, Outer Diameter 93.00, Thickness 2.00

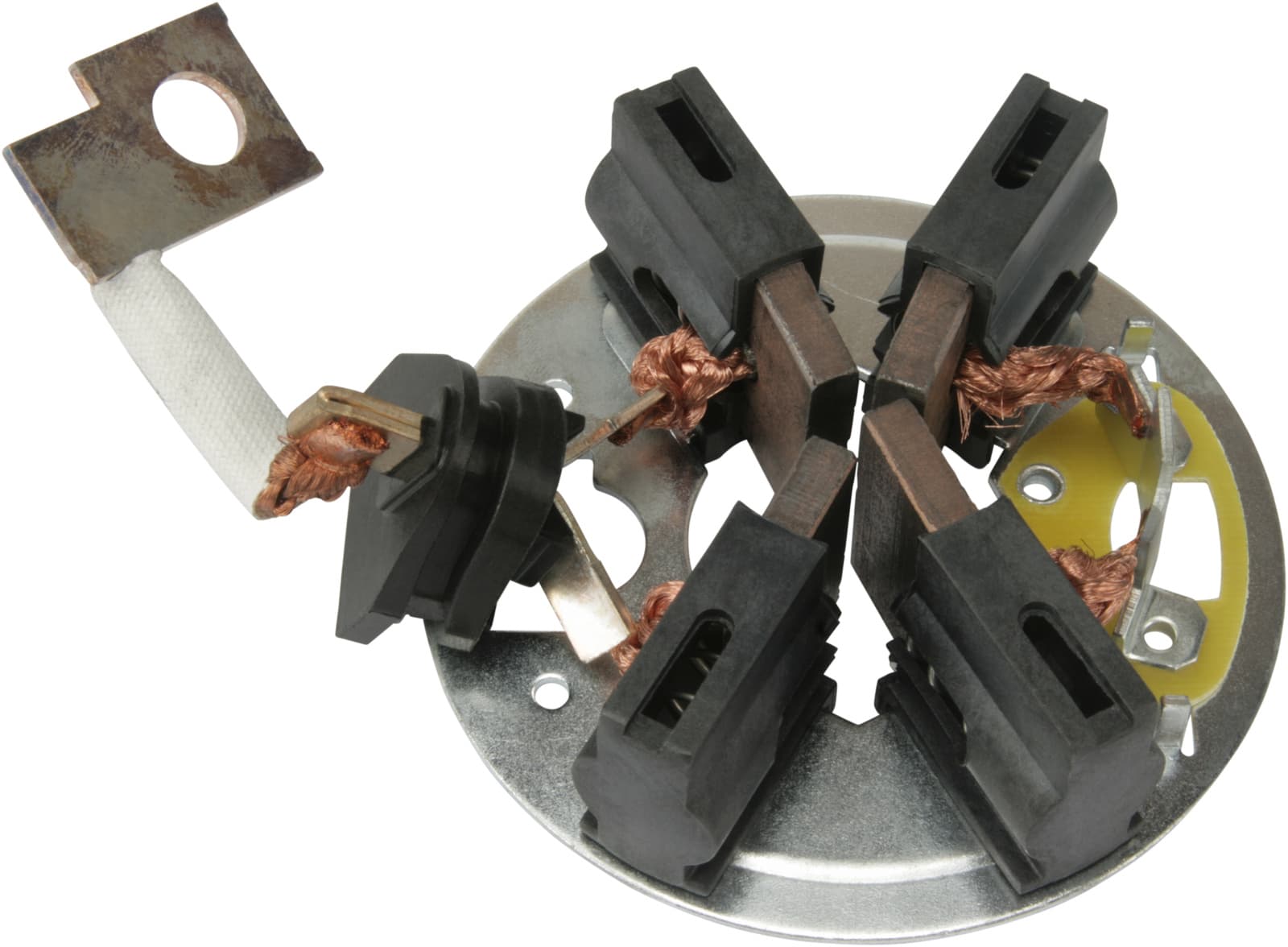

F032333658 - Brush HolderTrade number 333658
Replacement for:
BOSCH 6033AD4194
Voltage 24, Spring w/, Brush lead length 26.00, Brush w/, Brush Length 18.00, Outer Diameter 91.00, Brush Gear Width 10.00, Inner Diameter 34.00, No./brushes 4, Lead Length 48.00, Brush Height 28.00, Brush Thickness 5.50, Height 31.50
F032B40010 - BushingTrade number B140010
Replacement for:
BOSCH 2000301000
Pin w/o, Inner Diameter 12.56, Material Copper, Milling w/o, Outer Diameter 16.55, Lubricating groove w/o, Length 18.00
