Showing results for: BOSCH 0001241119

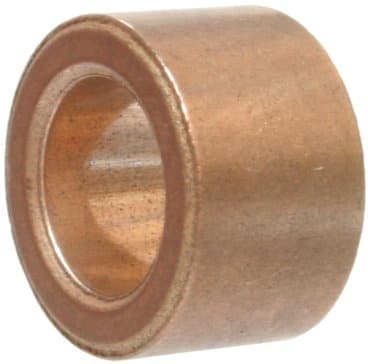

F032140988 - BushingTrade number 140988
Replacement for:
BOSCH 9003330317
Pin w/o, Inner Diameter 10.03, Lubricating groove w/o, Material Copper, Milling w/o, Outer Diameter 16.02, Length 10.00

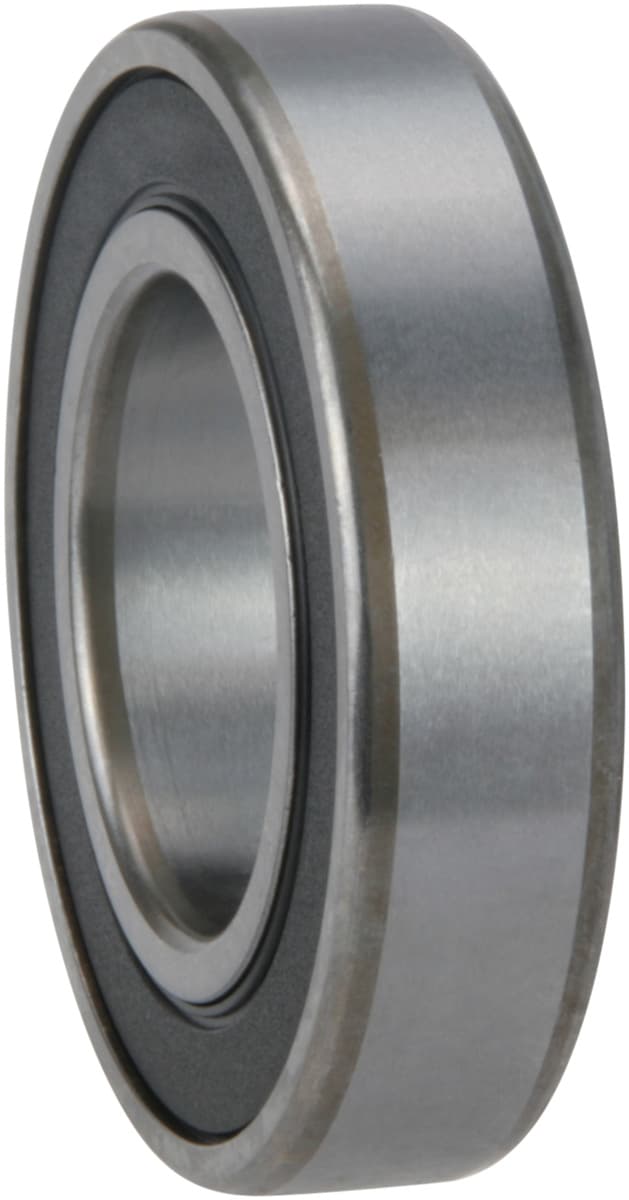

F032142281 - Ball BearingTrade number 142281
Replacement for:
BOSCH 6033AC5310BOSCH 6033AD5158
Bearing type Ball bearing, Inner Diameter 30.00, Outer Diameter 55.00, Height 13.00, Remarks 6006-2RS1/C3.

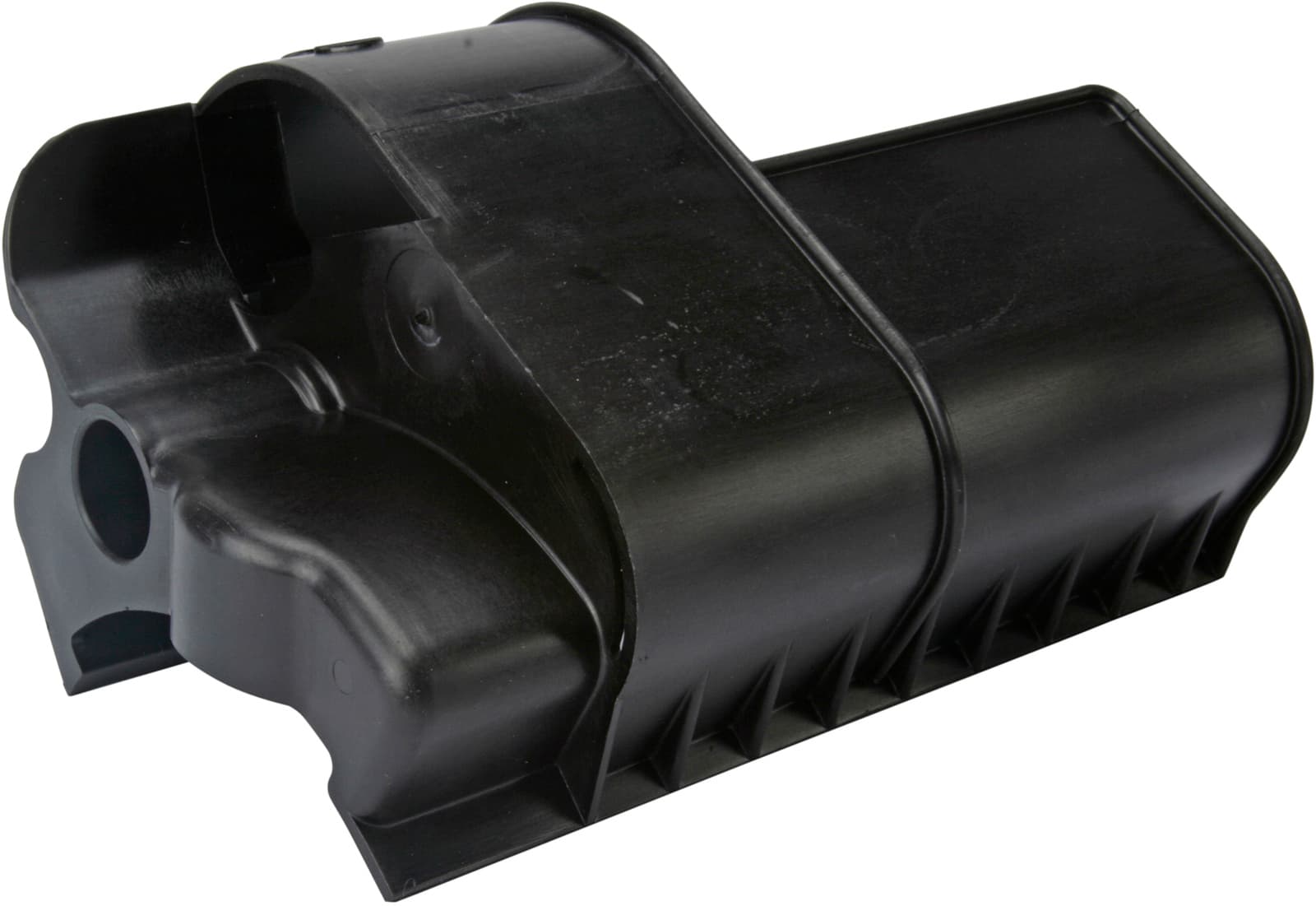

F032237750 - CoverTrade number 237750
Replacement for:
BOSCH 6033AD5334
Outer Diameter 111.25, Height 63.20

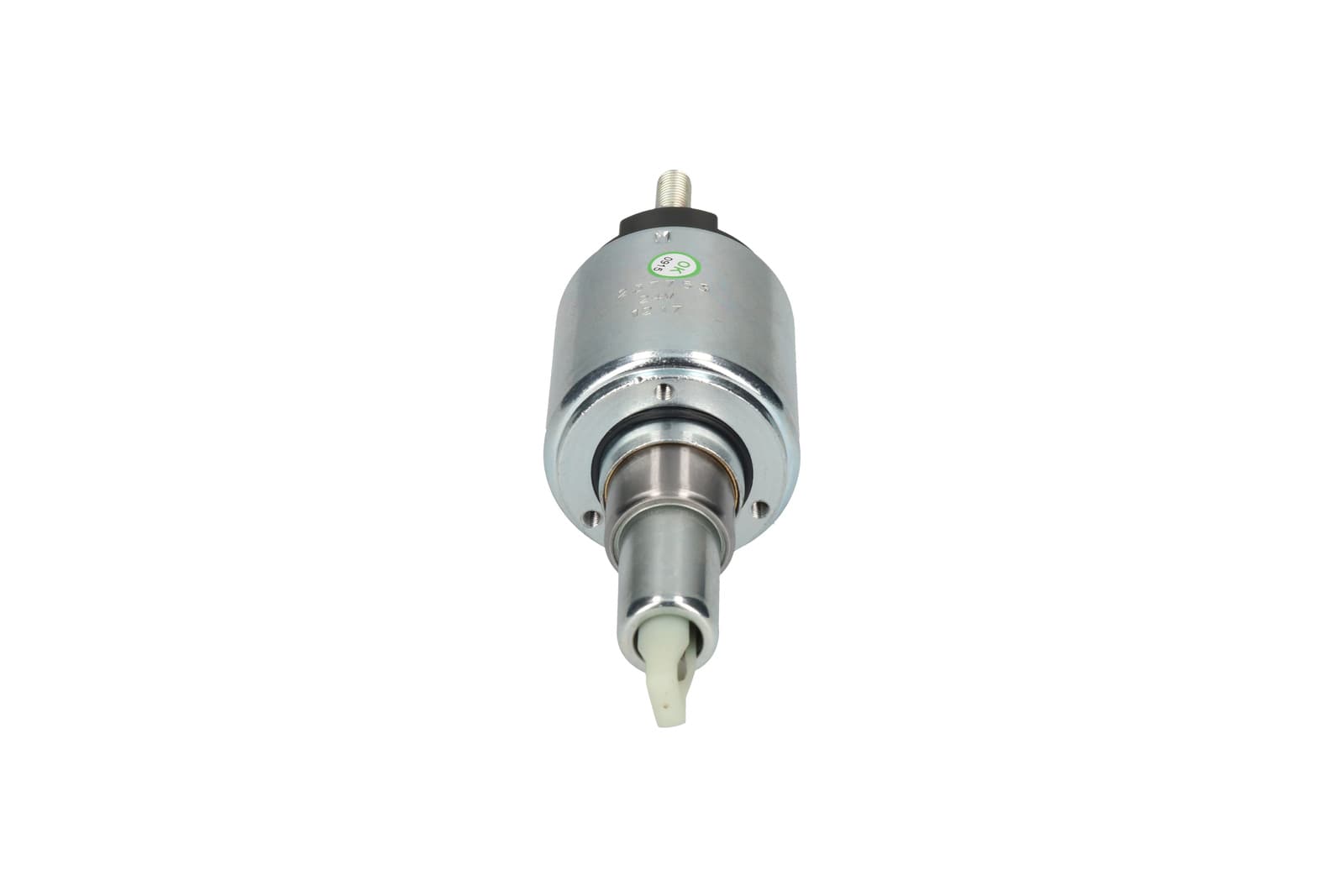

F032237753 - Solenoid SwitchTrade number 237753
Replacement for:
BOSCH 2339402220BOSCH 2339402230
Voltage 24, No./mount. holes 3, No./terminals 4, Terminal 50/mm M6, Coil Bolt Length 18.00, Plunger Outer Diameter 29.90, B+ M10, Terminal 50 Bolt, B+ Height 29.00, Coil Bolt Diameter M10, Terminal 50 Width 15.00, Outer Diameter 61.50, Length 102.40, Amount of Mounting Holes 3, Total Length 118.00
F032237766 - SealTrade number 237766
Replacement for:
BOSCH 6033AC5028
Inner Diameter 30.00, Outer Diameter 40.00, Height 7.00

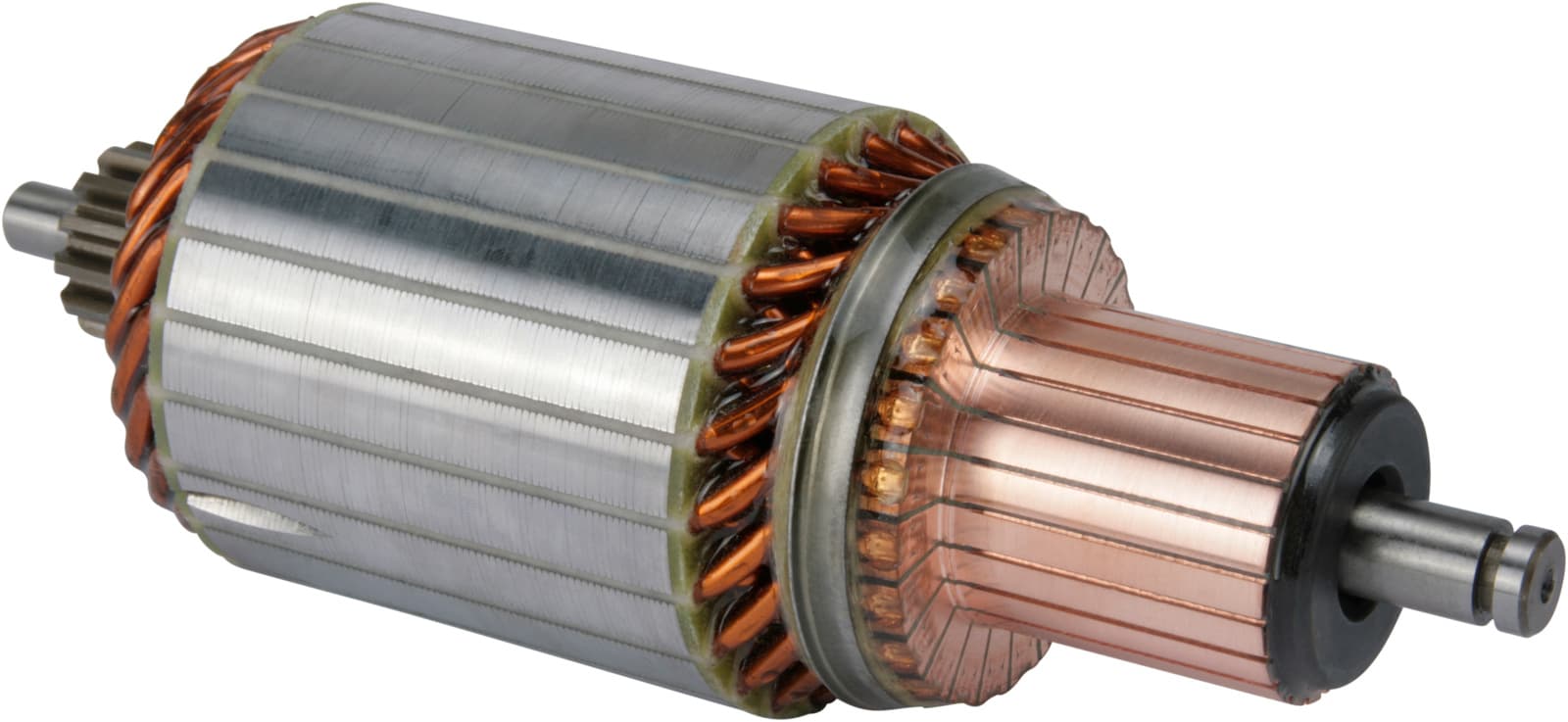

F032239092 - ArmatureTrade number 239092
Replacement for:
BOSCH 6033AD5025
kW 5.5, Voltage 24, Commutator End Shaft Diameter 10.00, OD/spline/teeth 21.40, No./bars 23, Spline Teeth Length 27.00, Drive End Inside Shaft Diameter Outside 8.00, Core Diameter 60.00, Shaft length 174.20, No./teeth 13

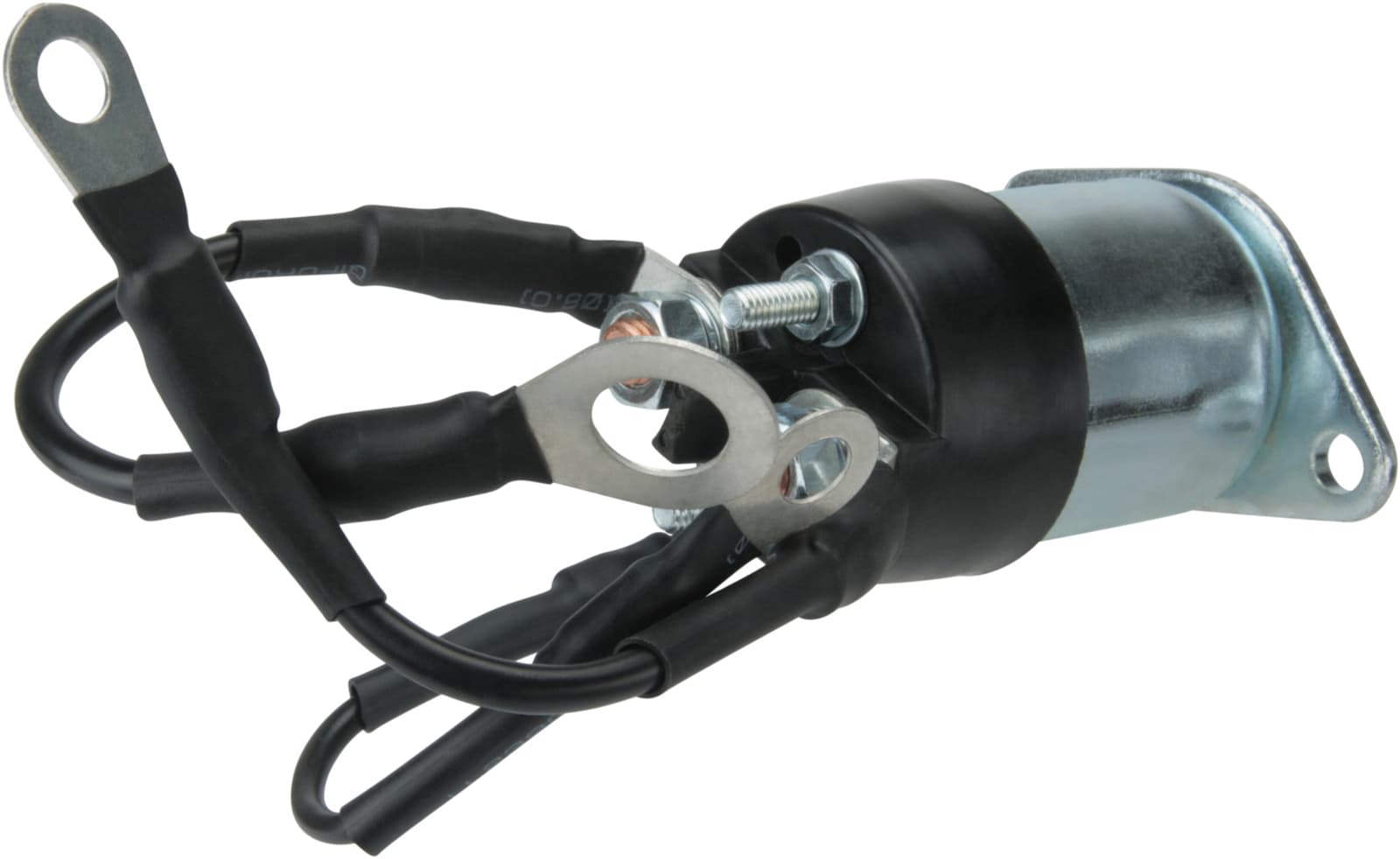

F032333830 - Safety SwitchTrade number 333830
Replacement for:
BOSCH 6033AD5255
Voltage 24, No./mount. holes 2, No./terminals 4, Terminal 50 Bolt, Outer Diameter 33.00, Amount of Mounting Holes 2, Mounting Hole 1 15, Total Length 65.00
