Showing results for: BOSCH 0001359075

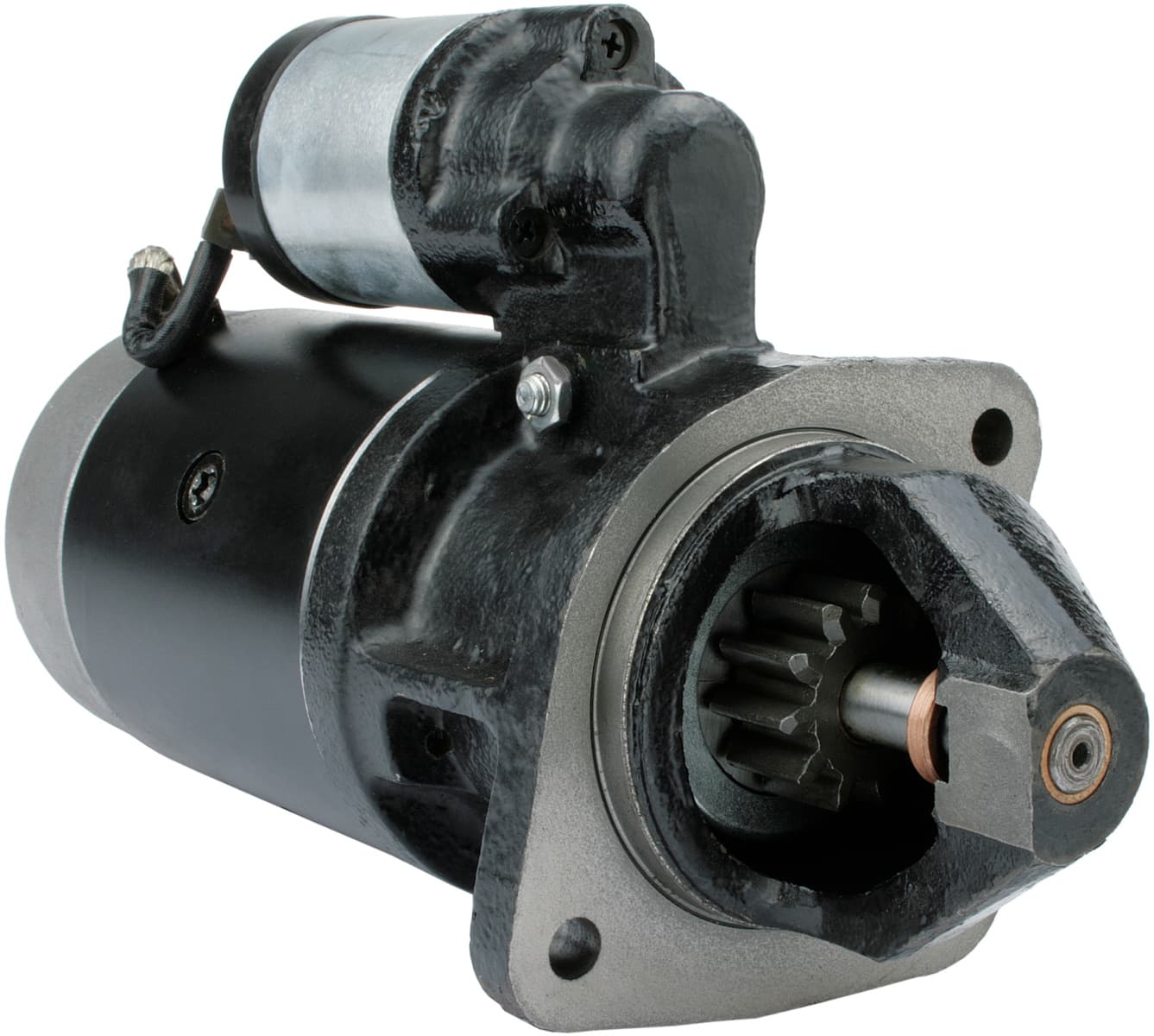

F032112135 - StarterTrade number 112135
kW 3.1, Voltage 12, Mounting Flange 89.00, Mounting Hole 3 11.00, Distance 89.50, Oil sealed No, Prod. info BN, Drive type Steel, Mounting Hole 2 11.00, Rear Distance 239.50, Distance 2 89.50, Distance 3 126.50, Drive Distance 22.00, Waterproof No, Terminal 50 M4, B+ M10, Clutch type Dry, Rotation CW, No./mount. holes 3 (0), Thread Length 10.00, Front Distance 69.00, Total Length 315.50, Position 45, Mounting Hole 1 11.00, Mounting Holes with Thread 0, Amount of Mounting Holes 3, Gear type DD, No./teeth 11
F032130301 - Solenoid SwitchTrade number 130301
Replacement for:
BOSCH 0331401040BOSCH 0331402004
Voltage 12, Terminal 50 Screw, B+ Height 24.00, Coil Bolt Diameter M10, Eye Inner Diameter 5.60, B+ M10, Outer Diameter 61.30, No./mount. holes 3, No./terminals 3, Terminal 50/mm M4, Coil Bolt Length 17.00, Plunger Inner Diameter 11.00, Eye Outer Diameter 19.50, Plunger Outer Diameter 29.80, Amount of Mounting Holes 3, Total Length 108.00, Length 82.90, Remarks Cap: HC-CARGO 131318.
F032130319 - ArmatureTrade number 130319
Replacement for:
BOSCH 2004004112
kW 3.0, Voltage 12, Bar Lane Height 30.30, Bar Cross Distance 46.20, Spline Teeth Length 64.00, Bar length 10.50, No./bars 33, Commutator Height 43.60, Commutator Diameter 46.10, Commutator Distance 19.70, OD/spline/teeth 18.00, Shaft length 333.00, Bar Distance 2.30, No./splines 10, Drive End Inside Shaft Diameter Outside 12.40, Commutator End Shaft Diameter 14.00, Rotation CW, Commutator Outer Diameter 68.10, Drive End Inside Shaft Diameter 14.15, Commutator Inner Diameter 18.90, Core Diameter 75.00, Shaft Diameter 18.85, Remarks 9 V: HC-CARGO 133515.
F032131138 - Fork LeverTrade number 131138
Replacement for:
BOSCH 2001933175
Inner Diameter 8.20, Plunger w/o, Distance 36.30, Length 105,00

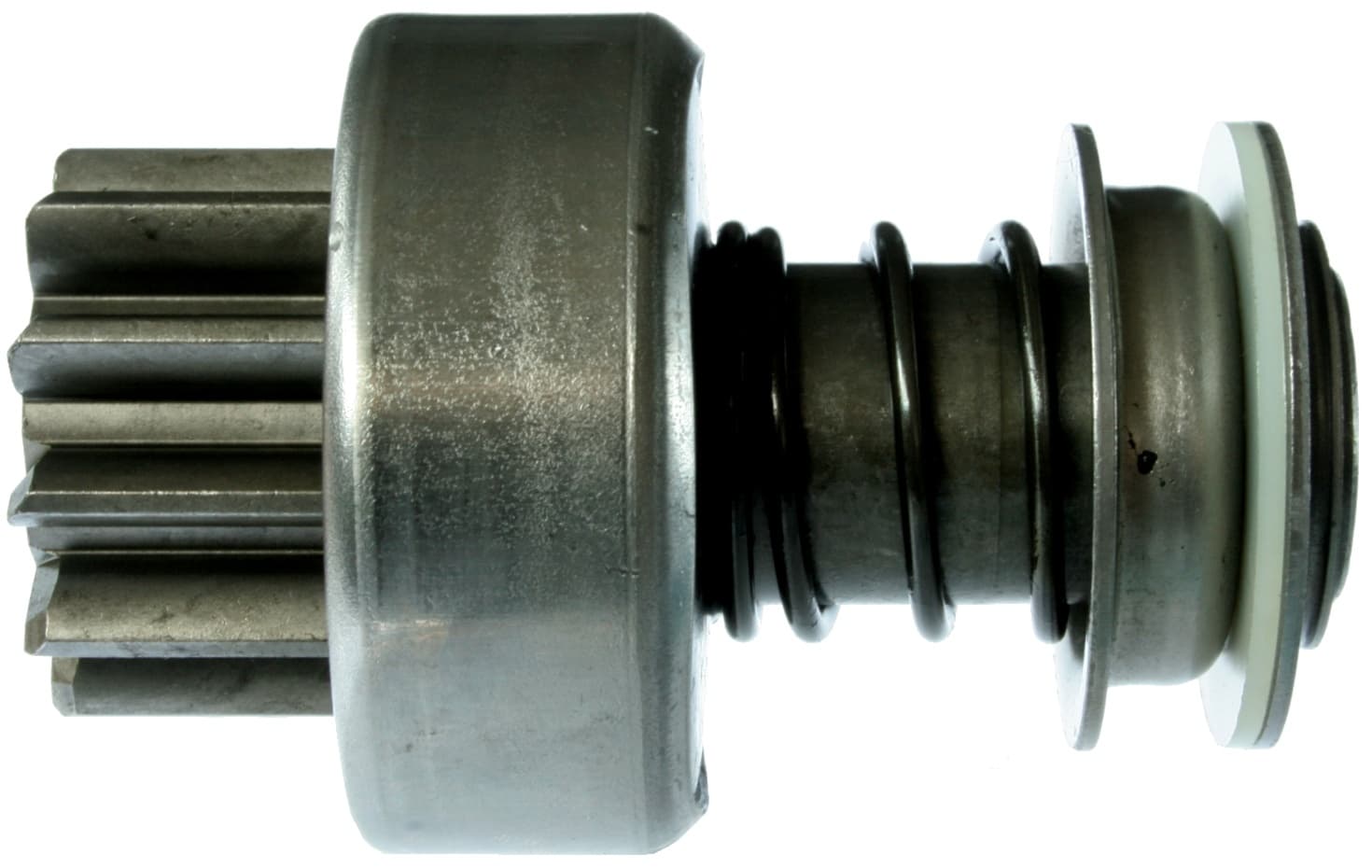

F032131270 - Overrunning-Clutch DriveTrade number 131270
Replacement for:
BOSCH 2006209438
Splines internal 10, Lock w/, Rotation CW, Inner Diameter 14.30, Outer Diameter 41.00, Shaft Distance 5.50, Housing Outer Diameter 60.00, No./teeth 11, Total Length 91.00
F032131318 - Solenoid ProtectionTrade number 131318
Replacement for:
BOSCH 1330516712
Coil Bolt Diameter M10, B+ Width 24.50, Outer Diameter 59.00, Terminal 50 size M4, B+ type Bolt, No./terminals 3, Coil Bolt Length 17.50, B+ size M10, Bracket type Crimp, Terminal 50 type Screw, Inner Diameter 47.70, Remarks HC-CARGO 130297, 130300, 130301, 130477, 130806, 130939, 131053, 131141, 132254, 132363, 137368.
F032132226 - ScrewTrade number 132226
Replacement for:
BOSCH 2003429000
Countersunk Yes, Thread size M8, Thread Length 14.00, Collar Length Rear 40.00, Total Length 40.00
F032134092 - Brush HolderTrade number 134092
Replacement for:
BOSCH 2005854053
Voltage 12, Spring w/, Brush w/, No./brushes 2, Outer Diameter 104.20, Brush Gear Width 14.30, Brush Height 25.00, Brush Thickness 9.80, Height 44.00
F032137746 - Stop RingTrade number 137746
Replacement for:
BOSCH 2000202023
Gasket w/o, Inner Diameter 14.25, Material Steel, Outer Diameter 22.00, Collar w/o, O-ring w/o, Remarks Retaining ring: HC-CARGO 137744., Height 6.00
F032138328 - ScrewTrade number 138328
Replacement for:
BOSCH 2003429021
Thread/mm/" M5, Collar Length 31.00, Thread Length 10.50, Total Length 35.00
F032139911 - Intermediate BearingTrade number 139911
Replacement for:
BOSCH 2005824881
Bearing Inner Diameter 19.00, Bushing w/, Mounting Hole Distance 91.50, Inner Diameter 18.50, Outer Diameter 106.00, Height 19.50
F032140006 - BushingTrade number 140006
Replacement for:
BOSCH 1900301420
Pin w/o, Type Standard, Inner Diameter 14.04, Material Copper, Milling w/o, Outer Diameter 20.02, Lubricating groove w/o, Length 10.00
F032140010 - BushingTrade number 140010
Replacement for:
BOSCH 2000301000
Inner Diameter 12.59, Material Copper, Outer Diameter 16.55, Length 18.00
F032140026 - BushingTrade number 140026
Replacement for:
BOSCH 2000301041
Pin w/o, Inner Diameter 19.10, Material Copper, Milling w/o, Outer Diameter 23.10, Lubricating groove w/o, Length 13.00
F032190582 - Spring Lock WasherTrade number 190582
Replacement for:
BOSCH 2916063013
DIN norm 128A, Inner Diameter 8.10, Material Steel spring, Outer Diameter 14.80, Thickness 1.60
F032190583 - Spring Lock WasherTrade number 190583
Replacement for:
BOSCH 2916699086
Type Spring lock washer, DIN norm 128A, Inner Diameter 10.20, Material Steel spring, Outer Diameter 18.10, Thickness 1.80
F032190783 - ScrewTrade number 190783
Replacement for:
BOSCH 2915051108
DIN norm 934, Material Steel, Thread/mm/" M10, Coating Electro Galvanized, Spanner Size 17
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH 2915051107
Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032191586 - ScrewTrade number 191586
Replacement for:
BOSCH 2910001116
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 6.00
F032902670 - Carbon-Brush SetTrade number BSX964
Replacement for:
BOSCH 2007014052
Voltage 12, Conductor w/, Spring w/o, Cable lugs w/, No./brushes 4, Lead Length 43.00, Thickness 10.00, Length 23.00, Height 25.00

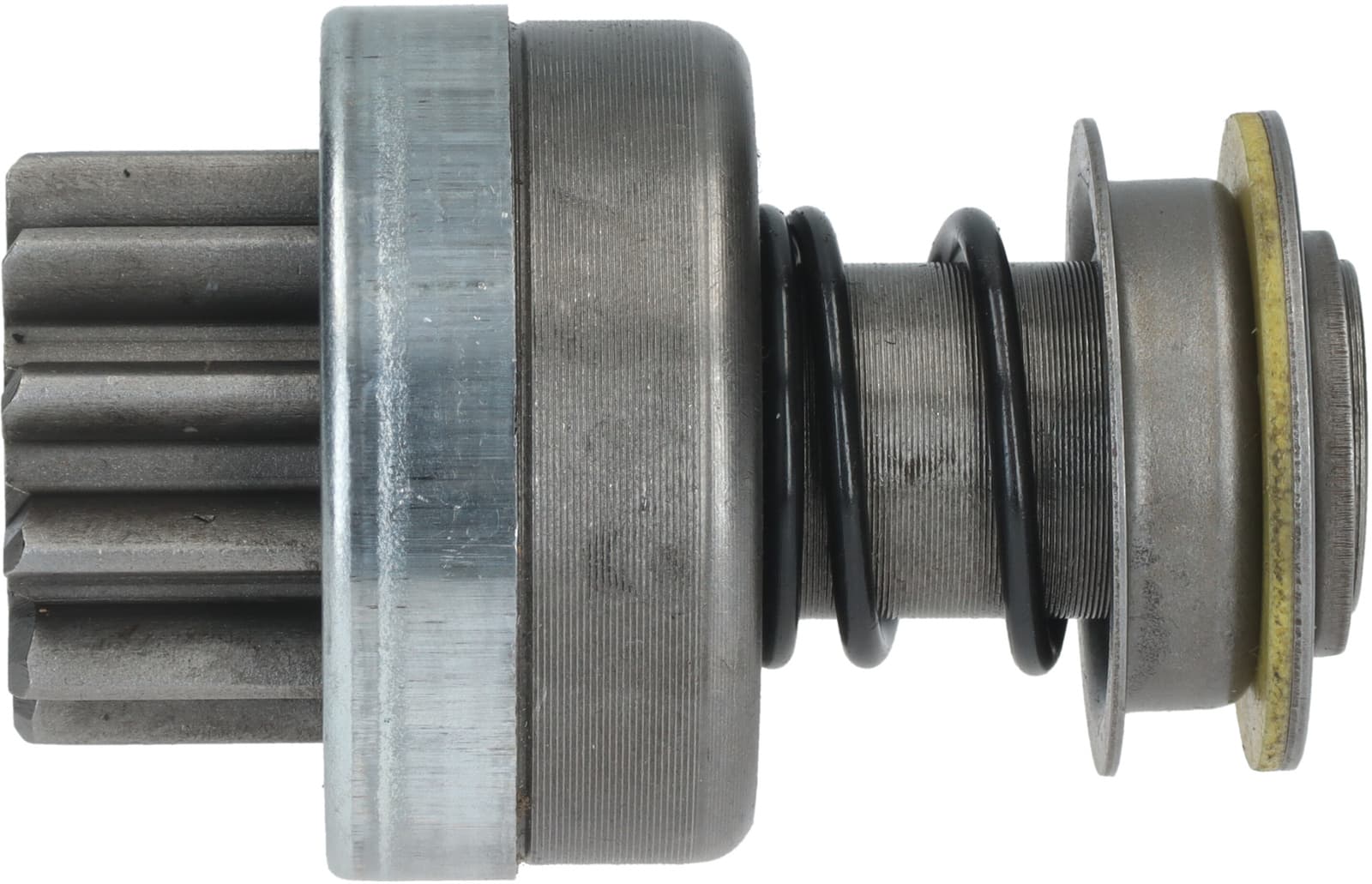

F032335643 - Overrunning-Clutch DriveTrade number 335643
Replacement for:
BOSCH 2006209438
Splines internal 10, Rotation CW, Inner Diameter 14.30, Outer Diameter 41.00, Housing Outer Diameter 60.00, No./teeth 11, Total Length 91.00
F032901500 - Solenoid SwitchTrade number 130301Z
Replacement for:
BOSCH 0331401040BOSCH 0331402004
Voltage 12, Terminal 50 Screw, B+ Height 24.00, Coil Bolt Diameter M10, Eye Inner Diameter 5.60, B+ M10, Outer Diameter 61.30, No./mount. holes 3, No./terminals 3, Terminal 50/mm M4, Coil Bolt Length 17.00, Plunger Inner Diameter 11.00, Eye Outer Diameter 19.50, Plunger Outer Diameter 29.80, Amount of Mounting Holes 3, Total Length 108.00, Length 82.90
F032B40006 - BushingTrade number B140006
Replacement for:
BOSCH 1900301420
Pin w/o, Type Standard, Inner Diameter 14.04, Material Copper, Milling w/o, Outer Diameter 20.02, Lubricating groove w/o, Length 10.00
F032B40010 - BushingTrade number B140010
Replacement for:
BOSCH 2000301000
Pin w/o, Inner Diameter 12.56, Material Copper, Milling w/o, Outer Diameter 16.55, Lubricating groove w/o, Length 18.00
F032B40026 - BushingTrade number B140026
Replacement for:
BOSCH 2000301041
Pin w/o, Inner Diameter 19.10, Material Copper, Milling w/o, Outer Diameter 23.10, Lubricating groove w/o, Length 13.00

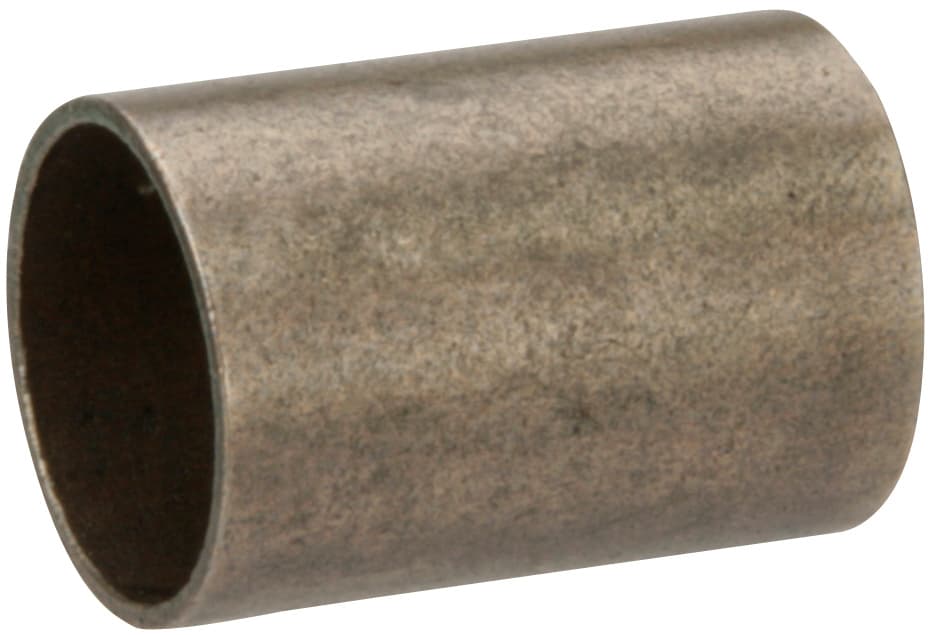

F032B40866 - BushingTrade number B140866
Replacement for:
BOSCH 2000301006
Pin w/o, Type Standard, Inner Diameter 14.36, Material Copper, Milling w/o, Outer Diameter 16.02, Lubricating groove w/o, Length 23.50
