Showing results for: BOSCH 0001369200

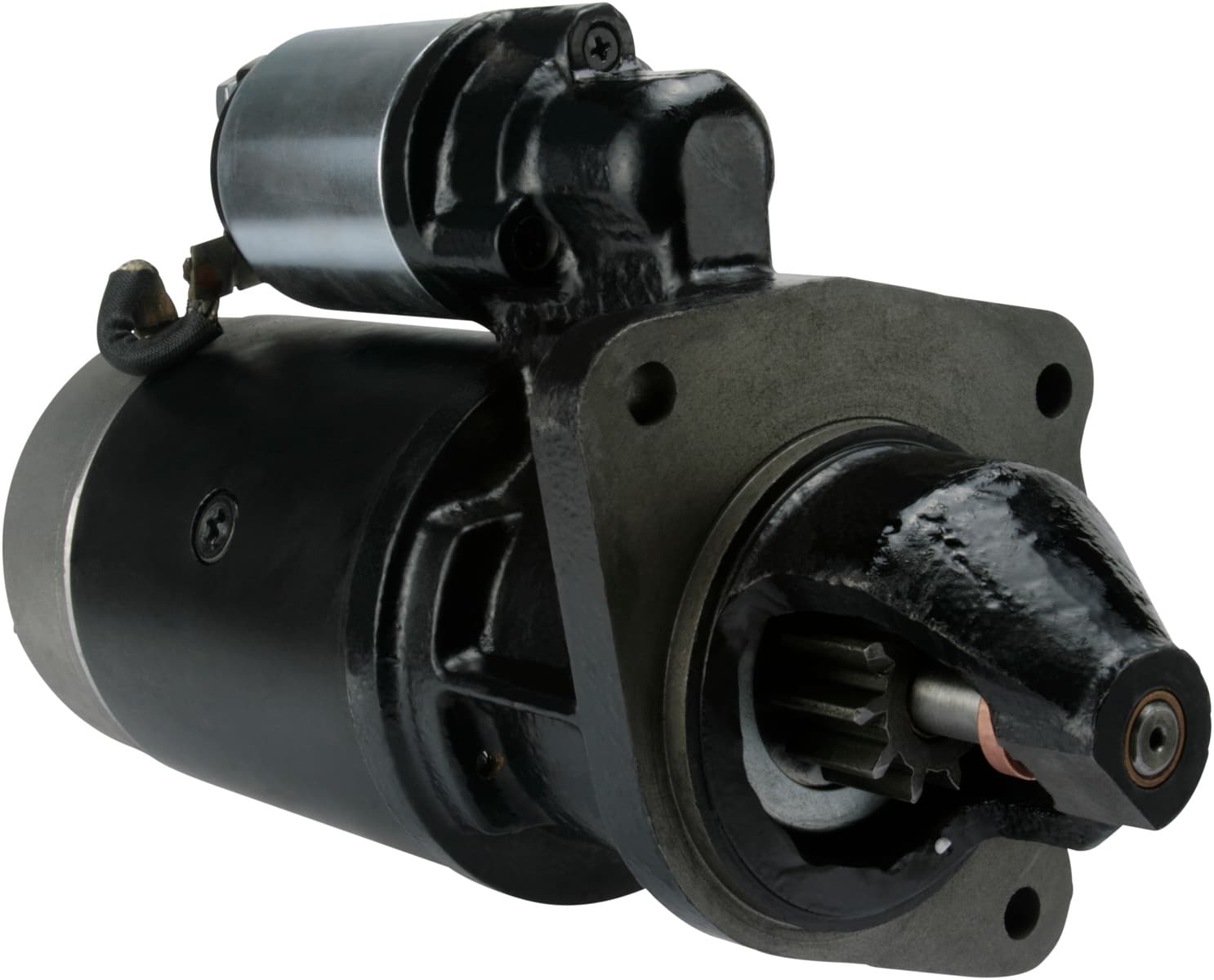

F032113968 - StarterTrade number 113968
kW 3.6, Voltage 12, Mounting Flange 92.00, Mounting Hole 3 10.50, Distance 102.50, Oil sealed No, Prod. info BN, Drive type Steel, Mounting Hole 2 11.00, Rear Distance 241.00, Distance 2 145.00, Distance 3 102.50, Drive Distance 20.00, Waterproof No, Terminal 50 6.30, B+ M8, Rotation CW, No./mount. holes 3 (0), Front Distance 69.00, Total Length 330.00, Position 45, Mounting Hole 1 11.00, Mounting Holes with Thread 0, Amount of Mounting Holes 3, Gear type DD, No./teeth 10
F032131597 - Overrunning-Clutch DriveTrade number 131597
Replacement for:
BOSCH 2006209462
Splines internal 10, Lock w/, Rotation CW, Inner Diameter 14.30, Outer Diameter 39.00, Shaft Distance 5.00, Housing Outer Diameter 60.10, No./teeth 10, Total Length 91.00
F032132226 - ScrewTrade number 132226
Replacement for:
BOSCH 2003429066BOSCH 2003429067
Countersunk Yes, Thread size M8, Thread Length 14.00, Collar Length Rear 40.00, Total Length 40.00

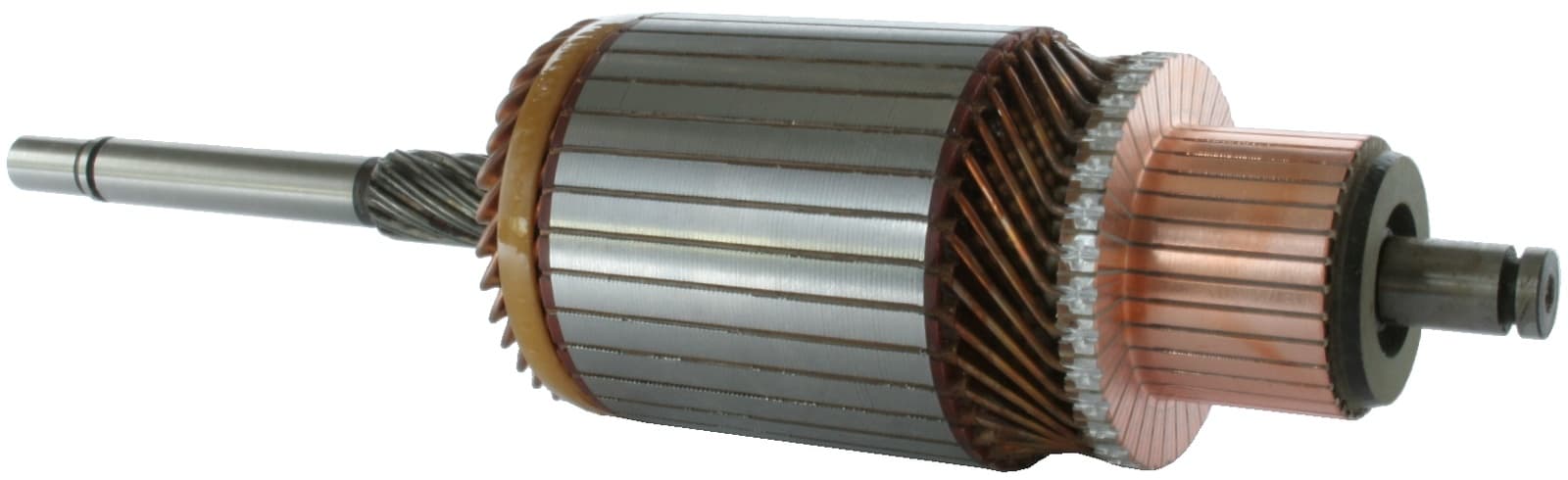

F032135351 - ArmatureTrade number 135351
Replacement for:
BOSCH 2004004037BOSCH 2004014965
kW 3.1/3.6, Voltage 12, No./splines 10, Drive End Inside Shaft Diameter Outside 12.50, Bar Lane Height 30.30, Bar Cross Distance 46.20, Commutator End Shaft Diameter 14.00, Spline Teeth Length 33.00, Rotation CW, Commutator Outer Diameter 68.10, Drive End Inside Shaft Diameter 14.15, Bar length 10.50, Commutator Inner Diameter 18.90, No./bars 33, Commutator Height 43.60, Commutator Diameter 46.10, Commutator Distance 22.40, OD/spline/teeth 18.20, Core Diameter 75.00, Shaft length 322.50, Bar Distance 2.30, Shaft Diameter 18.85
F032137234 - Excitation WindingTrade number 137234
Replacement for:
BOSCH 2004114233
kW 3.1, Voltage 12, Housing w/o, Internal Height 72.25, Brush gear w/o, No./brushes 2, Inner Width 32.80, Height 114.20

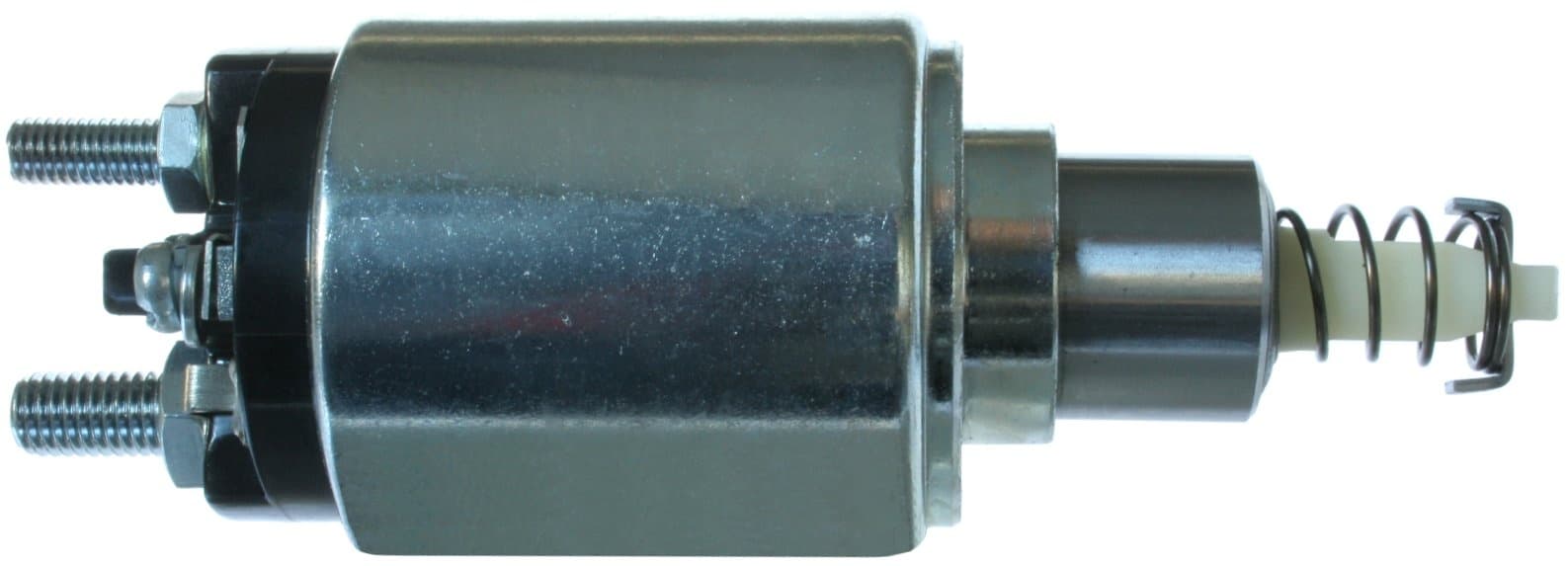

F032138313 - Solenoid SwitchTrade number 138313
Replacement for:
BOSCH 0331402106BOSCH 0331402606
Voltage 12, Terminal 50 Screw, B+ Height 24.00, Coil Bolt Diameter M10, B+ M8, Terminal 15a Screw, Outer Diameter 61.00, Terminal 15A/mm M6, No./mount. holes 3, No./terminals 4, Terminal 50/mm M4, Coil Bolt Length 24.00, Plunger Inner Diameter 11.50, Plunger Outer Diameter 29.85, Amount of Mounting Holes 3, Total Length 102.00, Length 82.25
F032138328 - ScrewTrade number 138328
Replacement for:
BOSCH 2003429051
Thread/mm/" M5, Collar Length 31.00, Thread Length 10.50, Total Length 35.00
F032139911 - Intermediate BearingTrade number 139911
Replacement for:
BOSCH 2005824881
Bearing Inner Diameter 19.00, Bushing w/, Mounting Hole Distance 91.50, Inner Diameter 18.50, Outer Diameter 106.00, Height 19.50
F032140010 - BushingTrade number 140010
Replacement for:
BOSCH 2000301000
Inner Diameter 12.59, Material Copper, Outer Diameter 16.55, Length 18.00
F032140019 - BushingTrade number 140019
Replacement for:
BOSCH 2000301043
Pin w/o, Inner Diameter 14.06, Material Copper, Milling w/o, Outer Diameter 18.03, Lubricating groove w/o, Length 14.00
F032140026 - BushingTrade number 140026
Replacement for:
BOSCH 2000301041
Pin w/o, Inner Diameter 19.10, Material Copper, Milling w/o, Outer Diameter 23.10, Lubricating groove w/o, Length 13.00
F032190546 - ScrewTrade number 190546
Replacement for:
BOSCH 2911421158
Head type Cheese head, Screw type Notch, Iso norm 1207, DIN norm 84A, Material Steel, Thread/mm/" M5, Coating Electro Galvanized, Length 16.00
F032190552 - ScrewTrade number 190552
Replacement for:
BOSCH 2910001189
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M6, Coating Electro Galvanized, Length 10.00
F032190582 - Spring Lock WasherTrade number 190582
DIN norm 128A, Inner Diameter 8.10, Material Steel spring, Outer Diameter 14.80, Thickness 1.60
F032190583 - Spring Lock WasherTrade number 190583
Replacement for:
BOSCH 2918740008
Type Spring lock washer, DIN norm 128A, Inner Diameter 10.20, Material Steel spring, Outer Diameter 18.10, Thickness 1.80

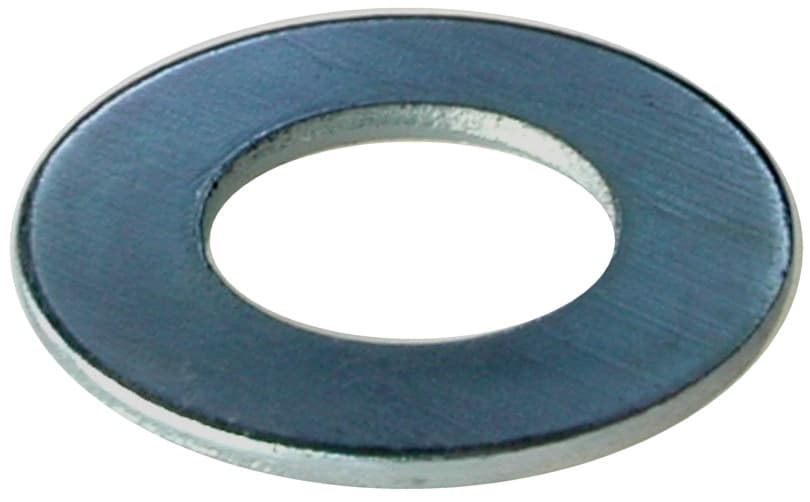

F032190593 - WasherTrade number 190593
Replacement for:
BOSCH 2918750132
Thread type mm, Thread standard mm, Inner Diameter 10.00, Material Steel, Outer Diameter 21.00, Coating Electro Galvanized, Thickness 1.25
F032190780 - ScrewTrade number 190780
Replacement for:
BOSCH 2915011007
DIN norm 934, Material Steel, Thread/mm/" M6, Coating Electro Galvanized, Spanner Size 10
F032191290 - Special WasherTrade number 191290
Replacement for:
BOSCH 1190100029
Thread type mm, Thread standard mm, Inner Diameter 6.50, Material Steel, Outer Diameter 13.00, Coating Electro Galvanized, Thickness 1.00
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH 2915051107
Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032191305 - NutTrade number 191305
Replacement for:
BOSCH 2915050408
Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M10, Coating Electro Galvanized, Spanner Size 17
F032191308 - Self-locking nutTrade number 191308
Replacement for:
BOSCH 2003315012
Self-locking w/, Material Steel, Thread/mm/" M6, Coating Electro Galvanized, Spanner Size 10
F032191337 - WasherTrade number 191337
Replacement for:
BOSCH 2000550003
Inner Diameter 10.00, Material Steel, Outer Diameter 16.00, Coating Electro Galvanized, Thickness 0.50
F032191586 - ScrewTrade number 191586
Replacement for:
BOSCH 2910001116
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 6.00
F032900068 - Carbon-Brush SetTrade number BSX163-1644
Replacement for:
BOSCH 2007014076
Voltage 12, Conductor w/, Spring w/o, Brush lead length 46.00/28.00, Cable lugs w/, No./brushes 4, Lead Length 47.00, Thickness 10.00, Length 15.00, Height 25.00
F032B40010 - BushingTrade number B140010
Replacement for:
BOSCH 2000301000
Pin w/o, Inner Diameter 12.56, Material Copper, Milling w/o, Outer Diameter 16.55, Lubricating groove w/o, Length 18.00
F032B40019 - BushingTrade number B140019
Replacement for:
BOSCH 2000301043
Pin w/o, Inner Diameter 14.06, Material Copper, Milling w/o, Outer Diameter 18.03, Lubricating groove w/o, Length 14.00
F032B40026 - BushingTrade number B140026
Replacement for:
BOSCH 2000301041
Pin w/o, Inner Diameter 19.10, Material Copper, Milling w/o, Outer Diameter 23.10, Lubricating groove w/o, Length 13.00
