Showing results for: BOSCH 0120488215
F032130101 - StatorTrade number 130101
Replacement for:
BOSCH 1125045012
Voltage 14, Amp 55, Number of leads 3, Outer Diameter 125.00, Winding Height 50.00, Lead 2 1, Lead 1 1, Wire thickness 1.75, Stator winding Cross, Lead 3 1, Inner Diameter 89.00, Outer Diameter 2 117.00, Height 23.60
F032130602 - RectifierTrade number 130602
Replacement for:
BOSCH 1127011127
Diode A Current Strength 35, B+ type Bolt, Connections for stator 3, B+ size M6, Control diodes w/, Inner Diameter 37.00, D+ type Spade, Outer Diameter 114.00, B+ Length 34.00
F032130911 - Zener DiodeTrade number 130911
Replacement for:
BOSCH 0270100010
Polarity Negative, Voltage 200, Amp 35, Diode type Press-fit, Outer Diameter 1/2"/12.70, Collar Outer Diameter 1 11.30, Lead Length 20.00, Length 8.25
F032130912 - Zener DiodeTrade number 130912
Replacement for:
BOSCH 0270100105
Polarity Positive, Voltage 200, Amp 35, Diode type Press-fit, Outer Diameter 1/2"/12.70, Collar Outer Diameter 1 11.35, Lead Length 20.00, Length 8.00
F032131828 - Fitting RingTrade number 131828
Replacement for:
BOSCH 1120591082
Inner Diameter 32.00, Material Plastic, Outer Diameter 35.00, Height 15.00

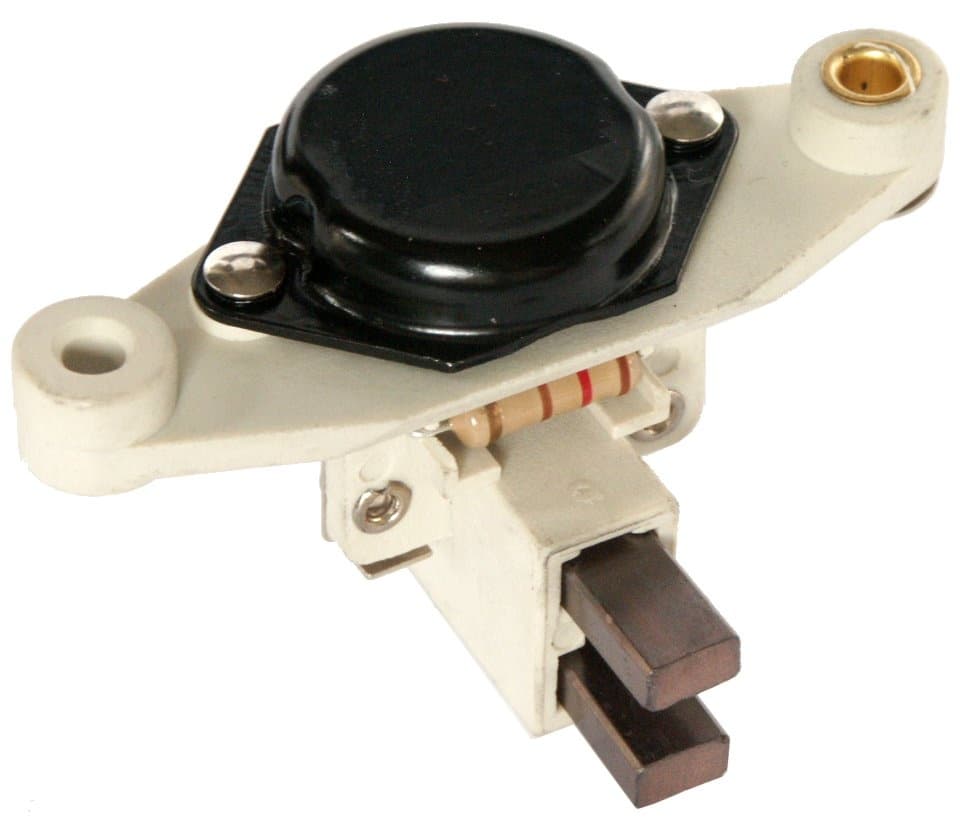

F032132980 - EL Field RegulatorTrade number 132980
Replacement for:
BOSCH 1197311022
Voltage setting 14.7, Voltage 14, Amp 5, For diode trio Yes, Regulator type Electronic, Resistor w/, Remarks w/ 68 Ohm resistor. Slip Ring O.D. 28.00 mm., Distance Between Mounting Holes 65.00
F032133402 - Parts SetTrade number 133402
Replacement for:
BOSCH 1124303005
Ring Height 1 9.45, Inner Diameter 17.00, Material Copper, Outer Diameter 28.00, Collar w/o, Ring Distance 2.60, Ring Height 2 9.35, Remarks Copper ring: HC-CARGO 135660., Total Length 22.10
F032133875 - Fan WheelTrade number 133875
Replacement for:
BOSCH 1126610060
Fans 13, Pulley w/o, Bore dia. 17.00, Rotation CW, Outer Diameter 135.00, Height 13.60

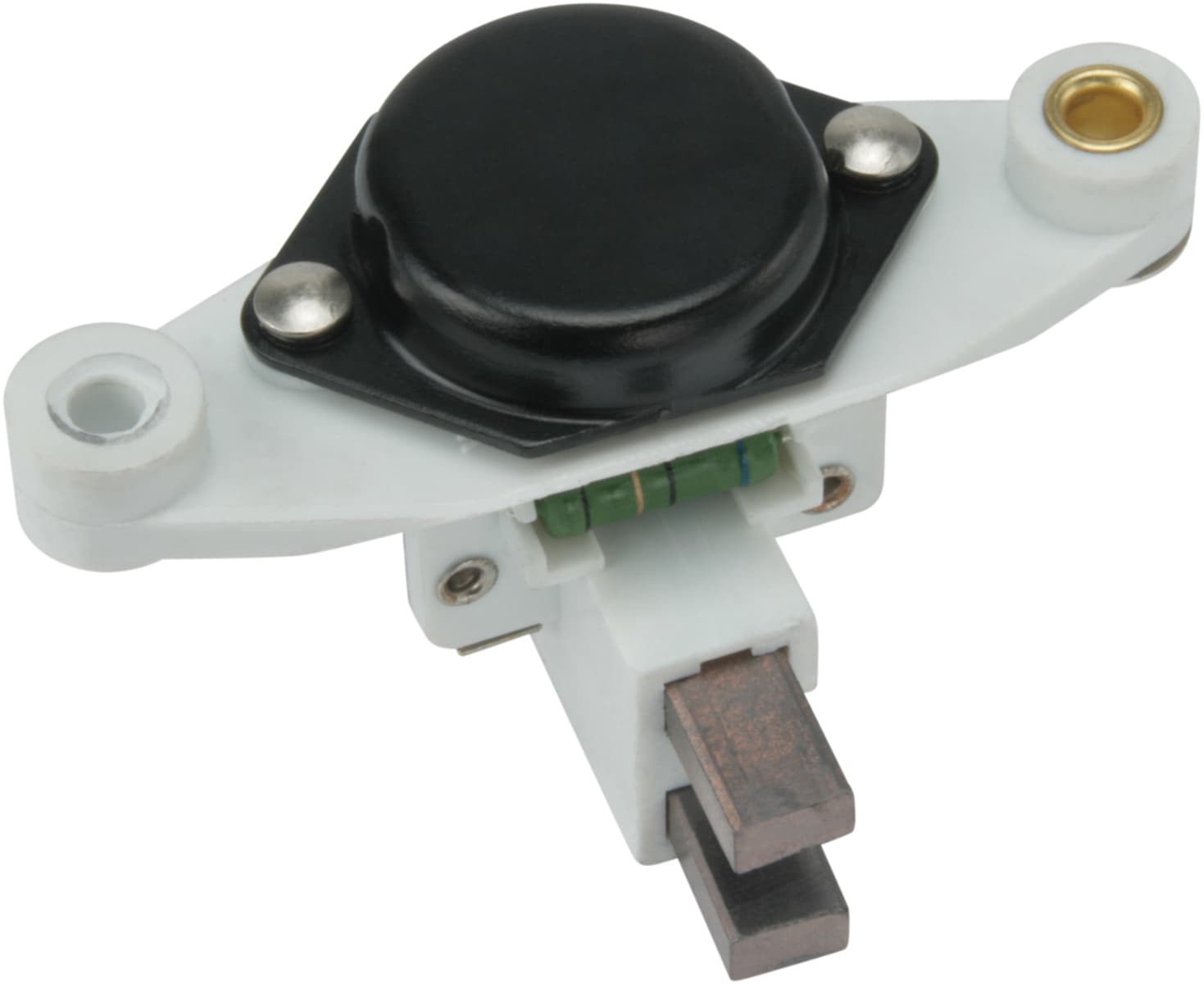

F032133993 - EL Field RegulatorTrade number 133993
Replacement for:
BOSCH 1197311018BOSCH 1197311022
Voltage setting 14.7, Voltage 14, Amp 5, For diode trio Yes, Regulator type Electronic, Resistor w/, Remarks w/ 68 Ohm resistor. Slip Ring O.D. 28.00 mm., Distance Between Mounting Holes 65.00
F032135520 - PulleyTrade number 135520
Replacement for:
BOSCH 1126600460
Free run w/o, Grooves 4, Width 1 23.00, Groove Measurement 1 9.60, Bore dia. 17.00, Outer Diameter 56.10, Depth 11.40, Pulley type SP
F032140081 - Ball BearingTrade number 140081
Replacement for:
BOSCH 1120905025BOSCH 1120905099BOSCH 1120905102
Bearing type Ball bearing, Inner Diameter 12.00, Outer Diameter 32.00, Remarks 6201-2RS1., Height 10.00
F032140093 - Ball BearingTrade number 140093
Replacement for:
BOSCH 1120905039BOSCH 1120905533
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 141233, Height 14.00
F032190544 - ScrewTrade number 190544
Replacement for:
BOSCH 2912452152
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M5, Coating Electro Galvanized, Length 10
F032190578 - Spring Lock WasherTrade number 190578
Replacement for:
BOSCH 2916699081
Type Spring lock washer, DIN norm 128A, Inner Diameter 4.10, Material Steel spring, Outer Diameter 7.20, Thickness 0.85
F032190580 - Spring Lock WasherTrade number 190580
Replacement for:
BOSCH 2916690005
Thread type Inches, Thread standard Inches, DIN norm 128A, Inner Diameter 6.10, Material Steel spring, Outer Diameter 11.80, Thickness 1.30
F032190779 - NutTrade number 190779
Replacement for:
BOSCH 2915012006
DIN norm 934, Material Steel, Thread/mm/" M5, Coating Electro Galvanized, Spanner Size 8
F032190780 - ScrewTrade number 190780
Replacement for:
BOSCH 2123315000
DIN norm 934, Material Steel, Thread/mm/" M6, Coating Electro Galvanized, Spanner Size 10
F032191292 - ScrewTrade number 191292
Replacement for:
BOSCH 1123429102
Head type Cheese head, Partly threaded w/, Screw type Pozidriv, Thread Length 40.00, Material Steel, Thread/mm/" M5, Colour Black, Length 110.00
F032191318 - ScrewTrade number 191318
Replacement for:
BOSCH 1123433001
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 18.00
F032191478 - ScrewTrade number 191478
Replacement for:
BOSCH 1123433005
Head type Pan head, Screw type Pozidriv, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 25.00, Remarks w/ waved washer.
F032191528 - ScrewTrade number 191528
Replacement for:
BOSCH 1123429202
Head type Cheese head, Partly threaded w/, Screw type Pozidriv, Thread Length 30.00, Material Steel, Thread/mm/" M5, Colour Black, Length 95.00
F032191657 - ScrewTrade number 191657
Replacement for:
BOSCH 2915039028
Iso norm 4035, DIN norm 439B, Material Steel, Servicing 4G series, Thread/mm/" M16-1.5, Coating Electro Galvanized, Spanner Size 24

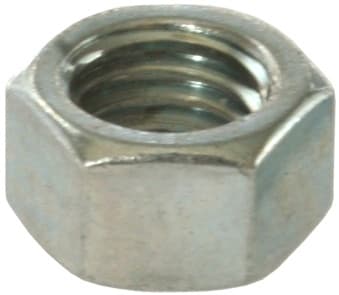

F032191898 - ScrewTrade number 191898
Replacement for:
BOSCH 1123300020
DIN norm 934, Material Steel, Thread/mm/" M10, Coating Electro Galvanized, Spanner Size 14
F032233726 - Brush-Spring SetTrade number 233726
Replacement for:
BOSCH 1124625003
Wire thickness 0.40, Inner Diameter 5.15, Outer Diameter 6.00, Length 34.00
F032234463 - SpacerTrade number 234463
Replacement for:
BOSCH 1120140142
Inner Diameter 17.00, Material Steel, Outer Diameter 55.25, Bushing w/o, Thickness 2.65
F032235764 - Slip-RingTrade number 235764
Replacement for:
BOSCH 1124303026
Prod. info OE, Ring Height 1 10.65, Type Standard, Inner Diameter 16.80, Material Copper, Outer Diameter 28.00, Ring Distance 2.45, Ring Height 2 9.00, Total Length 22.20
F032333108 - Ball BearingTrade number 333108
Replacement for:
BOSCH 1120905025BOSCH 1120905099BOSCH 1120905102
Bearing type Ball bearing, Inner Diameter 12.00, Outer Diameter 32.00, Remarks 6201-2RS1/C3., Height 10.00
F032333119 - Ball BearingTrade number 333119
Replacement for:
BOSCH 1120905039BOSCH 1120905533
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 6303-2RS1/C3., Height 14.00
F032333877 - Bearing CapTrade number 333877
Replacement for:
BOSCH 1120591082
Inner Diameter 32.00, Outer Diameter 35.00, Height 18.00
F032902680 - Carbon-Brush SetTrade number BX2042
Replacement for:
BOSCH 1127014018BOSCH 1127014022
Voltage 14;28, Conductor w/, Spring w/o, Cable lugs w/o, No./brushes 2, Lead Length 53.00, Thickness 8.00, Length 19.50, Height 5.00
F032902681 - Carbon-Brush SetTrade number BX2022
Replacement for:
BOSCH 1127014030
Voltage 14;28, Conductor w/, Spring w/o, Cable lugs w/o, No./brushes 2, Lead Length 47.00, Thickness 8.00, Length 19.50, Height 5.00
