Showing results for: BOSCH 0120489384

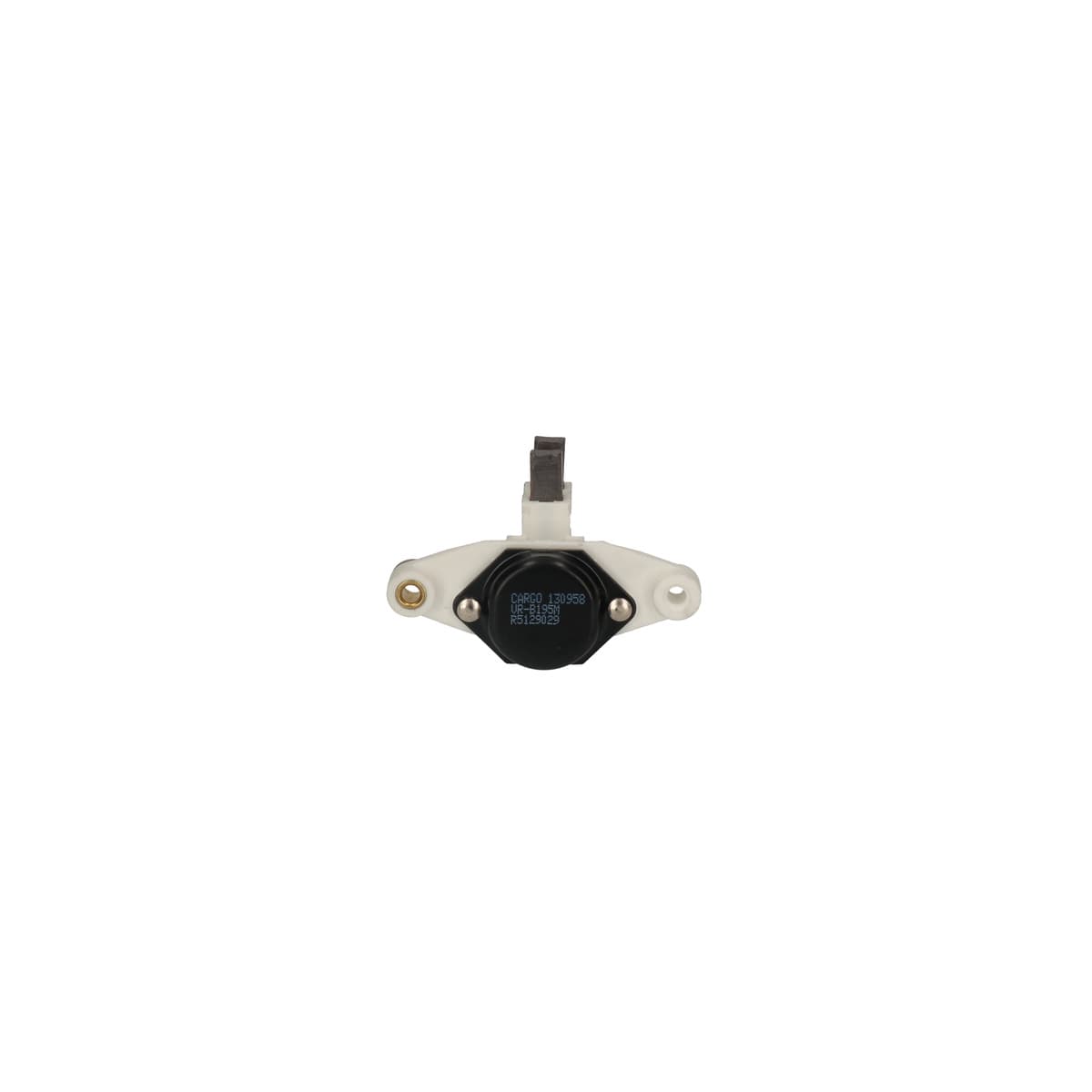

F032130958 - EL Field RegulatorTrade number 130958
Replacement for:
BOSCH 1197311021
Voltage setting 14.7, Voltage 14, Regulator type Electronic, Remarks Slip ring O.D. 28.00 mm., Distance Between Mounting Holes 65.00
F032131948 - RotorTrade number 131948
Replacement for:
BOSCH 1124034366
Voltage 14, Amp 65, Ring Height 1 10.40, Current coil 3.60, Core type Loose, Ring Height 2 9.00, Slip Ring End Length 48.20, Bearing Diameter 12.00, Cooling fan w/o, Thread size M16-1.50, Outer Diameter 89.00, Wire Diameter 0.70, Thread Length 14.50, Slip Ring Rear 88.30, Slip Ring Outer Diameter 27.50, Wire weight 323, Core Diameter 48.30, Ring Distance 2.50, Bobine measurement 68.70, Drive End Length 55.00, Windings 419, Core height 27.00, Slip Ring Front 76.60, Rotation CW, Height 49.00, Total Length 151.00, Shaft Diameter 17.00
F032132769 - Fitting RingTrade number 132769
Replacement for:
BOSCH 1120591075
Gasket w/o, Inner Diameter 32.00, Material Plastic, Outer Diameter 35.00, Height 42.00

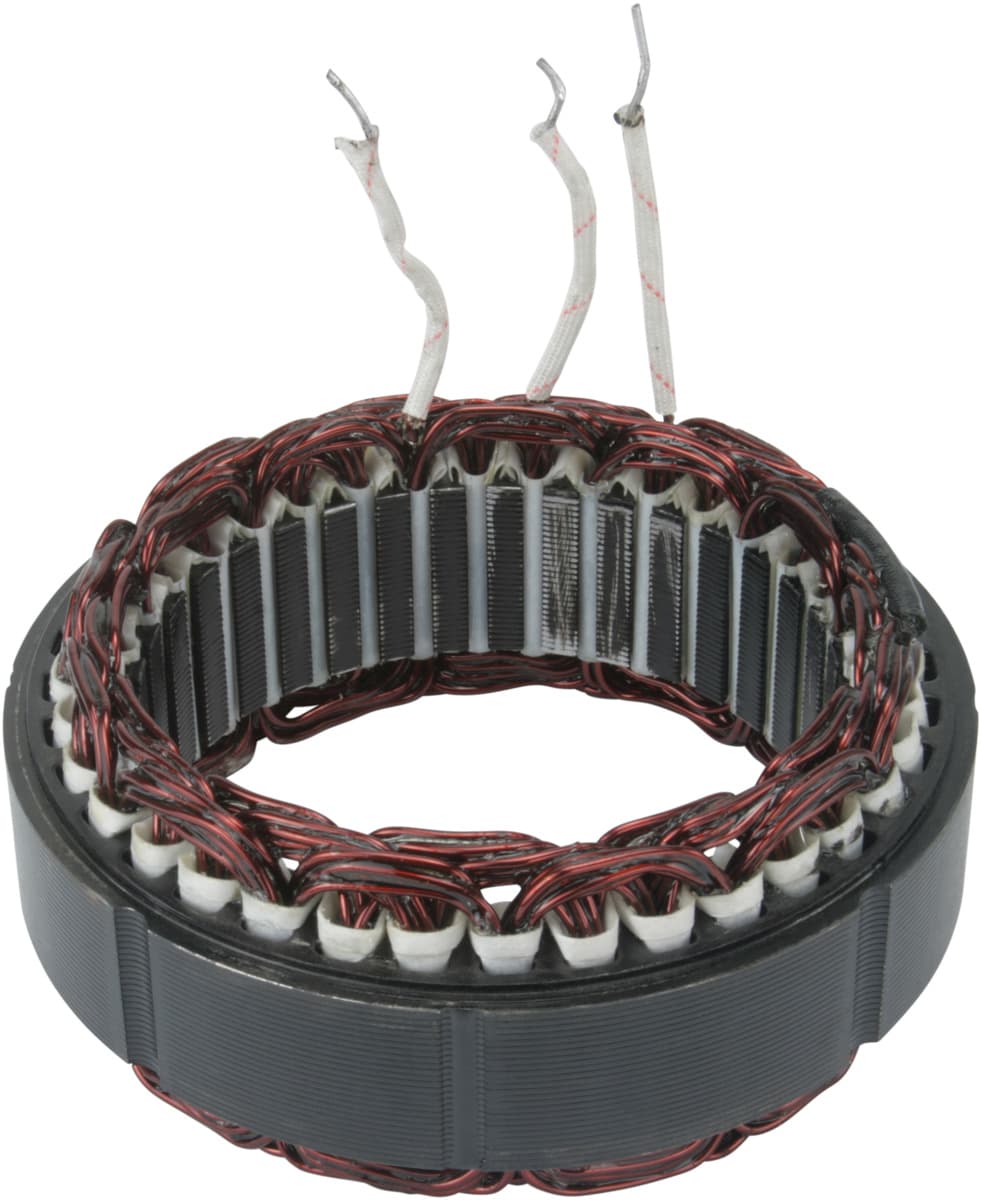

F032133081 - StatorTrade number 133081
Replacement for:
BOSCH 1125045043
Voltage 14, Amp 65, Lead 3 1, Wire thickness 1.50, Stator winding Cross, Inner Diameter 89.20, Outer Diameter 2 117.50, Number of leads 3, Winding Height 51.50, Lead 1 1, Lead 2 1, Outer Diameter 125.00, Height 25.50
F032133402 - Parts SetTrade number 133402
Replacement for:
BOSCH 1124303015
Ring Height 1 9.45, Ring Height 2 9.35, Inner Diameter 17.00, Collar w/o, Ring Distance 2.60, Material Copper, Outer Diameter 28.00, Remarks Copper ring: HC-CARGO 135660., Total Length 22.10
F032133875 - Fan WheelTrade number 133875
Replacement for:
BOSCH 1126610060
Fans 13, Pulley w/o, Bore dia. 17.00, Rotation CW, Outer Diameter 135.00, Height 13.60

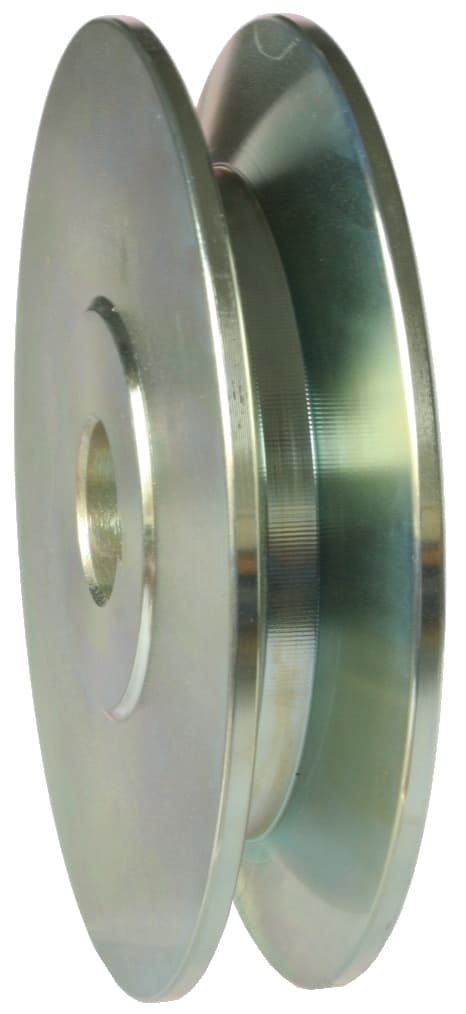

F032135057 - PulleyTrade number 135057
Replacement for:
BOSCH 1126600395
Rear Distance 1.00, Free run w/o, Grooves 1, Width 1 20.00, Depth 7.90, Bore dia. 17.00, Belt type A=12.5, Over Belt Diameter 93.00, Outer Diameter 93.70, Pulley type P
F032140081 - Ball BearingTrade number 140081
Replacement for:
BOSCH 1120905102
Bearing type Ball bearing, Inner Diameter 12.00, Outer Diameter 32.00, Remarks 6201-2RS1., Height 10.00
F032140087 - Ball BearingTrade number 140087
Replacement for:
BOSCH 1120905525
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 40.00, Remarks 6203-2RS1., Height 12.00
F032190544 - ScrewTrade number 190544
Replacement for:
BOSCH 2912452152
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M5, Length 10
F032191478 - ScrewTrade number 191478
Replacement for:
BOSCH 1123433005
Screw type Pozidriv, Head type Pan head, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Remarks w/ waved washer., Length 25.00
F032191528 - ScrewTrade number 191528
Replacement for:
BOSCH 1123429202
Screw type Pozidriv, Thread Length 30.00, Partly threaded w/, Head type Cheese head, Colour Black, Material Steel, Thread/mm/" M5, Length 95.00
F032233726 - Brush-Spring SetTrade number 233726
Replacement for:
BOSCH 1124625003
Inner Diameter 5.15, Wire thickness 0.40, Outer Diameter 6.00, Length 34.00
F032235764 - Slip-RingTrade number 235764
Replacement for:
BOSCH 1124303026
Ring Height 1 10.65, Prod. info OE, Ring Height 2 9.00, Inner Diameter 16.80, Type Standard, Ring Distance 2.45, Material Copper, Outer Diameter 28.00, Total Length 22.20
F032333108 - Ball BearingTrade number 333108
Replacement for:
BOSCH 1120905102
Bearing type Ball bearing, Inner Diameter 12.00, Outer Diameter 32.00, Remarks 6201-2RS1/C3., Height 10.00
F032333112 - Ball BearingTrade number 333112
Replacement for:
BOSCH 1120905525
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 40.00, Remarks 6203-2RS/C3., Height 12.00
F032902680 - Carbon-Brush SetTrade number BX2042
Replacement for:
BOSCH 1127014022
Voltage 14;28, Conductor w/, Spring w/o, Lead Length 53.00, Cable lugs w/o, No./brushes 2, Length 19.50, Thickness 8.00, Height 5.00
