Showing results for: BOSCH 0123505007
F032134687 - EL Field RegulatorTrade number 134687
Replacement for:
BOSCH 1197311214
Voltage setting 14.5, Voltage 14, Regulator type Electronic, Remarks Slip ring O.D. 14.00 mm., Distance Between Mounting Holes 55.00
F032135172 - Parts SetTrade number 135172
Replacement for:
BOSCH 1124303007
Ring Height 1 7.20, Ring Height 2 7.20, Inner Diameter 7.00, Collar w/, Ring Distance 2.60, Material Copper, Outer Diameter 16.00, Total Length 52.10
F032135237 - Fitting RingTrade number 135237
Replacement for:
BOSCH 1120591103
Inner Diameter 40.00, Outer Diameter 43.00, Height 16.60
F032135608 - ChassisTrade number 135608
Replacement for:
BOSCH 1121038015
No./mount. holes 4, Gasket w/o, Inner Diameter 28.00, Material Steel, Outer Diameter 58.50, Amount of Mounting Holes 4, Thickness 1.95

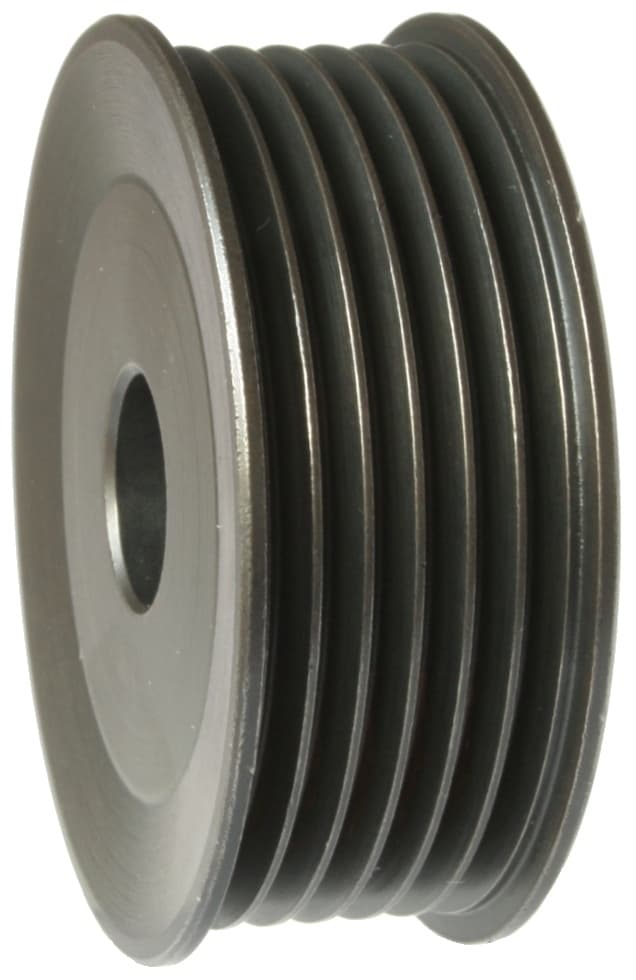

F032136859 - PulleyTrade number 136859
Replacement for:
BOSCH 1126600994
Groove Measurement 1 3.10, Rear Distance 1.00, Free run w/o, Grooves 6, Width 1 26.50, Depth 13.10, Bore dia. 17.00, Outer Diameter 64.70, Pulley type SP
F032136860 - Protective CapTrade number 136860
Replacement for:
BOSCH 1125500179
D+ Inner Diameter 12.60, B+ Inner Diameter 9.20, Inner Diameter 133.30, Material Plastic, Outer Diameter 137.00, Height 43.00
F032137216 - ScrewTrade number 137216
Replacement for:
BOSCH 1123433017
Thread Length 27.50, Thread/mm/" M5, Total Length 36.00, Length 32.50
F032140087 - Ball BearingTrade number 140087
Replacement for:
BOSCH 1120905525
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 40.00, Remarks 6203-2RS1., Height 12.00
F032140263 - Ball BearingTrade number 140263
Replacement for:
BOSCH 1120905012
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
F032141232 - Ball BearingTrade number 141232
Replacement for:
BOSCH 1120905520
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
F032142318 - Ball BearingTrade number 142318
Replacement for:
BOSCH 1120905520
Bearing type Ball bearing, Source NTN, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
F032191478 - ScrewTrade number 191478
Replacement for:
BOSCH 1123433032
Screw type Pozidriv, Head type Pan head, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Remarks w/ waved washer., Length 25.00
F032191513 - Self-locking nutTrade number 191513
Replacement for:
BOSCH F00M990127
Self-locking w/, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
F032191657 - ScrewTrade number 191657
Replacement for:
BOSCH 2915039028
DIN norm 439B, Iso norm 4035, Coating Electro Galvanized, Material Steel, Servicing 4G series, Thread/mm/" M16-1.5, Spanner Size 24
F032333112 - Ball BearingTrade number 333112
Replacement for:
BOSCH 1120905525
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 40.00, Remarks 6203-2RS/C3., Height 12.00

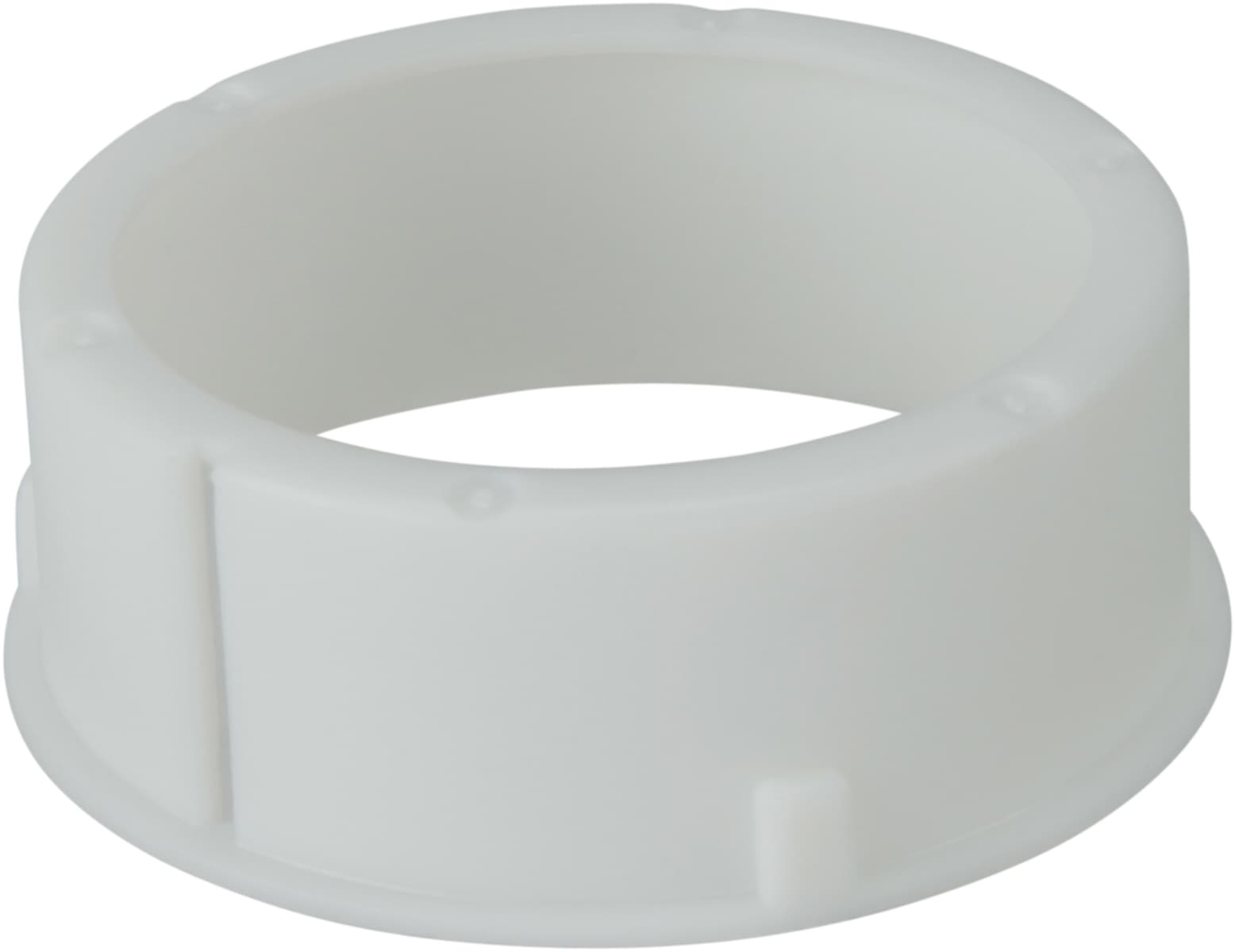

F032333875 - Bearing CapTrade number 333875
Replacement for:
BOSCH 1120591103
Inner Diameter 40.00, Outer Diameter 43.00, Height 16.60

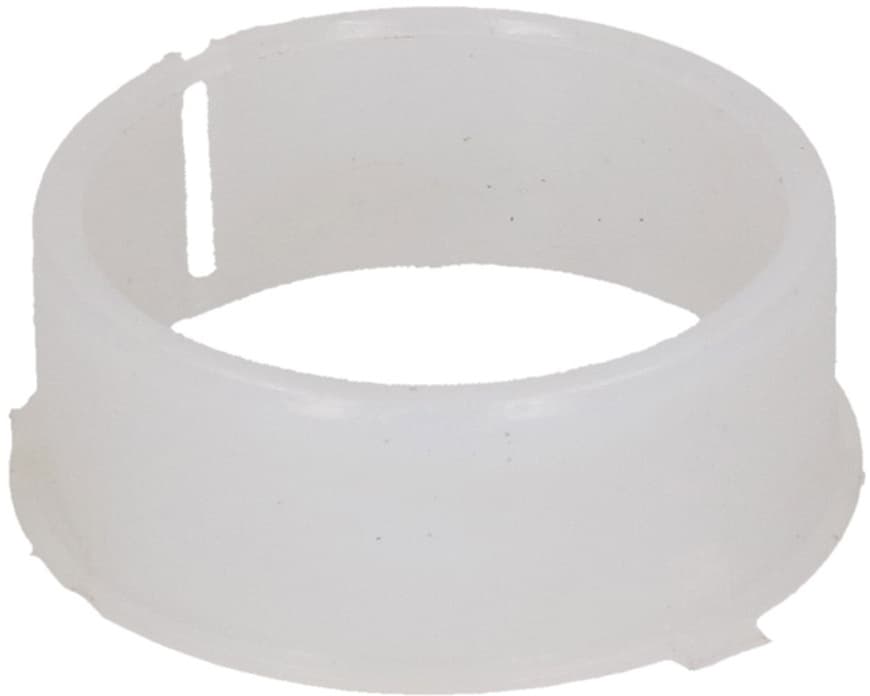

F032335380 - Bearing CapTrade number 335380
Replacement for:
BOSCH 1120591103
Inner Diameter 40.00, Outer Diameter 43.00, Height 16.90
F032335555 - Rubber DiscTrade number 335555
Replacement for:
BOSCH 1120591091
Inner Diameter 65.00, Material Plastic, Outer Diameter 73.00, Height 20.00
F032902683 - Carbon-Brush SetTrade number BX2132
Replacement for:
BOSCH 1127014028
Voltage 14, Conductor w/, Spring w/o, Lead Length 118.00, Solder hole w/o, Cable lugs w/o, No./brushes 2, Length 16.50, Thickness 6.00, Height 4.00
F032B30706 - ScrewTrade number B230706
Replacement for:
BOSCH 1123429007
Thread Length 22.00, Collar Length Rear 47.00, Thread size M5, Total Length 52.00
F032B41232 - Ball BearingTrade number B141232
Replacement for:
BOSCH 1120905520
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
F032B91513 - Self-locking nutTrade number B191513
Replacement for:
BOSCH F00M990127
Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
