Showing results for: BOSCH 0123520023
F03200B213 - Carbon BrushTrade number B213
Replacement for:
BOSCH F00M145809
Voltage 14, Conductor w/, Spring w/o, Cable lugs w/o, No./brushes 1, Lead Length 118.00, Thickness 6.00, Length 16.50, Height 4.00
F032112425 - AlternatorTrade number 112425
Voltage 14, Amp 150, Bracket Hole Size 2 9.50, Grooves/pulley 6, Regulator type IR, Belt Adjustment Bracket Hole 1 8.50, Mounting Bracket Distance 56.00, Radius 86.00, Pulley Diameter 50.00, Prod. info BN, Bracket Hole Size Rear 9.50, Pulley SP/FW, Pulley Distance 31.00, Servicing Mercedes-Benz, D+ Position 5, Radius 2 86.00, B+ M8, Rotation CW, Belt Adjustment Bracket Hole 2 9.50, Bracket Hole Size 1 8.00, Holder Arm Width 70.00, D+ Size M5, Belt Adjustment Bracket Hole Position 60, Total Length 200.00, Position 5, B+ Position 45

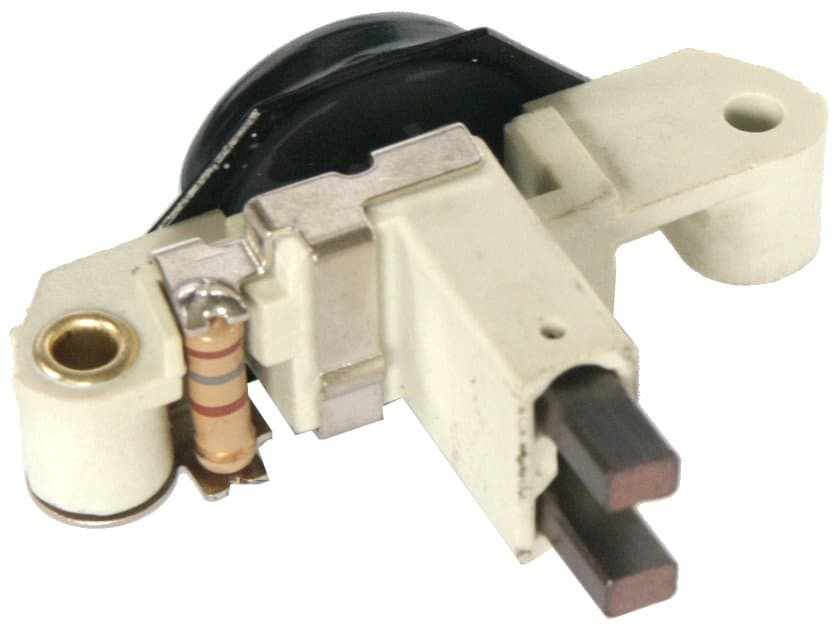

F032134761 - EL Field RegulatorTrade number 134761
Replacement for:
BOSCH 1197311242
Voltage setting 14.5, Voltage 14, Regulator type Electronic, Resistor w/, Remarks w/ 180 Ohm resistor. Slip Ring O.D. 14.00 mm., Distance Between Mounting Holes 55.00
F032135172 - Parts SetTrade number 135172
Replacement for:
BOSCH 1124303007
Ring Height 1 7.20, Inner Diameter 7.00, Material Copper, Outer Diameter 16.00, Collar w/, Ring Distance 2.60, Ring Height 2 7.20, Total Length 52.10
F032135237 - Fitting RingTrade number 135237
Replacement for:
BOSCH 1120591103
Inner Diameter 40.00, Outer Diameter 43.00, Height 16.60
F032135608 - ChassisTrade number 135608
Replacement for:
BOSCH 1121038015
Gasket w/o, No./mount. holes 4, Inner Diameter 28.00, Material Steel, Outer Diameter 58.50, Thickness 1.95, Amount of Mounting Holes 4
F032137216 - ScrewTrade number 137216
Replacement for:
BOSCH 1123433017
Thread/mm/" M5, Thread Length 27.50, Length 32.50, Total Length 36.00

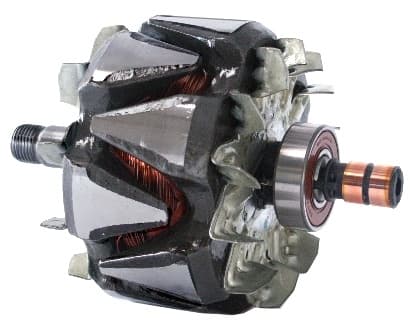

F032138048 - RotorTrade number 138048
Replacement for:
BOSCH 1124035417
Voltage 14, Amp 143, Bearing Diameter 17.00, Cooling fan w/, Thread size M16-1.50, Outer Diameter 111.30, Wing height 87.00, Current coil 4.40, Core type Loose, Ring Height 1 8.10, Ring Height 2 8.10, Slip Ring End Length 51.60, Drive End Length 50.20, Windings 351, Rotation CW, Core height 30.00, Slip Ring Front 107.00, Slip Ring Outer Diameter 15.40, Wire Diameter 0.85, Slip Ring Rear 117.40, Thread Length 13.50, Core Diameter 62.90, Bobine measurement 85.60, Ring Distance 2.10, Total Length 156.50, Height 57.10, Shaft Diameter 17.00
F032138236 - CoverTrade number 138236
Replacement for:
BOSCH 1120591506
Outer Diameter 55.50, Height 4.70
F032139044 - EL Field RegulatorTrade number 139044
Replacement for:
BOSCH F00M145201
Voltage setting 14.5, Voltage 14, D+ thread size M5, D+ type Bolt, Regulator type Electronic, Remarks Slip ring O.D. 14.00 mm., D+ Length 11.00, Distance Between Mounting Holes 79.00
F032139907 - SpacerTrade number 139907
Replacement for:
BOSCH 1120202505
Collar Height 1.75, Inner Diameter 17.00, Material Steel, Outer Diameter 44.00, Collar Outer Diameter 1 30.00, Thickness 5.00
F032139929 - Fitting RingTrade number 139929
Replacement for:
BOSCH F00M146900
Inner Diameter 35.00, Outer Diameter 37.75, Remarks For 6003: HC-CARGO 140273., Height 50.00
F032140087 - Ball BearingTrade number 140087
Replacement for:
BOSCH 1120905525
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 40.00, Remarks 6203-2RS1., Height 12.00
F032140263 - Ball BearingTrade number 140263
Inner Diameter 17.00, Outer Diameter 52.00, Bearing type Ball bearing, Height 17.00
F032141232 - Ball BearingTrade number 141232
Replacement for:
BOSCH 1120905070BOSCH 1120905506BOSCH 1120905510
Inner Diameter 17.00, Outer Diameter 52.00, Bearing type Ball bearing, Height 17.00
F032142268 - Ball BearingTrade number 142268
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 35.00, Remarks 6003-2RS1/C3., Height 10.00
F032142269 - Ball BearingTrade number 142269
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 40.00, Remarks 6203-2RS/C3., Height 12.00
F032142318 - Ball BearingTrade number 142318
Replacement for:
BOSCH 1120905070BOSCH 1120905506BOSCH 1120905510
Source NTN, Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH 2915059107
Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032191318 - ScrewTrade number 191318
Replacement for:
BOSCH F00M990151
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 18.00
F032191478 - ScrewTrade number 191478
Replacement for:
BOSCH 1123433032
Head type Pan head, Screw type Pozidriv, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 25.00, Remarks w/ waved washer.
F032192586 - ScrewTrade number 192586
Replacement for:
BOSCH F00M990195
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 22.00
F032230292 - PulleyTrade number 230292
Replacement for:
BOSCH 1126601597BOSCH F00M061023BOSCH F00M991304
Grooves 6, Rotation CW, Thread size M16-1.50, Outer Diameter 49.70, Belt type Multi Belt, Depth 7.60, Free run w/, Width 1 39.20, Groove Measurement 1 14.90, Rear Distance 6.10, Bore dia. 17.00, Remarks Pulley tool: HC-CARGO 210843., Pulley type SP;FW
F032230732 - ScrewTrade number 230732
Replacement for:
BOSCH F00M990163
Slot type Phillips, Pozidriv, Thread Length 17.50, Thread/mm/" M5, Washer w/, Length 21.50, Total Length 25.50
F032230777 - ScrewTrade number 230777
Replacement for:
BOSCH F00M990149
Thread/mm/" M4, Washer w/, Thread Length 10.00, Length 12.50, Total Length 16.50
F032232624 - PulleyTrade number 232624
Replacement for:
BOSCH F00M991099
Grooves 6, Rotation CW, Thread size M16-1.50, Outer Diameter 49.70, Belt type Multi Belt, Depth 11.10, Free run w/, Width 1 39.00, Groove Measurement 1 14.90, Rear Distance 6.20, Bore dia. 17.00, Remarks Pulley tool: HC-CARGO 210843., Pulley type SP;FW

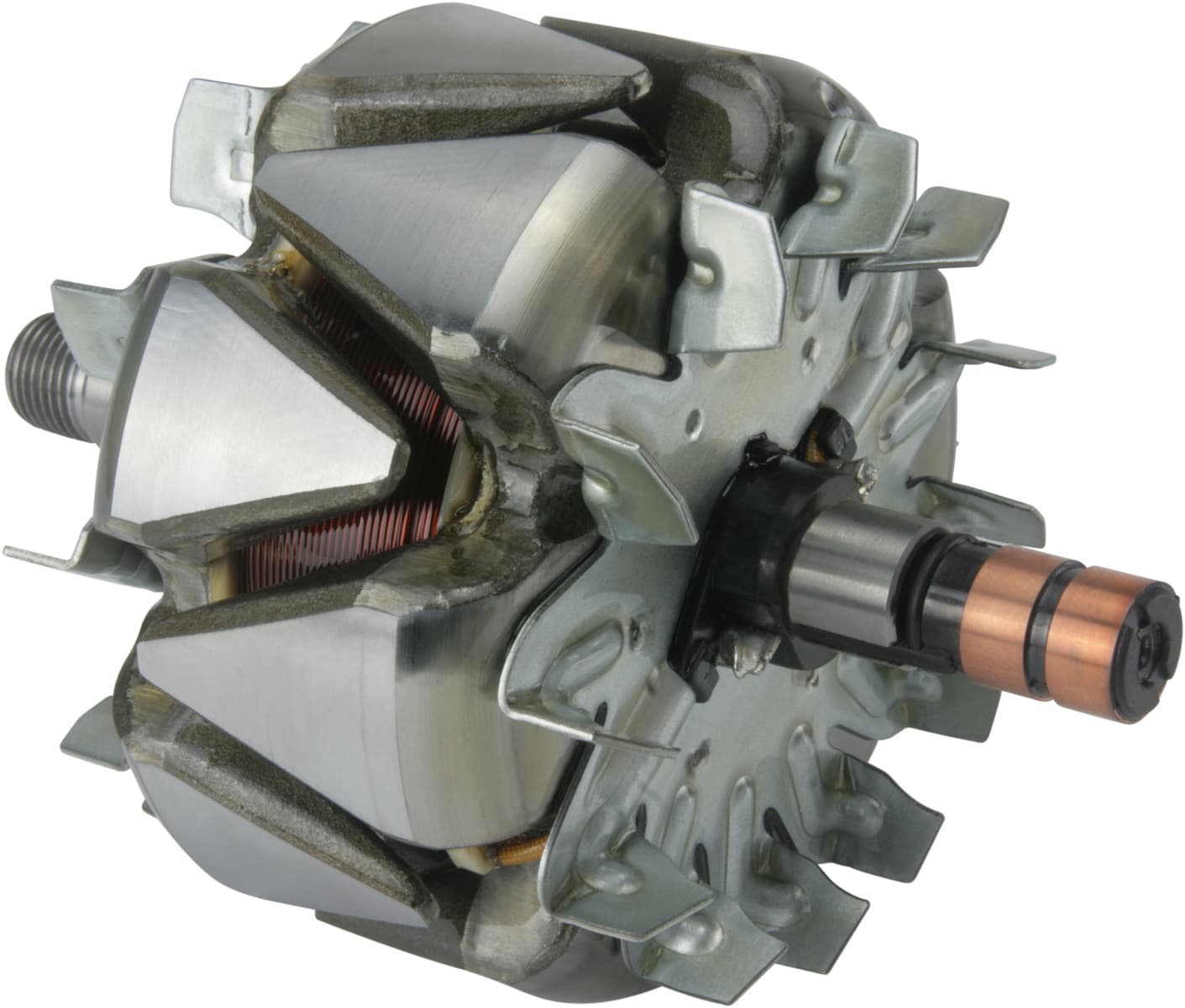

F032233924 - RotorTrade number 233924
Replacement for:
BOSCH 1124035513BOSCH 1124035539
Voltage 14, Amp 150, Bearing Diameter 15.00, Cooling fan w/, Thread size M16-1.50, Outer Diameter 111.30, Wing height 86.50, Ring Height 1 8.00, Ring Height 2 8.00, Slip Ring End Length 51.00, Drive End Length 50.50, Windings 403, Rotation CW, Slip Ring Front 107.00, Slip Ring Outer Diameter 15.40, Wire Diameter 0.95, Slip Ring Rear 117.70, Thread Length 11.00, Ring Distance 2.20, Total Length 159.20, Height 56.70, Shaft Diameter 17.00, Remarks Slip ring: HC-CARGO 135172.
F032234549 - Protective CapTrade number 234549
Replacement for:
BOSCH F00M146652
B+ Inner Diameter 8.60, Inner Diameter 118.00, Material Plastic, Outer Diameter 121.00, Height 12.80
F032235475 - CoverTrade number 235475
Replacement for:
BOSCH F00M148611
Outer Diameter 55.40, Remarks Ina., Height 4.70

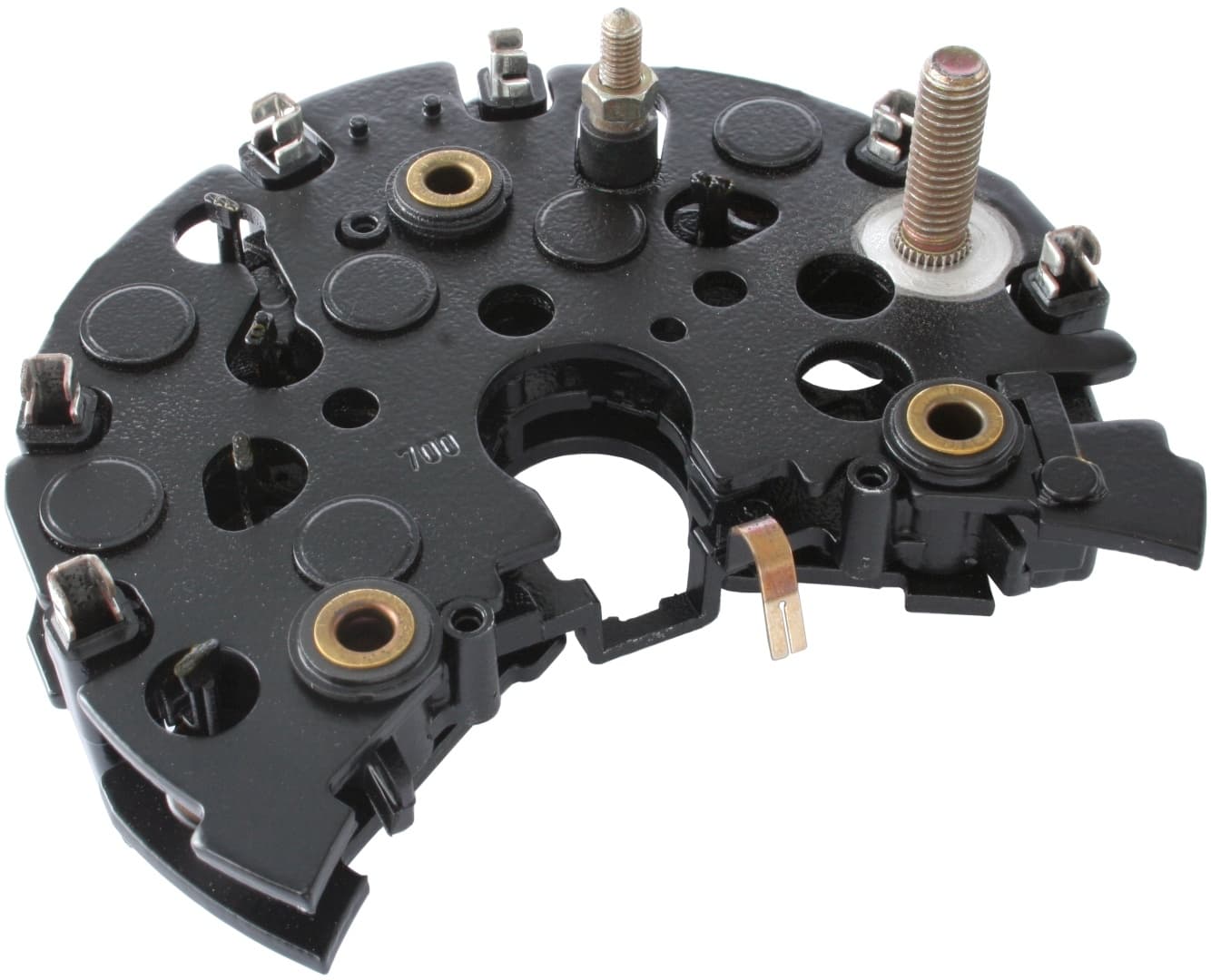

F032237268 - RectifierTrade number 237268
Replacement for:
BOSCH 1127319700
Diode A Current Strength 50, Zener volt 20;30.00, Capacitor w/, Control diodes w/, Outer Diameter 124.00, No. of diodes 12, B+ type Bolt, Diode type Avalanche, B+ size M8, Inner Diameter 23.00, D+ type Bolt, B+ Length 27.00, Diode Trio w/, D+ Size M5, D+ Length 15.00
F032332293 - PulleyTrade number 332293
Replacement for:
BOSCH 1126601597BOSCH F00M061023BOSCH F00M991304
Grooves 6, Rotation CW, Thread size M16-1.50, Outer Diameter 50.00, Belt type Multi Belt, Depth 7.60, Free run w/, Width 1 40.30, Groove Measurement 1 15.60, Rear Distance 1.00, Bore dia. 17.00, Pulley type SP;FW
F032332302 - PulleyTrade number 332302
Replacement for:
BOSCH F00M991099
Grooves 6, Rotation CW, Thread size M16-1.50, Outer Diameter 49.80, Belt type Multi Belt, Depth 11.10, Free run w/, Width 1 40.30, Groove Measurement 1 15.60, Rear Distance 1.00, Bore dia. 17.00, Remarks Pulley tool: HC-CARGO 210843., Pulley type SP;FW
F032333103 - Ball BearingTrade number 333103
Replacement for:
BOSCH F00M990418
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 35.00, Remarks 6003-2RS1/C3., Height 10.00
F032333112 - Ball BearingTrade number 333112
Replacement for:
BOSCH 1120905525
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 40.00, Remarks 6203-2RS/C3., Height 12.00
F032335026 - RectifierTrade number 335026
Replacement for:
BOSCH F00M133259
Diode - 3, B+ type Bolt, Diode type Avalanche, B+ size M8, Inner Diameter 35.00, Outer Diameter 130.00, Diode socket Aluminium, B+ Length 20.00, Diode + 3
F032335806 - SpacerTrade number 335806
Replacement for:
BOSCH 1120202505
Collar Height 1.75, Inner Diameter 17.00, Outer Diameter 44.00, Collar Outer Diameter 1 30.00, Thickness 5.00
F032338080 - CoverTrade number 338080
Replacement for:
BOSCH F00M148611
Outer Diameter 55.40, Remarks Ina., Height 4.70
F032902683 - Carbon-Brush SetTrade number BX2132
Replacement for:
BOSCH 1127014028
Voltage 14, Conductor w/, Spring w/o, Cable lugs w/o, No./brushes 2, Lead Length 118.00, Solder hole w/o, Thickness 6.00, Length 16.50, Height 4.00
F032B30706 - ScrewTrade number B230706
Replacement for:
BOSCH 1123429007
Thread size M5, Thread Length 22.00, Collar Length Rear 47.00, Total Length 52.00
F032B30731 - ScrewTrade number B230731
Replacement for:
BOSCH F00M990102
Thread size M5, Thread Length 22.00, Collar Length Rear 60.00, Total Length 65.00
F032B30732 - ScrewTrade number B230732
Replacement for:
BOSCH F00M990163
Slot type Phillips, Pozidriv, Thread Length 17.50, Thread/mm/" M5, Washer w/, Length 21.50, Total Length 25.50
F032B39929 - Bearing CapTrade number B139929
Inner Diameter 35.00, Outer Diameter 37.75, Remarks For 6003: HC-CARGO 140273., Height 50.00
F032B41232 - Ball BearingTrade number B141232
Replacement for:
BOSCH 1120905070BOSCH 1120905506BOSCH 1120905510
Inner Diameter 17.00, Outer Diameter 52.00, Bearing type Ball bearing, Height 17.00
F032B91513 - Self-locking nutTrade number B191513
Replacement for:
BOSCH F00M990127
Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032191513 - Self-locking nutTrade number 191513
Replacement for:
BOSCH F00M990127
Self-locking w/, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032333543 - Protective CapTrade number 333543
Replacement for:
BOSCH F00M146652
B+ Inner Diameter 8.60, Inner Diameter 118.00, Material Plastic, Outer Diameter 121.00, Height 12.80
F032333875 - Bearing CapTrade number 333875
Replacement for:
BOSCH 1120591103
Inner Diameter 40.00, Outer Diameter 43.00, Height 16.60
F032335067 - Zener DiodeTrade number 335067
Replacement for:
BOSCH 0270300114
Polarity Negative, Voltage 19/24, Amp 50, Mount. type Press fit, Diode type Press-fit, Type Avalanche, Outer Diameter 10.80, Collar Outer Diameter 1 12.80, Lead Length 24.30, Length 8.20
F032335380 - Bearing CapTrade number 335380
Replacement for:
BOSCH 1120591103
Inner Diameter 40.00, Outer Diameter 43.00, Height 16.90
