Showing results for: BOSCH 0123525501
F03200B213 - Carbon BrushTrade number B213
Replacement for:
BOSCH F00M145810
Voltage 14, Conductor w/, Spring w/o, Lead Length 118.00, Cable lugs w/o, No./brushes 1, Length 16.50, Thickness 6.00, Height 4.00
F032135172 - Parts SetTrade number 135172
Replacement for:
BOSCH 1124303007
Ring Height 1 7.20, Ring Height 2 7.20, Inner Diameter 7.00, Collar w/, Ring Distance 2.60, Material Copper, Outer Diameter 16.00, Total Length 52.10
F032135407 - Fitting RingTrade number 135407
Replacement for:
BOSCH 1120591102BOSCH 1120591116BOSCH 1120591511
Gasket w/, Type (split) w/o, Inner Diameter 40.00, Material Nylon 66, Outer Diameter 42.90, Height 47.00
F032135608 - ChassisTrade number 135608
Replacement for:
BOSCH 1121038501BOSCH F00M146803
No./mount. holes 4, Gasket w/o, Inner Diameter 28.00, Material Steel, Outer Diameter 58.50, Amount of Mounting Holes 4, Thickness 1.95
F032137216 - ScrewTrade number 137216
Replacement for:
BOSCH 1123433017BOSCH F00M990061
Thread Length 27.50, Thread/mm/" M5, Total Length 36.00, Length 32.50
F032138775 - NutTrade number 138775
Replacement for:
BOSCH 1123314003
Lock nut w/o, Washer w/o, Material Steel, Outer Diameter 32.30, Thread/mm/" M16-1.50, Height 15.20
F032139907 - SpacerTrade number 139907
Replacement for:
BOSCH 1120202505
Inner Diameter 17.00, Collar Height 1.75, Collar Outer Diameter 1 30.00, Material Steel, Outer Diameter 44.00, Thickness 5.00
F032140087 - Ball BearingTrade number 140087
Replacement for:
BOSCH 1120905050BOSCH 1120905525
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 40.00, Remarks 6203-2RS1., Height 12.00
F032140263 - Ball BearingTrade number 140263
Replacement for:
BOSCH F00M990434
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00

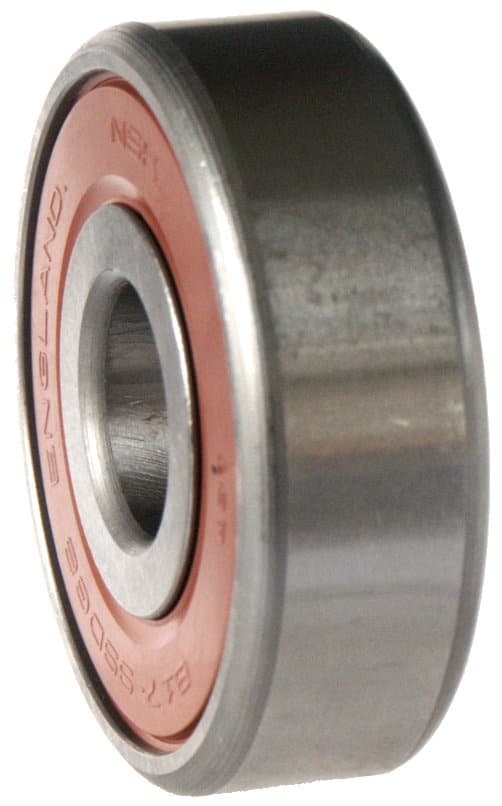

F032141232 - Ball BearingTrade number 141232
Replacement for:
BOSCH 1120905510
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00

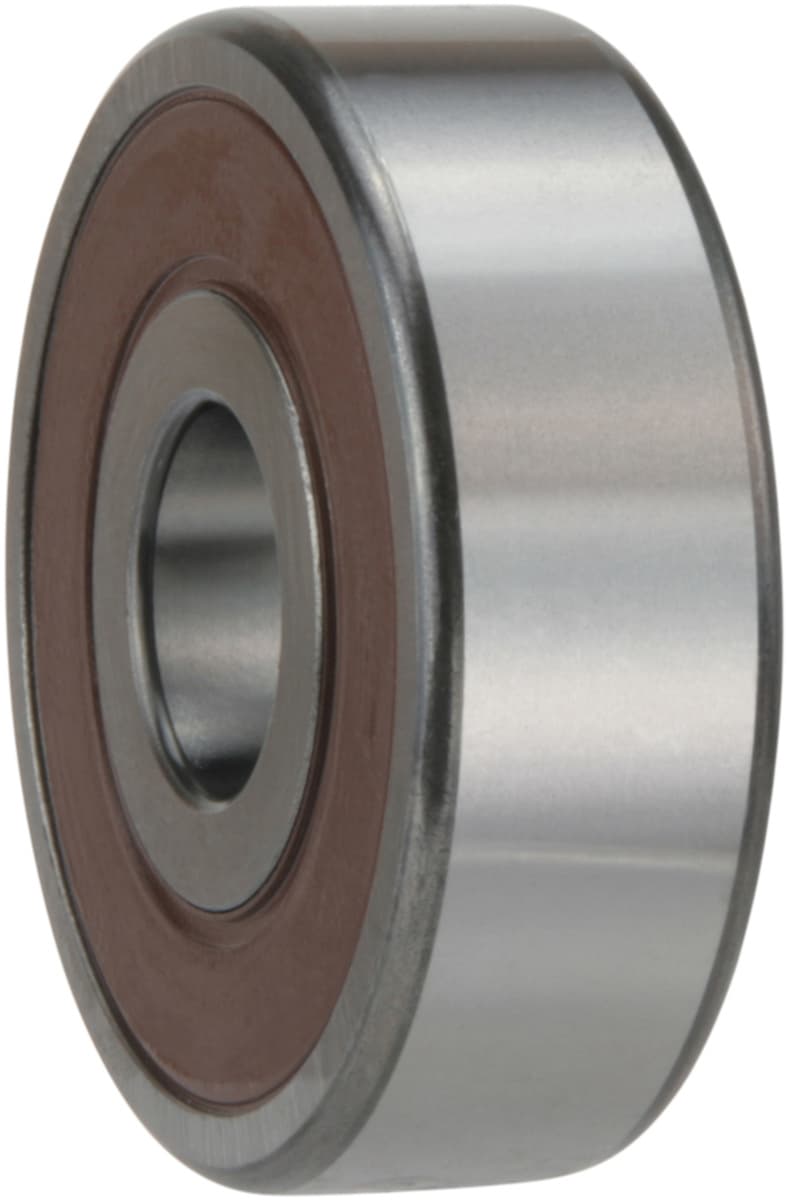

F032142318 - Ball BearingTrade number 142318
Replacement for:
BOSCH 1120905510
Bearing type Ball bearing, Source NTN, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
F032191478 - ScrewTrade number 191478
Replacement for:
BOSCH 1123433032BOSCH F00M990062
Screw type Pozidriv, Head type Pan head, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Remarks w/ waved washer., Length 25.00

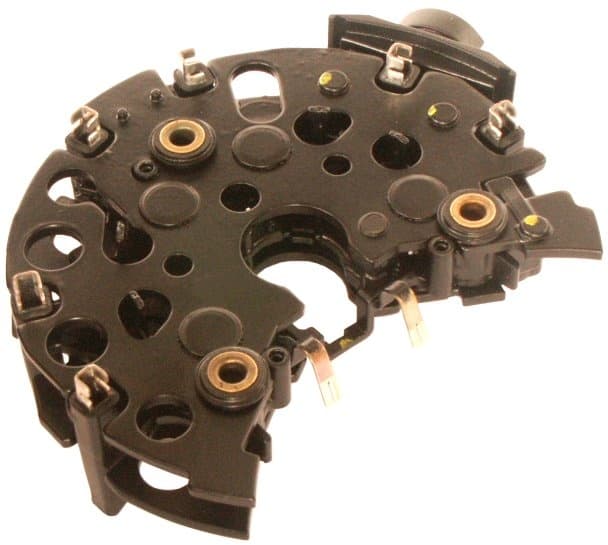

F032234333 - RectifierTrade number 234333
Replacement for:
BOSCH 1127319793BOSCH 1127319794
B+ type Bolt, No. of diodes 8, Inner Diameter 23.20, B+ size M8, B+ Length 12.00, Outer Diameter 124.00
F032234353 - SpacerTrade number 234353
Replacement for:
BOSCH 1120591513
Inner Diameter 16.40, Bushing w/o, Material Steel, Outer Diameter 55.00, Thickness 2.00

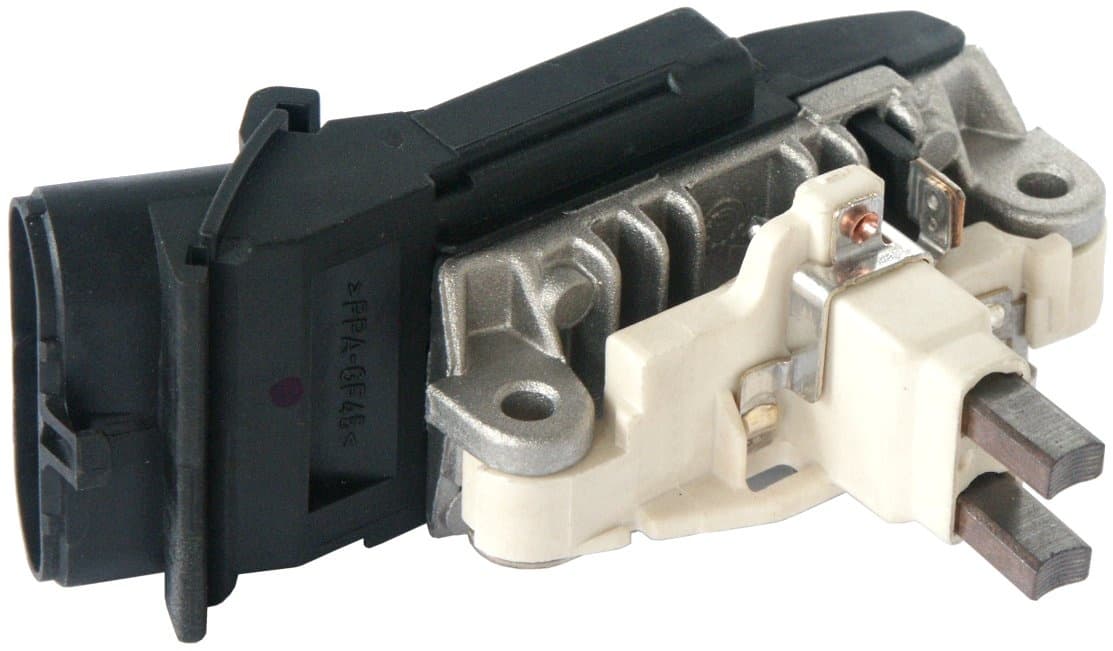

F032234522 - EL Field RegulatorTrade number 234522
Replacement for:
BOSCH 1197311554BOSCH 1197311558
Voltage setting 28.5, Voltage 28, Plug no. 1 PL110, Regulator type Electronic, Remarks Slip ring O.D. 16.00 mm., Distance Between Mounting Holes 55.00

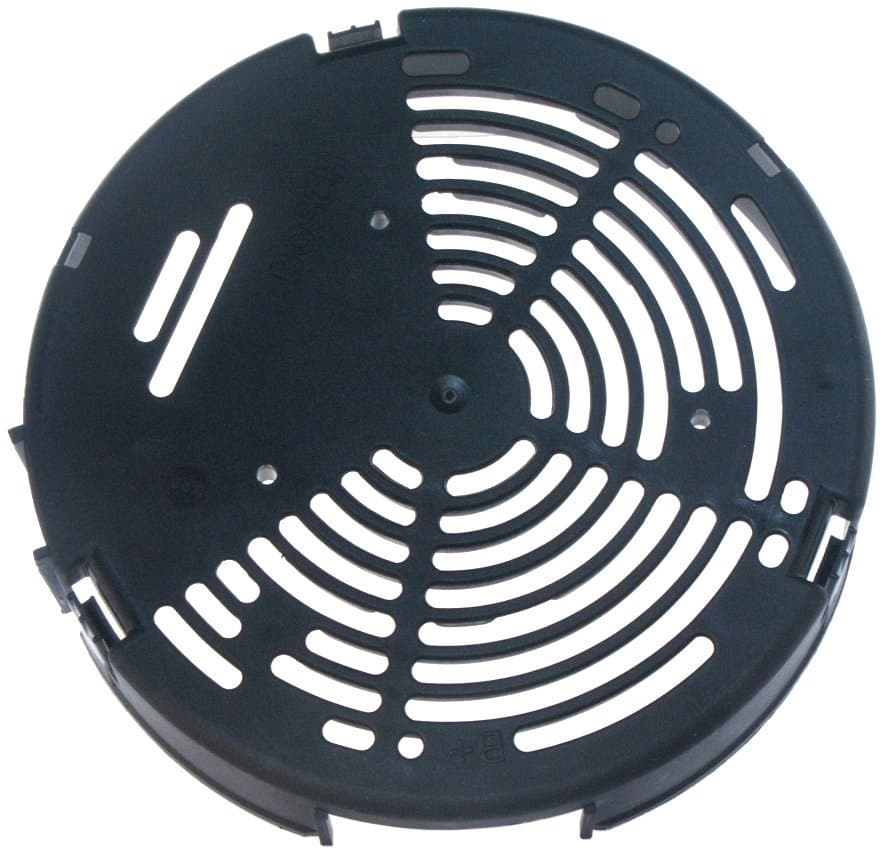

F032234527 - Protective CapTrade number 234527
Replacement for:
BOSCH 1125500641
Inner Diameter 132.60, Material Plastic, Outer Diameter 136.50, Height 38.60
F032330908 - ConnectorTrade number 330908
Replacement for:
BOSCH 330908
Inner Diameter 23.70, Height 17.50, Length 37.80
F032333112 - Ball BearingTrade number 333112
Replacement for:
BOSCH 1120905050BOSCH 1120905525
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 40.00, Remarks 6203-2RS/C3., Height 12.00
F032335806 - SpacerTrade number 335806
Replacement for:
BOSCH 1120202505
Inner Diameter 17.00, Collar Height 1.75, Collar Outer Diameter 1 30.00, Outer Diameter 44.00, Thickness 5.00
F032902683 - Carbon-Brush SetTrade number BX2132
Replacement for:
BOSCH 1127014028
Voltage 14, Conductor w/, Spring w/o, Lead Length 118.00, Solder hole w/o, Cable lugs w/o, No./brushes 2, Length 16.50, Thickness 6.00, Height 4.00

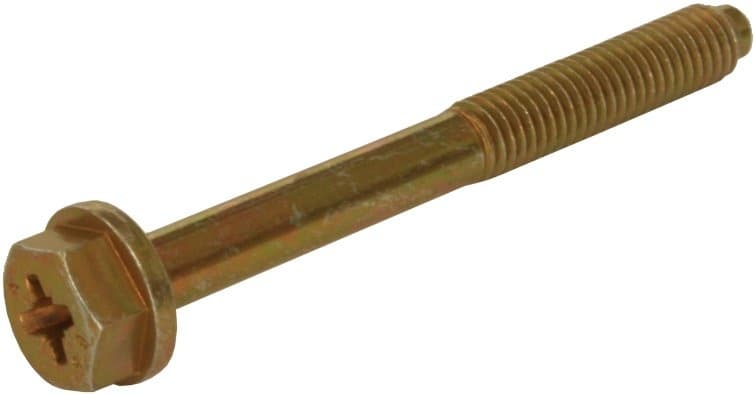

F032B30706 - ScrewTrade number B230706
Replacement for:
BOSCH 1123429007
Thread Length 22.00, Collar Length Rear 47.00, Thread size M5, Total Length 52.00
F032B41232 - Ball BearingTrade number B141232
Replacement for:
BOSCH 1120905510
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
