Showing results for: BOSCH 0123525503
F03200B213 - Carbon BrushTrade number B213
Replacement for:
BOSCH F00M145810
Voltage 14, Conductor w/, Spring w/o, Lead Length 118.00, Cable lugs w/o, No./brushes 1, Length 16.50, Thickness 6.00, Height 4.00
F032135172 - Parts SetTrade number 135172
Replacement for:
BOSCH 135172
Ring Height 1 7.20, Ring Height 2 7.20, Inner Diameter 7.00, Collar w/, Ring Distance 2.60, Material Copper, Outer Diameter 16.00, Total Length 52.10
F032135608 - ChassisTrade number 135608
Replacement for:
BOSCH 1121038501BOSCH F00M146809
No./mount. holes 4, Gasket w/o, Inner Diameter 28.00, Material Steel, Outer Diameter 58.50, Amount of Mounting Holes 4, Thickness 1.95
F032137216 - ScrewTrade number 137216
Replacement for:
BOSCH 1123433017BOSCH F00M990061
Thread Length 27.50, Thread/mm/" M5, Total Length 36.00, Length 32.50
F032139907 - SpacerTrade number 139907
Replacement for:
BOSCH 1120202505
Inner Diameter 17.00, Collar Height 1.75, Collar Outer Diameter 1 30.00, Material Steel, Outer Diameter 44.00, Thickness 5.00
F032140087 - Ball BearingTrade number 140087
Replacement for:
BOSCH 1120905525BOSCH 1900905271
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 40.00, Remarks 6203-2RS1., Height 12.00
F032140263 - Ball BearingTrade number 140263
Replacement for:
BOSCH F00M990417
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
F032191478 - ScrewTrade number 191478
Replacement for:
BOSCH 1123433032BOSCH F00M990062
Screw type Pozidriv, Head type Pan head, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Remarks w/ waved washer., Length 25.00
F032191513 - Self-locking nutTrade number 191513
Replacement for:
BOSCH F00M990127
Self-locking w/, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
F032191657 - ScrewTrade number 191657
Replacement for:
BOSCH 6033GC8223BOSCH F00M990191
DIN norm 439B, Iso norm 4035, Coating Electro Galvanized, Material Steel, Servicing 4G series, Thread/mm/" M16-1.5, Spanner Size 24

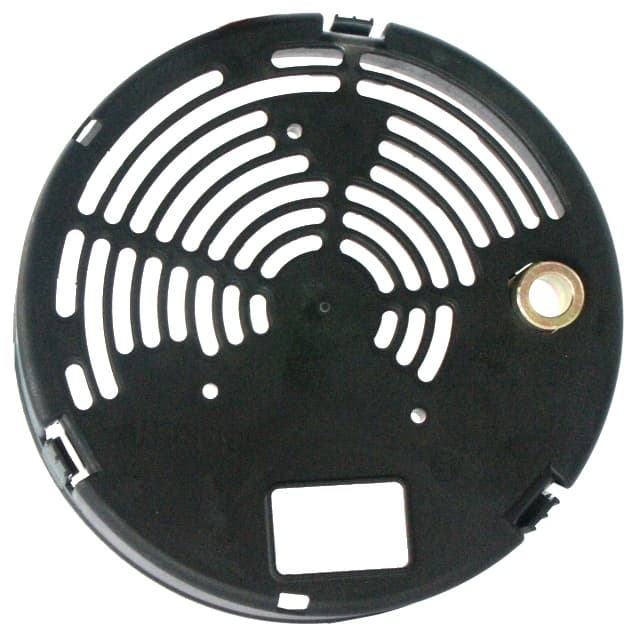

F032233972 - Protective CapTrade number 233972
Replacement for:
BOSCH 1125500621
Inner Diameter 133.80, Material Plastic, Outer Diameter 136.30, Height 38.30
F032333112 - Ball BearingTrade number 333112
Replacement for:
BOSCH 1120905525BOSCH 1900905271
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 40.00, Remarks 6203-2RS/C3., Height 12.00

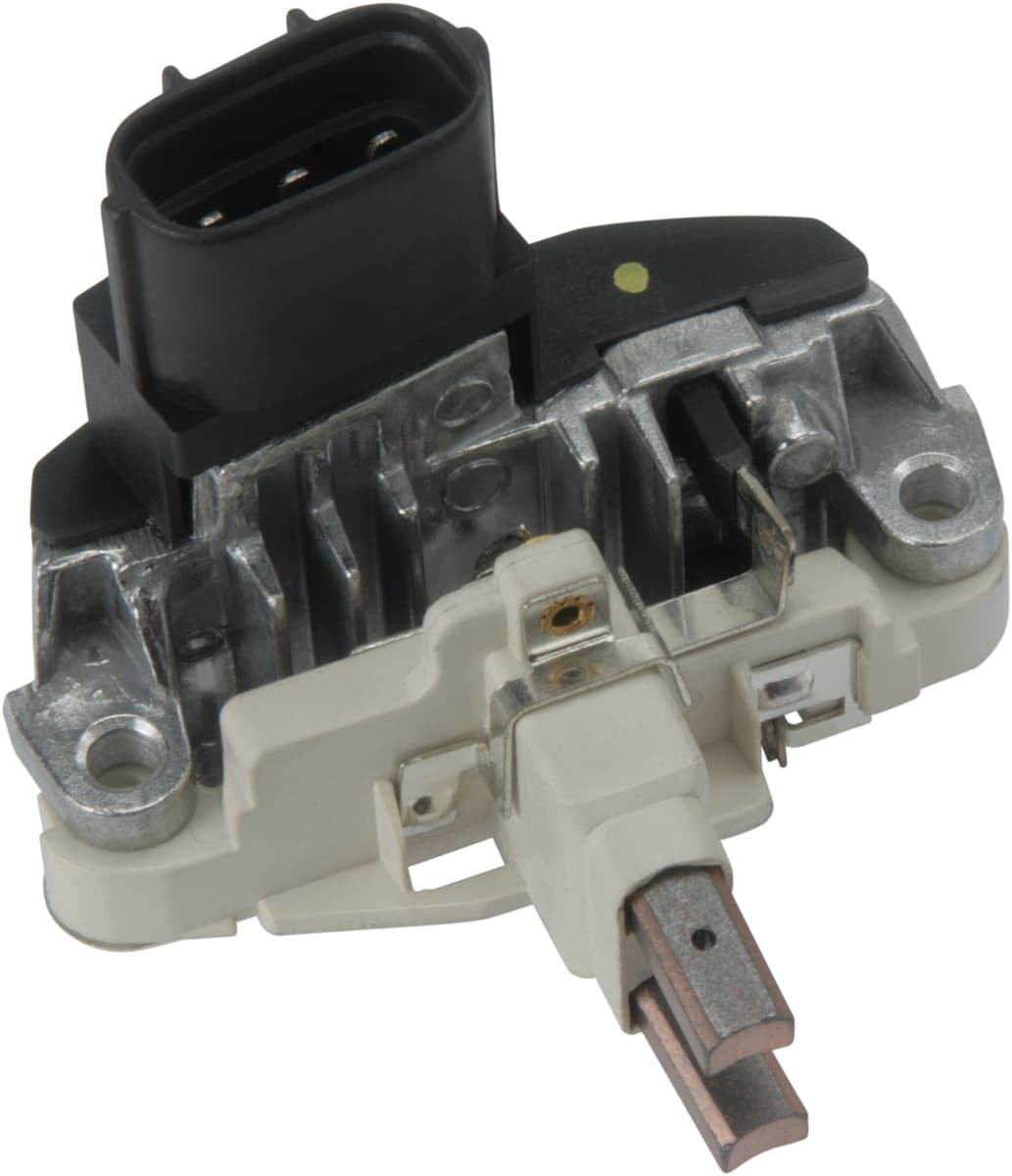

F032333761 - EL Field RegulatorTrade number 333761
Replacement for:
BOSCH 1197311543
Voltage setting 28.3, Voltage 28, Plug no. 1 PL42, Regulator type Electronic, Distance Between Mounting Holes 55.00
F032335806 - SpacerTrade number 335806
Replacement for:
BOSCH 1120202505
Inner Diameter 17.00, Collar Height 1.75, Collar Outer Diameter 1 30.00, Outer Diameter 44.00, Thickness 5.00

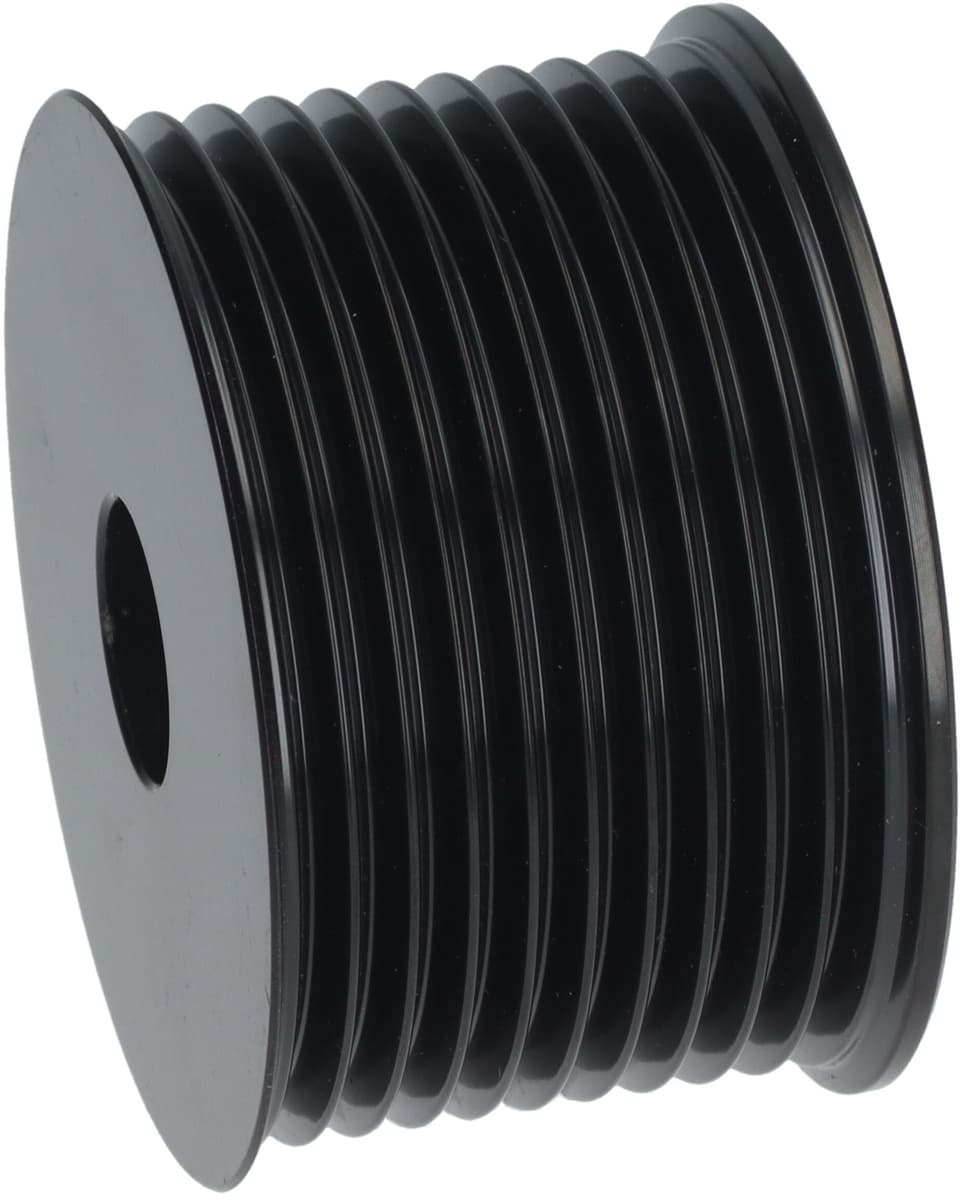

F032335868 - PulleyTrade number 335868
Replacement for:
BOSCH F00M061002
Groove Measurement 1 4.50, Free run w/o, Grooves 10, Width 1 41.80, Depth 34.60, Pulley type SP, Bore dia. 17.00, Belt type Multi Belt, Outer Diameter 62.00
F032B30706 - ScrewTrade number B230706
Replacement for:
BOSCH 1123429007
Thread Length 22.00, Collar Length Rear 47.00, Thread size M5, Total Length 52.00
F032B40263 - Ball BearingTrade number B140263
Replacement for:
BOSCH B140263
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
F032B91513 - Self-locking nutTrade number B191513
Replacement for:
BOSCH F00M990127
Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
