Showing results for: BOSCH 0124220012

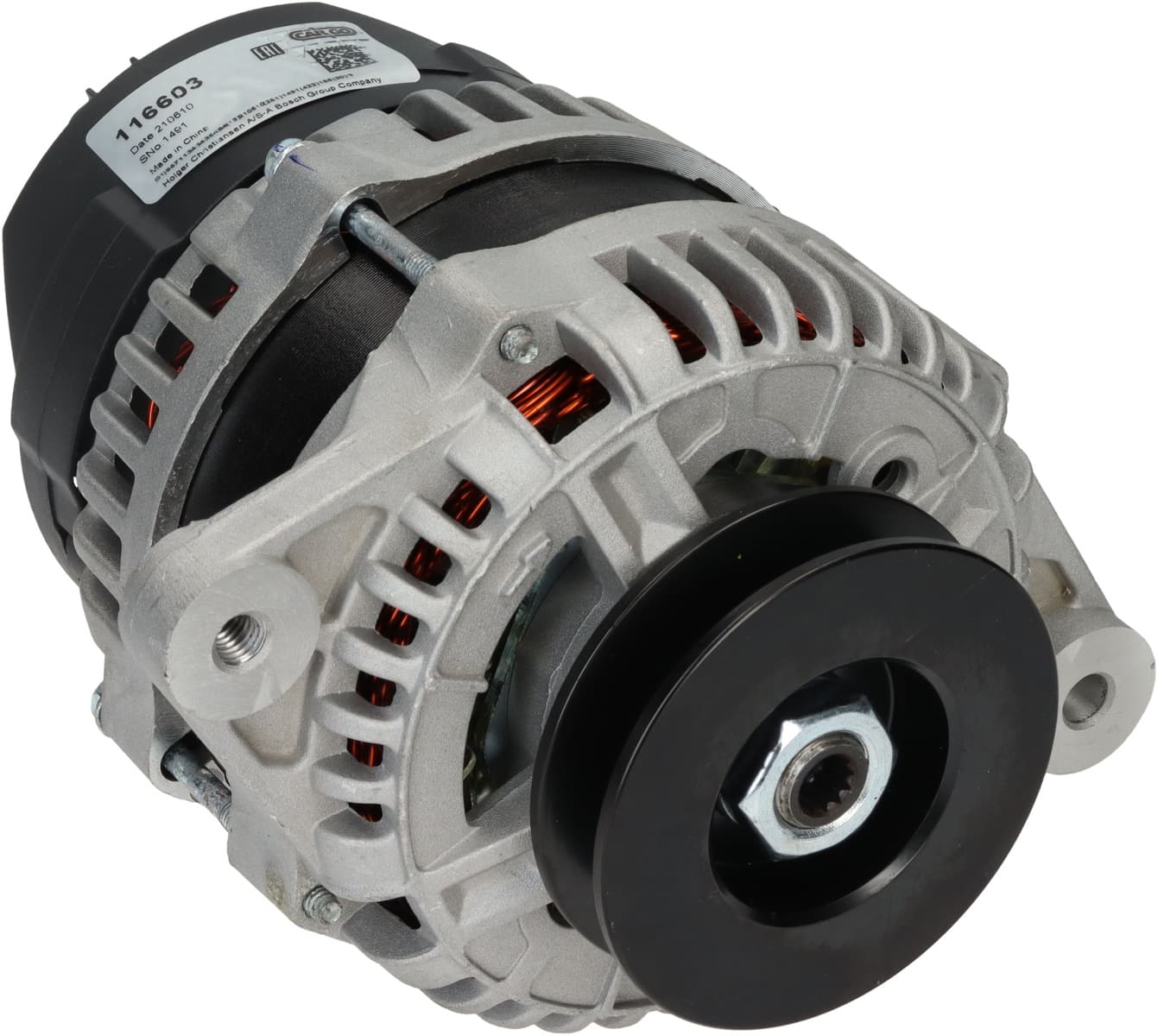

F032116603 - AlternatorTrade number 116603
Voltage 14, Amp 70, Plug no. 1 PL58, Radius 2 78.00, B+ M6, Rotation CW, Grooves/pulley 1, Belt Adjustment Bracket Hole 1 M8, Mounting Bracket Distance 66.00, Radius 78.00, Pulley Diameter 77.00, Bracket Hole Size Rear 8.30, Pulley P, Bracket Hole Size 1 8.30, Pulley Distance 41.00, Holder Arm Width 17.50, D+ Size Plug, D+ Position 53, Belt Adjustment Bracket Hole Position 60, Total Length 178.00, B+ Position 3
F032137409 - ChassisTrade number 137409
Replacement for:
BOSCH F00M146802
Source Bosch, Gasket w/o, Material Steel, Outer Diameter 50.40, Distance Mounting Holes 39.30, Mounting Hole Inner Diameter 3 M4, No./mount. holes 4, Hole Id M4, Inner Diameter 26.00, Outer Diameter 2 50.40, Thickness 2.60, Amount of Mounting Holes 4, Mounting Hole Inner Diameter 2 M4, Mounting Hole Inner Diameter M4
F032139931 - SpacerTrade number 139931
Replacement for:
BOSCH F002G91301BOSCH F00M990500
Bushing w/o, Total height/thickness 5.00, Collar Height 1.55/2.05, Inner Diameter 17.00, Material Steel, Outer Diameter 39.00, Collar Outer Diameter 1 22.40, OD/collar 2 30.00, Thickness 5.00
F032140093 - Ball BearingTrade number 140093
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 141233, Height 14.00
F032141233 - Ball BearingTrade number 141233
Replacement for:
BOSCH F00M990410
Source NSK, Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Height 14.00
F032142270 - Ball BearingTrade number 142270
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks Bearing plate: HC-CARGO 139124. 6303-2RS1/C3., Height 14.00
F032191657 - ScrewTrade number 191657
Replacement for:
BOSCH F00M990012
Iso norm 4035, DIN norm 439B, Material Steel, Servicing 4G series, Thread/mm/" M16-1.5, Coating Electro Galvanized, Spanner Size 24
F032192569 - ScrewTrade number 192569
Replacement for:
BOSCH F00M990175
Head type Flat head countersunk, Screw type Pozidriv, Iso norm 7046, DIN norm 965, Dri lock w/, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 18.00, Remarks w/ ESLOK thread fastener.
F032192586 - ScrewTrade number 192586
Replacement for:
BOSCH F002G91122
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 22.00
F032230777 - ScrewTrade number 230777
Replacement for:
BOSCH F00M990177
Thread/mm/" M4, Washer w/, Thread Length 10.00, Length 12.50, Total Length 16.50
F032333119 - Ball BearingTrade number 333119
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 6303-2RS1/C3., Height 14.00
F032B30731 - ScrewTrade number B230731
Thread size M5, Thread Length 22.00, Collar Length Rear 60.00, Total Length 65.00
