Showing results for: BOSCH 0124525021
F032138091 - Expansion BushingTrade number 138091
Replacement for:
BOSCH 1120322507
Pin w/, Manufacturer SEG, Inner Diameter 10.30, Type Mount., Collar Height 2.00, Lubricating groove w/o, Collar Outer Diameter 1 21.90, Material Steel, Milling w/o, Outer Diameter 18.00/21.90, Length 21.10
F032139931 - SpacerTrade number 139931
Replacement for:
BOSCH F00M990500
Total height/thickness 5.00, Bushing w/o, OD/collar 2 30.00, Inner Diameter 17.00, Collar Height 1.55/2.05, Collar Outer Diameter 1 22.40, Material Steel, Outer Diameter 39.00, Thickness 5.00
F032142268 - Ball BearingTrade number 142268
Replacement for:
BOSCH F00M990405
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 35.00, Remarks 6003-2RS1/C3., Height 10.00
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH F00M990104
DIN norm 439B, Iso norm 4035, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
F032191318 - ScrewTrade number 191318
Replacement for:
BOSCH F00M990164
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 18.00
F032191513 - Self-locking nutTrade number 191513
Replacement for:
BOSCH F00M990127
Self-locking w/, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
F032191643 - ScrewTrade number 191643
Replacement for:
BOSCH 1123421002
Screw type Pozidriv, Head type Flat head, DIN norm 965, Iso norm 7046, Material Steel, Thread/mm/" M4, Length 18.00
F032230315 - PulleyTrade number 230315
Replacement for:
BOSCH F00M147735
Groove Measurement 1 4.10, Rear Distance 0.00, Free run w/, Width 1 33.50, Pulley type SP/FW, Bore dia. 17.00, Grooves 6, Depth 11.10, Rotation CW, Belt type Multi Belt, Thread size M16-1.50, Outer Diameter 52.60, Remarks Pulley tool: HC-CARGO 210843.
F032230732 - ScrewTrade number 230732
Replacement for:
BOSCH F00M990163
Slot type Phillips, Pozidriv, Thread Length 17.50, Washer w/, Thread/mm/" M5, Length 21.50, Total Length 25.50
F032230777 - ScrewTrade number 230777
Replacement for:
BOSCH F00M990169
Washer w/, Thread Length 10.00, Thread/mm/" M4, Total Length 16.50, Length 12.50
F032230975 - ChassisTrade number 230975
Replacement for:
BOSCH F00M146800
No./mount. holes 4, Inner Diameter 41.70, Hole Id M4, Outer Diameter 64.20, Amount of Mounting Holes 4, Thickness 3.60

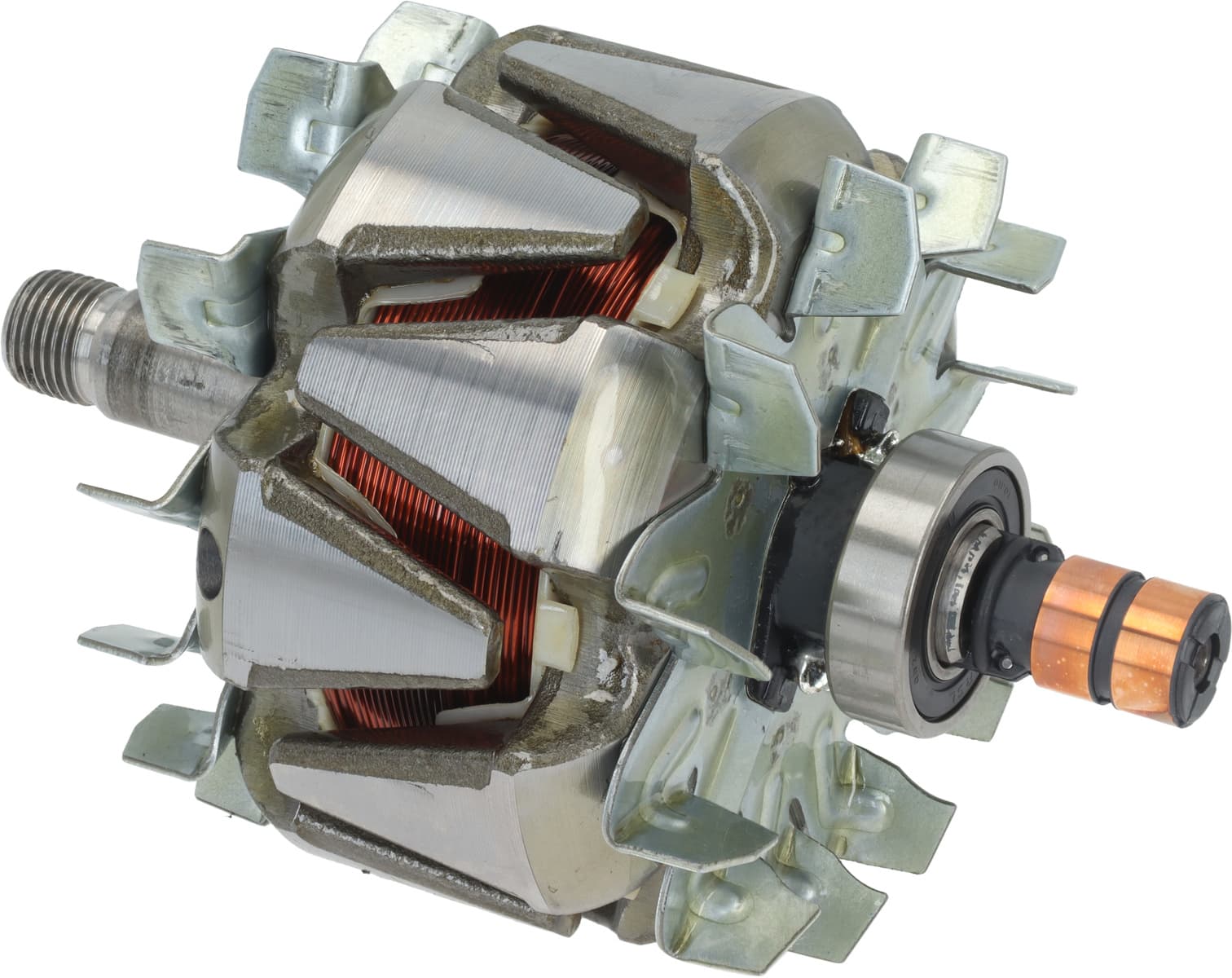

F032232198 - RotorTrade number 232198
Replacement for:
BOSCH F00M131608
Voltage 14, Amp 120, Ring Height 1 7.60, Thread Length 11.00, Slip Ring Rear 117.00, Slip Ring Outer Diameter 15.50, Ring Height 2 7.60, Slip Ring End Length 50.00, Ring Distance 2.10, Drive End Length 51.00, Bearing Diameter 17.00, Slip Ring Front 107.00, Wing height 85.50, Cooling fan w/, Rotation CW, Thread size M16-1.50, Outer Diameter 103.30, Height 56.80, Shaft Diameter 17.00, Total Length 52.10;157.50
F032233508 - EL Field RegulatorTrade number 233508
Replacement for:
BOSCH F00M145255BOSCH F00M145361
Voltage setting 14.5, Voltage 14, Plug no. 1 PL81, Terminal type L-DFM-S, Regulator type Electronic, Remarks Slip ring O.D. 14.00 mm., Distance Between Mounting Holes 79.00
F032235475 - CoverTrade number 235475
Replacement for:
BOSCH F00M148611
Outer Diameter 55.40, Height 4.70, Remarks Ina.
F032333103 - Ball BearingTrade number 333103
Replacement for:
BOSCH F00M990405
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 35.00, Remarks 6003-2RS1/C3., Height 10.00
F032335026 - RectifierTrade number 335026
Replacement for:
BOSCH F00M133215BOSCH F00M133259
Diode type Avalanche, Diode - 3, B+ type Bolt, Diode + 3, Inner Diameter 35.00, B+ size M8, Diode socket Aluminium, B+ Length 20.00, Outer Diameter 130.00

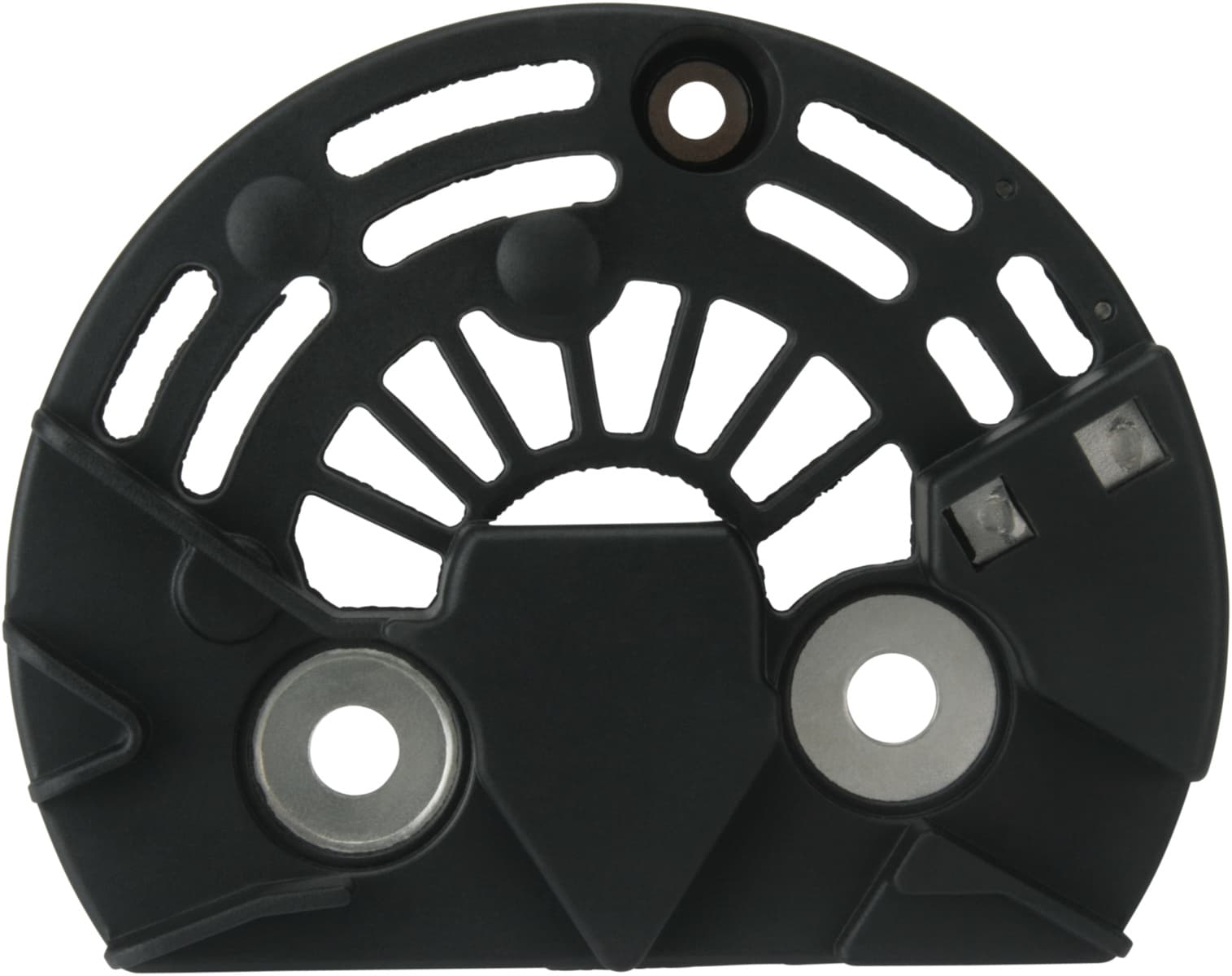

F032335178 - Protective CapTrade number 335178
Replacement for:
BOSCH F00M146029
B+ plug w/o, B+ Hole Inner Diameter 8.70, W plug w/o, D+ plug No, Inner Diameter 119.00, Outer Diameter 121.00, Height 13.55
F032338080 - CoverTrade number 338080
Replacement for:
BOSCH F00M148611
Outer Diameter 55.40, Height 4.70, Remarks Ina.
F032B30731 - ScrewTrade number B230731
Replacement for:
BOSCH F00M990102
Thread Length 22.00, Collar Length Rear 60.00, Thread size M5, Total Length 65.00
F032B30732 - ScrewTrade number B230732
Replacement for:
BOSCH F00M990163
Slot type Phillips, Pozidriv, Thread Length 17.50, Washer w/, Thread/mm/" M5, Length 21.50, Total Length 25.50
F032B91513 - Self-locking nutTrade number B191513
Replacement for:
BOSCH F00M990127
Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
