Showing results for: BOSCH 0124615007
F03200B213 - Carbon BrushTrade number B213
Replacement for:
BOSCH F00M145809
Voltage 14, Conductor w/, Spring w/o, Lead Length 118.00, Cable lugs w/o, No./brushes 1, Length 16.50, Thickness 6.00, Height 4.00

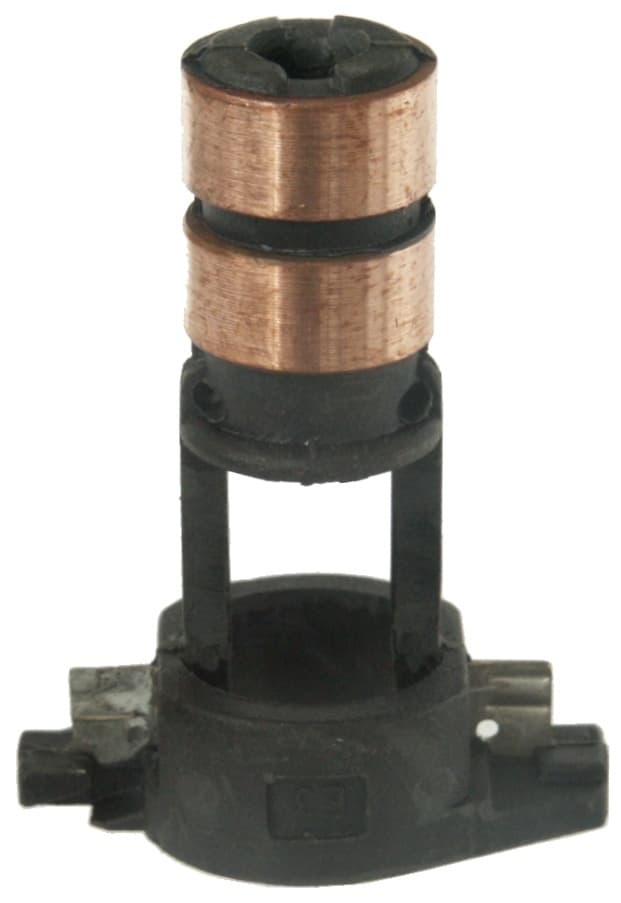

F032135172 - Parts SetTrade number 135172
Replacement for:
BOSCH 1124303007
Ring Height 1 7.20, Ring Height 2 7.20, Inner Diameter 7.00, Collar w/, Ring Distance 2.60, Material Copper, Outer Diameter 16.00, Total Length 52.10

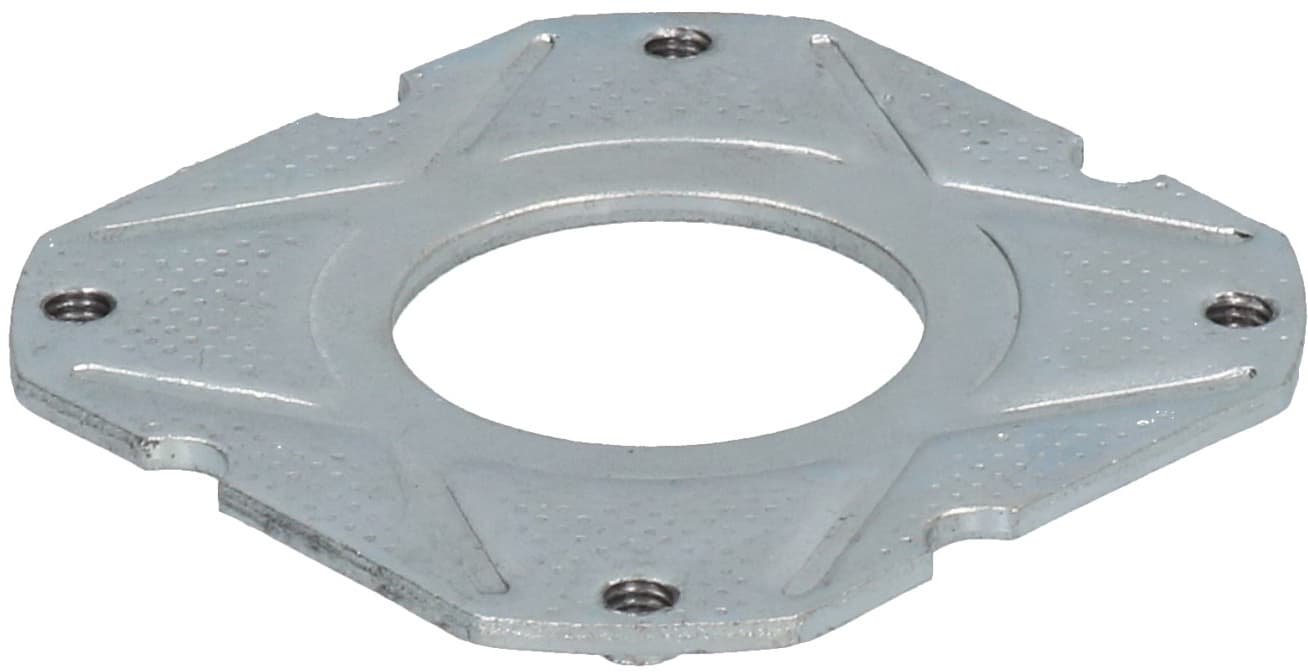

F032135608 - ChassisTrade number 135608
Replacement for:
BOSCH 1121038501BOSCH F00M146803
No./mount. holes 4, Gasket w/o, Inner Diameter 28.00, Material Steel, Outer Diameter 58.50, Amount of Mounting Holes 4, Thickness 1.95
F032139656 - Protective CapTrade number 139656
Replacement for:
BOSCH F00M146793BOSCH F00M196012
B+ Inner Diameter 8.50, Inner Diameter 119.00, Material Plastic, Outer Diameter 123.50, Height 12.50
F032139907 - SpacerTrade number 139907
Replacement for:
BOSCH 1120202505
Inner Diameter 17.00, Collar Height 1.75, Collar Outer Diameter 1 30.00, Material Steel, Outer Diameter 44.00, Thickness 5.00
F032139929 - Fitting RingTrade number 139929
Replacement for:
BOSCH F00M146901
Inner Diameter 35.00, Outer Diameter 37.75, Height 50.00, Remarks For 6003: HC-CARGO 140273.
F032140263 - Ball BearingTrade number 140263
Replacement for:
BOSCH 1120905012BOSCH F00M990426BOSCH F00M990434
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
F032142268 - Ball BearingTrade number 142268
Replacement for:
BOSCH F00M990405
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 35.00, Remarks 6003-2RS1/C3., Height 10.00
F032190582 - Spring Lock WasherTrade number 190582
Replacement for:
BOSCH 2916693007
DIN norm 128A, Inner Diameter 8.10, Material Steel spring, Outer Diameter 14.80, Thickness 1.60
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH F00M990178
DIN norm 439B, Iso norm 4035, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
F032191318 - ScrewTrade number 191318
Replacement for:
BOSCH F00M990180
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 18.00
F032191513 - Self-locking nutTrade number 191513
Replacement for:
BOSCH F00M990127BOSCH F00M990181
Self-locking w/, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
F032191657 - ScrewTrade number 191657
Replacement for:
BOSCH 2915039028BOSCH F00M990191
DIN norm 439B, Iso norm 4035, Coating Electro Galvanized, Material Steel, Servicing 4G series, Thread/mm/" M16-1.5, Spanner Size 24
F032230732 - ScrewTrade number 230732
Replacement for:
BOSCH F00M990163BOSCH F00M990176
Slot type Phillips, Pozidriv, Thread Length 17.50, Washer w/, Thread/mm/" M5, Length 21.50, Total Length 25.50
F032230777 - ScrewTrade number 230777
Replacement for:
BOSCH F00M990177
Washer w/, Thread Length 10.00, Thread/mm/" M4, Total Length 16.50, Length 12.50

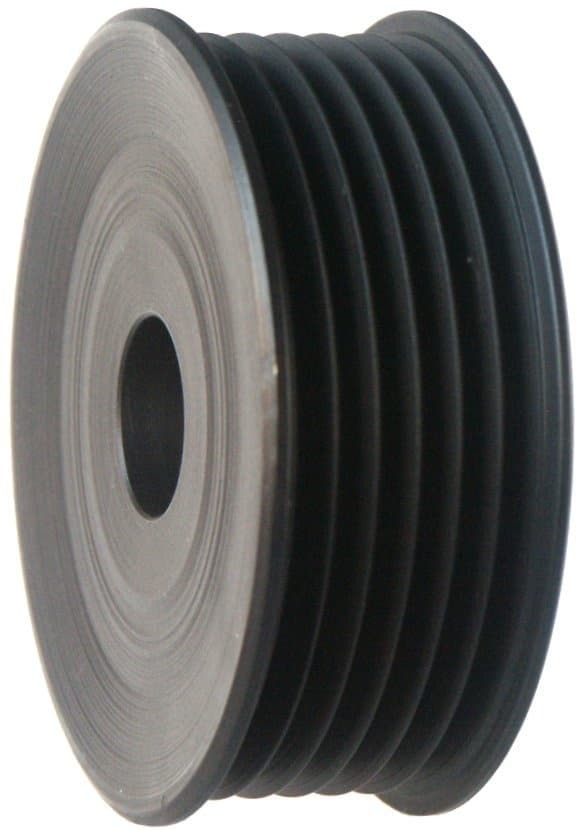

F032234602 - PulleyTrade number 234602
Replacement for:
BOSCH F00M991041
Groove Measurement 1 3.30, Rear Distance 1.00, Free run w/o, Grooves 6, Width 1 26.50, Depth 20.00, Pulley type SP, Bore dia. 17.00, Outer Diameter 64.70
F032235835 - EL Field RegulatorTrade number 235835
Replacement for:
BOSCH F00M145261BOSCH F00M145876BOSCH F00MA45303
Voltage setting 14.6, Voltage 14, Plug no. 1 PL61, Terminal type L-DFM, Regulator type Electronic, Remarks Soft start., Distance Between Mounting Holes 79.00
F032333103 - Ball BearingTrade number 333103
Replacement for:
BOSCH F00M990405BOSCH F00M990418
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 35.00, Remarks 6003-2RS1/C3., Height 10.00

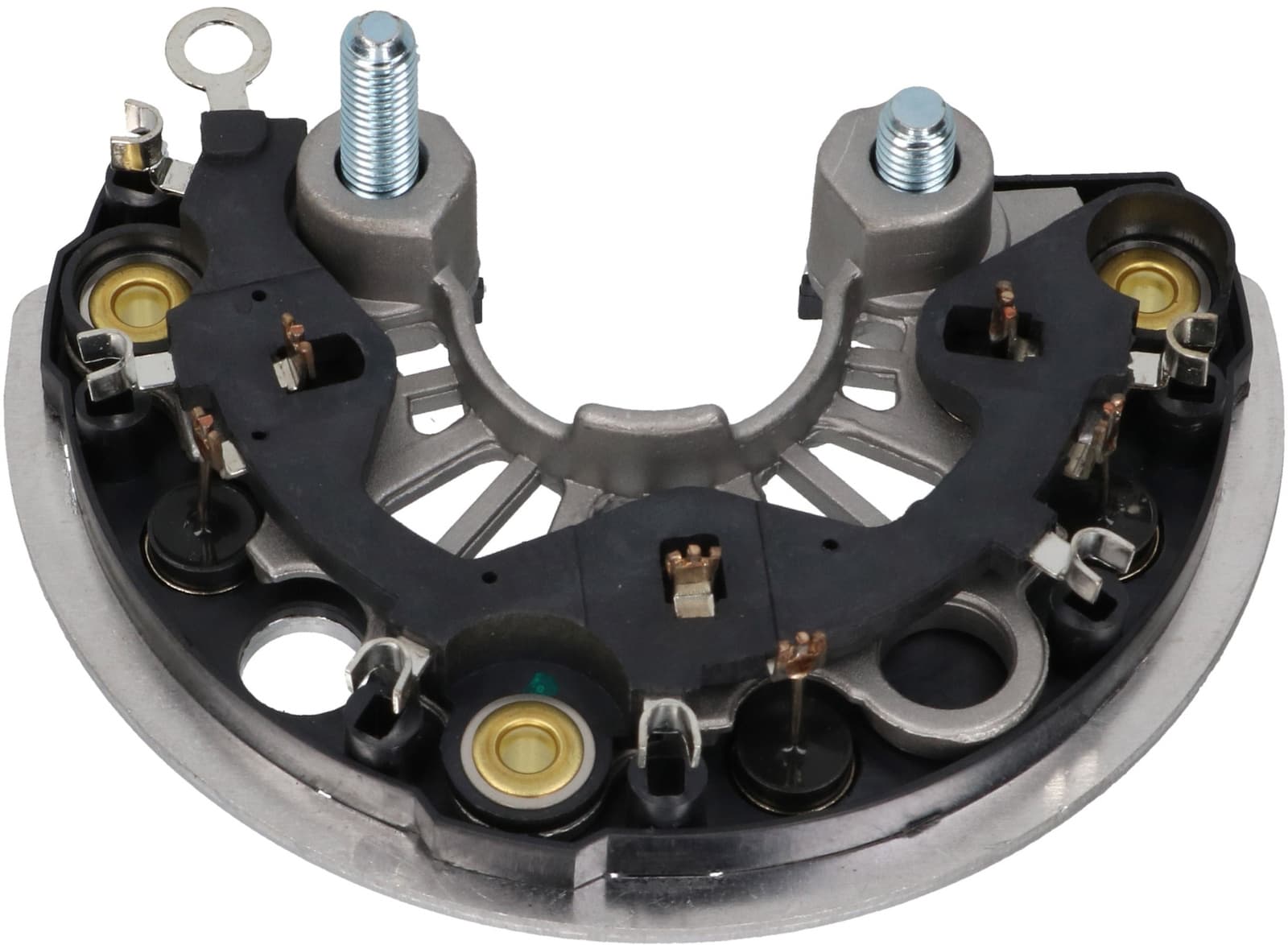

F032335026 - RectifierTrade number 335026
Replacement for:
BOSCH F00M133215BOSCH F00M133218BOSCH F00M133247BOSCH F00M133259
Diode type Avalanche, Diode - 3, B+ type Bolt, Diode + 3, Inner Diameter 35.00, B+ size M8, Diode socket Aluminium, B+ Length 20.00, Outer Diameter 130.00

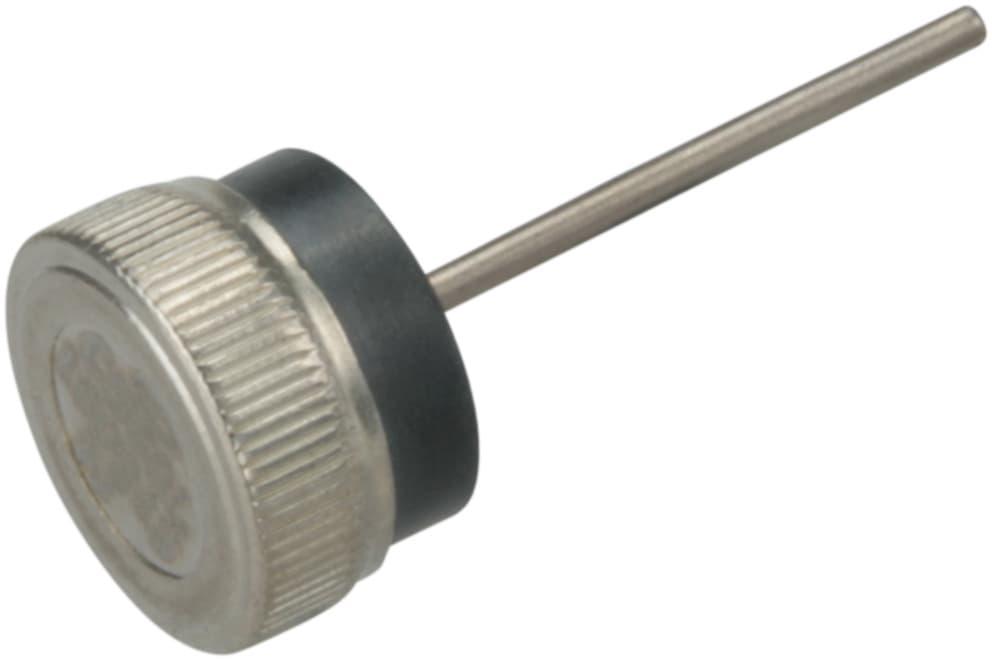

F032335067 - Zener DiodeTrade number 335067
Replacement for:
BOSCH 0270300114
Voltage 19/24, Amp 50, Polarity Negative, Mount. type Press fit, Diode type Press-fit, Lead Length 24.30, Type Avalanche, Collar Outer Diameter 1 12.80, Outer Diameter 10.80, Length 8.20

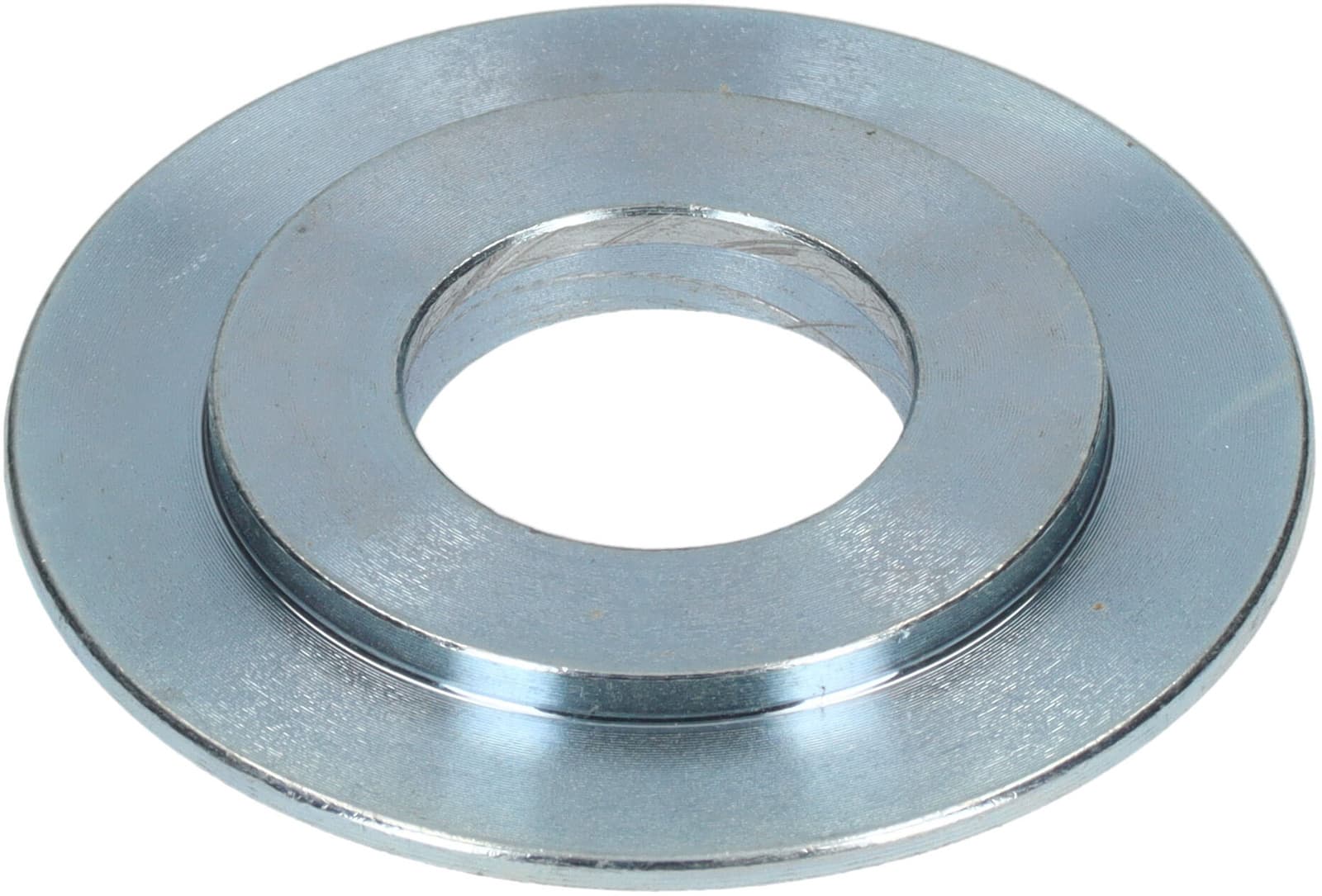

F032335806 - SpacerTrade number 335806
Replacement for:
BOSCH 1120202505
Inner Diameter 17.00, Collar Height 1.75, Collar Outer Diameter 1 30.00, Outer Diameter 44.00, Thickness 5.00

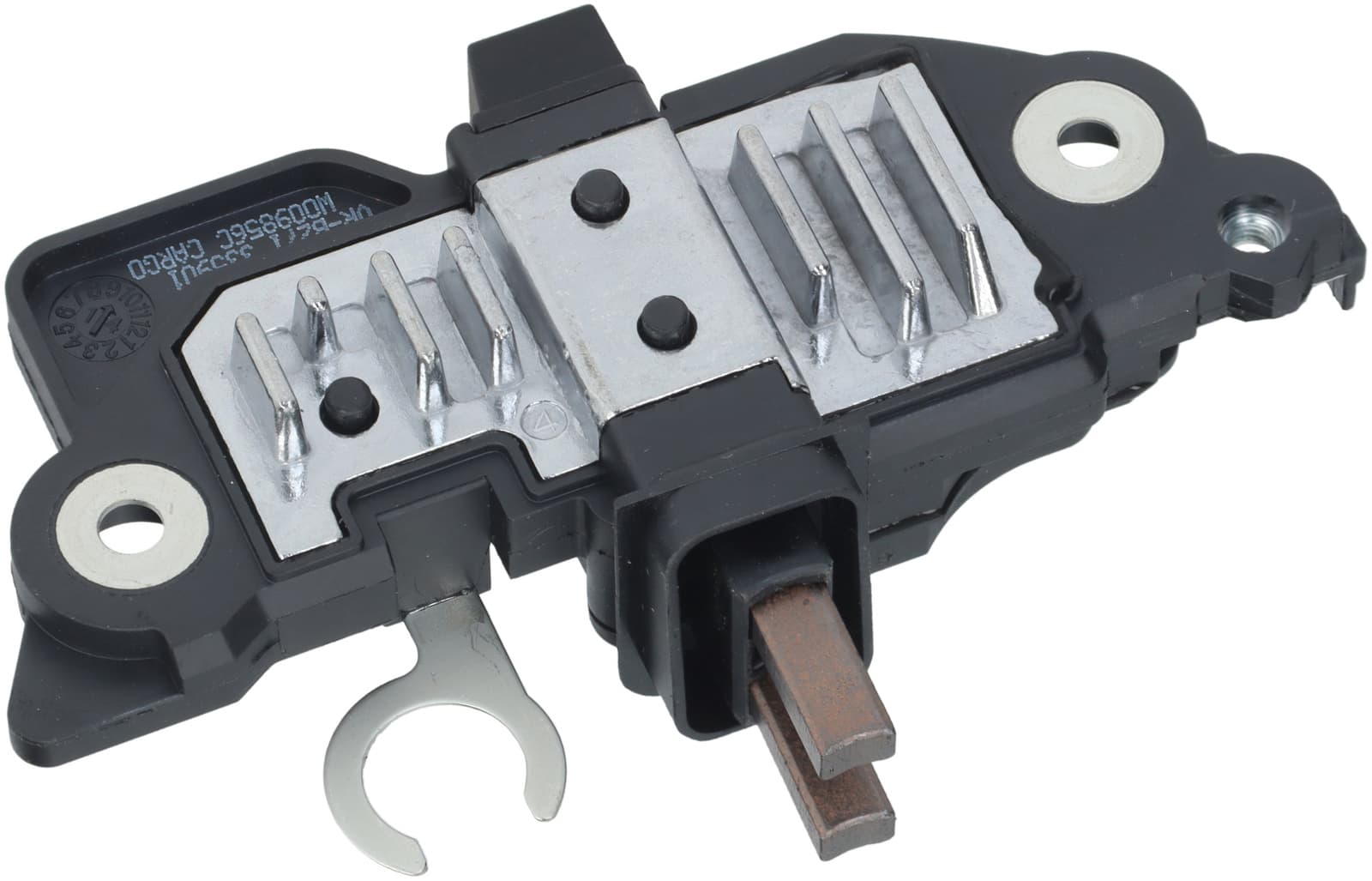

F032335901 - EL Field RegulatorTrade number 335901
Replacement for:
BOSCH F00M144128
Voltage 14, Plug no. 1 PL61, Terminal type L-DFM, Brush Width 6.00, Brush Height 4.00, Distance Between Mounting Holes 79.00
F032902683 - Carbon-Brush SetTrade number BX2132
Replacement for:
BOSCH 1127014028
Voltage 14, Conductor w/, Spring w/o, Lead Length 118.00, Solder hole w/o, Cable lugs w/o, No./brushes 2, Length 16.50, Thickness 6.00, Height 4.00
F032B30731 - ScrewTrade number B230731
Replacement for:
BOSCH F00M990102
Thread Length 22.00, Collar Length Rear 60.00, Thread size M5, Total Length 65.00
F032B30732 - ScrewTrade number B230732
Replacement for:
BOSCH F00M990163
Slot type Phillips, Pozidriv, Thread Length 17.50, Washer w/, Thread/mm/" M5, Length 21.50, Total Length 25.50
F032B91513 - Self-locking nutTrade number B191513
Replacement for:
BOSCH F00M990127BOSCH F00M990181
Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
