Showing results for: BOSCH 0124625002
F03200B213 - Carbon BrushTrade number B213
Replacement for:
BOSCH F00M145809
Voltage 14, Conductor w/, Spring w/o, Lead Length 118.00, Cable lugs w/o, No./brushes 1, Length 16.50, Thickness 6.00, Height 4.00
F032135172 - Parts SetTrade number 135172
Replacement for:
BOSCH 1124303007
Ring Height 1 7.20, Ring Height 2 7.20, Inner Diameter 7.00, Collar w/, Ring Distance 2.60, Material Copper, Outer Diameter 16.00, Total Length 52.10
F032135608 - ChassisTrade number 135608
Replacement for:
BOSCH 1121038501BOSCH F00M146803
No./mount. holes 4, Gasket w/o, Inner Diameter 28.00, Material Steel, Outer Diameter 58.50, Amount of Mounting Holes 4, Thickness 1.95
F032138775 - NutTrade number 138775
Replacement for:
BOSCH 1123314003BOSCH F00M990059
Lock nut w/o, Washer w/o, Material Steel, Outer Diameter 32.30, Thread/mm/" M16-1.50, Height 15.20
F032139907 - SpacerTrade number 139907
Replacement for:
BOSCH 1120202505
Inner Diameter 17.00, Collar Height 1.75, Collar Outer Diameter 1 30.00, Material Steel, Outer Diameter 44.00, Thickness 5.00
F032139929 - Fitting RingTrade number 139929
Replacement for:
BOSCH F00M146900
Inner Diameter 35.00, Outer Diameter 37.75, Height 50.00, Remarks For 6003: HC-CARGO 140273.
F032140263 - Ball BearingTrade number 140263
Replacement for:
BOSCH F00M990417BOSCH F00M990434
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
F032142268 - Ball BearingTrade number 142268
Replacement for:
BOSCH F00M990405
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 35.00, Remarks 6003-2RS1/C3., Height 10.00
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH F00M990104
DIN norm 439B, Iso norm 4035, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
F032191318 - ScrewTrade number 191318
Replacement for:
BOSCH F00M990164
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 18.00
F032191513 - Self-locking nutTrade number 191513
Replacement for:
BOSCH F00M990127
Self-locking w/, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13

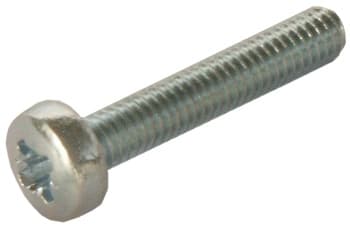

F032192586 - ScrewTrade number 192586
Replacement for:
BOSCH F00M990195
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 22.00
F032230732 - ScrewTrade number 230732
Replacement for:
BOSCH F00M990163
Slot type Phillips, Pozidriv, Thread Length 17.50, Washer w/, Thread/mm/" M5, Length 21.50, Total Length 25.50
F032230777 - ScrewTrade number 230777
Replacement for:
BOSCH F00M990169
Washer w/, Thread Length 10.00, Thread/mm/" M4, Total Length 16.50, Length 12.50

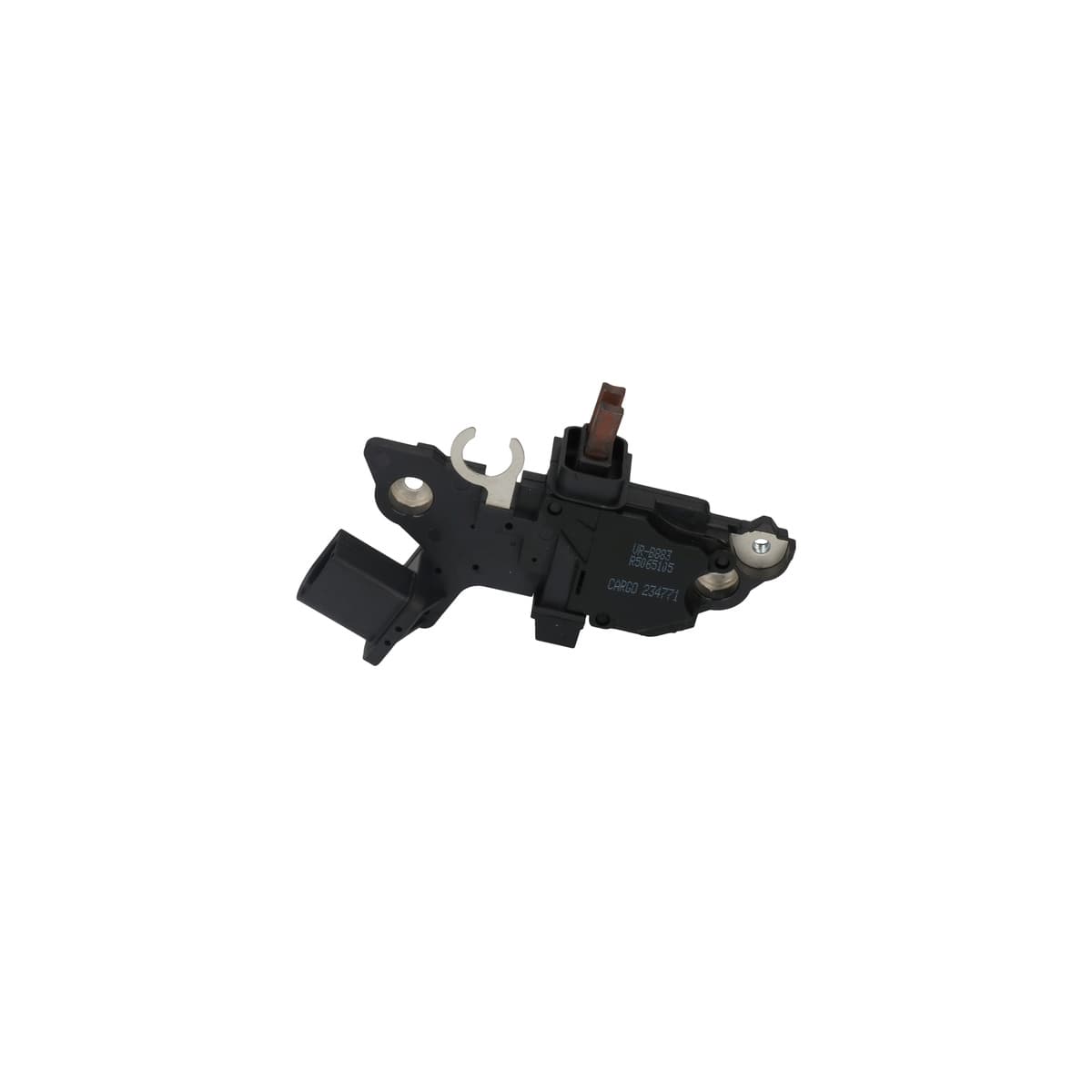

F032234771 - EL Field RegulatorTrade number 234771
Replacement for:
BOSCH F00M144155BOSCH F00M145266BOSCH F00M145365BOSCH F00M145883
Voltage setting 14.3, Voltage 14, Plug no. 1 PL103, Terminal type L-DFM, Regulator type Electronic, Remarks Slip ring O.D. 14.00 mm., Distance Between Mounting Holes 79.00

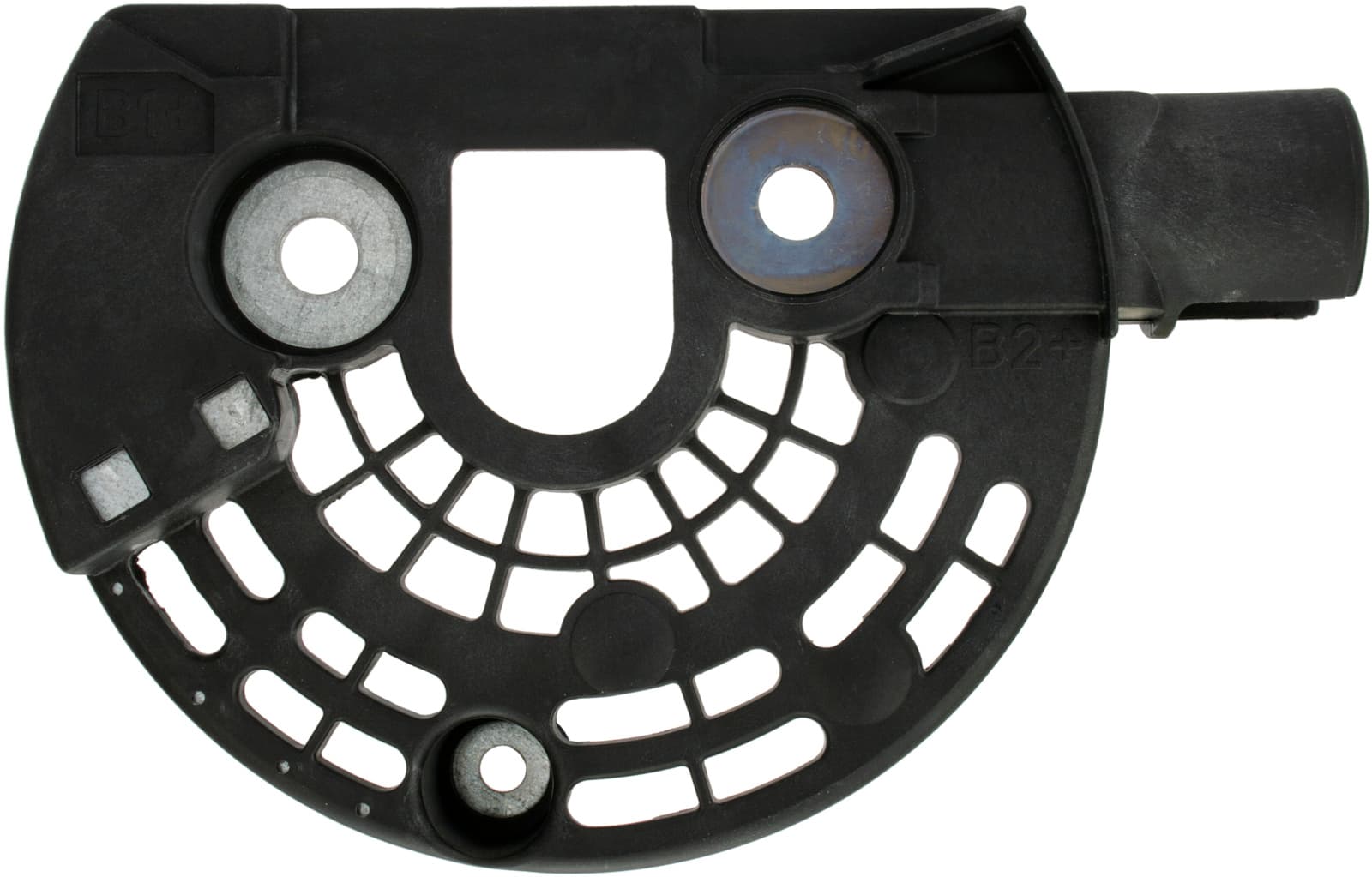

F032235254 - Protective CapTrade number 235254
Replacement for:
BOSCH F00M146071BOSCH F00M146712BOSCH F00M196004
B+ plug w/, B+ Inner Diameter 8.70, No./mount. holes 1, Outer Diameter 121.50, Amount of Mounting Holes 1, Remarks B+: M8.

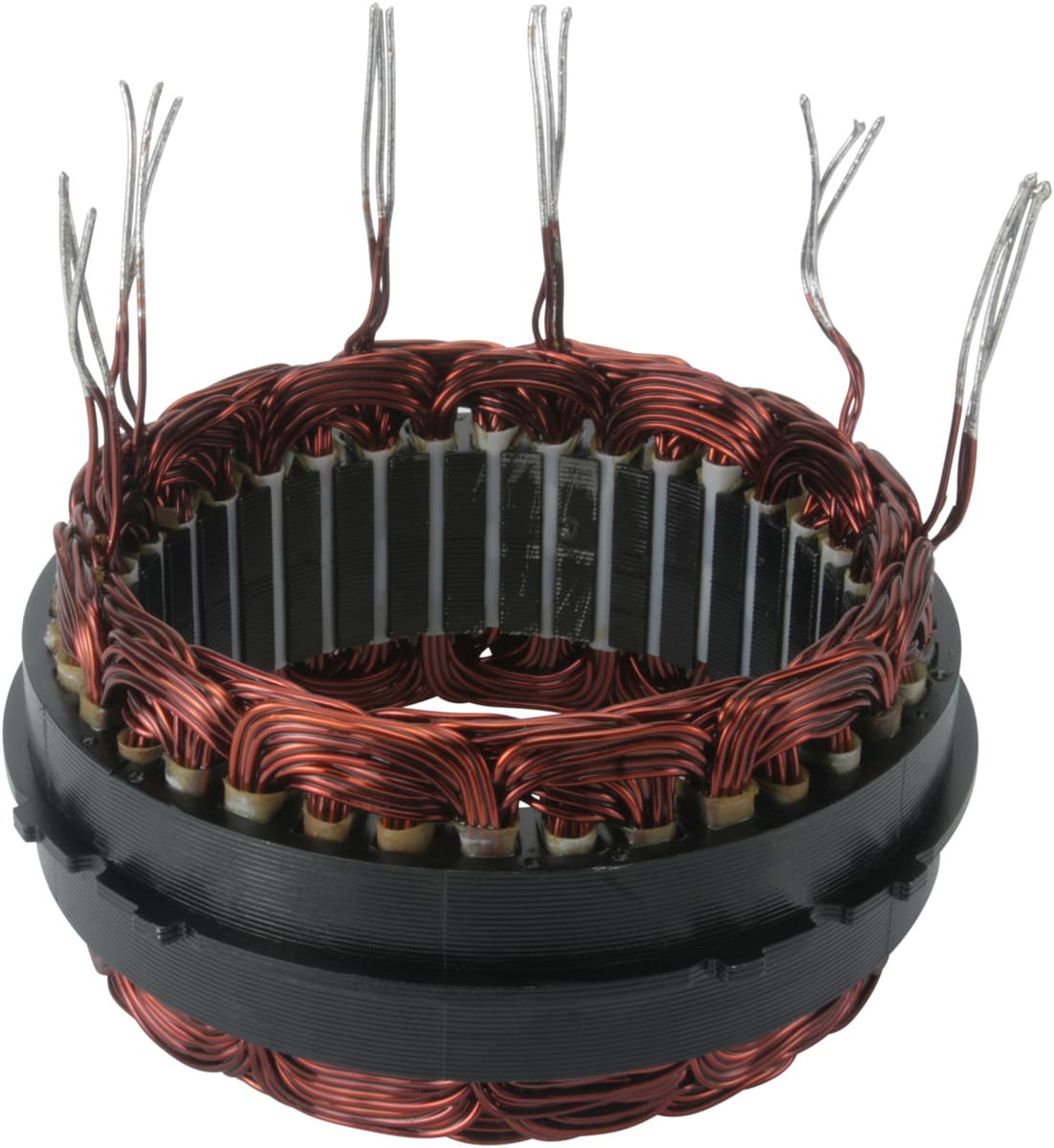

F032235552 - StatorTrade number 235552
Replacement for:
BOSCH F00M130126
Voltage 14, Amp 200, Lead 3 3, Wire thickness 1.50, Inner Diameter 112.00, Outer Diameter 2 153.00, Number of leads 6, Winding Height 75.00, Lead 1 3, Lead 6 3, Lead 2 3, Lead 4 3, Lead 5 3, Outer Diameter 145.00, Height 35.00
F032333103 - Ball BearingTrade number 333103
Replacement for:
BOSCH F00M990405BOSCH F00M990418
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 35.00, Remarks 6003-2RS1/C3., Height 10.00
F032335067 - Zener DiodeTrade number 335067
Replacement for:
BOSCH 0270300114
Polarity Negative, Voltage 19/24, Amp 50, Mount. type Press fit, Diode type Press-fit, Lead Length 24.30, Type Avalanche, Collar Outer Diameter 1 12.80, Outer Diameter 10.80, Length 8.20
F032335806 - SpacerTrade number 335806
Replacement for:
BOSCH 1120202505
Inner Diameter 17.00, Collar Height 1.75, Collar Outer Diameter 1 30.00, Outer Diameter 44.00, Thickness 5.00
F032902683 - Carbon-Brush SetTrade number BX2132
Replacement for:
BOSCH 1127014028
Voltage 14, Conductor w/, Spring w/o, Lead Length 118.00, Solder hole w/o, Cable lugs w/o, No./brushes 2, Length 16.50, Thickness 6.00, Height 4.00
F032B30731 - ScrewTrade number B230731
Replacement for:
BOSCH F00M990102
Thread Length 22.00, Collar Length Rear 60.00, Thread size M5, Total Length 65.00
F032B30732 - ScrewTrade number B230732
Replacement for:
BOSCH F00M990163
Slot type Phillips, Pozidriv, Thread Length 17.50, Washer w/, Thread/mm/" M5, Length 21.50, Total Length 25.50
F032B91513 - Self-locking nutTrade number B191513
Replacement for:
BOSCH F00M990127
Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
