Showing results for: BOSCH 0124625045
F03200B213 - Carbon BrushTrade number B213
Replacement for:
BOSCH F00M145809
Voltage 14, Conductor w/, Spring w/o, Lead Length 118.00, Cable lugs w/o, No./brushes 1, Length 16.50, Thickness 6.00, Height 4.00
F032135172 - Parts SetTrade number 135172
Replacement for:
BOSCH 1124303007
Ring Height 1 7.20, Ring Height 2 7.20, Inner Diameter 7.00, Collar w/, Ring Distance 2.60, Material Copper, Outer Diameter 16.00, Total Length 52.10
F032135608 - ChassisTrade number 135608
Replacement for:
BOSCH F00M146803
No./mount. holes 4, Gasket w/o, Inner Diameter 28.00, Material Steel, Outer Diameter 58.50, Amount of Mounting Holes 4, Thickness 1.95
F032138236 - CoverTrade number 138236
Replacement for:
BOSCH 1120591506
Outer Diameter 55.50, Height 4.70
F032139907 - SpacerTrade number 139907
Replacement for:
BOSCH 1120202505
Inner Diameter 17.00, Collar Height 1.75, Collar Outer Diameter 1 30.00, Material Steel, Outer Diameter 44.00, Thickness 5.00
F032139929 - Fitting RingTrade number 139929
Replacement for:
BOSCH F00M146900
Inner Diameter 35.00, Outer Diameter 37.75, Height 50.00, Remarks For 6003: HC-CARGO 140273.
F032140263 - Ball BearingTrade number 140263
Replacement for:
BOSCH F00M990417
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
F032141232 - Ball BearingTrade number 141232
Replacement for:
BOSCH 1120905070BOSCH 1120905509
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
F032142268 - Ball BearingTrade number 142268
Replacement for:
BOSCH F00M990405
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 35.00, Remarks 6003-2RS1/C3., Height 10.00
F032142318 - Ball BearingTrade number 142318
Replacement for:
BOSCH 1120905070BOSCH 1120905509
Bearing type Ball bearing, Source NTN, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH 2915059180BOSCH F00M990178
DIN norm 439B, Iso norm 4035, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13
F032191318 - ScrewTrade number 191318
Replacement for:
BOSCH F00M990180
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 18.00
F032192586 - ScrewTrade number 192586
Replacement for:
BOSCH F002G91122
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 22.00
F032230732 - ScrewTrade number 230732
Replacement for:
BOSCH F00M990163BOSCH F00M990176
Slot type Phillips, Pozidriv, Thread Length 17.50, Washer w/, Thread/mm/" M5, Length 21.50, Total Length 25.50
F032230777 - ScrewTrade number 230777
Replacement for:
BOSCH F00M990177
Washer w/, Thread Length 10.00, Thread/mm/" M4, Total Length 16.50, Length 12.50

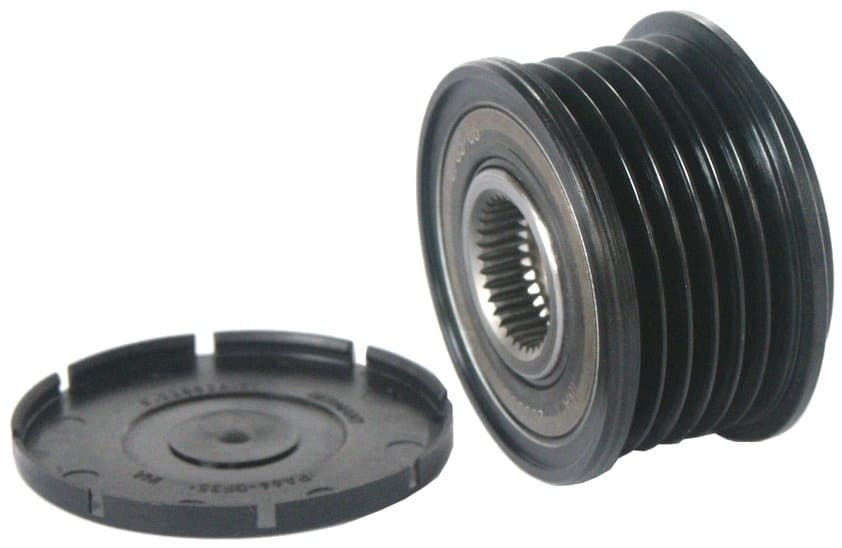

F032234796 - PulleyTrade number 234796
Replacement for:
BOSCH F00M991181BOSCH F00M991255
Groove Measurement 1 11.00, Rear Distance 1.90, Free run w/, Width 1 35.60, Bore dia. 17.00, Grooves 6, Depth 11.10, Rotation CW, Belt type Multi Belt, Thread size M16-1.50, Outer Diameter 49.70, Remarks Pulley tool: HC-CARGO 210843., Pulley type SP;FW
F032235254 - Protective CapTrade number 235254
Replacement for:
BOSCH F00M146071BOSCH F00M196004
B+ plug w/, B+ Inner Diameter 8.70, No./mount. holes 1, Outer Diameter 121.50, Amount of Mounting Holes 1, Remarks B+: M8.
F032235475 - CoverTrade number 235475
Replacement for:
BOSCH F00M148611
Outer Diameter 55.40, Height 4.70, Remarks Ina.
F032235552 - StatorTrade number 235552
Replacement for:
BOSCH F00M130126
Voltage 14, Amp 200, Lead 3 3, Wire thickness 1.50, Inner Diameter 112.00, Outer Diameter 2 153.00, Number of leads 6, Winding Height 75.00, Lead 1 3, Lead 6 3, Lead 2 3, Lead 4 3, Lead 5 3, Outer Diameter 145.00, Height 35.00

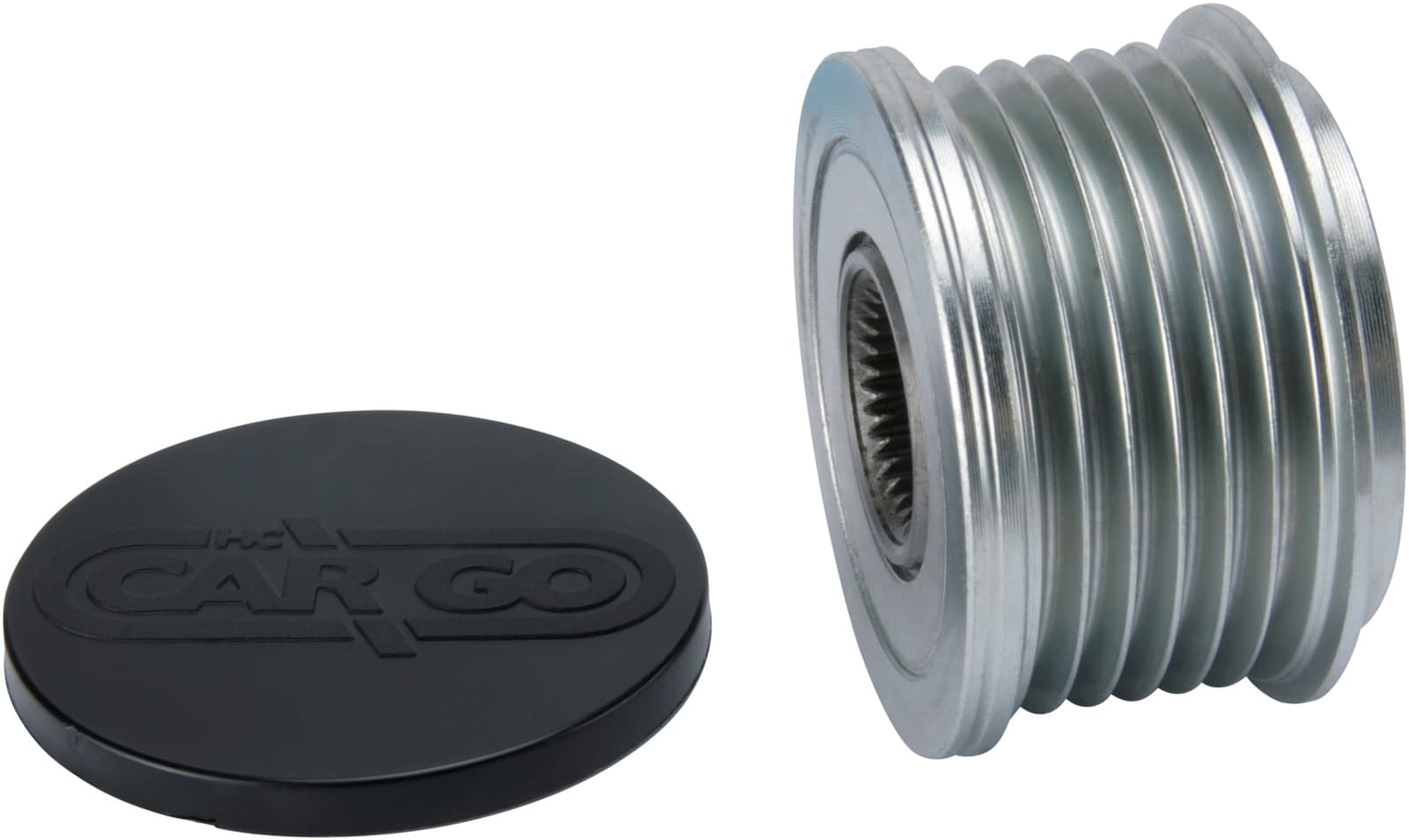

F032332308 - PulleyTrade number 332308
Replacement for:
BOSCH F00M991181BOSCH F00M991255
Groove Measurement 1 10.80, Rear Distance 1.80, Free run w/, Width 1 36.20, Bore dia. 17.00, Grooves 6, Depth 11.10, Rotation CW, Belt type Multi Belt, Thread size M16-1.50, Outer Diameter 49.80, Remarks Pulley tool: HC-CARGO 210843., Pulley type SP;FW
F032333103 - Ball BearingTrade number 333103
Replacement for:
BOSCH F00M990405BOSCH F00M990418
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 35.00, Remarks 6003-2RS1/C3., Height 10.00

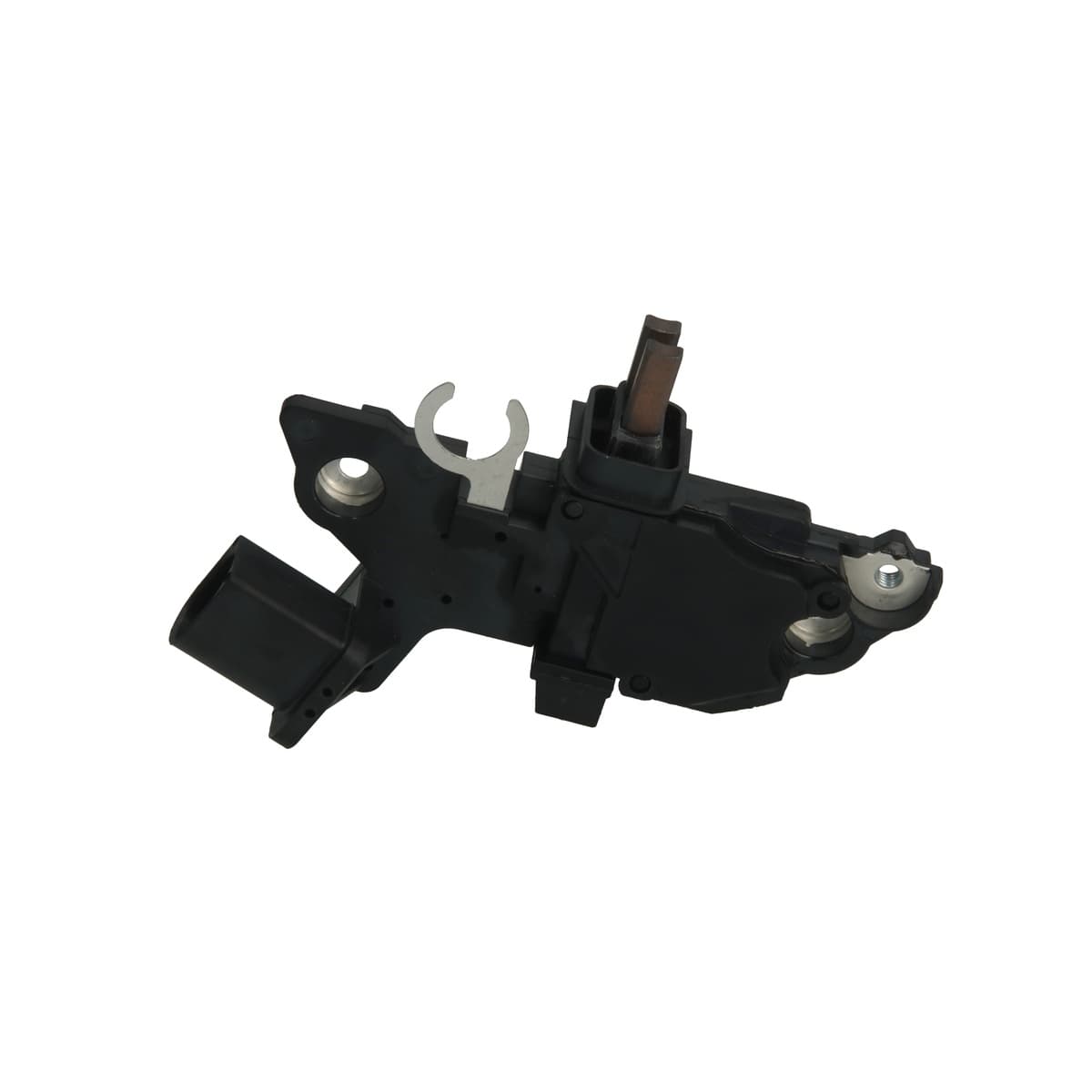

F032335030 - EL Field RegulatorTrade number 335030
Replacement for:
BOSCH F00M144108BOSCH F00M144132BOSCH F00M145374
Voltage 14, Communication BSS, Plug no. 1 PL114, Terminal type COM-DFM, Regulator type Electronic, Distance Between Mounting Holes 79.00
F032335806 - SpacerTrade number 335806
Replacement for:
BOSCH 1120202505
Inner Diameter 17.00, Collar Height 1.75, Collar Outer Diameter 1 30.00, Outer Diameter 44.00, Thickness 5.00
F032338080 - CoverTrade number 338080
Replacement for:
BOSCH F00M148611
Outer Diameter 55.40, Height 4.70, Remarks Ina.
F032902683 - Carbon-Brush SetTrade number BX2132
Replacement for:
BOSCH 1127014028
Voltage 14, Conductor w/, Spring w/o, Lead Length 118.00, Solder hole w/o, Cable lugs w/o, No./brushes 2, Length 16.50, Thickness 6.00, Height 4.00
F032B30731 - ScrewTrade number B230731
Replacement for:
BOSCH F00M990102
Thread Length 22.00, Collar Length Rear 60.00, Thread size M5, Total Length 65.00
F032B30732 - ScrewTrade number B230732
Replacement for:
BOSCH F00M990163
Slot type Phillips, Pozidriv, Thread Length 17.50, Washer w/, Thread/mm/" M5, Length 21.50, Total Length 25.50
F032B41232 - Ball BearingTrade number B141232
Replacement for:
BOSCH 1120905070BOSCH 1120905509
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 52.00, Height 17.00
