F03200B213 - Carbon BrushTrade number B213

Voltage 14, Conductor w/, Spring w/o, Cable lugs w/o, No./brushes 1, Lead Length 118.00, Thickness 6.00, Length 16.50, Height 4.00

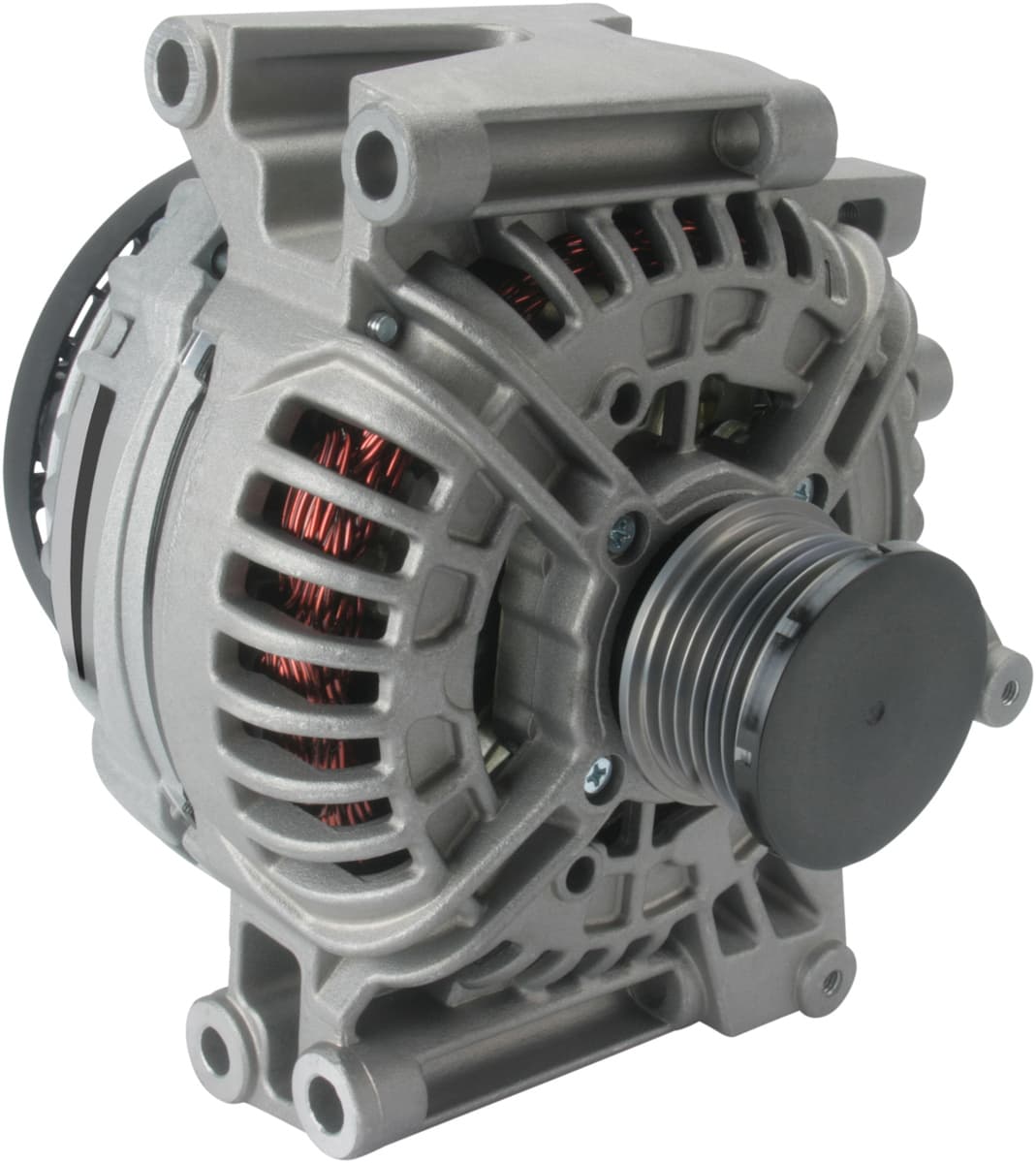

F032113953 - AlternatorTrade number 113953

Voltage 14, Amp 200, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL114, B+ M8, Rotation CW, Grooves/pulley 6, Regulator type IR, Belt Adjustment Bracket Hole 1 9.50, Mounting Bracket Distance 55.50, Pulley Diameter 50.00, Prod. info BN, Communication BSS, Pulley SP/FW, Bracket Hole Size 1 9.50, Pulley Distance 30.50, Terminal type COM, Holder Arm Width 93.20, Belt Adjustment Bracket Hole Position 60, B+ Position 25

F032135172 - Parts SetTrade number 135172

Ring Height 1 7.20, Inner Diameter 7.00, Material Copper, Outer Diameter 16.00, Collar w/, Ring Distance 2.60, Ring Height 2 7.20, Total Length 52.10

F032135608 - ChassisTrade number 135608

Gasket w/o, No./mount. holes 4, Inner Diameter 28.00, Material Steel, Outer Diameter 58.50, Thickness 1.95, Amount of Mounting Holes 4

F032138236 - CoverTrade number 138236

Outer Diameter 55.50, Height 4.70

F032139907 - SpacerTrade number 139907

Collar Height 1.75, Inner Diameter 17.00, Material Steel, Outer Diameter 44.00, Collar Outer Diameter 1 30.00, Thickness 5.00

F032139929 - Fitting RingTrade number 139929

Inner Diameter 35.00, Outer Diameter 37.75, Remarks For 6003: HC-CARGO 140273., Height 50.00

F032141232 - Ball BearingTrade number 141232

Inner Diameter 17.00, Outer Diameter 52.00, Bearing type Ball bearing, Height 17.00

F032191304 - ScrewTrade number 191304

Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13

F032191318 - ScrewTrade number 191318

Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 18.00

F032191657 - ScrewTrade number 191657

Iso norm 4035, DIN norm 439B, Material Steel, Servicing 4G series, Thread/mm/" M16-1.5, Coating Electro Galvanized, Spanner Size 24

F032192586 - ScrewTrade number 192586

Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 22.00

F032230732 - ScrewTrade number 230732

Slot type Phillips, Pozidriv, Thread Length 17.50, Thread/mm/" M5, Washer w/, Length 21.50, Total Length 25.50

F032230777 - ScrewTrade number 230777

Thread/mm/" M4, Washer w/, Thread Length 10.00, Length 12.50, Total Length 16.50

F032234771 - EL Field RegulatorTrade number 234771

Voltage setting 14.3, Voltage 14, Plug no. 1 PL103, Regulator type Electronic, Terminal type L-DFM, Remarks Slip ring O.D. 14.00 mm., Distance Between Mounting Holes 79.00

F032234796 - PulleyTrade number 234796

Replacement for:

MERCEDES-BENZ 6481550015

Grooves 6, Rotation CW, Thread size M16-1.50, Outer Diameter 49.70, Belt type Multi Belt, Depth 11.10, Free run w/, Width 1 35.60, Groove Measurement 1 11.00, Rear Distance 1.90, Bore dia. 17.00, Remarks Pulley tool: HC-CARGO 210843., Pulley type SP;FW

F032235254 - Protective CapTrade number 235254

B+ Inner Diameter 8.70, B+ plug w/, No./mount. holes 1, Outer Diameter 121.50, Remarks B+: M8., Amount of Mounting Holes 1

F032235552 - StatorTrade number 235552

Voltage 14, Amp 200, Number of leads 6, Lead 4 3, Lead 5 3, Outer Diameter 145.00, Winding Height 75.00, Lead 2 3, Lead 1 3, Lead 6 3, Wire thickness 1.50, Lead 3 3, Inner Diameter 112.00, Outer Diameter 2 153.00, Height 35.00

F032332308 - PulleyTrade number 332308

Replacement for:

MERCEDES-BENZ 6481550015

Grooves 6, Rotation CW, Thread size M16-1.50, Outer Diameter 49.80, Belt type Multi Belt, Depth 11.10, Free run w/, Width 1 36.20, Groove Measurement 1 10.80, Rear Distance 1.80, Bore dia. 17.00, Remarks Pulley tool: HC-CARGO 210843., Pulley type SP;FW
