Showing results for: BOSCH 0986031190
F032110112 - AlternatorTrade number 110112
Terminal W, Voltage 28, Amp 40, Fan EF, Radius 2 90.00, B+ M6, Regulator type IR, Belt Adjustment Bracket Hole 1 8.20, Radius 90.00, Prod. info BN, Pulley w/o, W plug type M5, Bracket Hole Size 1 11.50, Servicing Volvo, Holder Arm Width 51.00, D+ Size M4, D+ Position 55, Belt Adjustment Bracket Hole Position 57, Total Length 175.50, Position 25, B+ Position 10

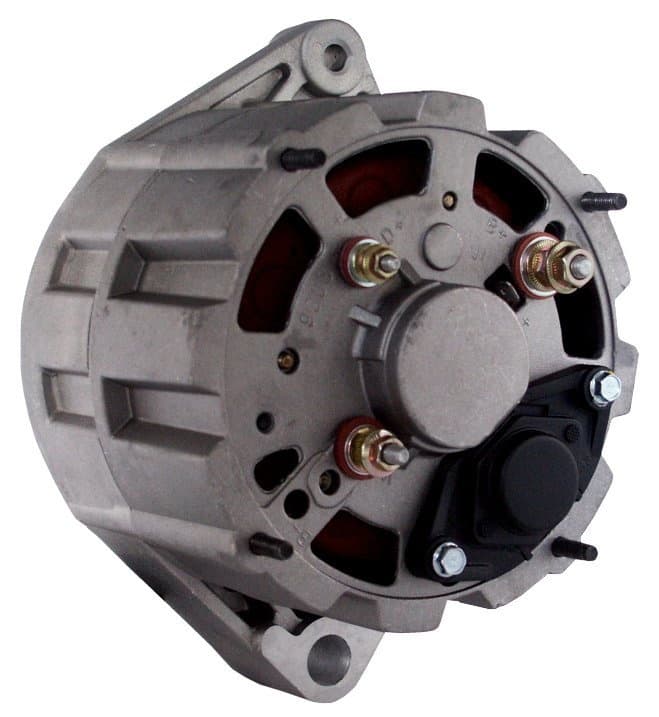

F032112784 - AlternatorTrade number 112784
Terminal W, Voltage 28, Amp 45, Radius 2 90.00, B+ M6, Rotation CW, Regulator type IR, Belt Adjustment Bracket Hole 1 7.50, Radius 90.00, Prod. info Reman, Pulley w/o, W plug type M5, Bracket Hole Size 1 14.00, Servicing Volvo, Volvo Penta, Holder Arm Width 50.00, D+ Size M4, D+ Position 55, Belt Adjustment Bracket Hole Position 57, Total Length 174.00, Position 20, B+ Position 10
F032130105 - StatorTrade number 130105
Replacement for:
BOSCH 1125045209
Voltage 28, Amp 45, Number of leads 3, Outer Diameter 125.00, Winding Height 50.50, Lead 2 1, Lead 1 1, Wire thickness 1.50, Stator winding Cross, Lead 3 1, Inner Diameter 89.50, Outer Diameter 2 117.00, Height 23.50
F032130911 - Zener DiodeTrade number 130911
Replacement for:
BOSCH 0270100364
Polarity Negative, Voltage 200, Amp 35, Diode type Press-fit, Outer Diameter 1/2"/12.70, Collar Outer Diameter 1 11.30, Lead Length 20.00, Length 8.25
F032130912 - Zener DiodeTrade number 130912
Replacement for:
BOSCH 1127320082
Polarity Positive, Voltage 200, Amp 35, Diode type Press-fit, Outer Diameter 1/2"/12.70, Collar Outer Diameter 1 11.35, Lead Length 20.00, Length 8.00
F032131294 - Zener DiodeTrade number 131294
Polarity Positive, Voltage 800, Amp 3, Lead Length 26.40/26.40, Diode type Axial
F032131468 - RectifierTrade number 131468
Replacement for:
BOSCH 1127320996
Diode A Current Strength 35, Voltage 28, W Size M5, Outer Diameter 114.00, Diode + 3, Diode - 3, B+ type Bolt, W type Bolt, Connections for stator 3, B+ size M6, Inner Diameter 35.50, D+ type Bolt, B+ Length 34.00, D+ Size M4, D+ Length 25.00, Mounting Distance 20.00
F032132903 - EL Field RegulatorTrade number 132903
Replacement for:
BOSCH 1197311301
Voltage setting 28, Voltage 28, Regulator type Electronic, Distance Between Mounting Holes 64.00, Remarks Slip ring O.D. 28.00 mm.
F032136235 - Fitting RingTrade number 136235
Replacement for:
BOSCH 1120591060
Gasket w/o, Inner Diameter 32.00, Outer Diameter 35.00, Type (split) w/o, Height 19.00
F032140105 - Ball BearingTrade number 140105
Replacement for:
BOSCH 1900905282
Bearing type Ball bearing, Inner Diameter 12.00, Outer Diameter 32.00, Remarks 62201-2RS-P., Height 14.00
F032140243 - Tolerance RingTrade number 140243
Replacement for:
BOSCH 140243
Gasket w/o, Inner Diameter 36.65, Material Steel, Outer Diameter 38.15, Remarks For bearing 6201., Height 9.80
F032140504 - Tolerance RingTrade number 140504
Replacement for:
BOSCH 140504
Inner Diameter 32.00, Material Steel, Outer Diameter 36.00, Gasket w/o, Height 16.00
F032140720 - Tolerance RingTrade number 140720
Replacement for:
BOSCH 140720
Inner Diameter 32.80, Material Steel, Outer Diameter 35.40, Gasket w/o, Height 13.85
F032140910 - Tolerance RingTrade number 140910
Replacement for:
BOSCH 140910
Inner Diameter 47.00, Material Steel, Outer Diameter 48.07, Gasket w/o, Height 11.75
F032190544 - ScrewTrade number 190544
Replacement for:
BOSCH 2912452152
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M5, Coating Electro Galvanized, Length 10
F032191287 - Spring Lock WasherTrade number 191287
Type Spring lock washer, DIN norm 128A, Inner Diameter 14.20, Material Steel spring, Outer Diameter 24.10, Thickness 2.40
F032191292 - ScrewTrade number 191292
Replacement for:
BOSCH 6033AC1148
Head type Cheese head, Partly threaded w/, Screw type Pozidriv, Thread Length 40.00, Material Steel, Thread/mm/" M5, Colour Black, Length 110.00
F032191478 - ScrewTrade number 191478
Replacement for:
BOSCH F00M990062
Head type Pan head, Screw type Pozidriv, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 25.00, Remarks w/ waved washer.
F032191643 - ScrewTrade number 191643
Replacement for:
BOSCH 1123421002
Head type Flat head, Screw type Pozidriv, Iso norm 7046, DIN norm 965, Material Steel, Thread/mm/" M4, Length 18.00
F032192228 - ScrewTrade number 192228
Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M14-1.5, Coating Electro Galvanized, Spanner Size 22
F032235764 - Slip-RingTrade number 235764
Replacement for:
BOSCH 1124303026
Prod. info OE, Ring Height 1 10.65, Type Standard, Inner Diameter 16.80, Material Copper, Outer Diameter 28.00, Ring Distance 2.45, Ring Height 2 9.00, Total Length 22.20
F032333119 - Ball BearingTrade number 333119
Replacement for:
BOSCH F00M990710
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 6303-2RS1/C3., Height 14.00
F032335939 - CoverTrade number 335939
Replacement for:
BOSCH 1190591095
Inner Diameter 77.70, Outer Diameter 79.70, Height 9.60
F032B33402 - Slip-RingTrade number B133402
Replacement for:
BOSCH B133402
Ring Height 1 9.45, Inner Diameter 17.00, Material Copper, Outer Diameter 28.00, Ring Distance 2.60, Ring Height 2 9.35, Remarks w/ 1.80 mm copper., Total Length 22.10
F032B91330 - ScrewTrade number B191330
DIN norm 6921, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 18.00, Spanner Size 7.00
F032135856 - EL Field RegulatorTrade number 135856
Replacement for:
BOSCH 1197311301
Voltage setting 28.5, Voltage 28, Regulator type Electronic, Distance Between Mounting Holes 65.00, Remarks Slip ring O.D. 28.00 mm
F032140093 - Ball BearingTrade number 140093
Replacement for:
BOSCH F00M990710
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 141233, Height 14.00
F032335155 - Bearing CapTrade number 335155
Replacement for:
BOSCH 1120591060
Inner Diameter 32.00, Outer Diameter 35.00, Height 18.80
