Showing results for: DENSO 1002114740
F032133519 - EL Field RegulatorTrade number 133519
Replacement for:
DENSO 1260000600
Voltage setting 14.6, Voltage 14, Plug no. 1 PL10, Terminal type IG-L, Regulator type Electronic, Remarks L-teminal drives the choke, Distance Between Mounting Holes 51.00

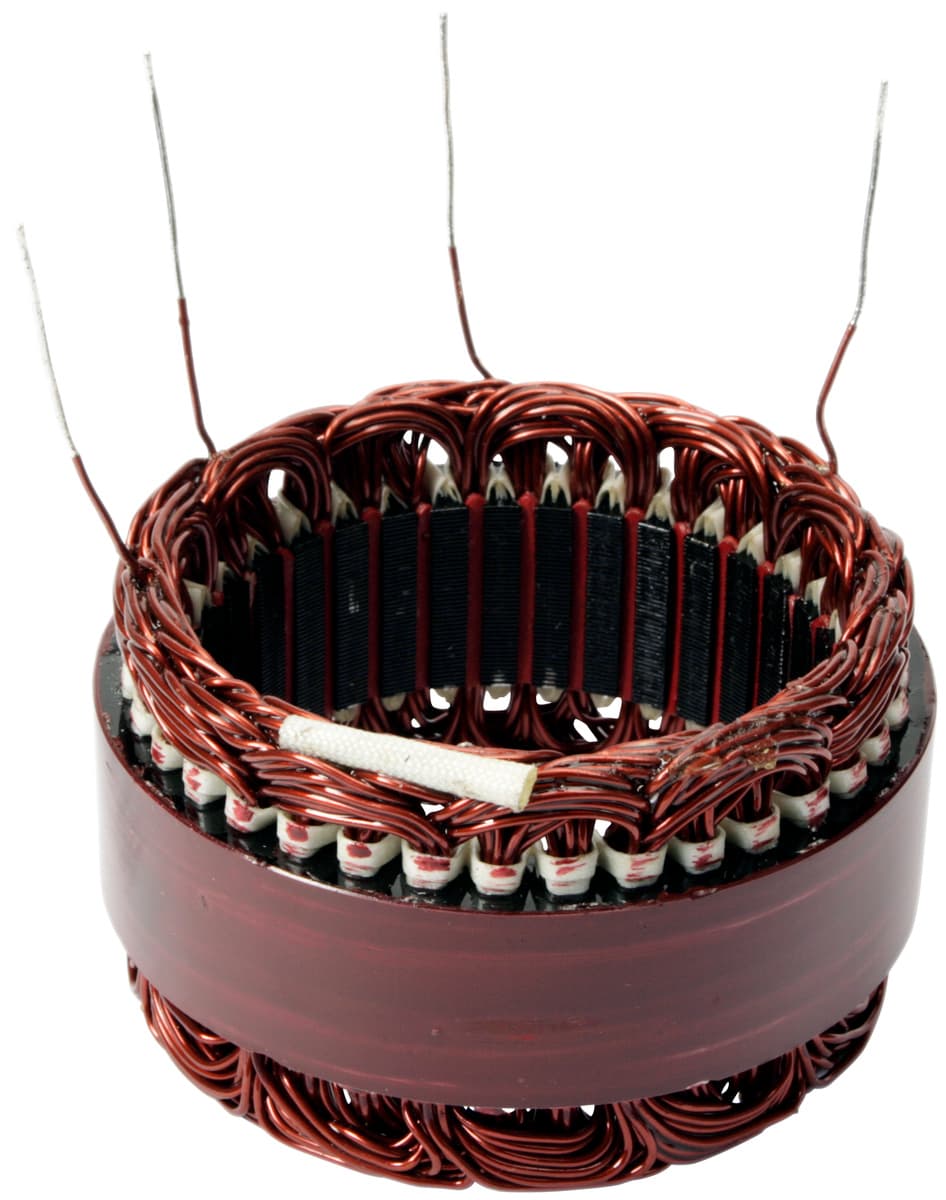

F032135941 - StatorTrade number 135941
Replacement for:
DENSO 0211002890
Voltage 14, Amp 40, Lead 3 1, Wire thickness 1.00, Stator winding Cross, Inner Diameter 70.00, Number of leads 4, Winding Height 54.00, Lead 1 1, Lead 2 1, Lead 4 1, Outer Diameter 93.00, Height 24.50

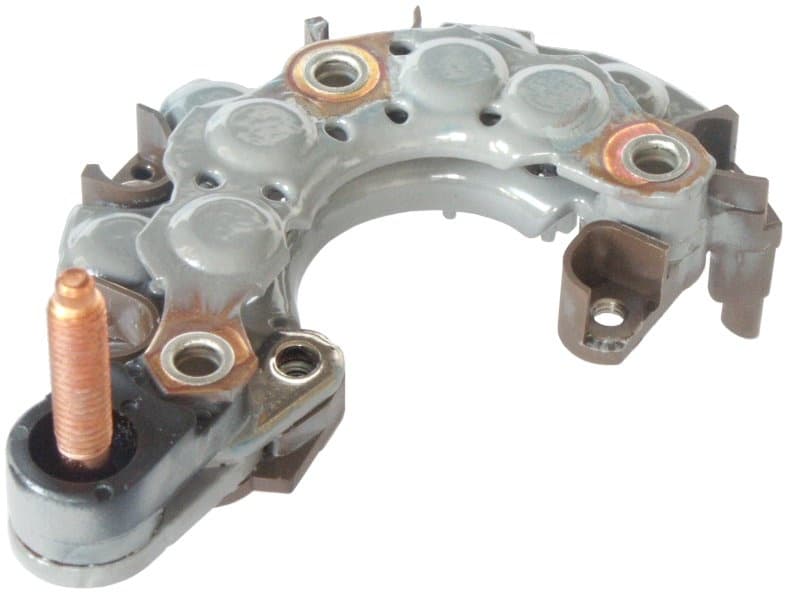

F032137873 - RectifierTrade number 137873
Replacement for:
DENSO 0215803450
Diode A 40, Connections for stator 4, B+ type Bolt, No. of diodes 8, Inner Diameter 28.40, B+ size M6, B+ Length 24.00, Outer Diameter 83.00

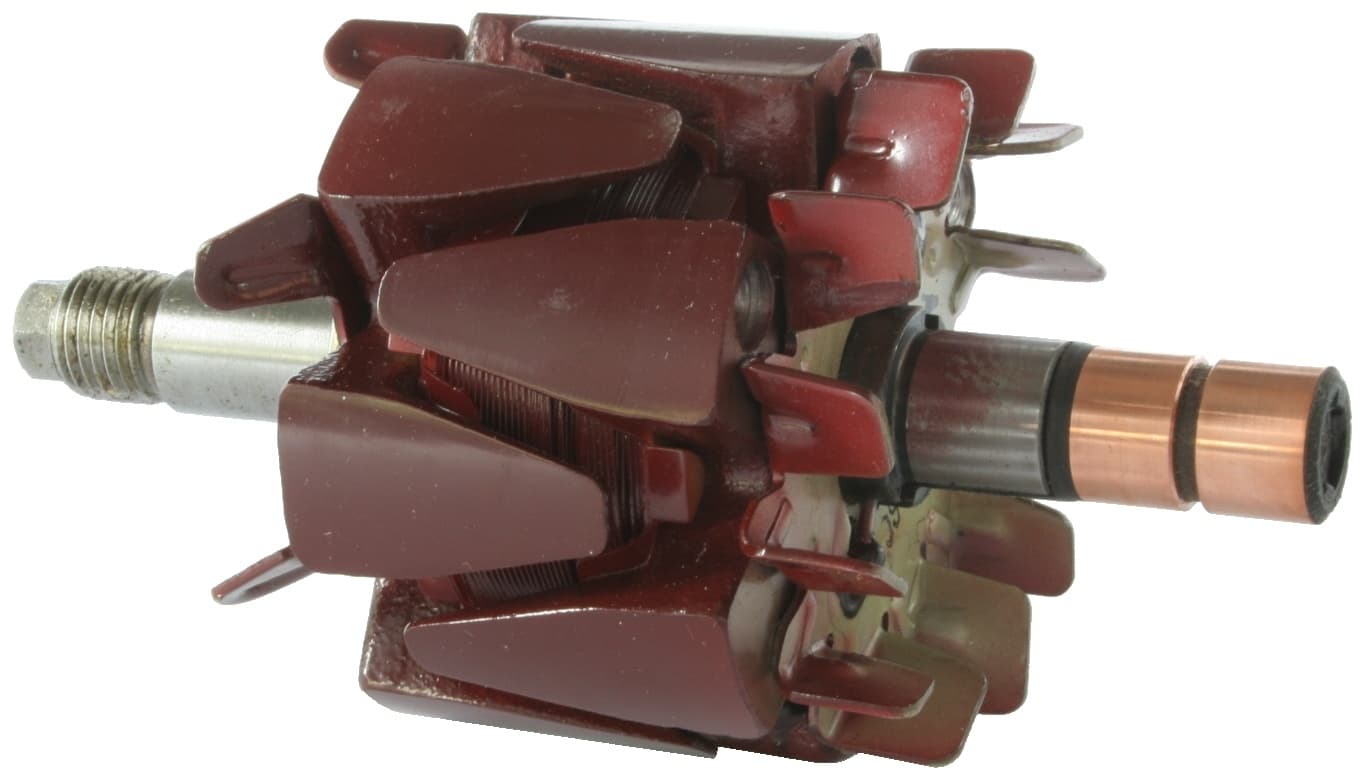

F032137970 - RotorTrade number 137970
Replacement for:
DENSO 0212005790
Voltage 14, Amp 40, Ring Height 1 9.60, Core type Firm, Ring Height 2 10.00, Slip Ring End Length 45.00, Bearing Diameter 15.00, Wing height 68.20, Cooling fan w/, Thread size M14-1.50, Outer Diameter 69.00, Wire Diameter 0.65, Thread Length 12.00, Slip Ring Rear 95.00, Slip Ring Outer Diameter 14.50, Ring Distance 2.00, Bobine measurement 51.80, Drive End Length 47.70, Windings 330, Slip Ring Front 83.30, Rotation CW, Height 43.80, Total Length 23.80;135.00, Shaft Diameter 15.00

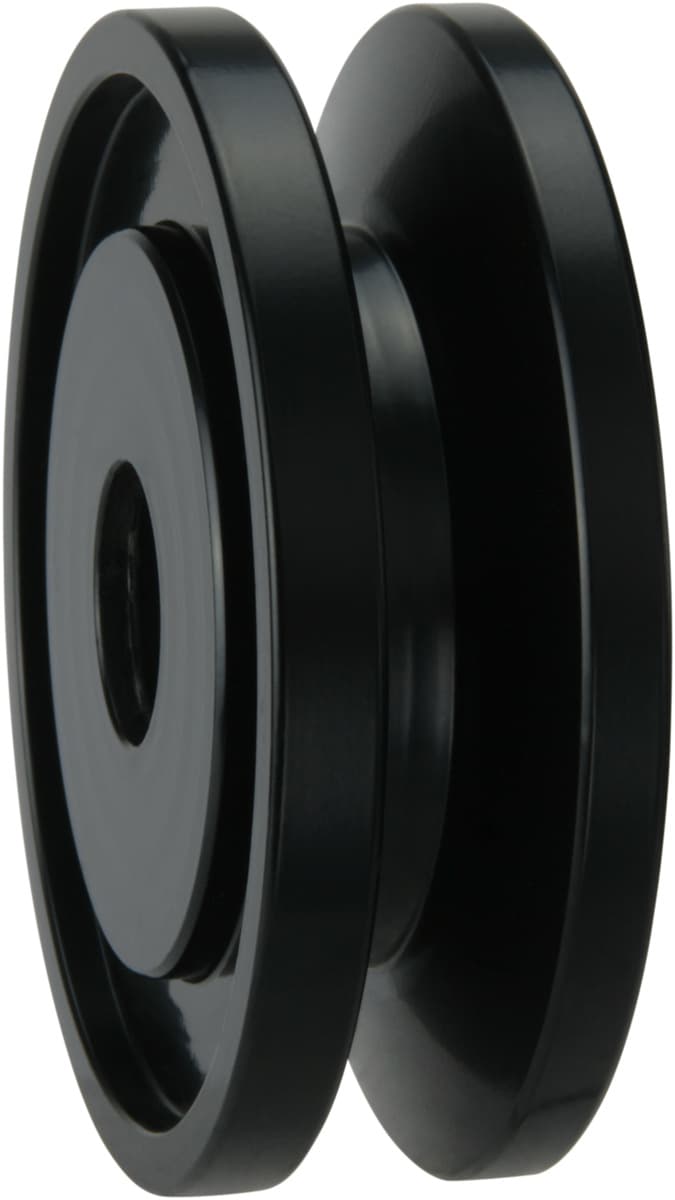

F032139345 - PulleyTrade number 139345
Replacement for:
DENSO 0210414140
Free run w/o, Grooves 1, Width 1 20.50, Depth 18.10, Pulley type P, Bore dia. 15.00, Belt type Z=9.5, Over Belt Diameter 64.50, Outer Diameter 63.10
F032140084 - Ball BearingTrade number 140084
Replacement for:
DENSO 9491003731
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS1., Height 11.00
F032140371 - Carbon-Brush SetTrade number 140371
Replacement for:
DENSO 0216600510
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Solder hole w/o, Cable lugs w/o, No./brushes 2, Length 15.00, Thickness 7.00, Height 5.00
F032140441 - Ball BearingTrade number 140441
Replacement for:
DENSO 9491003660
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 32.00, Height 11.00, Remarks 366-2RS-P.
F032191307 - Self-locking nutTrade number 191307
Replacement for:
DENSO 9490562481
Self-locking w/, Coating Electro Galvanized, Material Steel, Servicing CS121, -130, Thread/mm/" M5-0.8, Spanner Size 8
F032191308 - Self-locking nutTrade number 191308
Replacement for:
DENSO 9490561001
Self-locking w/, Coating Electro Galvanized, Material Steel, Thread/mm/" M6, Spanner Size 10
F032191478 - ScrewTrade number 191478
Replacement for:
DENSO 9131004251
Screw type Pozidriv, Head type Pan head, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Remarks w/ waved washer., Length 25.00
F032191586 - ScrewTrade number 191586
Replacement for:
DENSO 9490065460DENSO 9490065470DENSO 9490073930
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 6.00
F032232788 - WasherTrade number 232788
Replacement for:
DENSO 0215060070
Total height/thickness 2.20, Bushing w/o, Inner Diameter 15.00, Collar Height 1.65, Collar Outer Diameter 1 15.90, Material Steel, Outer Diameter 22.00, Thickness 0.50
F032238687 - ScrewTrade number 238687
Replacement for:
DENSO 9490065200
Thread Length 10.50, Thread/mm/" M4, Total Length 20.00, Length 16.00
F032333110 - Ball BearingTrade number 333110
Replacement for:
DENSO 9491003731
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS/C3., Height 11.00
F032B40371 - Carbon BrushTrade number B140371
Replacement for:
DENSO 0216600510
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Cable lugs w/o, Length 15.00, Thickness 7.00, Height 5.00
