Showing results for: DENSO 1012112770

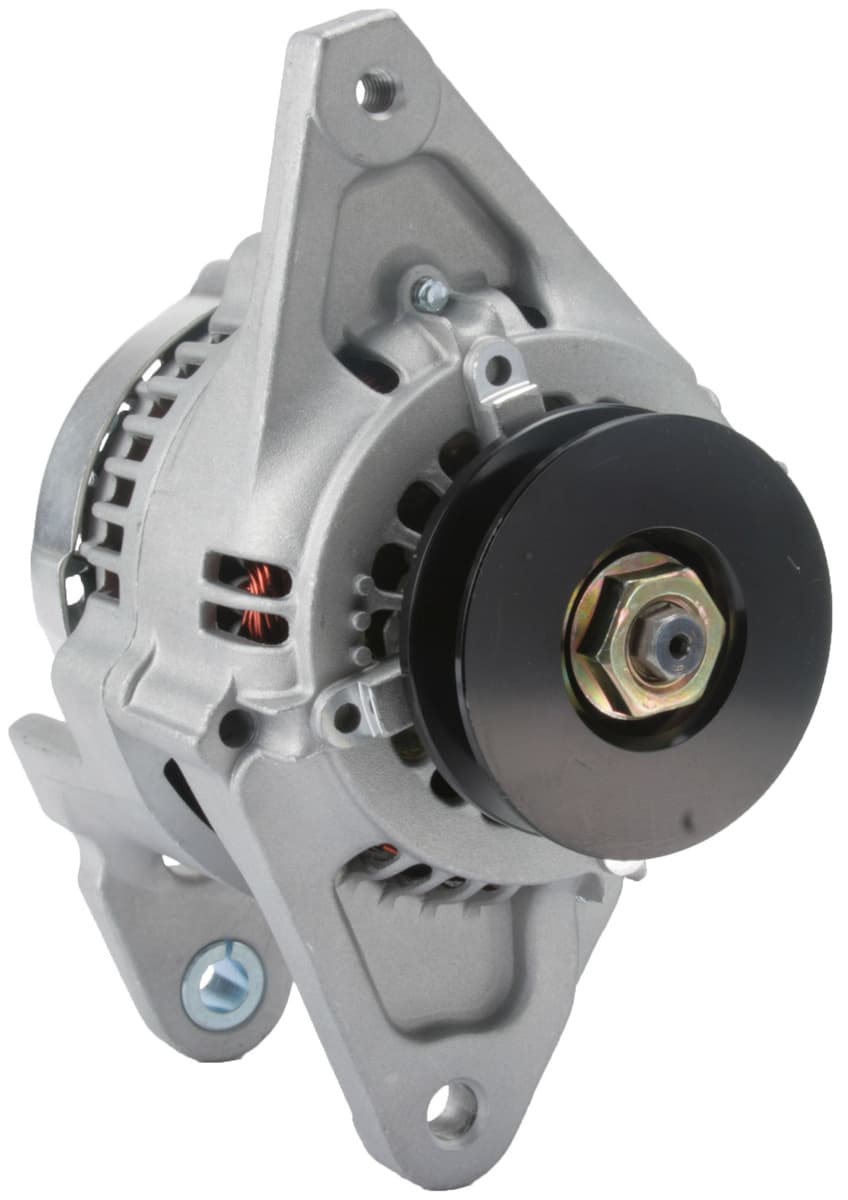

F032114043 - AlternatorTrade number 114043
Voltage 14, Amp 55, Grooves/pulley 1, Regulator type IR, Belt Adjustment Bracket Hole 1 M8, Mounting Bracket Distance 72.00, Radius 88.00, Pulley Diameter 70.00, Bracket Hole Size Rear 10.50, Pulley P, W plug type Plug, Pulley Distance 43.00, D+ Position 55, Plug no. 1 PL128, Radius 2 88.00, B+ M6, Rotation CW, Bracket Hole Size 1 10.50, Holder Arm Width 12.00, D+ Size Plug, Belt Adjustment Bracket Hole Position 53, Total Length 152.00, Position 60, B+ Position 5
F032132540 - RectifierTrade number 132540
Replacement for:
DENSO 0215803130
Diode A Current Strength 70, B+ type Bolt, Prod. info BN, Connections for stator 4, B+ size M6, Outer Diameter 88.00, B+ Length 44.00, No. of diodes 8, Remarks w/ terminal W.
F032138146 - EL Field RegulatorTrade number 138146
Replacement for:
DENSO 1260001800
Voltage setting 14.6, Voltage 14, Plug no. 1 PL128, Regulator type Electronic, Terminal type P-IG-L, Distance Between Mounting Holes 57.50
F032140084 - Ball BearingTrade number 140084
Replacement for:
DENSO 9491000160
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS1., Height 11.00
F032140371 - Carbon-Brush SetTrade number 140371
Replacement for:
DENSO 0216600390
Voltage 14, Conductor w/, Spring w/, Cable lugs w/o, No./brushes 2, Lead Length 51.50, Solder hole w/o, Thickness 7.00, Length 15.00, Height 5.00
F032140441 - Ball BearingTrade number 140441
Replacement for:
DENSO 9491003170
Inner Diameter 15.00, Outer Diameter 32.00, Bearing type Ball bearing, Remarks 366-2RS-P., Height 11.00
F032191307 - Self-locking nutTrade number 191307
Replacement for:
DENSO 9490562481
Self-locking w/, Material Steel, Servicing CS121, -130, Thread/mm/" M5-0.8, Coating Electro Galvanized, Spanner Size 8
F032191308 - Self-locking nutTrade number 191308
Replacement for:
DENSO 9490561001
Self-locking w/, Material Steel, Thread/mm/" M6, Coating Electro Galvanized, Spanner Size 10
F032191586 - ScrewTrade number 191586
Replacement for:
DENSO 9490065460DENSO 9490065470
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 6.00
F032232788 - WasherTrade number 232788
Replacement for:
DENSO 0215060070
Bushing w/o, Total height/thickness 2.20, Collar Height 1.65, Inner Diameter 15.00, Material Steel, Outer Diameter 22.00, Collar Outer Diameter 1 15.90, Thickness 0.50
F032238687 - ScrewTrade number 238687
Replacement for:
DENSO 9490065200
Thread/mm/" M4, Thread Length 10.50, Length 16.00, Total Length 20.00
F032191478 - ScrewTrade number 191478
Replacement for:
DENSO 9131004251
Head type Pan head, Screw type Pozidriv, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 25.00, Remarks w/ waved washer.
F032333110 - Ball BearingTrade number 333110
Replacement for:
DENSO 9491000160
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS/C3., Height 11.00
F032B40371 - Carbon BrushTrade number B140371
Replacement for:
DENSO 0216600390
Voltage 14, Conductor w/, Spring w/, Cable lugs w/o, Lead Length 51.50, Thickness 7.00, Length 15.00, Height 5.00
