Showing results for: DENSO 1012118580
F032137452 - SpacerTrade number 137452
Replacement for:
DENSO 0210450530
Total height/thickness 2.70, Bushing w/o, Inner Diameter 10.60, Collar Height 1.40, Collar Outer Diameter 1 18.80, Material Steel, Outer Diameter 21.00, Thickness 2.70

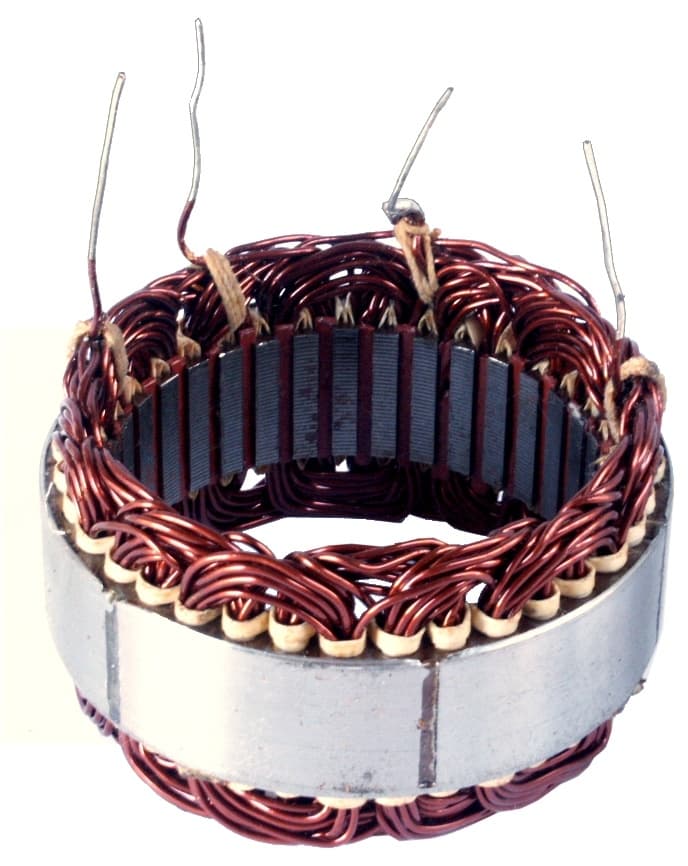

F032138730 - StatorTrade number 138730
Replacement for:
DENSO 0211003900
Voltage 14, Amp 60, Lead 3 1, Wire thickness 1.50, Stator winding Y Connection whit point out, Inner Diameter 77.00, Outer Diameter 2 97.00, Number of leads 4, Winding Height 56.00, Lead 1 1, Lead 2 1, Lead 4 1, Outer Diameter 100.00, Height 26.00
F032140084 - Ball BearingTrade number 140084
Replacement for:
DENSO 9491003731
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS1., Height 11.00
F032140371 - Carbon-Brush SetTrade number 140371
Replacement for:
DENSO 0216600510
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Solder hole w/o, Cable lugs w/o, No./brushes 2, Length 15.00, Thickness 7.00, Height 5.00
F032140441 - Ball BearingTrade number 140441
Replacement for:
DENSO 9491003660
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 32.00, Height 11.00, Remarks 366-2RS-P.
F032191307 - Self-locking nutTrade number 191307
Replacement for:
DENSO 9490562481
Self-locking w/, Coating Electro Galvanized, Material Steel, Servicing CS121, -130, Thread/mm/" M5-0.8, Spanner Size 8
F032191308 - Self-locking nutTrade number 191308
Replacement for:
DENSO 9490561001
Self-locking w/, Coating Electro Galvanized, Material Steel, Thread/mm/" M6, Spanner Size 10
F032191478 - ScrewTrade number 191478
Replacement for:
DENSO 9131004251
Screw type Pozidriv, Head type Pan head, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Remarks w/ waved washer., Length 25.00
F032191586 - ScrewTrade number 191586
Replacement for:
DENSO 9490065460DENSO 9490065470
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 6.00
F032238687 - ScrewTrade number 238687
Replacement for:
DENSO 9490065200
Thread Length 10.50, Thread/mm/" M4, Total Length 20.00, Length 16.00
F032333110 - Ball BearingTrade number 333110
Replacement for:
DENSO 9491003731
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS/C3., Height 11.00
F032B40371 - Carbon BrushTrade number B140371
Replacement for:
DENSO 0216600510
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Cable lugs w/o, Length 15.00, Thickness 7.00, Height 5.00
