Showing results for: DENSO 1022112760
F032133610 - RingTrade number 133610
Replacement for:
DENSO 133610
Inner Diameter 13.12, Material Copper/Brass, Outer Diameter 15.80, Height 9.55, Remarks w/ 4 pins.
F032133673 - Brush HolderTrade number 133673
Replacement for:
DENSO 0216202720
Voltage 14, Brush Width 6.80
F032133679 - SealTrade number 133679
Replacement for:
DENSO 0216260190
O-ring w/o, Inner Diameter 18.70, Double sealed No, Height 1.90
F032135173 - Parts SetTrade number 135173
Replacement for:
DENSO 135173
Ring Height 1 9.50, Ring Height 2 9.50, Inner Diameter 7.90/8.75, Type Standard, Collar w/o, Ring Distance 1.20, Material Copper, Outer Diameter 14.90, Remarks Quick repair: HC-CARGO 234489, Total Length 24.00
F032136357 - ScrewTrade number 136357
Replacement for:
DENSO 9490432000
Thread Size Rear M7, Thread Length Front 12.50, Thread size M5, Thread Length Rear 22.00, Total Length 67.00
F032137452 - SpacerTrade number 137452
Replacement for:
DENSO 0210450530
Total height/thickness 2.70, Bushing w/o, Inner Diameter 10.60, Collar Height 1.40, Collar Outer Diameter 1 18.80, Material Steel, Outer Diameter 21.00, Thickness 2.70
F032140237 - Ball BearingTrade number 140237
Replacement for:
DENSO 9491002790
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00
F032140371 - Carbon-Brush SetTrade number 140371
Replacement for:
DENSO 0216600390
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Solder hole w/o, Cable lugs w/o, No./brushes 2, Length 15.00, Thickness 7.00, Height 5.00
F032142075 - Ball BearingTrade number 142075
Replacement for:
DENSO 9491006750
Bearing type Ball bearing, Ball holder Plastics, Inner Diameter 17.00, Outer Diameter 52.00, Remarks To use for units w/ free wheel pulley., Height 16.00
F032191307 - Self-locking nutTrade number 191307
Replacement for:
DENSO 9490560990
Self-locking w/, Coating Electro Galvanized, Material Steel, Servicing CS121, -130, Thread/mm/" M5-0.8, Spanner Size 8
F032191308 - Self-locking nutTrade number 191308
Replacement for:
DENSO 9490560750
Self-locking w/, Coating Electro Galvanized, Material Steel, Thread/mm/" M6, Spanner Size 10
F032191319 - ScrewTrade number 191319
Replacement for:
DENSO 9490066401
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M5, Length 6.00
F032191478 - ScrewTrade number 191478
Replacement for:
DENSO 9131004251
Screw type Pozidriv, Head type Pan head, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Remarks w/ waved washer., Length 25.00
F032191586 - ScrewTrade number 191586
Replacement for:
DENSO 9490076280
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 6.00
F032230861 - ScrewTrade number 230861
Replacement for:
DENSO 9490065590
Thread Length 18.00, Thread/mm/" M4.5-0.75, Total Length 21.50, Length 18.00
F032231786 - InsulatorTrade number 231786
Replacement for:
DENSO 0216052930
Gasket w/o, O-ring w/o, Inner Diameter 8.30, Collar w/o, Material Plastic, Outer Diameter 25.55, Height 24.10
F032232788 - WasherTrade number 232788
Replacement for:
DENSO 0215060070
Total height/thickness 2.20, Bushing w/o, Inner Diameter 15.00, Collar Height 1.65, Collar Outer Diameter 1 15.90, Material Steel, Outer Diameter 22.00, Thickness 0.50
F032232790 - SealTrade number 232790
Replacement for:
DENSO 0215420220
Inner Diameter 24.50, Bushing w/o, Material Steel, Outer Diameter 35.20, Thickness 0.75

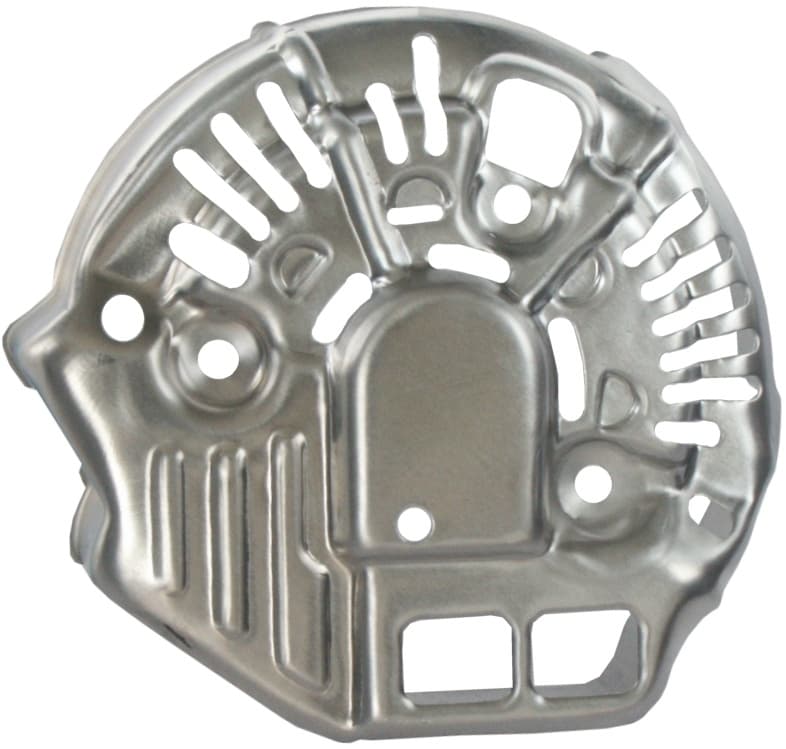

F032232793 - Protective CapTrade number 232793
Replacement for:
DENSO 0215513790
B+ plug w/o, W plug w/o, D+ plug No, Inner Diameter 112.00, Outer Diameter 116.00, Height 37.00

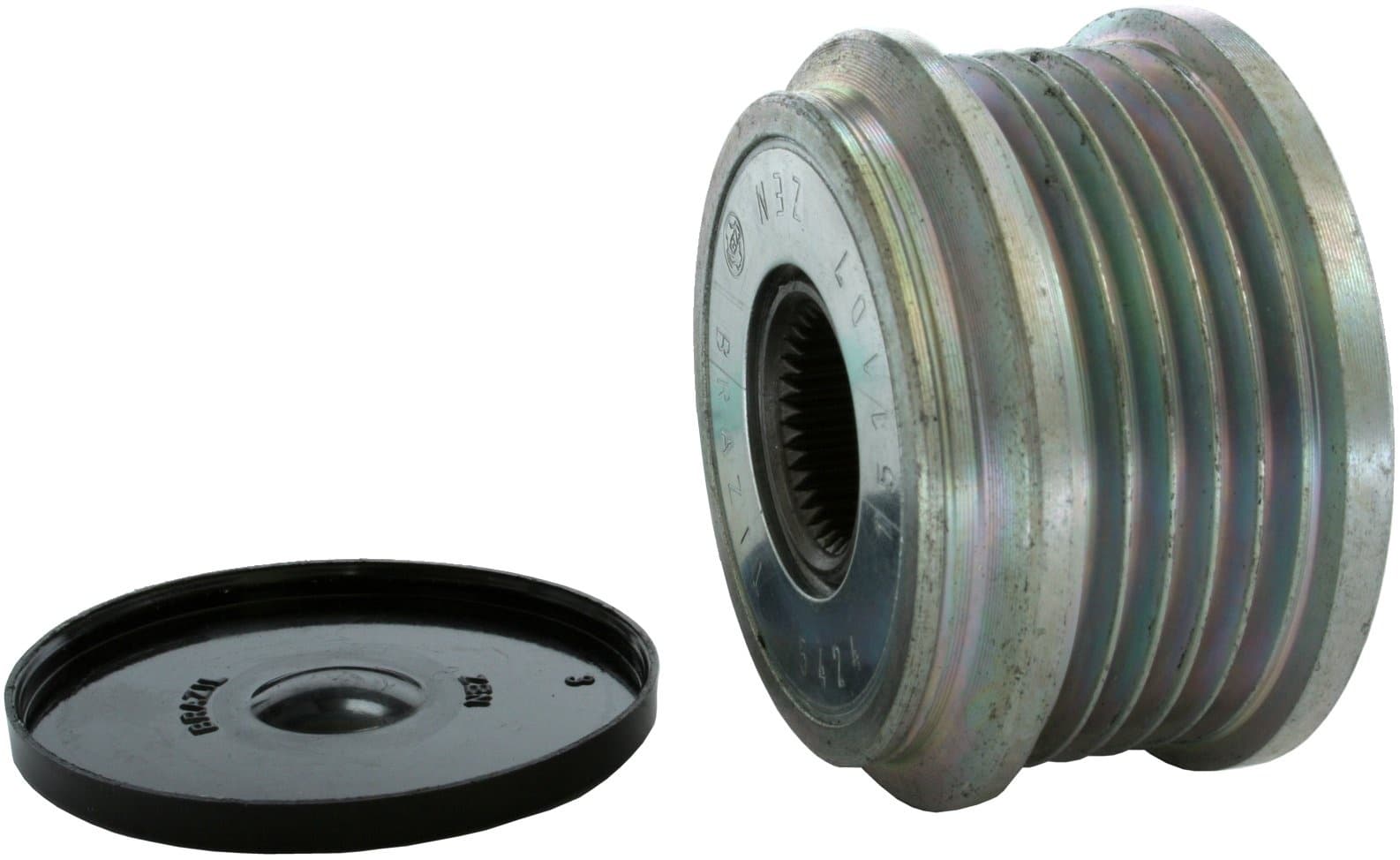

F032236332 - PulleyTrade number 236332
Replacement for:
DENSO 236332
Groove Measurement 1 13.50, Rear Distance 5.50, Free run w/, Width 1 40.90, Bore dia. 17.00, Grooves 5, Depth 11.70, Rotation CW, Belt type Multi Belt, Thread size M14-1.50, Outer Diameter 58.00, Remarks Pulley tool: HC-CARGO 210843., Pulley type SP;FW

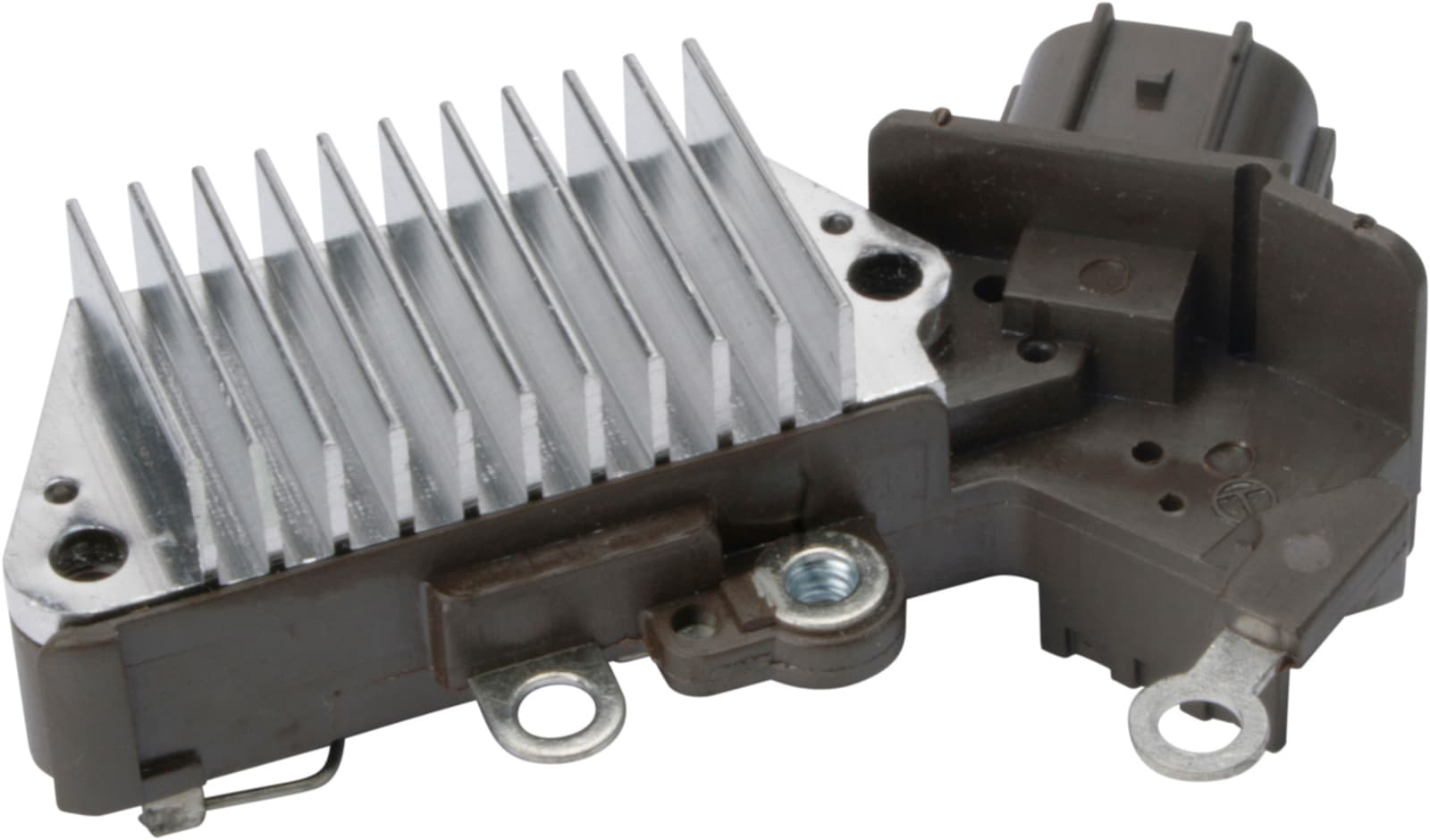

F032237642 - EL Field RegulatorTrade number 237642
Replacement for:
DENSO 237642
Voltage setting 14.2, Voltage 14, Amp 7, Plug no. 1 PL78, Battery sensor w/, Regulator type Electronic
F032239026 - RectifierTrade number 239026
Replacement for:
DENSO 0215806510
Diode A Charging Current from 6, Diode A Charging Current to 35, Voltage 14, Diode type Avalanche, Connections for stator 4, Diode - 3, B+ type Bolt, B+ size M6, B+ Length 21.00, Diode + 3, Outer Diameter 100.00
F032B40237 - Ball BearingTrade number B140237
Replacement for:
DENSO 9491002790
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00
F032B40371 - Carbon BrushTrade number B140371
Replacement for:
DENSO 0216600390
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Cable lugs w/o, Length 15.00, Thickness 7.00, Height 5.00
