Showing results for: DENSO 1042103530
F032140093 - Ball BearingTrade number 140093
Replacement for:
DENSO 9491002820
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 141233, Height 14.00
F032140237 - Ball BearingTrade number 140237
Replacement for:
DENSO 9491005360
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00
F032140371 - Carbon-Brush SetTrade number 140371
Replacement for:
DENSO 0216600510
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Solder hole w/o, Cable lugs w/o, No./brushes 2, Length 15.00, Thickness 7.00, Height 5.00
F032191586 - ScrewTrade number 191586
Replacement for:
DENSO 9490076280
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 6.00

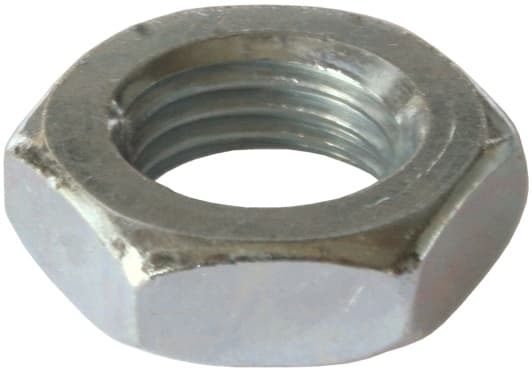

F032192228 - ScrewTrade number 192228
Replacement for:
DENSO 9490501080
DIN norm 439B, Iso norm 4035, Coating Electro Galvanized, Material Steel, Thread/mm/" M14-1.5, Spanner Size 22
F032232790 - SealTrade number 232790
Replacement for:
DENSO 0215420220
Inner Diameter 24.50, Bushing w/o, Material Steel, Outer Diameter 35.20, Thickness 0.75

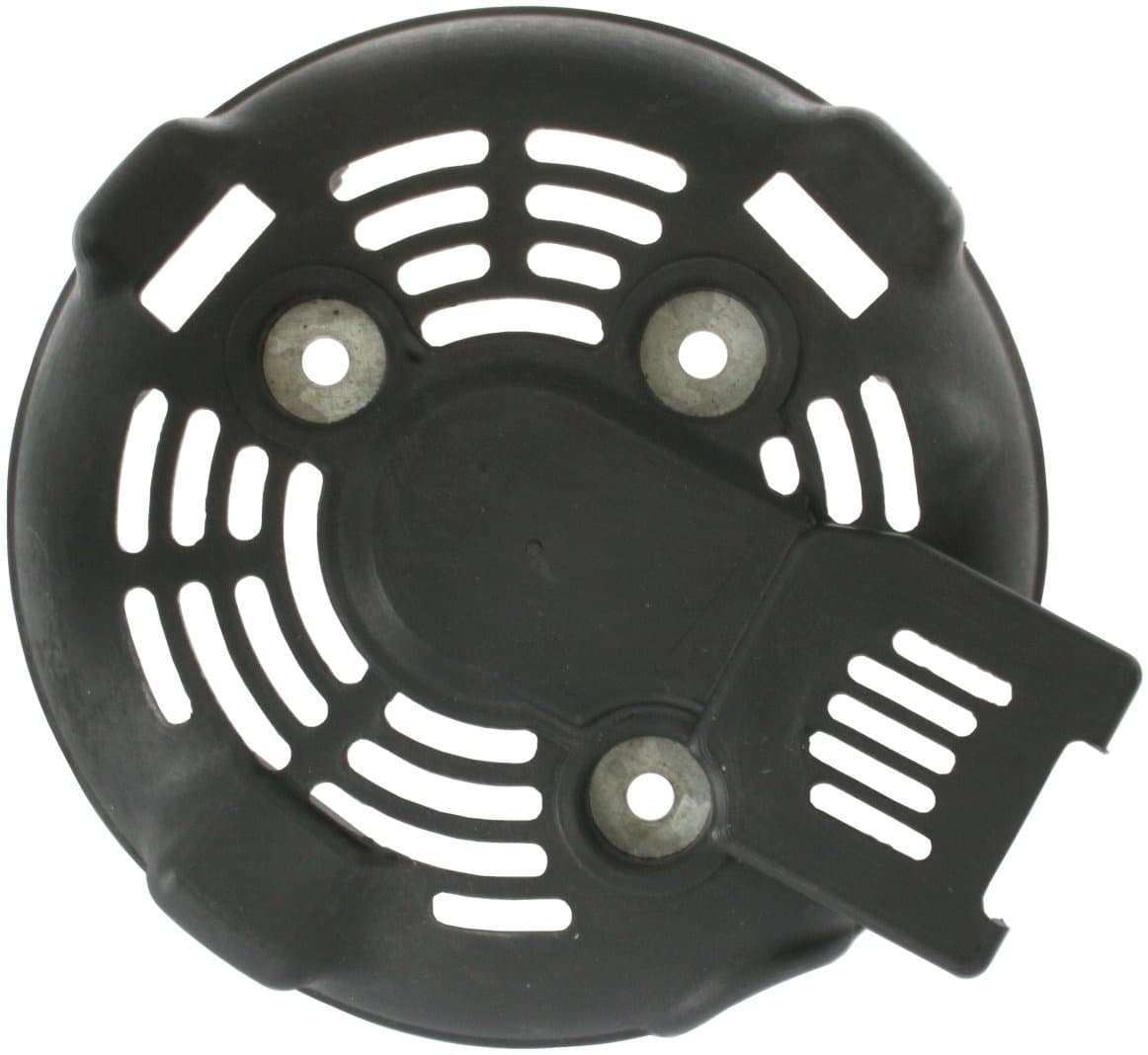

F032237606 - Protective CapTrade number 237606
Replacement for:
DENSO 237606
No./mount. holes 3, Inner Diameter 120.30, Material Plastic, Outer Diameter 127.30, Amount of Mounting Holes 3, Height 33.70

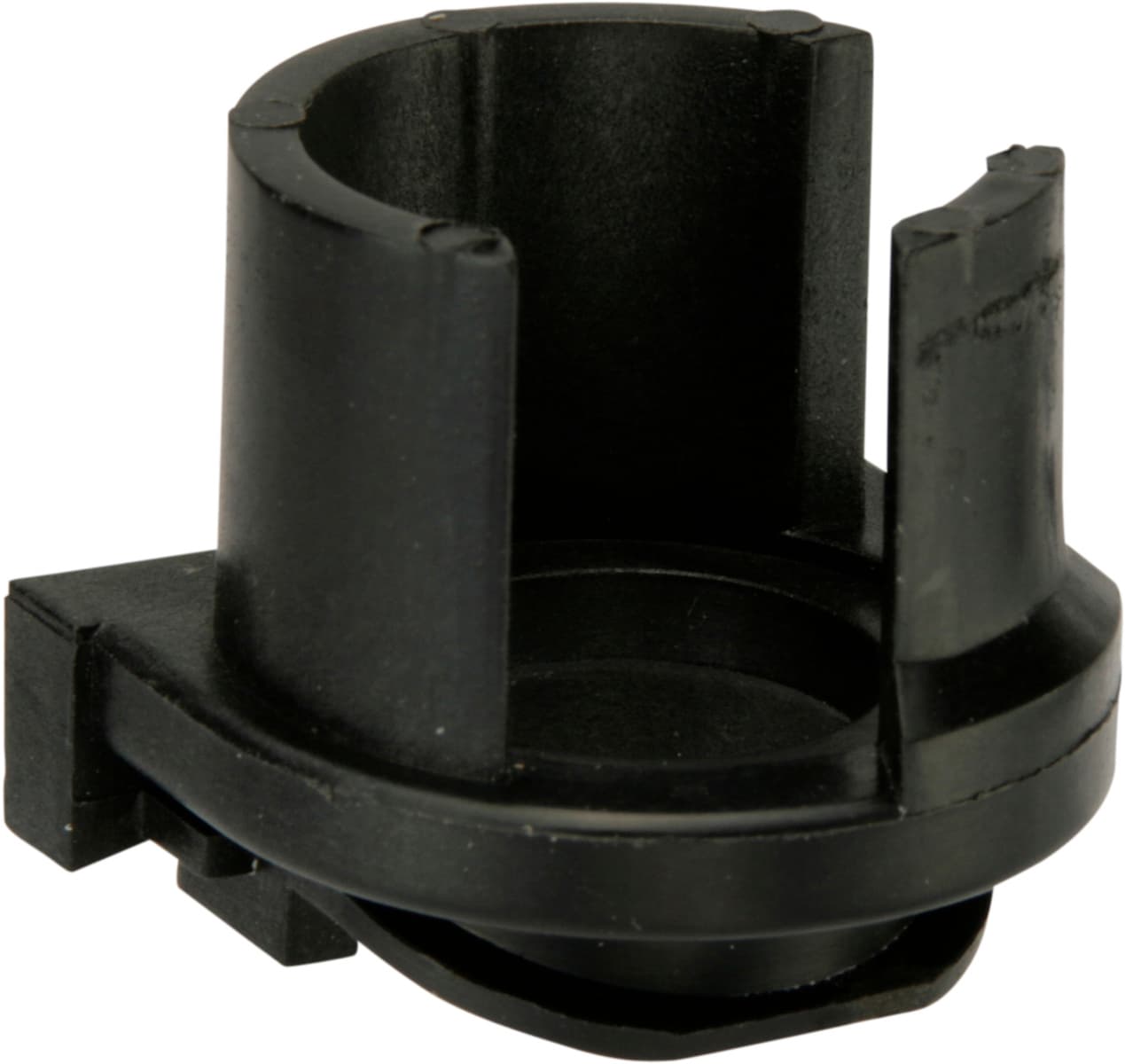

F032237608 - InsulatorTrade number 237608
Replacement for:
DENSO 237608
Colour Black, Type PVC, Material Plastic

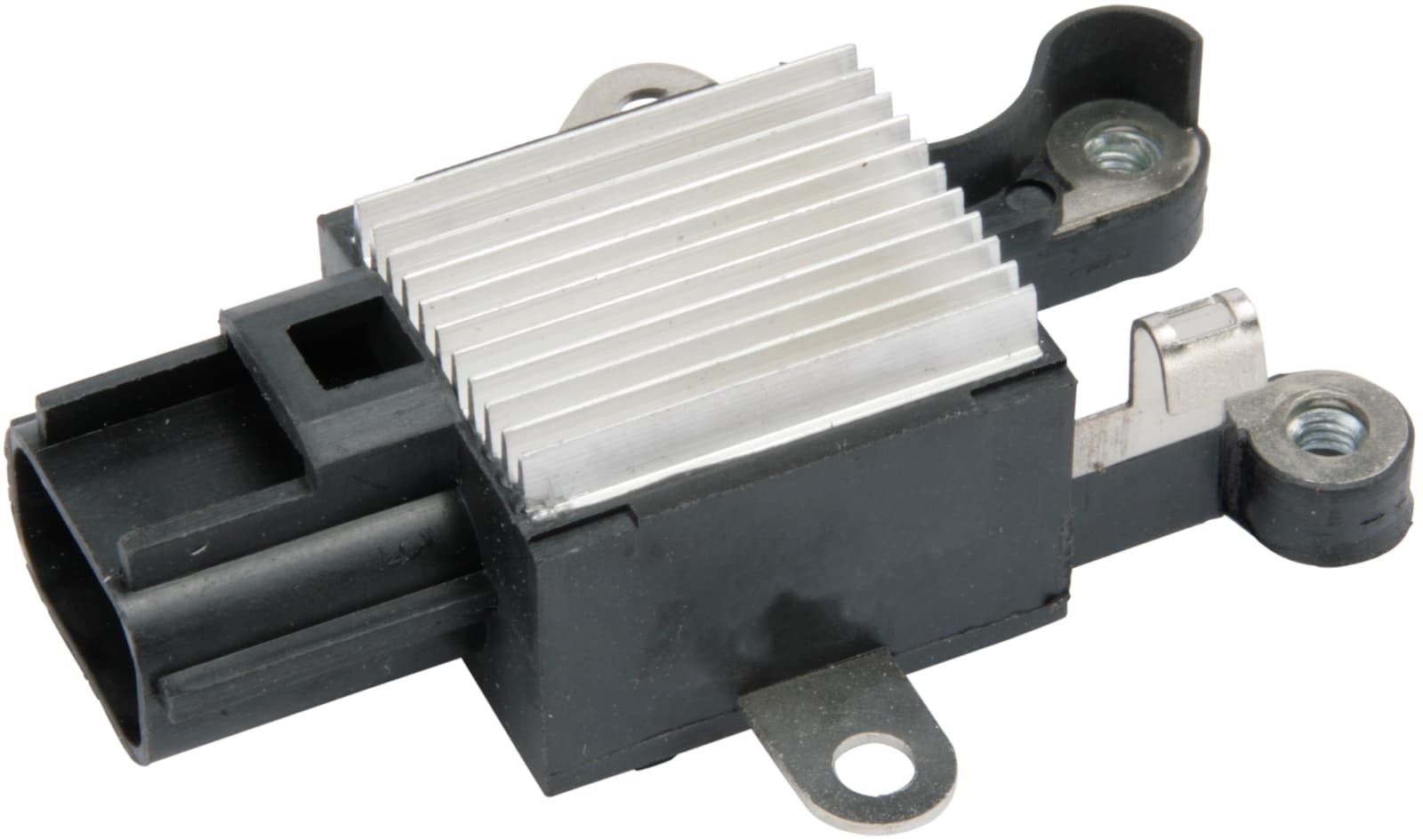

F032237609 - EL Field RegulatorTrade number 237609
Replacement for:
DENSO 1266003460
Voltage 14, Communication PWM, Plug no. 1 PL57, Distance Between Mounting Holes 44.00

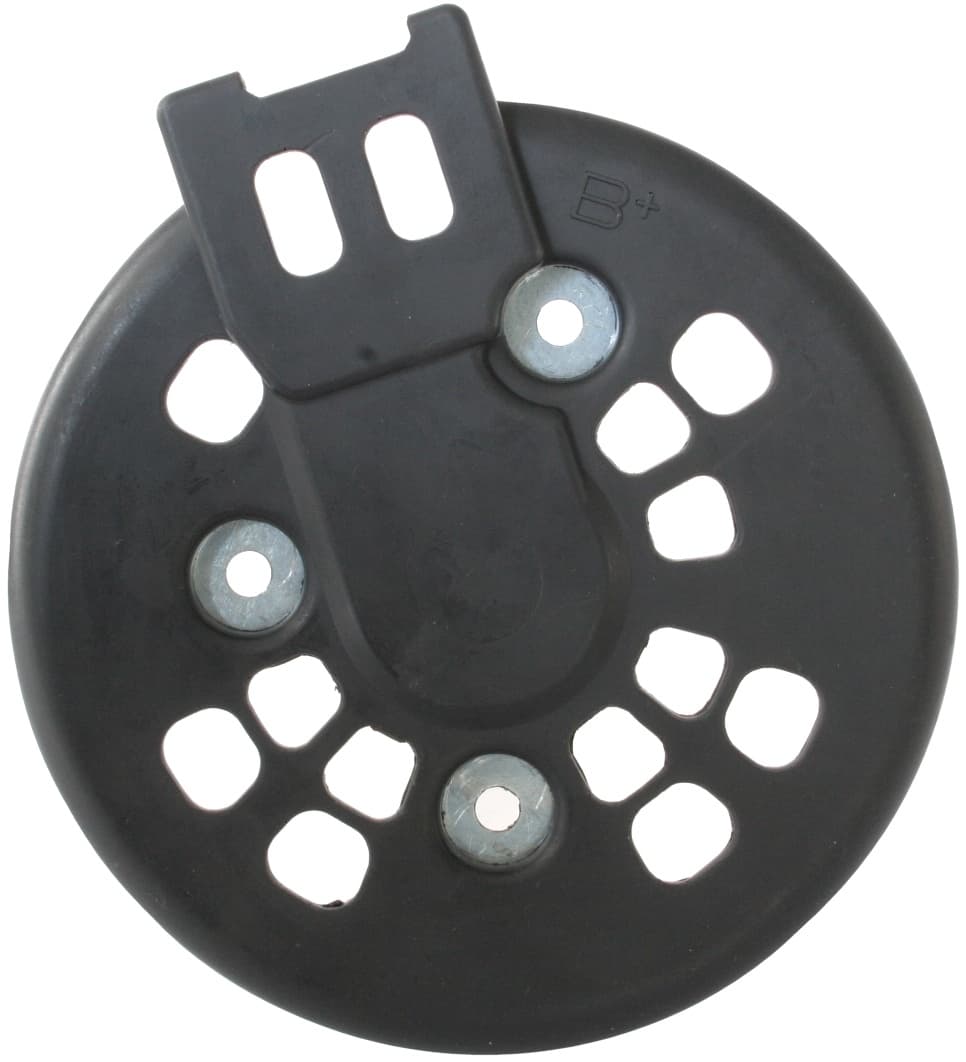

F032237614 - Protective CapTrade number 237614
Replacement for:
DENSO 237614
Inner Diameter 115.40, Outer Diameter 130.00, Height 33.70
F032239718 - Parts SetTrade number 239718
Replacement for:
DENSO 239718
Ring Height 1 8.45, Ring Height 2 8.45, Inner Diameter 5.95, Ring Distance 2.75, Outer Diameter 14.60, Total Length 46.40

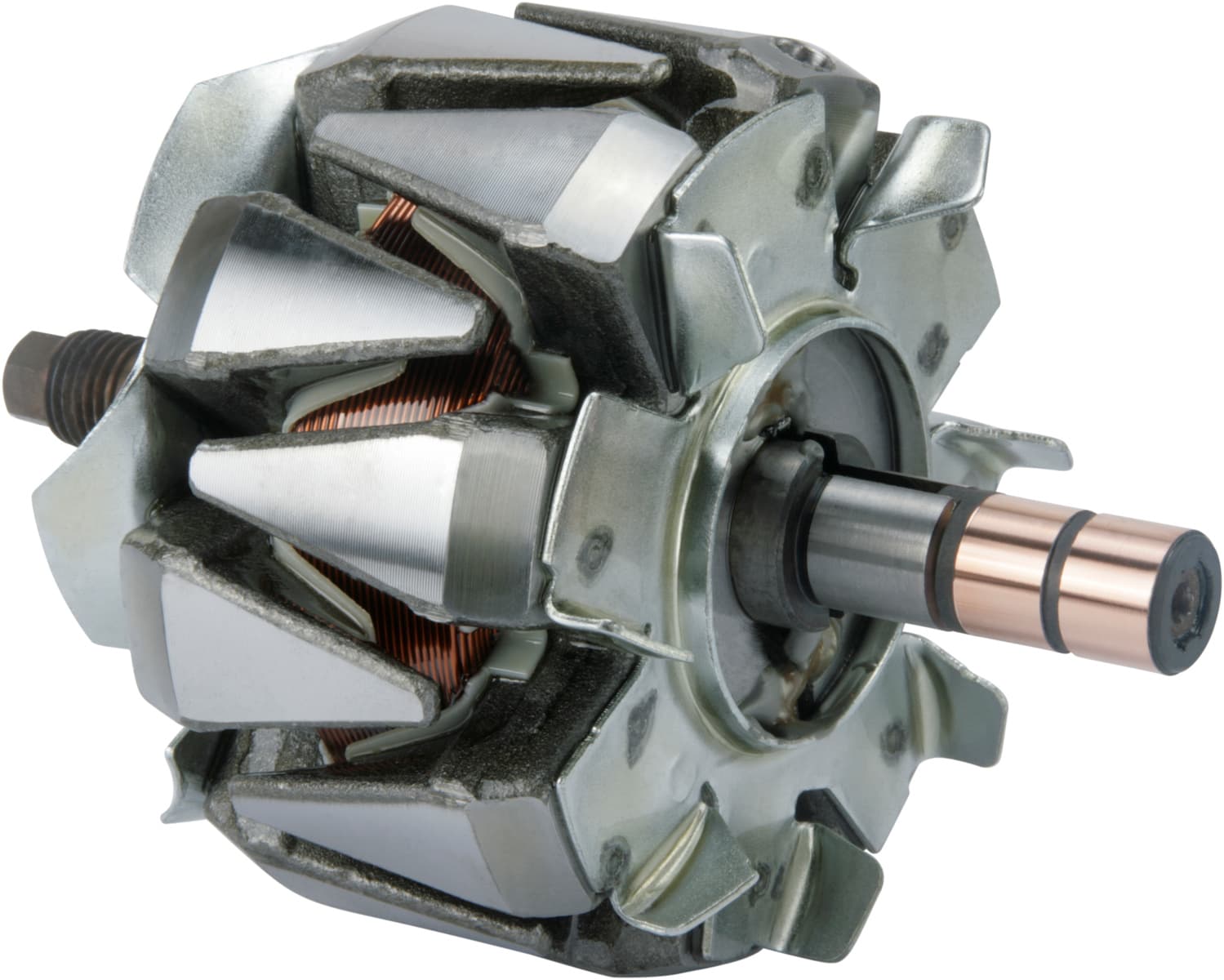

F032331584 - RotorTrade number 331584
Replacement for:
DENSO 331584
Voltage 14, Amp 120, Ring Height 1 8.70, Core type Firm, Ring Height 2 8.70, Slip Ring End Length 46.40, Bearing Diameter 15.00, Wing height 75.50, Cooling fan w/, Thread size M14-1.50, Outer Diameter 99.40, Wire Diameter 0.85, Thread Length 13.00, Slip Ring Rear 103.00, Slip Ring Outer Diameter 14.40, Wire weight 358, Core Diameter 56.10, Ring Distance 2.50, Drive End Length 47.80, Windings 330, Core height 24.00, Slip Ring Front 91.90, Rotation CW, Height 50.50, Total Length 46.40;147.00, Shaft Diameter 17.00
F032333119 - Ball BearingTrade number 333119
Replacement for:
DENSO 9491002820
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 6303-2RS1/C3., Height 14.00
F032B40237 - Ball BearingTrade number B140237
Replacement for:
DENSO 9491005360
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00
F032B40371 - Carbon BrushTrade number B140371
Replacement for:
DENSO 0216600510
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Cable lugs w/o, Length 15.00, Thickness 7.00, Height 5.00
