Showing results for: DENSO 1042103821

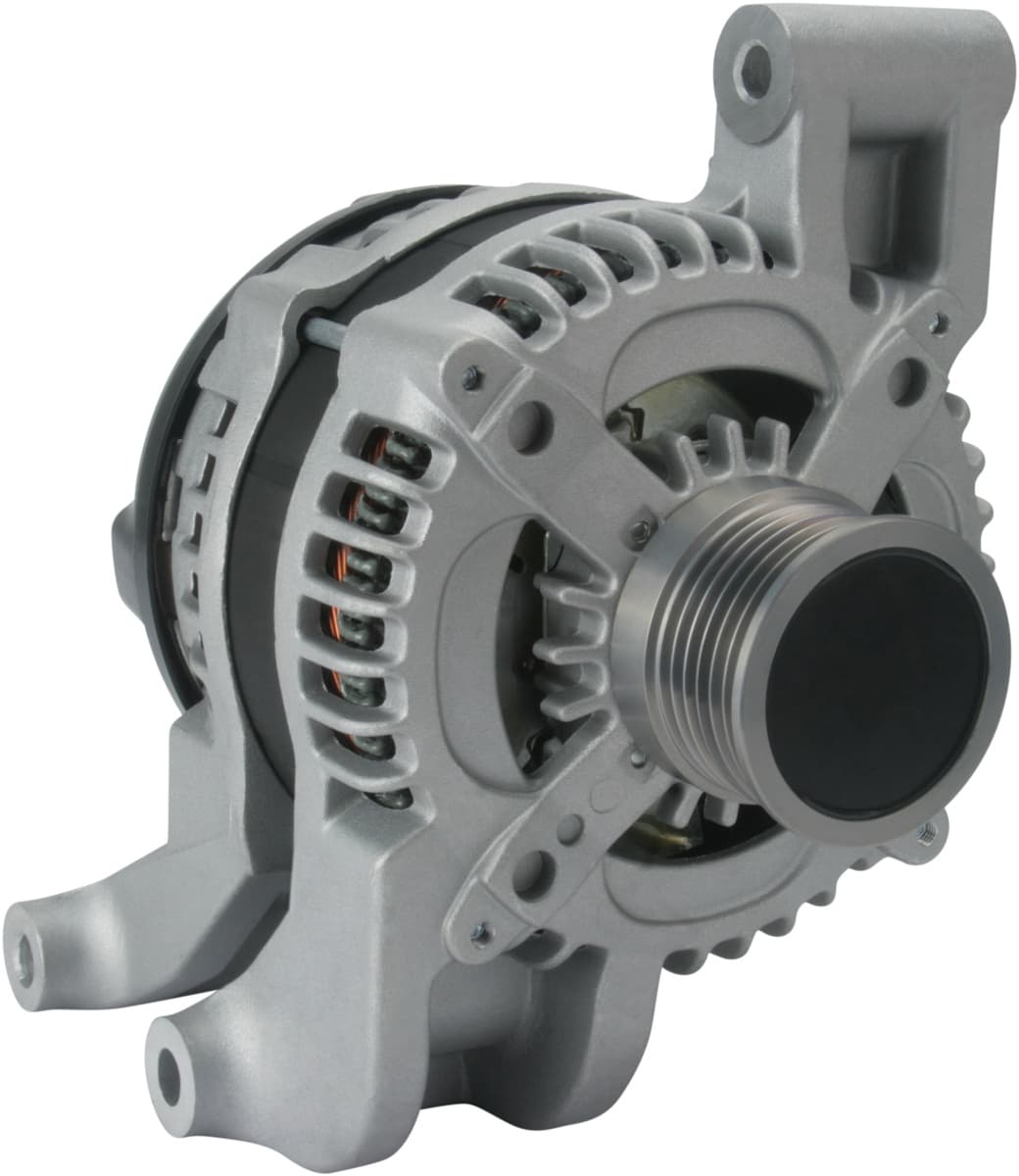

F032114083 - AlternatorTrade number 114083
Voltage 14, Amp 150, Bracket Hole Size 2 9.40, Grooves/pulley 6, Regulator type IR, Belt Adjustment Bracket Hole 1 8.50, Mounting Bracket Distance 68.00, Radius 89.00, Pulley Diameter 49.50, Prod. info BN, Pulley SP/FW, Pulley Distance 75.00, D+ Position 45, Plug no. 1 PL57, Radius 2 90.00, B+ M8, Rotation CW, Bracket Hole Size 1 8.60x9.60, Holder Arm Width 72.00, D+ Size Plug, Belt Adjustment Bracket Hole Position 5, Total Length 180.00, Position 45, B+ Position 50
F032140237 - Ball BearingTrade number 140237
Replacement for:
DENSO 9491005360
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00
F032191317 - ScrewTrade number 191317
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 14.00
F032191586 - ScrewTrade number 191586
Replacement for:
DENSO 9490076280
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 6.00
F032232788 - WasherTrade number 232788
Replacement for:
DENSO 0215060070
Bushing w/o, Total height/thickness 2.20, Collar Height 1.65, Inner Diameter 15.00, Material Steel, Outer Diameter 22.00, Collar Outer Diameter 1 15.90, Thickness 0.50
F032232790 - SealTrade number 232790
Replacement for:
DENSO 0215420220
Inner Diameter 24.50, Material Steel, Outer Diameter 35.20, Bushing w/o, Thickness 0.75
F032236334 - StatorTrade number 236334
Replacement for:
DENSO 236334
Voltage 14, Amp 130, Number of leads 3, Stator winding Double cross, Lead 3 2, Inner Diameter 99.70, Outer Diameter 128.40, Lead 2 2, Lead 1 2, Height 32.00
F032237606 - Protective CapTrade number 237606
Replacement for:
DENSO 237606
No./mount. holes 3, Inner Diameter 120.30, Material Plastic, Outer Diameter 127.30, Amount of Mounting Holes 3, Height 33.70

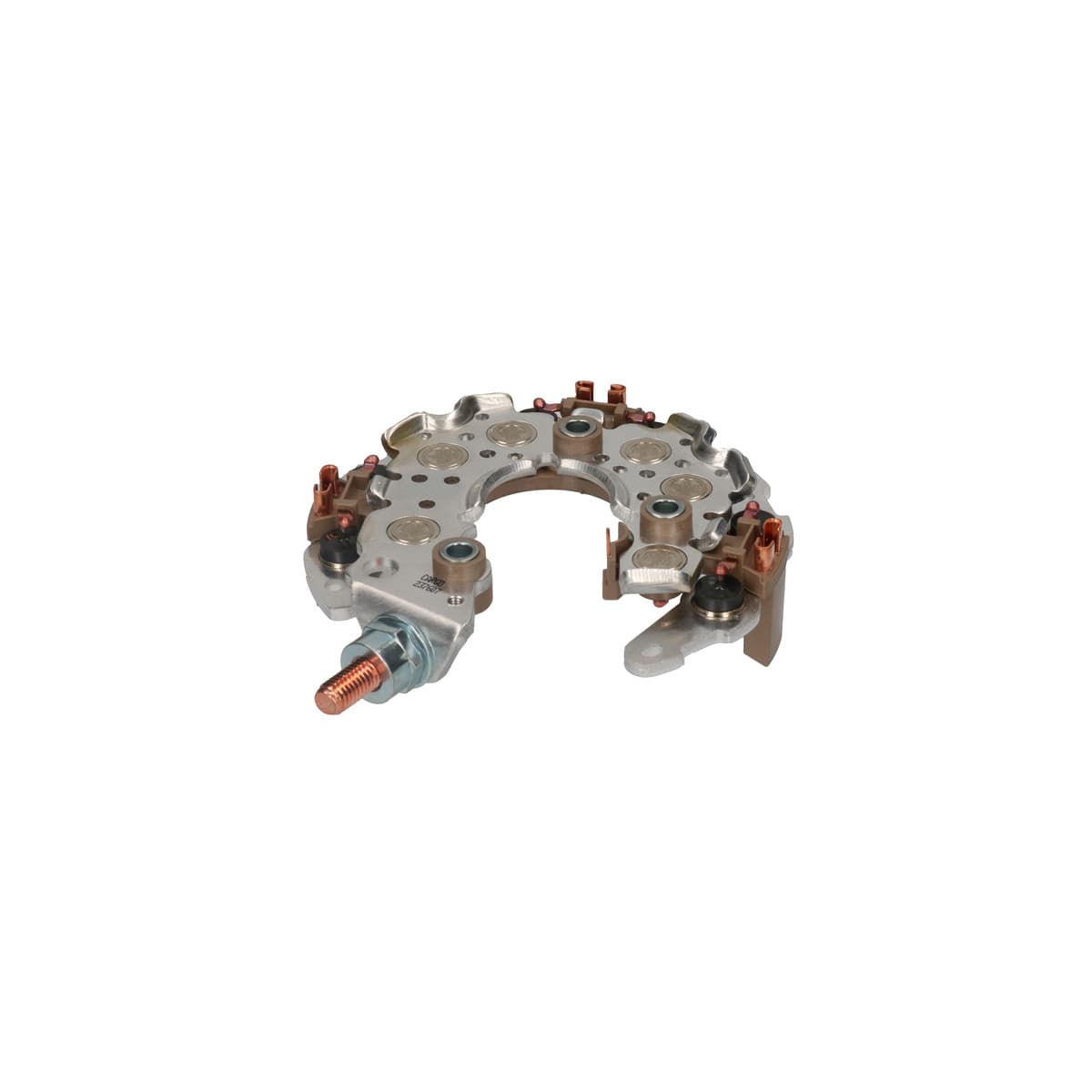

F032237607 - RectifierTrade number 237607
Replacement for:
DENSO 237607
Diode A Current Strength 50, Zener volt 24, Outer Diameter 117.00, Diode socket Aluminium, No. of diodes 12, B+ type Bolt, Diode type Avalanche, B+ size M8, Connection Double cross, Inner Diameter 29.50, B+ Length 28.00
F032237608 - InsulatorTrade number 237608
Replacement for:
DENSO 237608
Type PVC, Material Plastic, Colour Black
F032237609 - EL Field RegulatorTrade number 237609
Replacement for:
DENSO 1266003460
Voltage 14, Plug no. 1 PL57, Communication PWM, Distance Between Mounting Holes 44.00
F032239718 - Parts SetTrade number 239718
Replacement for:
DENSO 239718
Ring Height 1 8.45, Inner Diameter 5.95, Outer Diameter 14.60, Ring Distance 2.75, Ring Height 2 8.45, Total Length 46.40
F032333119 - Ball BearingTrade number 333119
Replacement for:
DENSO 9491002820
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 6303-2RS1/C3., Height 14.00

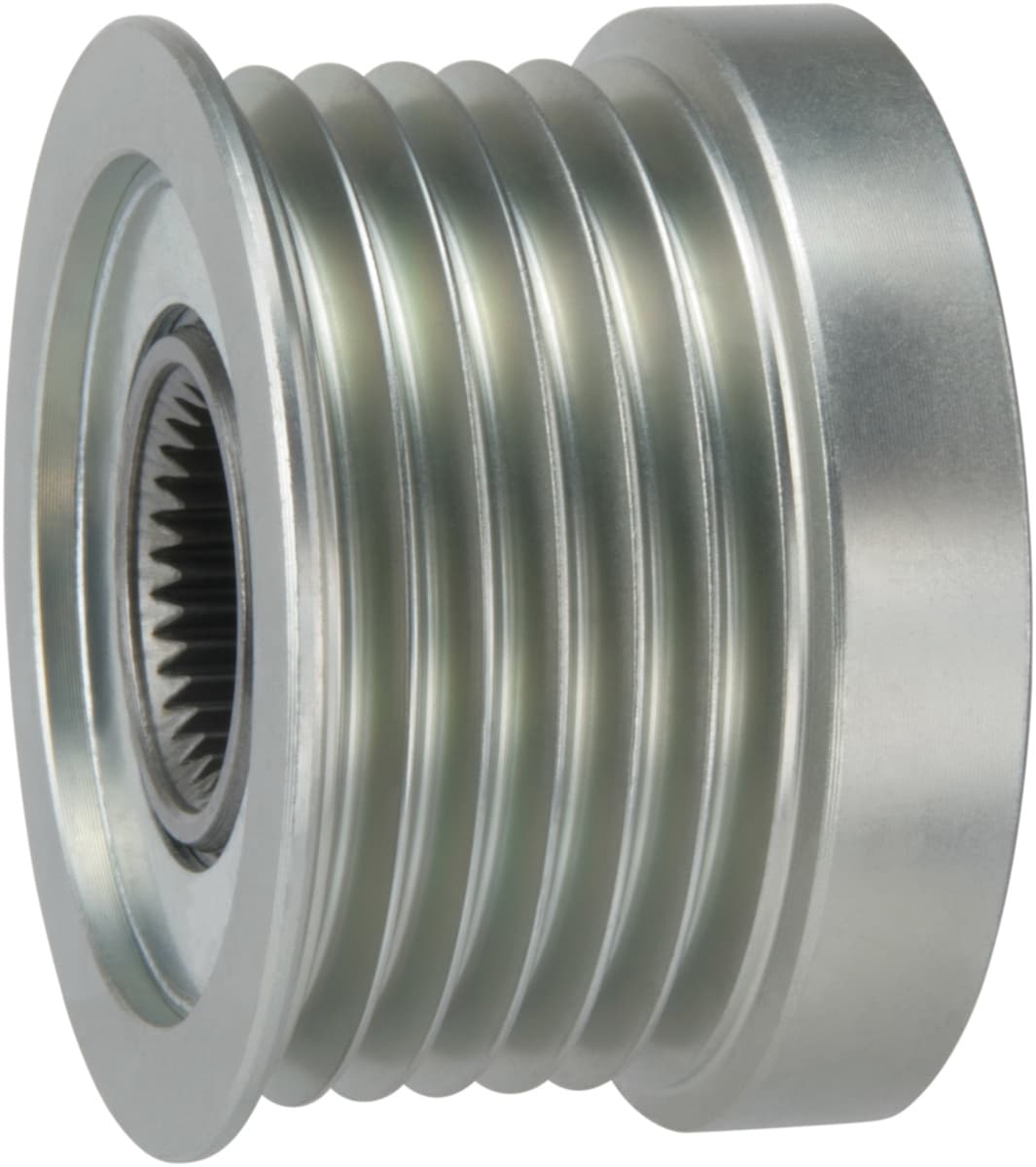

F032B37619 - PulleyTrade number B237619
Grooves 6, Rotation CW, Thread size M14-1.50, Outer Diameter 49.30, Belt type Multi Belt, Free run w/, Width 1 40.20, Groove Measurement 1 17.80, Rear Distance 4.50, Bore dia. 17.00, Remarks Pulley tool: HC-CARGO 210843., Pulley type SP;FW
F032B40237 - Ball BearingTrade number B140237
Replacement for:
DENSO 9491005360
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00
F032B40371 - Carbon BrushTrade number B140371
Replacement for:
DENSO 0216600510
Voltage 14, Conductor w/, Spring w/, Cable lugs w/o, Lead Length 51.50, Thickness 7.00, Length 15.00, Height 5.00
F032B91307 - Self-locking nutTrade number B191307
Self-locking w/, Material Steel, Thread/mm/" M5, Coating Electro Galvanized, Spanner Size 8
F032B91325 - ScrewTrade number B191325
DIN norm 6921, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 8.00, Spanner Size 7.00, Total Length 12.00
F032B91327 - ScrewTrade number B191327
DIN norm 6921, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 12.00, Spanner Size 7.00
F032B91513 - Self-locking nutTrade number B191513
Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032140093 - Ball BearingTrade number 140093
Replacement for:
DENSO 9491002820
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 141233, Height 14.00
F032140371 - Carbon-Brush SetTrade number 140371
Replacement for:
DENSO 0216600510
Voltage 14, Conductor w/, Spring w/, Cable lugs w/o, No./brushes 2, Lead Length 51.50, Solder hole w/o, Thickness 7.00, Length 15.00, Height 5.00
