Showing results for: DENSO 1042108020
F032133673 - Brush HolderTrade number 133673
Replacement for:
DENSO 0216202720
Voltage 14, Brush Width 6.80
F032133679 - SealTrade number 133679
Replacement for:
DENSO 0216260190
O-ring w/o, Inner Diameter 18.70, Double sealed No, Height 1.90
F032136357 - ScrewTrade number 136357
Replacement for:
DENSO 9490432000
Thread Size Rear M7, Thread Length Front 12.50, Thread size M5, Thread Length Rear 22.00, Total Length 67.00
F032140084 - Ball BearingTrade number 140084
Replacement for:
DENSO 9491003630
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS1., Height 11.00
F032140091 - Ball BearingTrade number 140091
Replacement for:
DENSO 9491006090
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 42.00, Remarks 6302-2RS1., Height 13.00
F032140371 - Carbon-Brush SetTrade number 140371
Replacement for:
DENSO 0216600420
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Solder hole w/o, Cable lugs w/o, No./brushes 2, Length 15.00, Thickness 7.00, Height 5.00
F032190538 - ScrewTrade number 190538
Replacement for:
DENSO 9490066970
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 16.00
F032191319 - ScrewTrade number 191319
Replacement for:
DENSO 9490066401
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M5, Length 6.00
F032191586 - ScrewTrade number 191586
Replacement for:
DENSO 9490065460
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 6.00

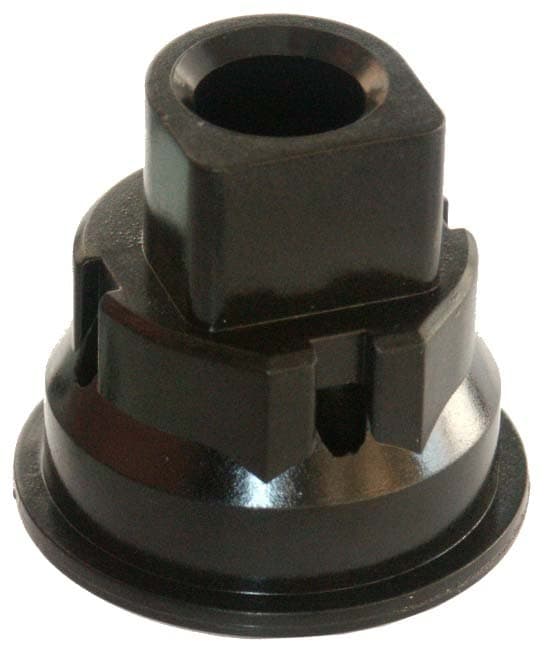

F032231786 - InsulatorTrade number 231786
Replacement for:
DENSO 0216052930
Gasket w/o, O-ring w/o, Inner Diameter 8.30, Collar w/o, Material Plastic, Outer Diameter 25.55, Height 24.10
F032232788 - WasherTrade number 232788
Replacement for:
DENSO 0215060070
Total height/thickness 2.20, Bushing w/o, Inner Diameter 15.00, Collar Height 1.65, Collar Outer Diameter 1 15.90, Material Steel, Outer Diameter 22.00, Thickness 0.50
F032232790 - SealTrade number 232790
Replacement for:
DENSO 0215420120
Inner Diameter 24.50, Bushing w/o, Material Steel, Outer Diameter 35.20, Thickness 0.75
F032236768 - EL Field RegulatorTrade number 236768
Replacement for:
DENSO 1260003690
Voltage setting 14.6, Voltage 14, Plug no. 1 PL92, Terminal type S-FR-IG-L, Regulator type Electronic, Distance Between Mounting Holes 51.50

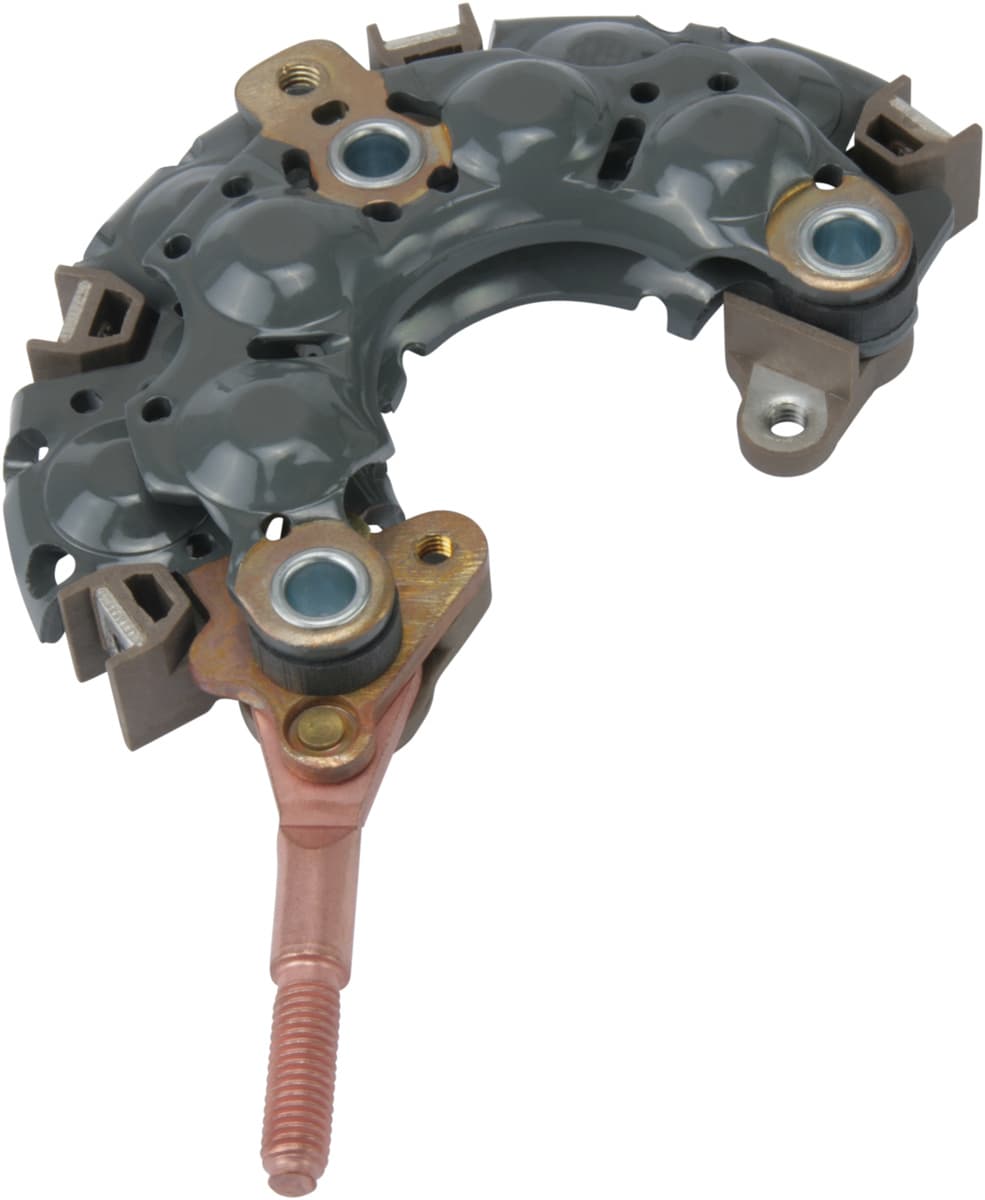

F032239026 - RectifierTrade number 239026
Replacement for:
DENSO 0215806510
Diode A 6-35, Voltage 14, Diode type Avalanche, Connections for stator 4, Diode - 3, B+ type Bolt, Diode + 3, B+ size M6, B+ Length 21.00, Outer Diameter 100.00
F032332133 - PulleyTrade number 332133
Replacement for:
DENSO 0210401070
Groove Measurement 1 10.90, Rear Distance 3.50, Free run w/, Width 1 41.20, Pulley type SP/FW, Bore dia. 15.00, Grooves 7, Depth 13.00, Rotation CW, Belt type Multi Belt, Thread size M14-1.50, Outer Diameter 58.00
F032333110 - Ball BearingTrade number 333110
Replacement for:
DENSO 9491003630
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS/C3., Height 11.00
F032333117 - Ball BearingTrade number 333117
Replacement for:
DENSO 9491006090
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 42.00, Remarks 6302-2RS1/C3., Height 13.00
F032333634 - PulleyTrade number 333634
Replacement for:
DENSO 0210401070
Groove Measurement 1 10.90, Rear Distance 3.60, Free run w/, Width 1 42.40, Pulley type SP/FW, Bore dia. 15.00, Grooves 7, Depth 12.80, Rotation CW, Belt type Multi Belt, Thread size M14-1.50, Outer Diameter 57.50
F032B40371 - Carbon BrushTrade number B140371
Replacement for:
DENSO 0216600420
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Cable lugs w/o, Length 15.00, Thickness 7.00, Height 5.00
