Showing results for: ISKRA 11131754

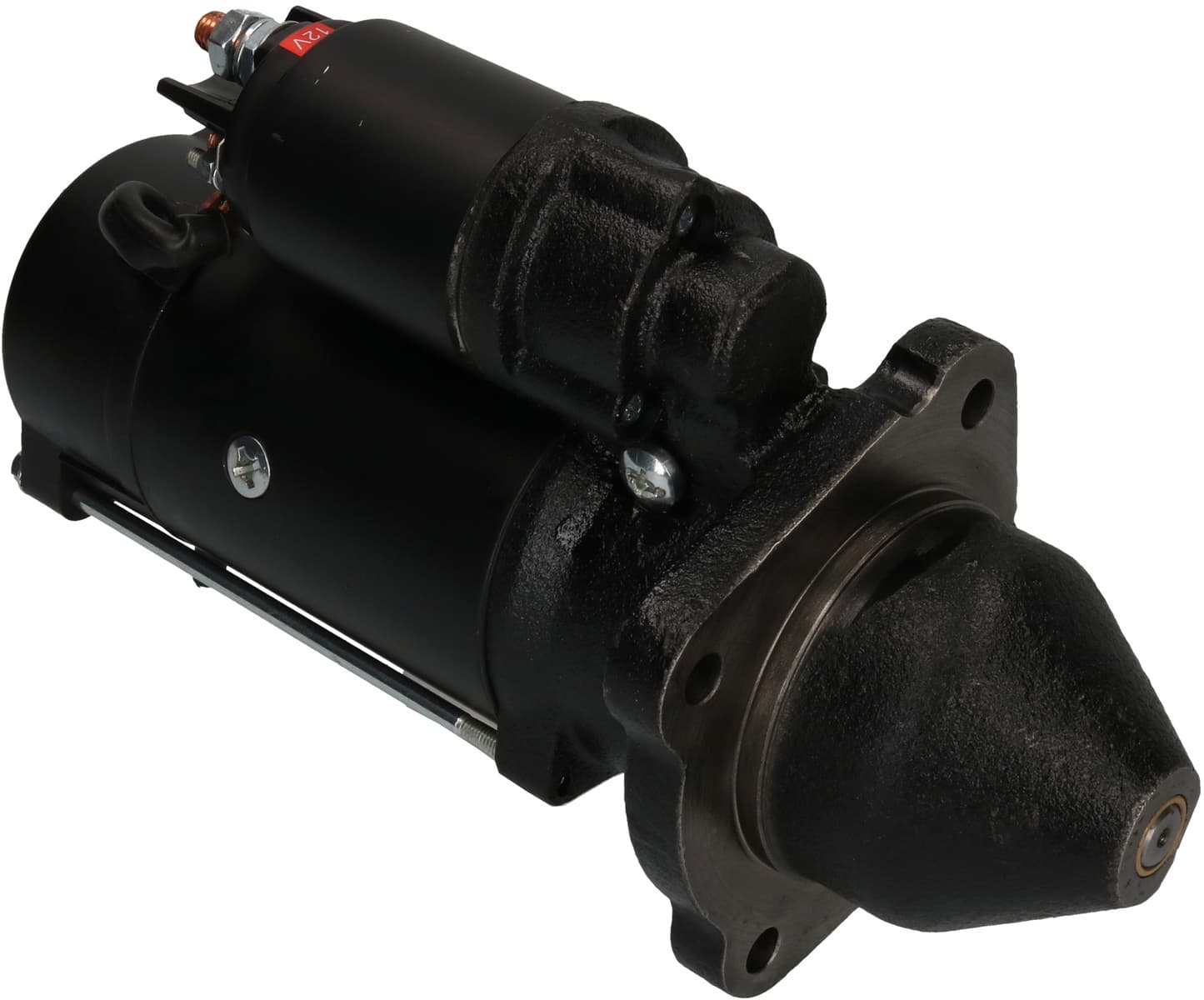

F032116093 - StarterTrade number 116093
kW 4.0, Voltage 12, Mounting Flange 89.00, Mounting Hole 3 11.00, Distance 127.00, Mounting Hole 2 11.00, Rear Distance 248.00, Distance 2 90.00, Distance 3 90.00, Drive Distance 28.00, Terminal 50 M5, B+ M10, Rotation CW, No./mount. holes 3 (0), Front Distance 73.00, Total Length 321.00, Position 20, Mounting Hole 1 11.00, Mounting Holes with Thread 0, B+ Position 60, Amount of Mounting Holes 3, Gear type GR, No./teeth 9
F032140977 - BushingTrade number 140977
Replacement for:
ISKRA 15120243
Pin w/o, Type Standard, Inner Diameter 14.33, Material Copper, Milling w/o, Outer Diameter 18.05, Lubricating groove w/o, Length 18.00

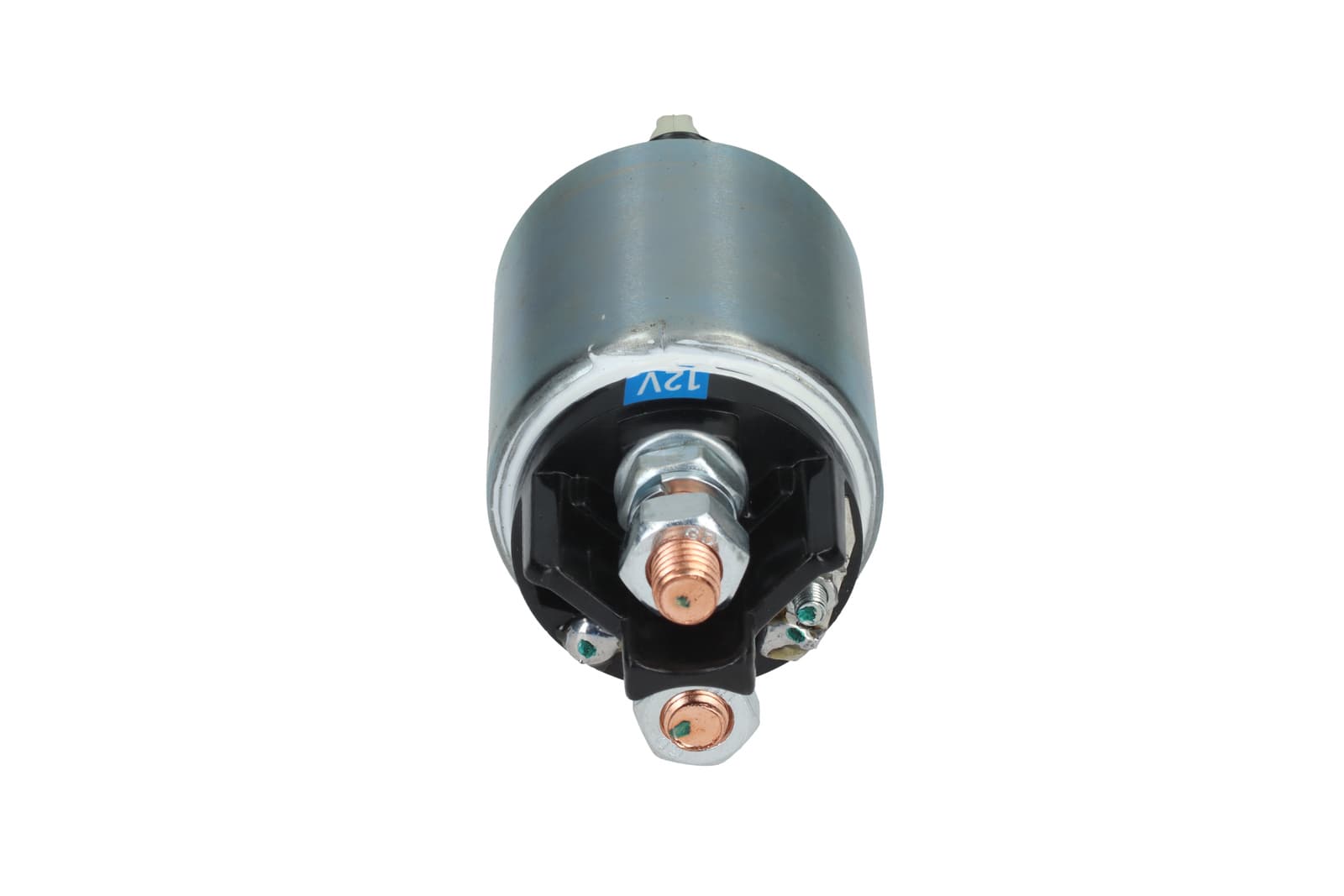

F032335109 - Solenoid SwitchTrade number 335109
Replacement for:
ISKRA 16915125
Voltage 12, Terminal 50 Spade, B+ Height 23.00, Coil Bolt Diameter M10, Activated plunger 30.50, B+ M10, Outer Diameter 61.00, No./mount. holes 3, No./terminals 3, Terminal 50/mm 6.30, Amount of Mounting Holes 3, Total Length 116.00

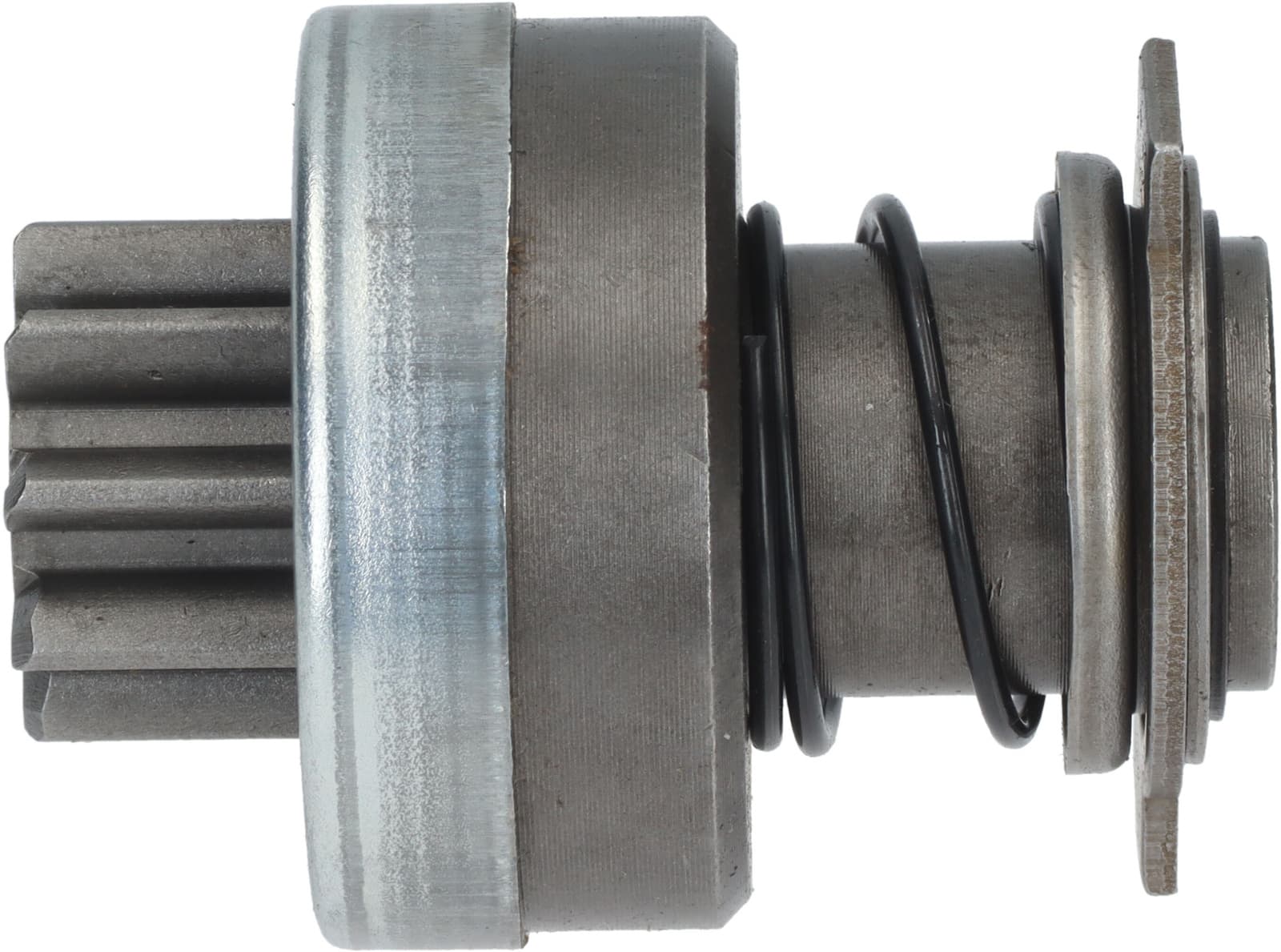

F032335697 - Overrunning-Clutch DriveTrade number 335697
Replacement for:
ISKRA 335697
Splines internal 6, Drive type Steel, Rotation CW, Inner Diameter 14.25, Outer Diameter 34.50, Shaft Distance 4.50, Housing Outer Diameter 62.00, No./teeth 9, Total Length 82.00
F032B40977 - BushingTrade number B140977
Replacement for:
ISKRA 15120243
Pin w/o, Type Standard, Inner Diameter 14.33, Material Copper, Milling w/o, Outer Diameter 18.05, Lubricating groove w/o, Length 18.00
F032142278 - Ball BearingTrade number 142278
Replacement for:
ISKRA 16908340
Bearing type Ball bearing, Inner Diameter 12.00, Outer Diameter 28.00, Remarks 6001-2RS/C3., Height 8.00
F032333101 - Ball BearingTrade number 333101
Replacement for:
ISKRA 16908340
Bearing type Ball bearing, Inner Diameter 12.00, Outer Diameter 28.00, Remarks 6001-2RS/C3., Height 8.00
