Showing results for: ISKRA 11132121

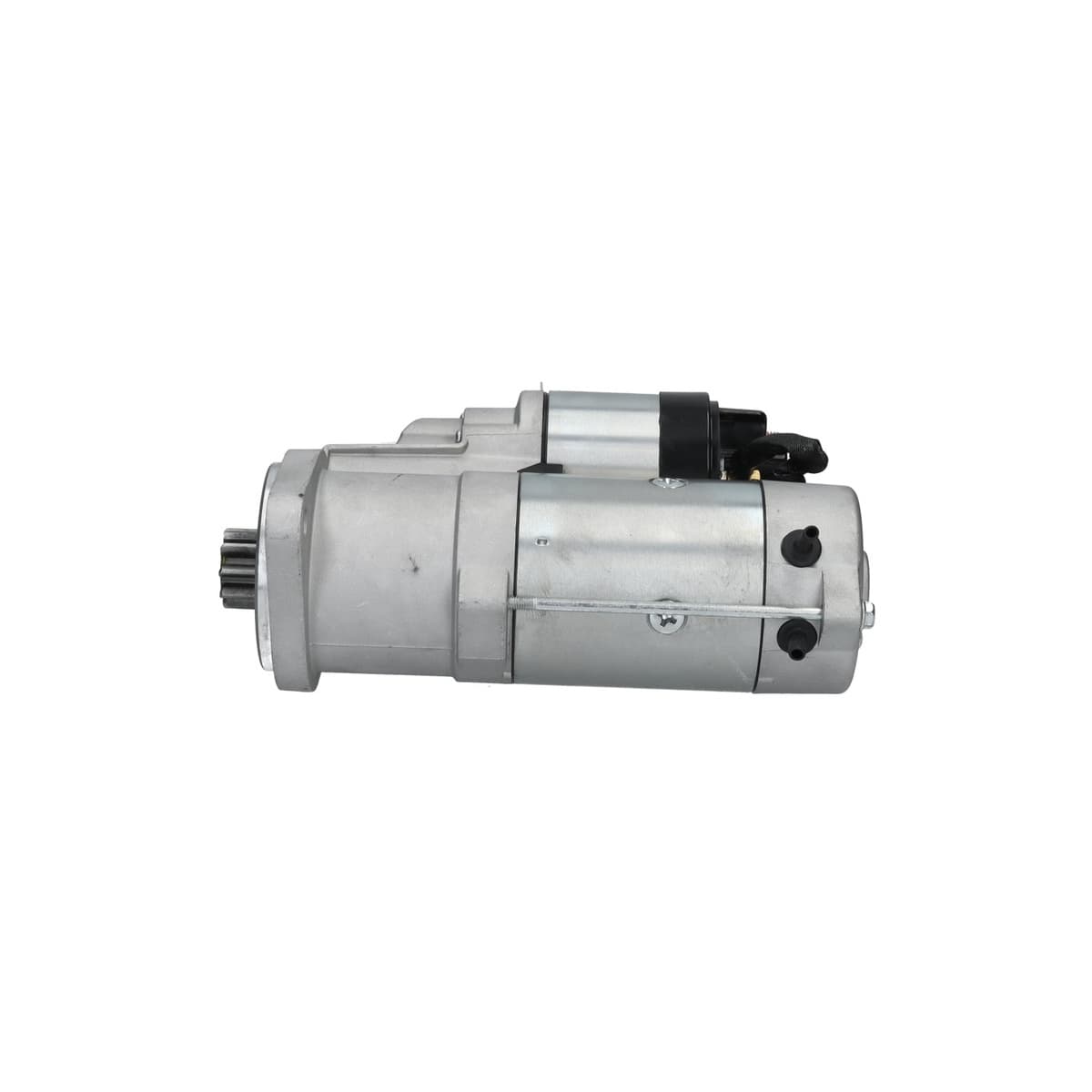

F032116796 - StarterTrade number 116796
kW 3.2, Voltage 12, Mounting Flange 89.00, Terminal 50 6.30, B+ M10, Rotation CW, Distance 127.00, No./mount. holes 2 (0), Mounting Hole 2 11.00, Rear Distance 245.00, Drive Distance 26.00, Front Distance 26.50, Amount of Mounting Holes 2, Total Length 271.50, Position 15, Mounting Hole 1 11.00, Gear type GR, Mounting Holes with Thread 0, No./teeth 9, B+ Position 60

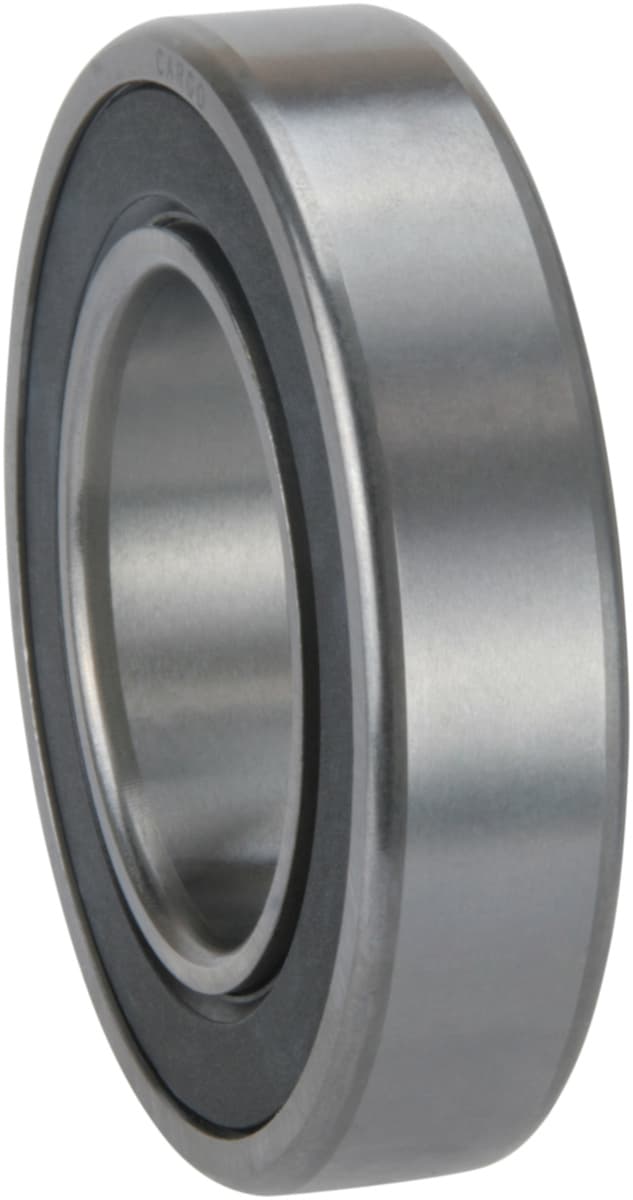

F032142289 - Ball BearingTrade number 142289
Bearing type Ball bearing, Inner Diameter 35.00, Outer Diameter 62.00, Remarks 6007-2RS1/C3., Height 14.00

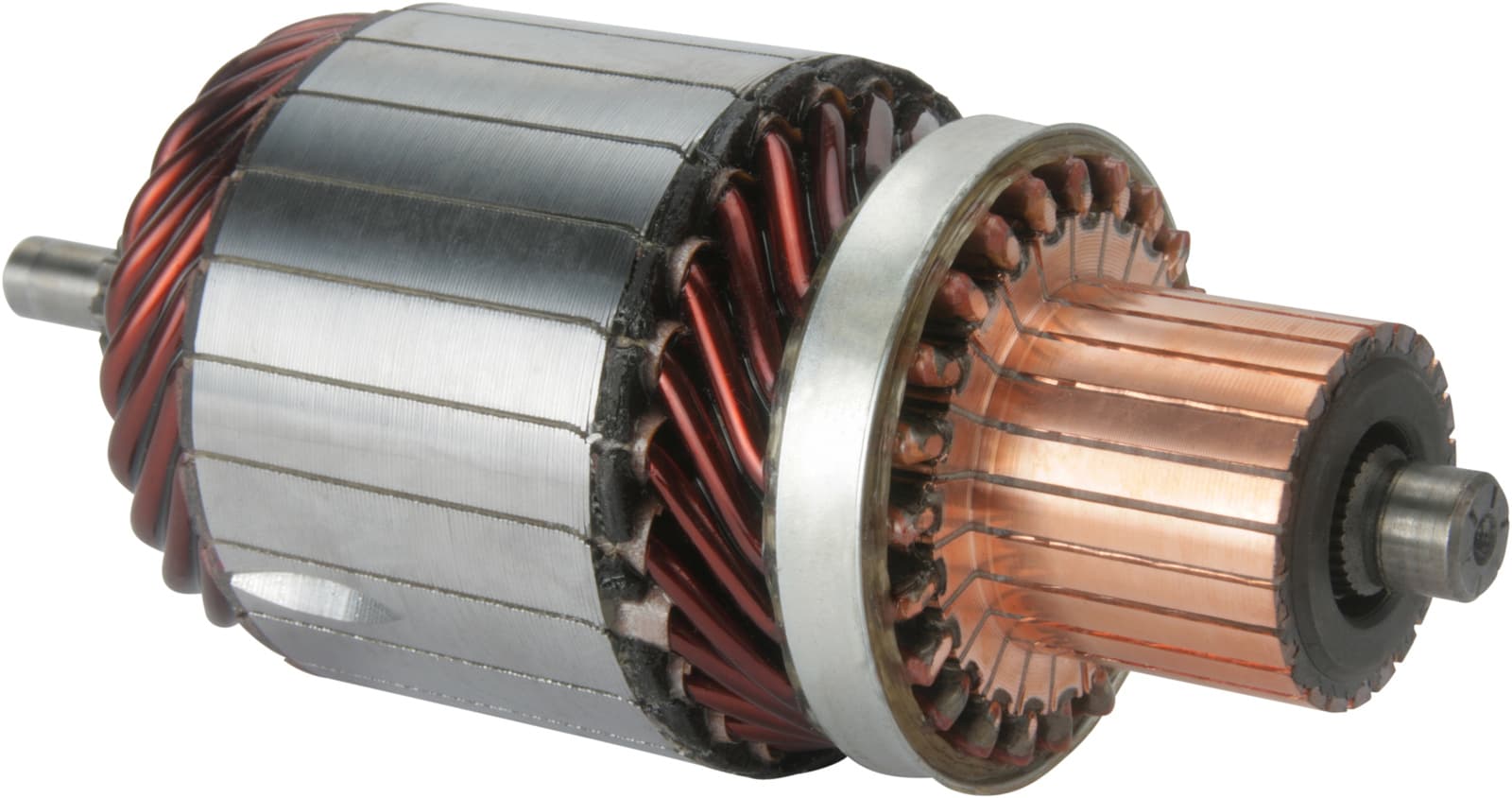

F032333777 - ArmatureTrade number 333777
Replacement for:
ISKRA 16907753
kW 3.0, Voltage 12, Drive End Inside Shaft Diameter Outside 8.00, Bar Lane Height 27.00, Commutator End Shaft Diameter 10.00, Spline Teeth Length 21.70, Commutator Outer Diameter 48.50, No./bars 23, Commutator Diameter 30.00, Commutator Distance 9.50, OD/spline/teeth 16.60, Core Diameter 60.00, Shaft length 148.50, No./teeth 10
