Showing results for: DENSO 1280005500

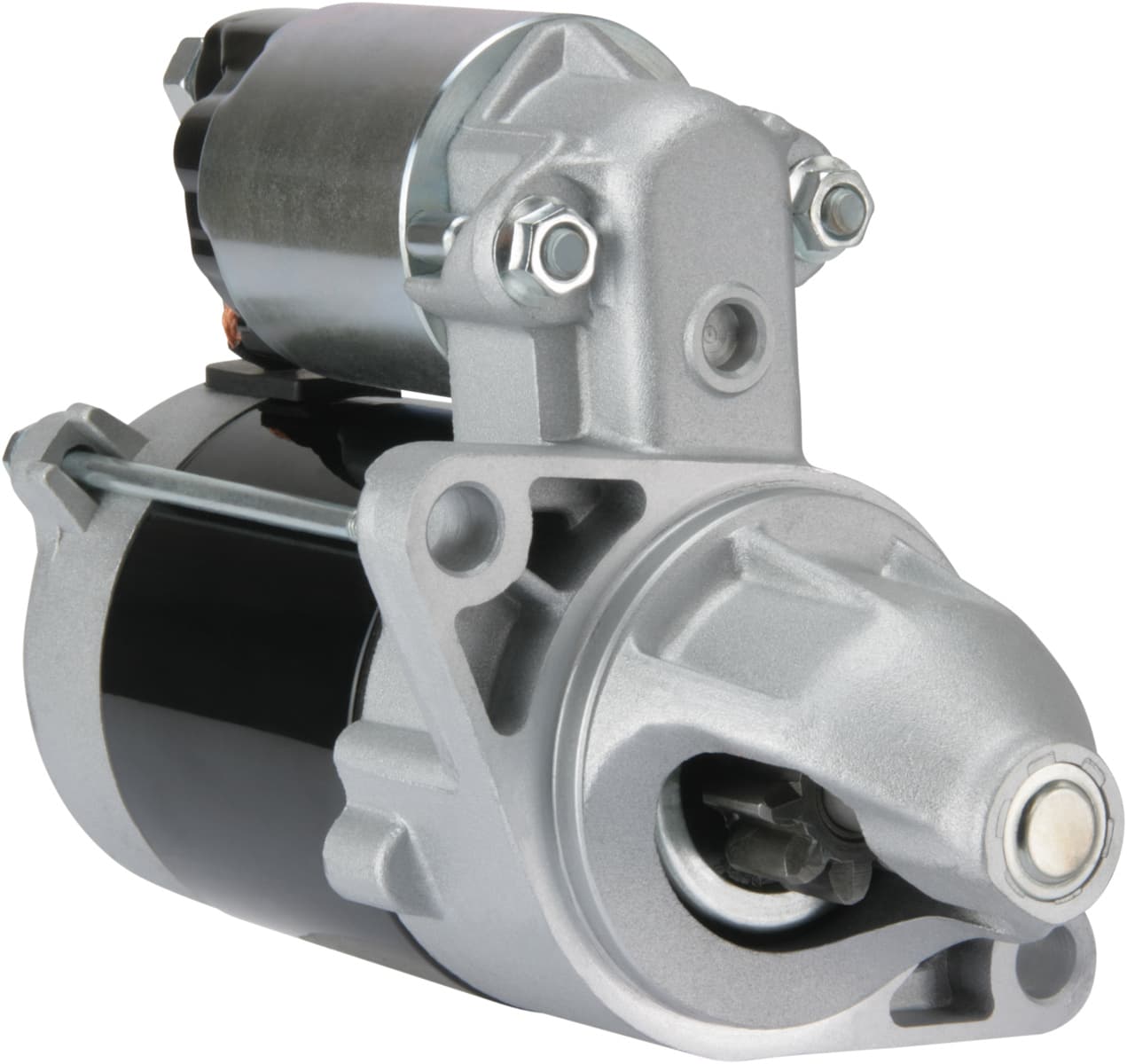

F032114823 - StarterTrade number 114823
kW 0.6, Voltage 12, Mounting Flange 66.00, Terminal 50 6.30, B+ M8, Rotation CCW, Distance 110.50, Prod. info BN, No./mount. holes 2 (0), Mounting Hole 2 10.00, Rear Distance 124.00, Drive Distance 18.00, Front Distance 54.00, Amount of Mounting Holes 2, Total Length 182.00, Position 45, Mounting Hole 1 10.00, Gear type DD, Mounting Holes with Thread 0, No./teeth 9
F032133808 - Brush HolderTrade number 133808
Replacement for:
DENSO 0285145020
Voltage 12, Spring w/o, Brush w/o, Inner Diameter 29.50, Outer Diameter 69.00, Remarks Brush set: HC-CARGO 140602. Brush springs: HC-CARGO 133810., Height 16.60

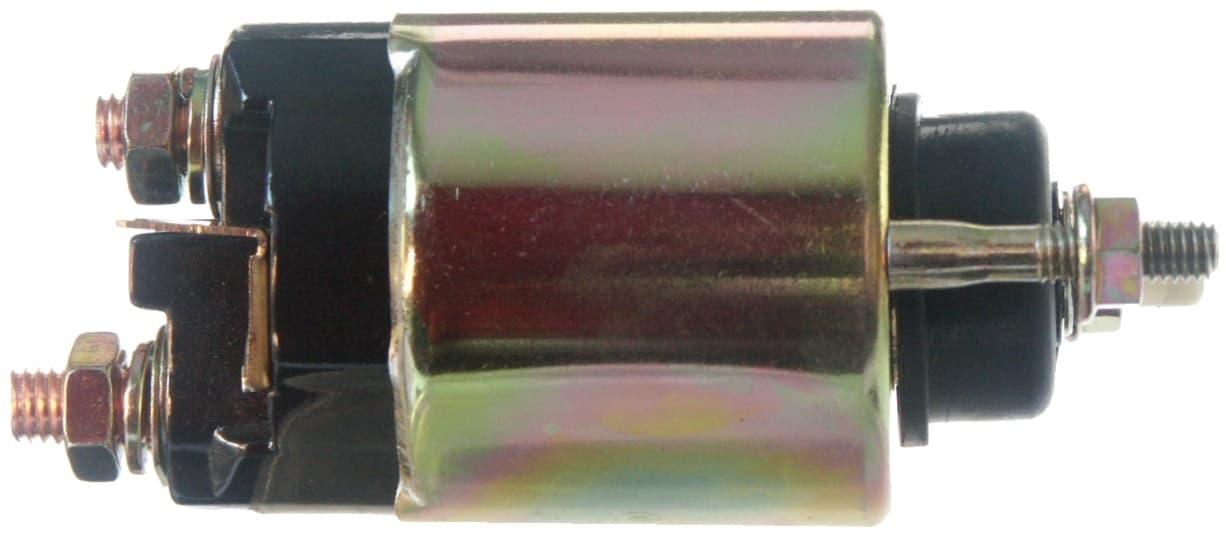

F032133809 - Solenoid SwitchTrade number 133809
Replacement for:
DENSO 0534007130
Voltage 12, Terminal 50 Spade, B+ Height 14.00, Coil Bolt Diameter M8, B+ M8, Outer Diameter 50.00, No./mount. holes 2, No./terminals 3, Terminal 50/mm 6.30, Coil Bolt Length 11.00, Amount of Mounting Holes 2, Total Length 86.00, Remarks Cap: HC-CARGO 133099. Contact Plate: HC-CARGO 135016.
F032133810 - Brush-Spring SetTrade number 133810
Replacement for:
DENSO 0285205010
Wire thickness 0.65, Inner Diameter 5.00, Material Steel, Outer Diameter 6.20, Length 22.00
F032140426 - BushingTrade number 140426
Replacement for:
DENSO 9491033840
Pin w/o, Type Standard, Inner Diameter 11.05, Material Copper, Milling w/o, Outer Diameter 14.72, Lubricating groove w/o, Length 8.00

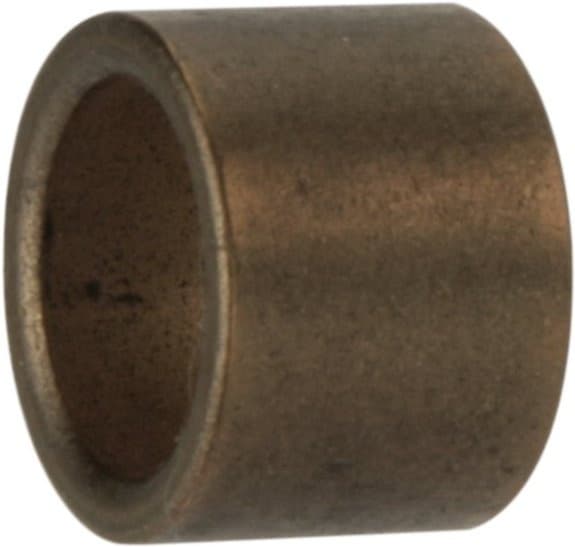

F032140427 - BushingTrade number 140427
Replacement for:
DENSO 9491033850
Pin w/o, Type Standard, Inner Diameter 11.05, Material Copper, Milling w/o, Outer Diameter 14.72, Lubricating groove w/o, Length 11.00
F032140602 - Carbon-Brush SetTrade number 140602
Replacement for:
DENSO 0280995450
Voltage 12, Conductor w/, Spring w/o, Cable lugs w/o, No./brushes 4, Lead Length 30.50, Solder hole w/o, Thickness 6.50, Length 10.00, Height 8.00
